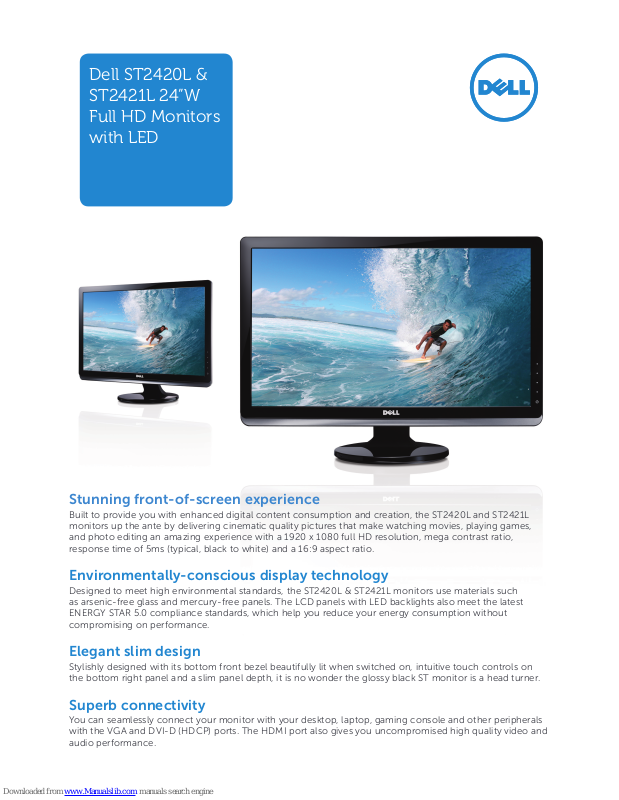

Dell ST2420L &
ST2421L 24”W
Full HD Monitors
with LED
Stunning front-of-screen experience
Built to provide you with enhanced digital content consumption and creation, the ST2420L and ST2421L
monitors up the ante by delivering cinematic quality pictures that make watching movies, playing games,
and photo editing an amazing experience with a 1920 x 1080 full HD resolution, mega contrast ratio,
response time of 5ms (typical, black to white) and a 16:9 aspect ratio.
Environmentally-conscious display technology
Designed to meet high environmental standards, the ST2420L & ST2421L monitors use materials such
as arsenic-free glass and mercury-free panels. The LCD panels with LED backlights also meet the latest
ENERGY STAR 5.0 compliance standards, which help you reduce your energy consumption without
compromising on performance.
Elegant slim design
Stylishly designed with its bottom front bezel beautifully lit when switched on, intuitive touch controls on
the bottom right panel and a slim panel depth, it is no wonder the glossy black ST monitor is a head turner.
Superb connectivity
You can seamlessly connect your monitor with your desktop, laptop, gaming console and other peripherals
with the VGA and DVI-D (HDCP) ports. The HDMI port also gives you uncompromised high quality video and
audio performance.
Page 2
Display
Viewable image size (diagonal) 60.97cm (24 inches)
Preset display area:
Horizontal
Vertical
158,818sq-mm (246.23 sq-inches)
531.36mm (20.92 inches)
298.89mm (11.77 inches)
Maximum resolution 1920 x 1080 at 60 Hz
Pixel pitch 0.277mm
Brightness (typical) 250cd/m
2
Color gamut (typical) 81%
1
Color depth 16.7 million colors
Contrast ratio (typical) 1,000:1
Dynamic contrast ratio (estimated)
ST2420L
ST2421L
8 million:1
7 million:1
Viewing angle
(vertical/horizontal)
160°/170°
Response time (typical) 5ms (black to white)
Panel type TN (active matrix – TFT LCD)
Backlight LED
Connectivity
Connectors DVI-D (HDCP), VGA , HDMI
Design Features
Stand Tilt only
Power
AC input
voltage/frequency/current
100 to 240 VAC/50 or 60 Hz ± 3 Hz/2.0A (maximum)
Power consumption (typical) 20W
Power consumption
standby/sleep mode
<1W
Dimensions (with stand)
Height 418.24mm (16.47 inches)
Width 574.96mm (22.64 inches)
Depth 203.68mm (8.02 inches)
Weight
Weight without stand assembly 3.65kg (8.05lbs)
Weight with stand assembly
and cables
4.29kg (9.46lbs)
Weight with packaging 5.75kg (12.68lbs)
Warranty
• 1 year Limited Hardware Warranty2 (USA & LAR)
• 3 years Limited Hardware Warranty2 (rest of the world)
Dell ST2420L & ST2421L 24”W Full
HD Monitors with LED
1
Color gamut (typical) is based on CIE1976 (81%) and CIE1931 (68%) test standards.
2
For a copy of the Limited Hardware Warranty, write Dell USA LP, Attn: Warranties, One Dell Way, Round Rock, TX 78682
or see www.dell.com/warranty.
Ad#G10002200
4°
21°
Designed for comfort,
convenience and ease-of-use
Dell recommends that customers dispose
used computer hardware, including
monitors, in an environmentally sound
manner. Potential methods include reuse
of parts or whole products and recycling
of product, components and/or materials.
For more information, please visit
http://dell.com/recycling_programs
and www.dell.com/environment
Side
Connectors
Back
Tilt
