Dell 3110cn User Manual

Download
Page 1
Dell™ Color Laser Printer 3110cn User's Guide
Notes, Notices, and Cautions
Click the links to the left for information on the features, options, and operation of your printer. For information on other documentation included with your printer, see "Finding Information."
Page 2

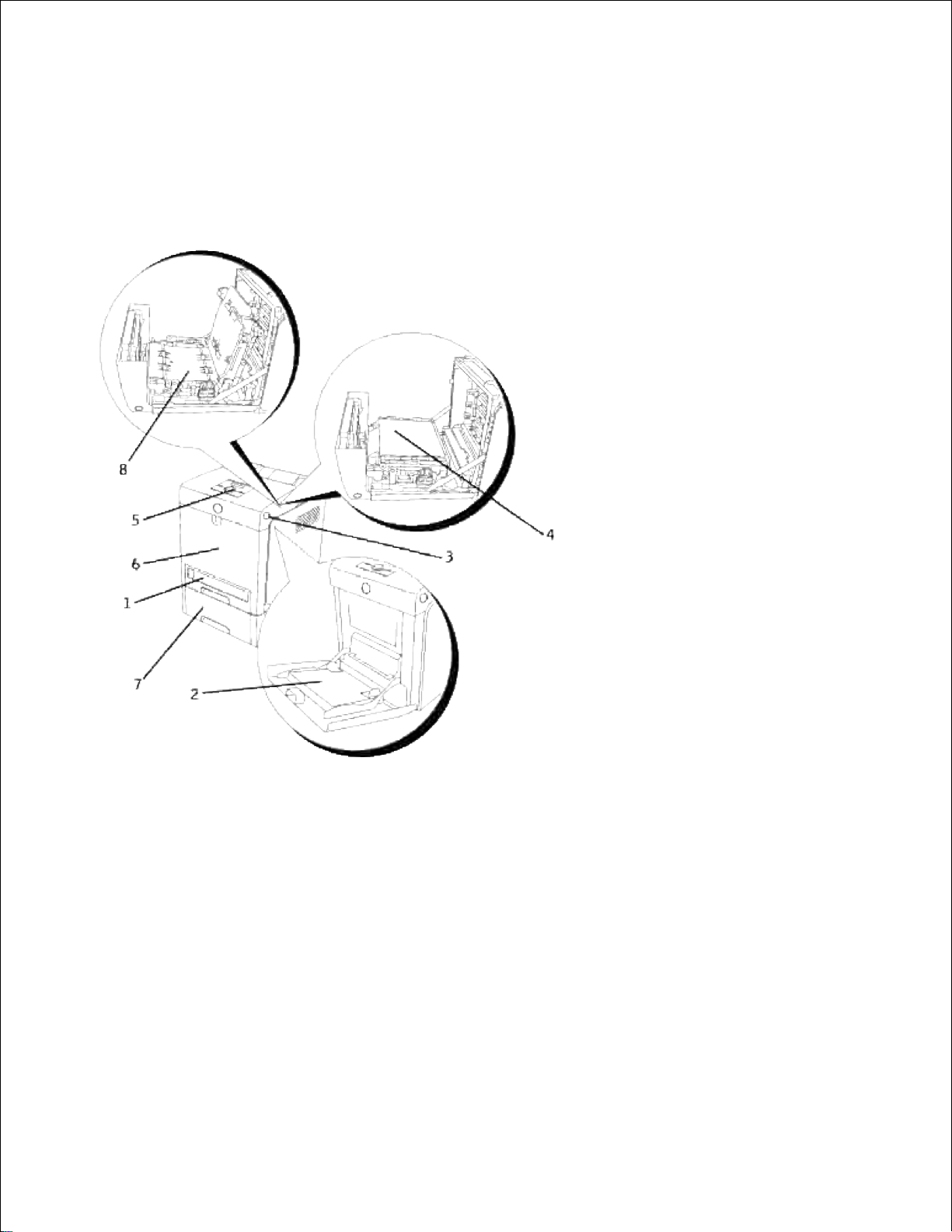

1
2
NOTE: Your printer allows for a maximum of 3 trays
(standard 250-sheet tray, optional 550-sheet feeder, and multipurpose feeder).
3
4
5
6
NOTE: The front cover opens by pushing the side
button.
7
8
9
10
11
To order replacement print cartridges or supplies from Dell:
Double-click the icon on your desktop.1.
Visit Dell's website, or order Dell printer supplies by phone.2.
www.dell.com/supplies
For best service, have your Dell printer Service Tag available. For help locating your Service Tag number, see "Express Service Code and Service Tag number."
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your printer.
Page 3
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how
to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
© 2007 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks of Microsoft Corporation; Macintosh, MacOS, EtherTalk and TrueType are trademarks of Apple Inc., registered in the U.S. and other countries; AppleTalk is a registered trademark of Apple Inc., registered in the U.S. and other countries;UNIX is a registered trademark of The Open Group in the United States and other countries; Red Hat and RPM are trademarks or registered trademarks of Red Hat Inc. in the United States and other countries; Linux is a trademark or registered trademark of Linus Torvalds in the United States and other countries; The Common UNIX Printing System, CUPS, and the CUPS logo are the trademarks of Easy Software Products; PCL is a registered trademark of Hewlett-Packard in the United States; ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR Partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
As for libtiff
Copyright © 1988-1997 Sam Leffler
Copyright © 1991-1997 Silicon Graphics, Inc.
THE SOFTWARE IS PROVIDED "AS-IS" AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAGHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
This software uses the Independent JPEG Group's JPEG software library. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Page 4
UNITED STATES GOVERNMENT RESTRICTED RIGHTS
This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Dell Inc., One Dell Way, Round Rock, Texas, 78682, USA.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
August 2007 Rev. A02
Page 5

Finding Information

What are you looking for?
Find it here
· Drivers for my printer
· My User's Guide
Drivers and Utilities CD
The Drivers and Utilities CD contains documentation and drivers for your printer. You can use the CD to uninstall/reinstall drivers or access your documentation.
Readme files may be included on your CD to provide last-minute updates about technical changes to your printer or advanced technical reference material for experienced users or technicians.
· Safety information
· How to use my printer
· Warranty information
Owner's Manual
CAUTION: Read and follow all safety instructions in your Owner's
Manual prior to setting up and operating your printer.
How to set up my printer
Setup diagram
Troubleshooting Guide
Troubleshooting Guide:
- User Settings
- Configuration
- Troubleshooting Instructions
- Other Problems
Express Service Code and Service Tag number
Page 6
Express Service Code and Service Tag number
The Express Service Code and Service Tag numbers are located inside the front door of your printer.
· Latest drivers for my printer
· Answers to technical service and support questions
· Documentation for my printer
Dell Support Website
The Dell Support Website provides several online tools, including:
· Solutions - Troubleshooting hints and tips, articles from technicians, and online courses
· Upgrades - Upgrade information for components, such as memory
· Customer Care - Contact information, order status, warranty, and repair information
· Downloads - Drivers
· Reference - Printer documentation and product specifications
You can access Dell Support at support.dell.com. Select your region on the WELCOME TO DELL SUPPORT page, and fill in the requested details to access help tools and information.
Page 7

Dell Printer Configuration Web Tool

Using the Dell Printer Configuration Web Tool
One of the features of the Dell Printer Configuration Web Tool is the E-Mail Alert Setup, which sends you, or the key operator, an e-mail when the printer needs supplies or intervention.
If you fill out printer inventory reports requiring the asset tag number of all of the printers in your area, use the Printer Information feature in the Dell Printer Configuration Web Tool . Just type the IP address of each printer on the network to display the asset tag number.
The Dell Printer Configuration Web Tool feature also lets you change printer settings and keep track of printing trends. If you are a network administrator, you can easily copy the printer's settings to one or all printers on the network – right from your Web browser.
To launch the Dell Printer Configuration Web Tool , just type your network printer's IP address in your Web browser.
If you do not know what your printer's IP address is, print a printer settings page, which lists the IP address:
Press Menu .1.
Press until Report/List appears, and then press .2.
Page 8
1.
2.
Printer Setting is displayed. Press .3.
The printer settings page is printed.
If the IP address shows 0.0.0.0 (the factory default), an IP address has not been assigned. To assign one for your printer, see "Assign an IP Address ."
Use the Dell Printer Configuration Web Tool for:
Printer Status
Get immediate feedback on printer supply status. When print cartridge is running low, click the Order Supplies link on the first screen to order additional print cartridges.
Printer Jobs
The Printer Jobs menu contains information on Job List page and Completed Jobs page. These pages show the details of the status regarding each protocol or the print jobs.
Printer Settings
Change printer settings and view the operator panel remotely.
Print Server Settings
Use the Print Server Settings menu to set the type of printer interface and necessary conditions for communications.
Copy Printer Settings
Quickly copy the printer's settings to another printer or printers on the network just by typing each printer's IP address.
NOTE: You must be a network administrator to use this feature.
Print Volume
Keep track of printing trends, such as paper usage and types of jobs being printed, and limit which users use the color mode and the maximum number of pages they can print.
Printer Information
Get the information you need for service calls, inventory reports, or the status of current memory and engine code levels.
Page 9
Tray Settings
Get the information about the paper type and size for each tray.
E-Mail Alert
Receive an e-mail when the printer needs supplies or intervention. Type your name or the key operator's name in the e-mail list box to be notified.
Set Password
Lock the operator panel with a password so that other users don't inadvertently change the printer settings you selected.
NOTE: You must be a network administrator to use this feature.
Online Help
Click Online Help to visit the Dell web page, and see the User's Guide on that page to verify configured settings.
Order Supplies at:
www.dell.com/supplies
Contact Dell Support at:
support.dell.com
Using the Dell Printer Configuration Web Tool
Environment Settings for Web Browsers
Dell recommends configuring the environment settings for your Web browsers, before using the Dell Printer Configuration Web Tool .
NOTE: The EWS pages may be displayed unreadable if you browse the pages that were configured by
using the browser of which language setting is different with your browser's.
For Internet Explorer 6.0/7.0
Setting Up the Display Language
Page 10
Select Internet Options from Tools on the menu bar.1. Select Languages in the General tab.2. Specify the display language in order of preference in the Language in order of preference list.3.
For example:
Italian (Italy) [it] Spanish (Traditional Sort) [es] German (Germany) [de] French (France) [fr] English [en] or English (United States) [en-us]
Setting the Printer's IP Address to Non-proxy
Select Internet Options from Tools on the menu bar.1. Select Proxy server under LAN Settings in the Connections tab.2. Do either of the following.
Clear the Use a proxy sever for you LAN check box. Click Advanced , and then specify the printer's IP address in the Do not use proxy server for
addresses beginning with field under Exceptions .
3.
When you have finished setting the language and proxy, type http://nnn.nnn.nnn.nnn/ (the printer's IP address) in the URL entry field of the browser to activate the Dell Printer Configuration Web Tool .
For Netscape Communicator 7.1
Setting Up the Display Language
Select Preferences from Edit on the menu bar.1. Select Languages under the Navigator group.2. Specify the display language in order of preference in the Language in order of preference list.3.
For example:
English [en] or English/United States [en-us] German [de] French [fr] Italian [it] Spanish [es]
Setting the Printer's IP Address to Non-proxy
Select Preferences from Edit on the menu bar.1. Select Proxies under Advanced of the Navigator group.2.
3.
Page 11
1.
2. Select either Direct connection to the Internet or Manual proxy configuration .
When you select Manual proxy configuration , specify the printer's IP address in the No Proxy for: box.
3.
When you have finished setting the language and proxy, type http://nnn.nnn.nnn.nnn/ (the printer's IP address) in the URL entry field of the browser to activate the Dell Printer Configuration Web Tool .
For Firefox 1.5 or Later
Setting Up the Display Language
Select Options from Tools on the menu bar.1. Click Advanced on the Options dialog box.2. Click Edit Languages in the General tab.3. Specify the display language in order of preference in the Language in order of preference list.4.
For example:
English [en] or English/United States [en-gb] Italian [it] Spanish [es] German [de] French [fr]
Setting the Printer's IP Address to Non-proxy
Select Options from Tools on the menu bar.1. Click General on the Options dialog box.2. Click Connection Settings .3. Do one of the following.
"Select the Direct connection to the Internet check box. "Select the Auto-detect proxy settings for this network check box "Select the Manual proxy configuration check box, and then enter the printer's IP address in
the No Proxy for edit box. "Select the Automatic proxy configuration URL check box
4.
When you have finished setting the language and proxy, type http://nnn.nnn.nnn.nnn/ (the printer's IP address) in the URL entry field of the browser to activate the Dell Printer
Configuration Web Tool .
Page 12
Page Display Format
The layout of the page is divided into three sections.
Top Frame
Located at the top of all pages is the Top Frame. When Dell Printer Configuration Web Tool is activated, the current status and specifications of the printer are displayed in the Top Frame on every page.
The following items are displayed in the Top Frame.
Dell Color Laser 3110cn
Displays the printer product name.
IP Address:
Displays the printer's IP address.
Location:
Displays the printer's location. The location can be changed in Basic Information on the Print Server Settings page.
Contact Person:
Displays the printer's administrator's name. The name can be changed in the Basic Information on the Print Server Settings page.
Printer Console
Displays the status of the printer operator panel display and indicators. This is automatically refreshed at the set interval. The interval can be changed in the Basic
Information on Print Server Settings page.
Help
Links to the Dell web page. See the User's Guide on that page.
Printer Bitmap
Shows the printer bitmap. The Printer Status menu appears in the Right Frame by clicking the image.
Left Frame
Located at the left side of all pages is the Left Frame. The titles of menus displayed in the Left Frame are linked to corresponding menus and pages. You can go to the corresponding page by clicking their characters.
The following menus are displayed in the Left Frame.
Page 13
Printer Status
Links to the Printer Status menu.
Printer Jobs
Links to the Printer Jobs menu.
Printer Settings
Links to the Printer Settings Report menu.
Print Server Settings
Links to the Print Server Reports menu.
Copy Printer Settings
Links to the Copy Printer Settings menu.
Print Volume
Links to the Print Volume menu
Printer Information
Links to the Printer Status menu.
Tray Settings
Links to the Tray Settings menu.
E-Mail Alert
Links to the Print Server Settings menu.
Set Password
Links to the Other Features menu.
Online Help
Links to the Dell web page. See the User's Guide on that page.
Order Supplies at:
Links to the Dell web page.
Contact Dell Support at:
Links to the Dell support page. Web address: http://support.dell.com/
Right Frame
Located at the right side of all pages is the Right Frame. The contents of the Right Frame correspond to the menu that you select in the Left Frame. For details on the items displayed in the Right Frame, see "Details of Menu Items ."
Buttons on the Right Frame
Refresh Button
Receives the current printer configuration and updates the latest information in the Right Frame.
Apply New Settings Button
Submits new settings made on the Dell Printer Configuration Web Tool to the printer. The old printer settings will be replaced by the new settings.
Restart printer to apply new settings Button
Submits new settings made on the Dell Printer Configuration Web Tool to the printer and reboots the printer. The old printer settings will be replaced by the new settings.
Restore Settings Button
Restores the old settings from before changes made. New settings will not be submitted to the printer.
Changing the Settings of Menu Items
Page 14
Some menus allow you to change the printer settings through the Dell Printer Configuration Web Tool . When you are accessing these menus, the authentication dialog appears on the screen. Type a user name and password for the printer's administrator by following the prompts displayed in the dialog box.
The default user name is admin , and the default password is left blank (NULL). You can change only the password in the Set Password page in the Print Server Settings menu. The user name cannot be changed. See "Set Password " for more information.
Details of Menu Items
"Printer Status "
"Printer Status "
"Printer Events "
"Printer Information "
"Printer Jobs " "Job List "
"Completed Jobs "
"Printer Settings "
"Printer Settings Report " "Menu Settings "
"Reports "
"Printer Settings "
"System Settings "
"Parallel Settings "
"Network Settings "
*4
"USB Settings "
*4
"PCL Settings "
"PS Settings "
*4
"Panel Settings "
"Printer Maintenance "
"Paper Density "
"Adjust BTR "
"Adjust Fuser "
"Auto Registration Adjustment "
"Color Registration Adjustments "
"Adjust Altitude "
"Reset Defaults "
"Clear Storage "
*1
Page 15
"Non-Dell Toner "
"Initialize PrintMeter "
"Web Link Customization "
"Print Server Settings "
"Print Server Reports "
"Print Server Setup Page "
"NetWare Setup Page "
*2
"E-Mail Alert Setup Page "
"Print Server Settings "
"Basic Information "
"Port Settings "
"Wireless LAN "
*3
"TCP/IP "
"NetWare "
*2
"SMB "
*2
"AppleTalk "
*3
"E-Mail Alert "
"Bonjour (mDNS) "
*4
"SNMP "
"Other Features "
"Set Password "
"Security "
"IPsec "*
2
"Reset Print Server "
"Copy Printer Settings " "Copy Printer Settings "
"Copy Printer Settings Report "
"Print Volume " "Print Volume "
"Dell ColorTrack "
"Tray Settings "
"Tray 1 Paper Type "
"Tray 1 Paper Size "
"Tray 1 Custom Size - Y "
"Tray 1 Custom Size - X "
Page 16
"Tray 2 Paper Type "
*5
"Tray 2 Paper Size "
*5
"Tray 2 Custom Size - Y "
*5
"Tray 2 Custom Size - X "
*5
"MPF Mode "
"Display Popup "
"MPF Paper Type "
"MPF Paper Size "
"MPF Custom Size - Y "
"MPF Custom Size - X "
*1 This item is only available when the RAM disk is set to on. *2 This item is only available when the optional multi protocol card is installed. *3 This item is only available when the optional wireless printer adapter is installed. *4 This item is only available with the printer using the postscript driver. *5 This item is only available when the optional 550-sheet feeder is installed.
Printer Status
Use the Printer Status menu to check the status of consumables, hardware, and specifications of the printer.
The following pages are displayed in the Printer Status menu.
Printer Status
Purpose:
To check the status of remaining consumables and trays.
Values:
Page 17
Cyan Cartridge Level Magenta Cartridge Level Yellow Cartridge Level Black Cartridge Level
Displays the percent of toner remaining in each print cartridge. When a cartridge is empty, a message appears. The text Print Cartridge is linked to the Dell Printer Supplies website.
Consumables
Status
n%
Indicates the toner remaining in each print cartridge as %. "n" is a number.
Empty
Indicates that consumables are used up.
Paper Trays
Status
OK
Indicates that there is some paper in the tray but the quantity is unknown.
Add Paper
Indicates that there is no paper in the tray.
Capacity
Displays the maximum capacity of the paper tray.
Size
Displays the size of paper in the tray.
Output Tray
Status
OK
Indicates that the tray is available.
Full
Indicates that the tray is not available.
Capacity
Displays the maximum capacity of the paper tray.
Cover
Status
Closed
Indicates that the cover is closed.
Open
Indicates that the cover is open.
Printer Type
Displays the type of printing for the printer. Color Laser is displayed normally.
Printing Speed
Displays the printing speed for the printer.
Printer Events
Purpose:
When printer faults occur such as running out of paper or running out of print cartridge , the details of all alerts or indications of faults are displayed in the Printer Events page.
Values:
Location
Displays the location where the printer fault occurred.
Details
Displays the details of the printer fault.
Printer Information
Purpose:
To verify the printer details such as hardware configuration and software version. This page can also be displayed by clicking Printer Information in the Left Frame.
Page 18
Values:
Dell Service Tag Number
Displays Dell's service tag number.
Asset Tag Number
Displays the printer's asset tag number.
Printer Serial Number
Displays the printer's serial number.
Memory Capacity
Displays the memory capacity.
Processor Speed
Displays the processing speed.
Printer Revision Levels
Firmware Version
Displays the revision date (revision level).
Network Firmware Version
Displays the revision date (revision level).
Printer Jobs
The Printer Jobs menu contains information on the Job List and Completed Jobs pages. These pages show the details of the status regarding each protocol or the print jobs.
Job List
Purpose: To confirm the print jobs that are being processed. Click the Refresh button to update the screen. Values:
ID
Displays the job id.
Job Name
Displays the file name of the job being printed.
Owner
Displays the job owner's name.
Host Name
Displays the name of the host computer.
Job Status
Displays the status of the job being printed.
Host I/F
Displays the status of the host interface.
Job Submitted Time
Displays the date the print job was submitted.
Completed Jobs
Purpose:
To check the completed print jobs. Up to the last 22 print jobs are displayed. Click the Refresh button to update the screen.
Values:
Page 19
Id
Displays the job id.
Job Name
Displays the file name of the completed print job.
Owner
Displays the job owner's name.
Host Name
Displays the name of the host computer.
Output Result
Displays the status of completed print jobs.
Impression Number
Displays the number of pages in the print job.
No. of Sheets
Displays the number of sheets in the print job.
Host I/F
Displays the status of the host interface.
Job Submitted Time
Displays the date the print job was submitted.
Printer Settings
Use the Printer Settings menu to display the printer settings report and to configure printer settings. The following tabbed pages are displayed at the top of the Right Frame.
Printer Settings Report
The Printer Settings Report tab includes the Menu Settings and Reports pages. Menu Settings Purpose:
To display the current settings of the operator panel menus.
Values:
System Settings
Power Saver Timer Mode 1
*1
Displays the amount of time before the printer enters the power saver timer mode 1 after it finishes a print job.
Power Saver Timer Mode 2
*1
Displays the amount of time before the printer enters the power saver timer mode 2 after it finishes a print job.
Alert Tone
Displays whether the printer sounds an alarm when an error occurs.
Time-Out
Displays specify the amount of time the printer waits to receive additional bytes of data from the computer.
Panel Language
Displays the language of the text on the operator panel screen.
Auto Log Print
Displays whether the printer outputs logs automatically.
Print ID
Displays a location where the user ID is printed.
Page 20
Print Text
Displays whether the printer outputs PDL data, which is not supported by the printer, as text when the printer receives it.
Banner Sheet Insert Position
Displays the position of banner sheet.
Banner Sheet Specify Tray
Displays the tray in which the banner sheet is loaded.
RAM Disk
Displays whether to allocate memory to the RAM disk file system for the Secure Print and Proof Print features. This item is only available when the 256 MB, or higher, optional memory card is installed.
Substitute Tray
Displays whether or not to use another size paper when the paper that is loaded in the specified tray does not match the paper size settings for the current job.
mm/inch
Displays the measurement unit on the operator panel screen.
Parallel Settings
ECP
Displays the ECP communication mode of the parallel interface.
Adobe Protocol
Displays PostScript communication protocol for each interface.
Network Settings
Adobe Protocol
Displays PostScript communication protocol for each interface.
USB Settings
Adobe Protocol
Displays PostScript communication protocol for each interface.
PCL Settings
Paper Tray
Displays the input tray.
Paper Size
Displays the default paper size.
Custom Size - Y
Displays the length of paper.
Custom Size - X
Displays the width of paper.
Orientation
Displays how text and graphics are oriented on the page.
2 Sided
Displays whether to do duplexing as the default for all print jobs.This item is only available when the optional duplexer is installed.
Font
Displays the default font from the registered fonts in the printer.
Symbol Set
Displays a symbol set for a specified font.
Font Size
Displays the font size for scalable typographic fonts.
Font Pitch
Displays the font pitch for scalable monospaced fonts.
Form Line
Displays the number of characters in a line.
Quantity
Displays the number of copies you want for the printer default value.
Image Enhancement
Displays whether to perform the image enhancement feature.
Page 21
Hex Dump
Displays whether the Hex Dump feature is on or off.
Draft Mode
Displays whether to print in the draft mode.
Line Termination
Displays whether to set the line termination.
Default Color
Displays the color mode setting.
PS Settings
PS Error Report
Displays whether the printer outputs error contents for a PostScript error.
PS Job Time-Out
Displays the execution time for one PostScript job.
Paper Select Mode
Displays the tray that is selected in the PostScript printing.
Panel Settings
Panel Lock
Displays whether the panel is locked by a password.
Paper Density
Plain
Displays the paper density for the plain paper.
Label
Displays the paper density for the label.
Adjust BTR
Plain
Displays the voltage settings of the transfer roller for plain paper.
Plain Thick
Displays the voltage settings of the transfer roller for thick plain paper.
Transparency
Displays the voltage settings of the transfer roller for transparencies.
Covers
Displays the voltage settings of the transfer roller for cover paper.
Covers Thick
Displays the voltage settings of the transfer roller for thick cover paper.
Label
Displays the voltage settings of the transfer roller for labels.
Coated
Displays the voltage settings of the transfer roller for coated paper.
Coated Thick
Displays the voltage settings of the transfer roller for thick coated paper.
Envelope
Displays the voltage settings of the transfer roller for envelopes.
Recycled
Displays the voltage settings of the transfer roller for recycled paper.
JPN Coated
Displays the voltage settings of the transfer roller for Japanese coated paper.
JPN Postcard
Displays the voltage settings of the transfer roller for Japanese postcards.
Adjust Fuser
Plain
Displays the temperature settings of the fuser for plain paper.
Page 22
Plain Thick
Displays the temperature settings of the fuser for thick plain paper.
Transparency
Displays the temperature settings of the fuser for transparencies.
Covers
Displays the temperature settings of the fuser for cover paper.
Covers Thick
Displays the temperature settings of the fuser for thick cover paper.
Label
Displays the temperature settings of the fuser for labels.
Coated
Displays the temperature settings of the fuser for coated paper.
Coated Thick
Displays the temperature settings of the fuser for thick coated paper.
Envelope
Displays the temperature settings of the fuser for envelopes.
Recycled
Displays the temperature settings of the fuser for recycled paper.
JPN Coated
Displays the temperature settings of the fuser for Japanese coated paper.
JPN Postcard
Displays the temperature settings of the fuser for Japanese postcards.
Auto Registration Adjustment
Auto Registration Adjustment
Displays whether to adjust the color registration automatically.
Non-Dell Toner
Non-Dell Toner
Displays whether to use a refilled print cartridge.
Web Link Customization
Select Reorder URL
Displays the URL that Order Supplies at links to in the left frame.
Regular
http://accessories.us.dell.com/sna
Premier
http://premier.dell.com
Tray Settings
Tray 1 Paper Type
Displays the type of paper loaded in the standard 250-sheet tray
Tray 1 Paper Size
Displays the size of paper loaded in the standard 250-sheet tray
Tray 1 Custom Size - Y
Displays the length of paper loaded in the standard 250-sheet tray.
Tray 1 Custom Size - X
Displays the width of paper loaded in the standard 250-sheet tray.
Tray 2 Paper Type
Displays the type of paper loaded in the optional 550-sheet feeder.
Page 23
Tray 2 Paper Size
Displays the size of paper loaded in the standard 550-sheet feeder
Tray 2 Custom Size - Y
Displays the length of paper loaded in the optional feeder.
Tray 2 Custom Size - X
Displays the width of paper loaded in the optional feeder.
MPF Mode
Displays the paper size and type when paper is loaded in the multipurpose feeder.
Display Popup
Displays a popup menu when paper is loaded in the multipurpose feeder.
MPF Paper Type
Displays the type of paper loaded in the multipurpose feeder.
MPF Paper Size
Displays the size of paper loaded in the multipurpose feeder.
MPF Custom Size
- Y
Displays the length of paper loaded in the multipurpose feeder.
MPF Custom Size
- X
Displays the width of paper loaded in the multipurpose feeder.
*1 All changes made on the Printer Settings , Copy Printer Settings , Dell ColorTrack , and Tray Settings menus on the Dell Printer Configuration Web Tool are discarded if they are made while the printer in power saver mode. Exit the mode to change the settings.
Reports Purpose:
To print various types of reports and lists.
Values:
Printer Settings
Click the Start button to print the printer settings page.
Panel Settings
Click the Start button to print the panel settings page.
PCL Fonts List
Click the Start button to print the PCL fonts list.
PCL Macro List
Click the Start button to print the PCL Macro list.
Job History
Click the Start button to print the job history report.
Error History
Click the Start button to print the error history report.
PS Fonts List
Click the Start button to print the PS fonts list.
Print Meter
Click the Start button to print the print volume report.
Color Test Page
Click the Start button to print the color test page.
Page 24
Stored Documents
Click the Start button to print the stored documents list. This item is only available when the Ram disk is set to on.
Printer Settings
The Printer Settings tab includes System Settings , Parallel Settings , Network Settings, USB Settings , PCL Settings , PS Settings , and Panel Settings pages.
System Settings Purpose:
To configure the basic printer settings.
Values:
Power Saver Timer Mode 1
Specifies the amount of time before the printer enters the power saver timer mode 1 after it finishes a print job in minutes between 5 and 60.
Power Saver Timer Mode 2
Specifies the amount of time before the printer enters the power saver timer mode 2 after it finishes a print job in minutes between 1 and 6.
Alert Tone
Specifies whether the printer sounds an alarm when an error occurs.
Time-Out
Specifies the amount of time the printer waits to receive additional bytes of data from the computer. When this timeout expires, the print job is canceled.
Panel Language
Determine the language of the text on the operator panel screen.
Auto Log Print
Specifies whether the printer outputs logs automatically.
Print ID
Specifies a location where the user ID is printed.
Print Text
Specifies whether the printer outputs PDL data, which is not supported by the printer, as text when the printer receives it.
Banner Sheet Insert Position
Specifies the position of banner sheet.
Banner Sheet Specify Tray
Specifies the tray in which the banner sheet is loaded.
RAM Disk
Specifies whether to allocate memory to the RAM disk file system for the Secure Print and Store Print features. This item is only available when the 256 MB, or higher, optional memory card is installed.
Substitute Tray
Specifies whether or not to use another size paper when the paper that is loaded in the specified tray does not match the paper size settings for the current job.
mm/inch
Specifies the measurement unit on the operator panel screen as either mm or inches.
Parallel Settings
Page 25
Purpose:
To configure the parallel interface.
Values:
ECP
Specifies the ECP communication mode of the parallel interface.
Adobe Protocol
Specifies PostScript communication protocol for each interface.
Network Settings Purpose:
To Specify the PostScript communication protocol for this printer.
Values:
Adobe Protocol
Specifies PostScript communication protocol for each interface.
USB Settings Purpose:
To change printer settings affecting a USB port.
Values:
Adobe Protocol
Specifies PostScript communication protocol for each interface.
PCL Settings Purpose:
To change printer settings that only affect jobs using the PCL emulation printer language.
Values:
Page 26
Paper Tray
Specifies the input tray.
Paper Size
Specifies the default paper size.
Custom Size - Y
Specifies the length of paper. The available range is from 98 mm (3.89 in.) to 355 mm (13.98 in.).
Custom Size - X
Specifies the width of paper. The available range is from 77 mm (3.03 in.) to 220 mm (8.66 in.).
Orientation
Specifies how text and graphics are oriented on the page.
2 Sided
Sets duplexing as the default for all print jobs. This item is only available when the optional duplexer is installed.
Font
Specifies the default font from the registered fonts in the printer.
Symbol Set
Specifies a symbol set for a specified font.
Font Size
Specifies the font size for scalable typographic fonts.
Font Pitch
Specifies the font pitch for scalable monospaced fonts.
Form Line
Specifies the number of characters in a line.
Quantity
Sets the number of copies you want for the printer default value.
Image Enhancement
Specifies whether to perform the image enhancement feature.
Hex Dump
Specifies whether to help isolate the source of a print job problem. With Hex Dump selected, all data sent to the printer is printed in hexadecimal and character representation. Control codes are not executed.
Draft Mode
Specifies whether to print in the draft mode.
Line Termination
Sets the line termination.
Default Color
Specifies the color mode to Color or Black . This setting is used when the color printing mode setting is not specified for the print job that is sent to the printer.
PS Settings Purpose:
To change printer settings that only affect jobs using the PostScript emulation printer language.
Values:
PS Error Report
Specifies whether the printer outputs error contents for a PostScript error.
PS Job Time-Out
Specifies the execution time for one PostScript job.
Paper Select Mode
Specifies the way to select the tray for the PostScript mode.
Page 27
Panel Settings Purpose:
To set or change the password to limit access to the menus from the operator panel. Set the password of the Dell Printer Configuration Web Tool from Set Password in Print Server
Settings . Values:
Panel Lock
Specifies whether to limit access to the menus.
New Password
Sets a password to limit access to the menus.
Re-enter Password
Type the new password again to confirm.
NOTE: This menu sets a password to lock the operator panel. When changing the password for the
Dell Printer Configuration Web Tool , click Set Password on the left frame and set the password.
Printer Maintenance
The Printer Maintenance tab includes Paper Density , Adjust BTR , Adjust Fuser , Auto Registration Adjustment , Color Registration Adjustments , Adjust Altitude , Reset Defaults , Clear Storage , Non-Dell Toner , Initialize PrintMeter , and Web Link Customization pages.
Paper Density Purpose:
To specify the paper density.
Values:
Plain
Light
Normal
Label
Light
Normal
Adjust BTR Purpose:
To specify the reference voltage settings for the transfer roller.
Values:
Page 28
Plain
Sets the reference voltage settings for the transfer roller for plain paper.
Plain Thick
Sets the reference voltage settings for the transfer roller for thick plain paper.
Transparency
Sets the reference voltage settings for the transfer roller for transparencies.
Covers
Sets the reference voltage settings for the transfer roller for cover paper.
Covers Thick
Sets the reference voltage settings for the transfer roller for thick cover paper.
Label
Sets the reference voltage settings for the transfer roller for labels.
Coated
Sets the reference voltage settings for the transfer roller for coated paper.
Coated Thick
Sets the reference voltage settings for the transfer roller for thick coated paper.
Envelope
Sets the reference voltage settings for the transfer roller for envelopes.
Recycled
Sets the reference voltage settings of the transfer roller for recycled paper.
JPN Coated
Sets the reference voltage settings of the transfer roller for Japanese coated paper.
JPN Postcard
Sets the reference voltage settings of the transfer roller for Japanese postcards.
Adjust Fuser Purpose:
To specify the temperature settings value for the fuser.
Values:
Plain
Sets the temperature settings for the fuser for plain paper.
Plain Thick
Sets the temperature settings for the fuser for thick plain paper.
Transparency
Sets the temperature settings for the fuser for transparencies.
Covers
Sets the temperature settings for the fuser for cover paper.
Covers Thick
Sets the temperature settings for the fuser for thick cover paper.
Label
Sets the temperature settings for the fuser for labels.
Coated
Sets the temperature settings for the fuser for coated paper.
Coated Thick
Sets the temperature settings for the fuser for thick coated paper.
Envelope
Sets the temperature settings for the fuser for envelopes.
Recycled
Sets the temperature settings of the fuser for recycled paper.
JPN Coated
Sets the temperature settings of the fuser for Japanese coated paper.
JPN Postcard
Sets the temperature settings of the fuser for Japanese postcards.
Page 29
Auto Registration Adjustment Purpose:
Specifies whether to adjust the color registration automatically.
Values:
Auto Registration Adjustment
Specifies whether to adjust the color registration automatically.
Color Registration Adjustments Purpose:
To print the color registration chart and to adjust the color registration by using the chart. This function is required after the printer is set up or moved.
Values:
Auto Correct
Click Start to adjust color registration automatically.
Color Regi Chart
Click Start to print the color registration chart.
Enter Number
Yellow
Specifies the values that are found in the color registration chart.
Magenta
Cyan
Adjust Altitude Purpose:
To adjust the height of the installation location of the printer.
Values:
0 meter
Select the value close to the height of the installation location of the printer.
1000 meters
2000 meters
3000 meters
Reset Defaults Purpose:
To initialize the NV (non-volatile) memory. After executing this function and rebooting the printer, all the menu parameters are reset to their default values.
Page 30
Values:
Reset Defaults and restart printer.
Click Start to initialize the NVM memory.
Clear Storage Purpose:
To clear all files that are stored as Secure and Proof Print in the RAM disk. This item is only available when the RAM disk is set to on.
Values:
Clear Storage
Click Start to clear all files stored in the RAM disk.
Non-Dell Toner Purpose:
Specifies whether to use the refilled print cartridge or not. When this setting is on, you can use print cartridges provided by other companies.
Values:
Non­Dell Toner
Overrides factory print cartridge setting. Non-Dell-brand print cartridges may disable some printer features, reduce print quality and
reduce the reliability of your printer. Dell recommends only new Dell-brand print cartridges for your printer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.
Initialize PrintMeter Purpose:
To initialize the print meter of the printer. Executing this function restarts the printer.
Values:
Initialize PrintMeter
Click Start to initialize the print meter.
Web Link Customization Purpose:
To configure the link used for ordering supplies.
Values:
Page 31
Select Reorder URL
Specifies the URL that Order Supplies at links to in the left frame.
Regular
http://accessories.us.dell.com/sna
Premier
http://premier.dell.com
Print Server Settings
Use the Print Server Settings menu to set the type of printer interface and necessary conditions for communications.
The following tabbed pages are displayed in the top of the Right Frame.
Print Server Reports
The Print Server Reports tab includes Print Server Setup Page , NetWare Setup Page , and E-Mail Alert Setup Page .
Print Server Setup Page Purpose:
To verify the current settings of TCP/IP protocol and printing ports. On this page, you can only verify the settings of items. If you want to change the settings, go to the pages in the Print Server Settings tab.
Values:
Ethernet *
1
Ethernet Settings
Current Ethernet Settings
MAC Address
Wireless Settings *
2
SSID
Network Type
MAC Address
Link Channel
Link Quality
TCP/IP Settings
IP Mode
Host Name
IPv4
IP Address Mode
IP Address
Subnet Mask
Page 32
Gateway Address
IPv6
Use Manual Address
Manual Address
Stateless Address 1-3
Link Local Address
Manual Gateway Address
Auto Configure Gateway Address
DNS *
3
IPv4
Get DNS Server Address from DHCP
Current DNS Server Address
IPv6
Get DNS Server Address from DHCPv6-lite
Current DNS Server Address
DNS Dynamic Update (IPv4) *
2
DNS Dynamic Update (IPv6) *
2
Auto Generate Search List
Search Domain Name
Time-out
Priority to IPv6 DNS Name Resolution
WINS *
3
WINS Mode
WINS Primary Server
WINS Secondary Server
LPD
Port Status
Connection Time-Out
Page 33
Port9100
Port Status
Port Number
Connection Time-Out
IPP *
3
Port Status
Printer URI
Connection Time-Out
Port Number
Maximum Sessions
WSD *
3
Port Status
Port Number
Receive Time-Out
Notification Time-Out
Maximum Number of TTL
Maximum Number of Notification
HTTP
Port Status
Port Number
Simultaneous Connections
Connection Time-Out
FTP
Port Status
Connection Time-Out
SMB *
3
Port Status
Host Name
Workgroup
Maximum Sessions
Unicode Support
Auto Master Mode
Page 34
Encrypt Password
Job Time-Out
Connection Time-Out
AppleTalk *
3
Port Status
Printer
AppleTalk Zone
AppleTalk Type
Delay Start Time
Bonjour (mDNS) *
3
Port Status
Host Name
Printer Name
SNMP Agent
Port Status
Trap Notification 1-4
Authenticate Error Trap
IPsec Settings
Protocol
IKE
IKE SA Lifetime
IPsec SA Lifetime
DH Group
PFS
Remote peers IPv4 address
Remote peers IPv6 address
Non IPsec communication policy
IP Filter (IPv4) *
4
Access List
*1 The Ethernet settings are not displayed when the optional wireless printer adapter is installed. *2 An optional wireless printer adapter is required to display the item.
Page 35
*3 An optional multi protocol card is required to display the items. *4 This item is only available for LPD or Port9100.
NetWare Setup Page Purpose:
To verify the current settings of IPX/SPX and Netware. In this page, you can only verify the settings of items. If you want to change the settings, go to the pages in the Print Server Settings tab.
Values:
IPX/SPX Settings
Frame Type
Displays the active frame type.
Current Frame Type
Displays the current frame type.
Network Address
Displays the IPX network address.
NetWare
Port Status
Displays the port status. When NetWare is implemented, the status of IPX/SPX and TCP/IP is also displayed.
Device Name
Displays the printer name.
Active Mode
Displays the current mode for Active Mode.
Tree Name
Displays the tree name.
Context Name
Displays the context name of the Print Server Object.
File Server Name
Displays the file server name.
Polling Interval
Displays the time interval.
NCP Packet Burst
Displays the status, and whether to use NCP packet burst.
Status Information
Displays messages according to the conditions of the printer.
SLP
Active Discovery
Displays whether active discovery is enabled.
NOTE: An optional multi protocol card is required to display the NetWare Setup page.
E-Mail Alert Setup Page Purpose:
To verify the current settings of SMTP/POP used for the e-mail feature and E-Mail Alerts feature. In this page, you can only verify the settings of items. If you want to change the settings, go to the pages in the
Print Server Settings tab. Values:
Page 36
E-Mail Server Settings
Port Status
Displays the port status.
Primary SMTP Gateway
Displays the primary SMTP gateway.
SMTP Port Number
Displays the SMTP port number.
E-Mail Send Authentication
Displays the authentication method for outgoing e­mail.
POP3 Server Address
Displays the POP3 server address.
POP3 Port Number
Displays the POP3 port number.
Reply Address
Displays the IP address of servers connected with SMTP protocol when data is incoming.
SMTP Server Connection
Displays the status of the SMTP server connection.
E-Mail Alert Settings
E-Mail List 1
Displays the acceptable e-mail addresses for the E­Mail Alert feature specified in E-mail List 1.
Select Alerts for List 1
Supplies Alerts
Displays the status, and whether to receive an E-Mail Alert for consumables.
Paper Handling Alerts
Displays the status, and whether to receive an E-Mail Alert for paper handling.
Service Call
Displays the status, and whether to receive an E-Mail Alert for Service Calls.
E-Mail List 2
Displays the acceptable e-mail addresses for the E­Mail Alert feature specified in E-mail List 2.
Select Alerts for List 2
Supplies Alerts
Displays the status, and whether to receive an E-Mail Alert for consumables.
Paper Handling Alerts
Displays the status, and whether to receive an E-Mail Alert for paper handling.
Service Call
Displays the status, and whether to receive an E-Mail Alert for Service Calls.
Print Server Settings
The Print Server Settings tab includes Basic Information , Port Settings , Wireless LAN , TCP/IP , NetWare , SMB , AppleTalk , E-Mail Alert , Bonjour(mDNS) , and SNMP pages.
Basic Information Purpose:
To configure the printer's basic information.
Values:
Page 37
System Settings
Printer Name
Specifies the name of the printer up to 31 alphanumeric characters.
Location
Specifies the location of the printer up to 63 alphanumeric characters.
Contact Person
Specifies the contact name, number, and other information of the printer administrator and service center up to 63 alphanumeric characters.
Administrator E­Mail Address
Specifies the contact address of the printer administrator and service center up to 63 alphanumeric characters.
Asset Tag Number
Enter the asset tag number for the printer.
EWS Settings
Auto Refresh
On
Refreshes the contents of the status display pages automatically.
Off
Does not refresh the status display pages automatically.
Auto Refresh Interval
Sets the time interval for refreshing the contents of the status display pages automatically from 15 to 600 seconds.
NOTE: The auto refresh feature is effective for the contents of the Top Frame, Printer Status page,
Job List page, and Completed Jobs page.
Port Settings Purpose:
To specify whether to enable or disable printing ports and management protocol features.
Values:
Ethernet *
1
Ethernet Settings
Auto
Detects Ethernet transmission rate and the duplex settings automatically.
10BASE-T Half-Duplex
Selects 10Base-T Half-Duplex as the default value.
10BASE-T Full-Duplex
Selects 10Base-T Full-Duplex as the default value.
100BASE-TX Half-Duplex
Selects 100Base-T Half-Duplex as the default value.
100BASE-TX Full-Duplex
Selects 100Base-T Full-Duplex as the default value.
Current Ethernet Settings
Displays the current settings of Ethernet.
MAC Address
Displays the printer's MAC address.
Port Status
LPD
Select the check box to enable the LPD.
Port9100
Select the check box to enable the Port9100.
Page 38
IPP *
2
Select the check box to enable the IPP port.
WSD
Select the check box to enable the WSD port.
FTP
Select the check box to enable the FTP port.
SMB *
2
Select the check box to enable the SMB. You can also configure the transport protocol to be used. TCP/IP and NetBEUI can be selected simultaneously as the transport protocol.
NetWare *
2
Select the check box to enable the NetWare port. You can also configure the transport protocol to be used. IPX/SPX and TCP/IP can be selected simultaneously as the transport protocol.
AppleTalk *
2
Select the check box to enable the AppleTalk port.
Bonjour (mDNS) *
2
Select the check box to enable the Bonjour(mDNS) feature.
E-Mail Alert
Select the check box to enable the E-Mail Alert feature.
SNMP Agent
Select the check box to enable the SNMP. You can also configure the transport protocol to be used. UDP and IPX can be selected simultaneously as the transport protocol. IPX is only available when the multi protocol card is installed.
*1 The Ethernet settings are not displayed when the optional wireless printer adapter is installed. *2 An optional multi protocol card is required to display the item.
NOTE: The settings in the Port Settings page will be valid only when the printer is rebooted. When
you change or configure the settings, click the Restart printer to apply new settings button to apply new settings.
Wireless LAN Purpose:
To configure the detailed setting for the wireless network.
Page 39
Wireless Settings
SSID
Specifies the name that identifies the wireless network. Up to 32 alphanumeric characters.
Network Type
Specifies the network type from either Ad-Hoc or Infrastructure .
MAC Address
Displays the MAC address of the printer's wireless network adapter.
Link Channel
Displays the channel number of the printer's wireless connection.
Link Quality
Displays the quality of the printer's wireless network connection.
Security Settings
Encryption
Select the security method from the list.
WEP Key Code
Select the WEP key code from either Hex or Ascii .
WEP Key (Password)
Specifies the WEP key set used through the wireless network only when WEP 128bit or WEP 64bit is selected for Encryption .
Transmit Key (Index)
Specifies the transmit key from the list.
Pass Phrase (Password)
Specifies the pass phrase from 8 to 63 alphanumeric characters only when WPA-PSK AES or WPA-PSK TKIP is selected for Encryption .
NOTE: To set WPA2-PSK, select WPA-PSK AES.
NOTE: An optional wireless printer adapter is required to display the Wireless page.
TCP/IP Purpose:
To configure the IP address, subnet mask, and gateway address of the printer.
Values:
TCP/IP Settings
IP Mode
Specifies the IP mode.
Host Name
Specifies the host name.
IPv4
IP Address Mode
Selects the IP address mode.
Manual IP Address
Sets the IP address.
Manual Subnet Mask
Sets the subnet mask.
Manual Gateway Address
Sets the gateway address.
IPv6
Use Manual Address
Select the check box to set the IP address manually.
Page 40
Manual Address
Sets the IP address.
Manual Gateway Address
Sets the gateway address.
DNS
DNS Domain Name *
1
Specifies the domain name of the domain name server. Up to 255 alphanumeric characters, periods, and hyphens can be used. If you need to specify more than one domain name, separate them using a comma or semicolon.
IPv4
Get DNS Server Address from DHCP
Select the check box to get the DNS server address automatically from the DHCP server.
Manual DNS Server Address
Sets the DNS server address.
IPv6
Get DNS Server Address from DHCPv6-lite
Select the check box to get the DNS server address automatically from the DHCPv6-lite server.
Manual DNS Server Address
Sets the DNS server address.
DNS Dynamic Update (IPv4) *
1
Select the check box to enable dynamic updates to DNS.
DNS Dynamic Update (IPv6) *
1
Select the check box to enable dynamic updates to DNS.
Auto Generate Search List *
1
Select the check box to automatically generate the search list.
Search Domain Name *
1
Specifies the search domain name. Up to 255 alphanumeric characters, periods, and hyphens can be used. If you need to specify more than one domain name, separate them using a comma or semicolon.
Time-out *
1
Specifies the time-out period between 1 and 60 seconds.
Priority to IPv6 DNS Name Resolution
Select the check box to enable the DNS Name Resolution feature.
WINS*
1
WINS Mode
Select the check box to get the WINS server address automatically from the DHCP server.
WINS Primary Server
Sets WINS server address in the nnn.nnn.nnn.nnn format. Each section of nnn.nnn.nnn.nnn is a value between 0 and 254. Note that values 127 and 224 to 254 are not valid for the first three­digits.
WINS Secondary Server
Sets a back up WINS server address in the nnn.nnn.nnn.nnn format. Each section of nnn.nnn.nnn.nnn is a value between 0 and 254. Note that values 127 and 224 to 254 are not valid for the first three-digits.
Page 41
LPD
Connection Time-Out
Sets the connection timeout period from 1 to 1000 seconds.
IP Filter (IPv4)
To set the IP Filter settings, click IP Filter . The IP Filter page is displayed.
Port9100
Port Number
Sets the port number from 9000 to 9999.
Connection Time-Out
Sets the connection timeout period between 1 and 1000 seconds.
IP Filter (IPv4)
To set the IP Filter settings, click IP Filter . The IP Filter page is displayed.
IPP*
1
Printer URI
Displays the printer URI.
Connection Time-Out
Sets the connection timeout period from 1 to 1000 seconds.
Port Number
Displays the port number for receiving requests from the client.
Maximum Sessions
Displays the maximum number of connections received simultaneously by the client.
WSD
Port Number
Sets the port number from 8000 to 9999.
Receive Time-Out
Sets the receive timeout period from 1 to 65535 seconds.
Notification Time-Out
Sets the notification timeout period from 1 to 60 seconds.
Maximum Number of TTL
Sets the maximum number of TTL from 1 to 10.
Maximum Number of Notification
Sets the maximum number of notifications from 10 to 20.
HTTP
Port Number
Sets the port number to 80 or from 8000 to 9999.
Simultaneous Connections
Displays the maximum number of connections received simultaneously by the client.
Connection Time-Out
Sets the connection timeout period from 1 to 255 seconds.
FTP
Password
Sets whether to enable or disable the password. And also specifies the password value up to 7 characters.
Connection Time-Out
Sets the connection timeout period from 1 to 1000 seconds.
IP Filter (IPv4) *
2
Address
Sets the address in the address field. Enter a numeric value between 0 and 255 in each field of "aaa.bbb.ccc.ddd." However, 127 and 224 to 254 cannot be used to "aaa."
Address Mask
Sets the Subnet Mask in the Mask field. Enter a numeric value between 0 and 255 in each field.
Page 42
Active Mode
Reject
Rejects printing from specified network address.
Permit
Permits printing from specified network address.
Disabled
Disables the IP Filter feature for the specified IP address.
*1 An optional multi protocol card is required to display the item. *2 This item is only available for LPD or Port9100.
NetWare Purpose:
To configure detailed settings for IPX/SPX and NetWare.
Values:
IPX/SPX Settings
Frame Type
Auto
Specifies the active frame type automatically.
Ethernet II
Selects Ethernet II frame type.
Ethernet
802.3
Selects IEEE802.3 frame type.
Ethernet
802.2
Selects IEEE802.2 frame type.
Ethernet SNAP
Selects SNAP frame type.
Current Frame Type
Displays the current frame type.
Network Address
Displays the IPX network address.
NetWare
Device Name *
1
Specifies the printer name up to 47 alphanumeric characters. For PServer Mode, set the Print Server Name (Print Server Object Name). The original setting remains valid if no input is made.
Active Mode
Directory: PServer Mode
Selects this option when using in Directory: PServer Mode .
Bindery: PServer Mode
Selects this option when using in Bindery: PServer Mode .
Tree Name *
1
Specifies the tree name up to 32 alphanumeric characters. Configure this item only when Directory: PServer Mode is selected.
Context Name
Specifies the context name of the Print Server Object up to 255 alphanumeric characters. Configure this item only when Directory: PServer Mode or Directory: RPrinter Mode is selected.
Page 43
File Server Name *
1
Specifies the file server name up to 47 alphanumeric characters. Configure this item only when Bindery: PServer Mode is selected.
Polling Interval
Sets the time interval from when print data enters the print queue until printing starts. The setting range is from 1 to 1000 seconds. The original setting remains valid if no input is made. Configure this item only when Bindery: PServer Mode or Directory:
PServer Mode is selected.
NCP Packet Burst
On
Uses NCP packet burst.
Off
Does not use NCP packet burst.
Password
Sets the print server password up to 32 alphanumeric characters. Configure this item only when Binary: PServer Mode or
Directory: PServer Mode is selected.
Confirm Password
Enter the password again.
Status Information
Displays the status of NetWare.
SLP
Active Discovery
Select the check box to enable Active Discovery .
*1 The following are illegal characters: semicolon (;), colon (:), asterisk (*), question mark (?), period (.), comma (,), yen mark (¥), back slash (\), double quotation ("), comparison symbols (< >), brackets ([ ]), operation symbols (+, =, or ~), pipe (|), slash (/), and space ( ).
NOTE: The settings in the NetWare page will be valid only when NetWare or the printer is rebooted.
Click the Restart printer to apply new settings button to apply new settings.
NOTE: An optional multi protocol card is required to display the NetWare page.
SMB Purpose:
To configure detailed settings for SMB.
Values:
Page 44
Host Name
Specifies the host name up to 15 alphanumeric characters. The original setting will remain valid if no input is made.
Workgroup
Specifies the workgroup name up to 15 alphanumeric characters. The original setting will remain valid if no input is made.
Administrator Name
Specifies the administrator name up to 20 alphanumeric characters. The original setting will remain valid if no input is made. The default name is admin .
Administrator Password
Specifies the administrator password up to 14 alphanumeric characters. The original setting will remain valid if no input is made. The default password is password .
Confirm Administrator Password
Allows you to confirm the configured administrator password by re-entering the same password.
Maximum Sessions
Displays the maximum sessions.
Unicode Support
On
Notifies the host name and workgroup name in Unicode characters.
Off
Does not notify the host name and workgroup name in Unicode characters.
Auto Master Mode On
Enable the Auto Master Mode.
Off
Disable the Auto Master Mode.
Encrypt Password On
Encrypts the password.
Off
Does not encrypt the password.
Job Time-Out
Sets the timeout period from 60 to 3600 seconds.
Connection Time-Out
Sets the connection timeout period from 60 to 3600 seconds.
NOTE: The settings in the SMB page will be valid only when the printer is rebooted. Click the Restart
printer to apply new settings button to apply new settings.
NOTE: An optional multi protocol card is required to display the SMB page.
AppleTalk Purpose:
To configure the detailed settings for AppleTalk.
Values:
Page 45
AppleTalk
Printer
Specifies the printer name in the AppleTalk network up to 32 alphanumeric characters and symbol sets.
AppleTalk Zone
Specifies the AppleTalk zone name up to 32 alphanumeric characters and symbol sets.
AppleTalk Type
Displays the AppleTalk type.
Delay Start Time
Specifies the delay start time between 1 and 255 seconds. A zero (0) value specifies no delay.
NOTE: An optional multi protocol card is required to display the AppleTalk page.
E-Mail Alert Purpose:
To configure detailed settings for E-Mail Alert. This page can also be displayed by clicking E-Mail Alert in the Left Frame.
Values:
E-Mail Server Settings
Primary SMTP Gateway
Sets the primary SMTP gateway.
SMTP Port Number
Specifies the SMTP port number. This must be 25 or between 5000 and 65535.
E-Mail Send Authentication
Specifies the authentication method for outgoing e-mail.
SMTP Login User
Specifies the SMTP login user. Up to 63 alphanumeric characters, periods, hyphens, under bars, and at symbols (@) can be used. If specifying more than one address, separate them using commas.
SMTP Login Password
Specifies the SMTP account password up to 31 alphanumeric characters.
POP3 Server Address*
1
Specifies the POP3 server address in IP address format of "aaa.bbb.ccc.ddd" or as a DNS host name up to 63 characters.
POP3 Port Number*
1
Specifies the POP3 server port number. This must be 110 or between 5000 and 65535.
POP User Name*
1
Specifies the POP3 account user name. Up to 63 alphanumeric characters, periods, hyphens, under bars, and at symbols (@) can be used. If specifying more than one address, separate them using commas.
POP User Password*
1
Specifies the POP3 account password up to 31 alphanumeric characters.
Reply Address
Designates the reply e-mail address sent with each E-mail Alert.
Page 46
SMTP Server Connection
Displays the status of the SMTP server connection.
E-Mail Alert Settings
E-Mail List 1
Sets acceptable e-mail addresses for the E-Mail Alert feature up to 255 alphanumeric characters.
Select Alerts for List 1
Supplies Alerts
Select the check box to receive an E-Mail Alert for consumables.
Paper Handling Alerts
Select the check box to receive an E-Mail Alert for paper handling.
Service Call
Select the check box to receive an E-Mail Alert for Service Calls.
E-Mail List 2
Sets acceptable e-mail addresses for the E-Mail Alert feature up to 255 alphanumeric characters.
Select Alerts for List 2
Supplies Alerts
Select the check box to receive an E-Mail Alert for consumables.
Paper Handling Alerts
Select the check box to receive an E-Mail Alert for paper handling.
Service Call
Select the check box to receive an E-Mail Alert for Service Calls.
* 1 Available when POP before SMTP for E-Mail Send Authentication is selected. Bonjour (mDNS) Purpose:
To configure the detailed settings for Bonjour.
Values:
Bonjour (mDNS)
Host Name
Specifies the host name up to 63 alphanumeric characters and "-" (dash). The original setting will remain valid if no input is made.
Printer Name
Specifies the printer name up to 63 alphanumeric characters and symbol sets. The original setting will remain valid if no input is made.
NOTE: An optional multi protocol card is required to display the Bonjour (mDNS) page.
SNMP Purpose:
To configure the detailed settings of SNMP.
Values:
Page 47
SNMP Agent
Community Name (Read only) *
1
Specifies the community name to access (read only) the data up to 31 alphanumeric characters. The original setting will remain valid if no input is made. Characters entered for community name in previous settings will not be displayed on the screen. The default Read/Write Community is public.
Community Name (Read/Write)
*
1
Specifies the community name to access (read and write) the data up to 31 alphanumeric characters. The original setting will remain valid if no input is made. Characters entered for community name in previous settings will not be displayed on the screen. The default Read/Write Community is private.
Community Name (Trap) *
1
Specifies the community name used for trap up to 31 alphanumeric characters. The original settings will remain valid if no input is made. Characters entered for Community Name (Trap) in previous settings will not be displayed on the screen. The default Trap Community is " " (NULL).
Trap Notification 1-4
Select the check boxes to notify trap occurrence. In this case, specify the IP address and IP socket in the following format:
· IPv4 Specify the IP address and IP socket in the nnn.nnn.nnn.nnn:mmmmm format.
Each section of "nnn" is a variable value between 0 and 255. Note that values 127 and 224-254 are not valid for the first three-digits only. IP socket mmmmm is a variable value between 0 and 65535.
· IPv6 Specify the IP address and IP socket in the
xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:mmmmm format. Each section of "xxxx" is a hexadecimal variable value between 0 and ffff. IP socket mmmmm is a variable value between 0 and 65535.
· IPX Specify the IPX address in the nnnnnnnn.mmmmmmmmmmmm.llll format. IP
network nnnnnnnn is a hexadecimal variable value between 0 and ffffffff, IPX node mmmmmmmmmmmm is a hexadecimal value between 0 and ffffffffffff and IPX socket llll is a hexadecimal variable value between 0 and ffff.
Authenticate Error Trap
Select the check box to notify Authenticate Error Trap.
*1 The default value of each items can be changed by using Dell Printer Configuration Web Tool. *2 An optional multi protocol card is required to display the item.
IP Filter (IPv4) Purpose:
To configure the detailed settings for the IP Filter used for LPD and Port9100.
Values:
Page 48
Address
Sets the address in the address field. Enter a numeric value between 0 and 255 in each field of "aaa.bbb.ccc.ddd." However, 127 and 224 to 254 cannot be used to "aaa."
Address Mask
Sets the Subnet Mask in the mask field. Enter a numeric value between 0 and 255 in each field.
Active Mode
Reject
Rejects printing from specified network address.
Permit
Permits printing from specified network address.
Disabled
Disables the IP Filter feature for the specified IP address.
When you make the settings for the filter, enter the IP address of the IP Filter in the Address field and the Subnet Mask in the Address Mask field. Enter a numeric value between 0 and 255 in each field. "* " is appended to the current value.
Setup Procedure
You can set up to a maximum of five items and the first item takes priority. Enter the shortest address first before proceeding to the next longer address when setting multiple filters.
The following section explains how the IP Filter operates.
IP Filter Procedure
Enabling Printing From a Specified User
The following describes the procedure to enable printing only from the "192.168.100.10 " IP address.
Procedures:
Click the first column of Access List row 1 .1. Enter "192.168.100.10 " in the Address field and "255.255.255.255 " in the Address Mask field.2. Select Permit .3. Click Apply New Settings .4.
Disabling Printing From a Specified User
The following describes the procedure to disable printing only from the "192.168.100.10 " IP address.
Procedures:
Click the first column of Access List row 1 .1. Enter "192.168.100.10 " in the Address field and "255.255.255.255 " in the Address Mask field.2. Select Reject .3. Click the first column of Access List row 2 .4.
5.
Page 49
3.
4. Enter "0.0.0.0 " in the Address field and "0.0.0.0 " in the Address Mask field.5. Select Permit .6. Click Apply New Settings .7.
Enabling and Disabling Printing from Network Addresses
You can enable printing from the "192.168 " network address and disable printing from the "192.168.200 " network address. However, the example below describes how to enable printing from the "192.168.200.10 " IP address.
Procedures:
Click the first column of the Access List row 1 .1. Enter "192.168.200.10 " in the Address field and "255.255.255.255 " in the Address Mask field.2. Select Permit .3. Click the first column of the Access List row 2 .4. Enter "192.168.200.0 " in the Address field and "255.255.255.0 " in the Address Mask field.5. Select Reject .6. Click the first column of the Access List row 3 .7. Enter "192.168.0.0 " in the Address field and "255.255.0.0 " in the Address Mask field.8. Select Permit .9. Click Apply New Settings .10.
Other Features
The Other Features tab includes Set Password , Security , IPsec and Reset Print Server pages. Set Password Purpose: To set or change the password that is required to access the printer setup parameters from the Dell Printer
Configuration Web Tool .
Set the password of the operator panel from Panel Settings in the Printer Settings . This page can also be displayed by clicking Set Password in the Left Frame.
NOTE: To restore the password to default (NULL), initialize the NVM memory.
Values:
Page 50
Administrator Password
Sets the password up to 10 alphanumeric characters. The password will appear as asterisks (*) in the field when it is entered.
Confirm Administrator Password
Enter the password again to confirm it.
Security Purpose:
To specify the settings for the SSL encryption communication to the printer.
Values:
HTTPS
Display the port status.
Port Number
Specifies the port number, which is not identical with that of HTTP for TCP/IP. This must be 443 or between 8000 and 9999.
Generate Self-Signed Certificate
Click to display Generate Self-Signed Certificate page and to create a security certification from the page.
IPsec Purpose:
To specify the Security Architecture settings for Internet Protocol (IPsec) for encrypted communication to the printer.
Values:
Protocol
Select the check box to enable the protocol.
IKE
Use a preshared key for IKE authentication.
Pre-Shared Key
Specifies a shared key.
Re-enter Pre-Shared Key
Enter the shared key again to confirm it.
IKE SA Lifetime
Sets the lifetime for IKE SA from 5 to 28800 minutes.
IPsec SA Lifetime
Sets the lifetime for IPsec SA from 5 to 2880 minutes.
DH Group
Selects the DH group.
PFS
Selects the check box to enable the PFS setting.
Remote peers IPv4 address
Specifies the IP address to connect to.
Remote peers IPv6 address
Specifies the IP address to connect to.
Non IPsec communication policy
Selects whether or not to communicate with a device which does not support IPsec.
Page 51
NOTE: If IPsec is enabled with incorrect settings, you must disable it using the Reset IPsec menu on
the operator panel.
Reset Print Server Purpose:
To initialize NVRAM for the network feature and reboot the printer. You can also initialize the printer's NVRAM from Reset Defaults in the Printer Settings menu.
Values:
Initialize NIC NVRAM and restart printer
Click the Start button to initialize NVRAM. Network settings will revert to the factory default settings and reboot the network capability.
Restart Printer
Click the Start button to reboot printer.
Copy Printer Settings
The Copy Printer Settings menu includes the Copy Printer Settings and Copy Printer Settings Report pages.
Copy Printer Settings
Purpose:
To copy the printer settings to one or more of the same model of printer. To copy the settings to another printer, specify the IP address and password of the printer to which the
settings are copied in the IP Address text box and Password text box. Then, click the Copy the settings to the Host in the above list button. Copying the settings is complete. The connection time-out period is 60 seconds. After that, you can check whether settings were copied or not on this page. And you need to check the Copy the settings to the Host in the above list and reboot the machine menu of the Dell Printer Configuration Web Tool in the destination printer to verify if settings were actually copied or not.
If the settings can be copied but printer configuration is different, the settings of only the same items are copied. Printer settings are simultaneously copied to printers of up to 10 IP addresses.
Copy Printer Settings Report
Purpose:
To verify the histories of copying after turning on the printer.
Print Volume
The Printer Volume menu includes the Print Volume and Dell ColorTrack pages.
Print Volume
Purpose:
Page 52
To verify the number of printed pages. This page can also be displayed by clicking Print Volume in the Left Frame.
Values:
Printer Page Count
Displays the total number of pages printed since the printer was shipped from the factory.
Paper Used
Displays the number of pages for each paper size.
Dell ColorTrack
Purpose:
To specify which users have access to color printing and to limit print volume per user.
Values:
Print User Limitation
Select the check box to restrict users from using the printer.
Permit printing without specifying user
Select the check box to use the printer without user limitations.
User Registration
Displayed when Print User Limitation is enabled. To register a user, click Edit User Registration to open the Edit Print User Registration page, and then
specify User Registration No. and click Edit to open the Print User Settings page.
Tray Settings
Use the Tray Settings menu to set the printer media types and sizes for trays respectively. Values:
Page 53
Tray 1 Paper Type
Sets the type of paper loaded in the standard 250-sheet tray.
Tray 1 Paper Size
Sets the size of paper loaded in the standard 250-sheet tray.
Tray 1 Custom Size - Y
Sets the length of paper loaded in the standard 250-sheet tray.
Tray 1 Custom Size - X
Sets the width of paper loaded in the standard 250-sheet tray.
Tray 2 Paper Type
Sets the type of paper loaded in the optional 550-sheet feeder.
Tray 2 Paper Size
Sets the size of paper loaded in the optional 550-sheet feeder.
Tray 2 Custom Size - Y
Sets the length of paper loaded in the optional 550-sheet feeder.
Tray 2 Custom Size - X
Sets the width of paper loaded in the optional 550-sheet feeder.
MPF Mode
Sets the paper size and type when paper is loaded in the multipurpose feeder.
Display Popup
Sets the paper size and type when paper is loaded in the multipurpose feeder.
MPF Paper Type
Sets the type of paper loaded in the multipurpose feeder.
MPF Paper Size
Sets the size of paper loaded in the multipurpose feeder.
MPF Custom Size - Y
Sets the length of paper loaded in the multipurpose feeder.
MPF Custom Size - X
Sets the width of paper loaded in the multipurpose feeder.
Page 54

About Your Printer

The following illustrations show the standard Dell™ Color Laser Printer 3110cn, with an optional 550-sheet feeder and duplexer.
Page 55
Standard printer
Printer with options
1
Standard 250­sheet tray
7
Optional 550-sheet feeder
NOTE: Your printer allows for a
maximum of 3 trays (standard 250-sheet tray, optional 550-sheet feeder, and multipurpose feeder).
2
Multipurpose feeder
8
Optional duplexer
3
Side button
4
Belt unit
5
Operator panel
6
Front cover
NOTE: When you use the printer with the multipurpose feeder opened, do not locate the printer in
direct sunlight. Doing so may cause a malfunction or unnatural screen image.
Leave enough room to open the printer trays, covers, and options. It is also important to allow space around the printer for proper ventilation.
Page 56

Installing the Print Cartridges

Installing the Print Cartridges
CAUTION: Before performing any of the following procedures, read and follow the safety
instructions in your Owner's Manual.
NOTICE: To protect the drums of the print cartridges against bright light, close the front cover within
5 minutes. If the front cover remains open for more than 5 minutes, print quality may deteriorate.
NOTICE: Make sure nothing touches or scratches the surface (black-colored film) of the belt unit.
Scratches, dirt, or oil from your hands on the film of the belt unit may reduce print quality.
Installing the Print Cartridges
Push the side button and open the front cover.1.
Pull up the tag to remove the seal from the unit belt.2.
Page 57
Pull up the tag to remove the seal from the fuser.3.
NOTE: Make sure to lock both levers at ends of the fuser, after removing the seal.
Hold one print cartridge firmly and shake it 5 or 6 times to distribute the toner evenly.4.
Page 58
Remove the print cartridge from its packaging.5.
NOTE: To protect the drum against bright light, do not remove the orange protective cover of the
print cartridge before the cartridge is inserted into its slot in the printer.
Completely remove the seal from the print cartridge by pulling the tab on the end of the print cartridge.
6.
NOTE: Pull the seal out straight. Pulling the seal diagonally may tear it.
Grasp both handles of the print cartridge with the label facing up and slide the cartridge into the same color slot. Make sure the cartridge is fully inserted.
7.
Page 59
7.
Repeat steps 4, 5, 6, and 7 to install the other print cartridges.8. Remove the orange protective covers of the each of the installed print cartridges.9.
After installing all of the print cartridges, close the front cover.10.
Page 60
Page 61

Connecting Your Printer

Choosing the Right Cable Connecting the Printer Locally Connecting the Printer to the Network
Choosing the Right Cable
Your Dell™ Color Laser Printer 3110cn interconnection cable must meet the following requirements:
Connection type
Connection specifications
Parallel
IEEE 1284
USB
USB 2.0
Ethernet
10 Base-T/100 Base-TX
Wireless
IEEE802.11b/802.11g
Page 62
1
Parallel port
2
USB port
3
Ethernet port
4
Optional wireless printer adapter socket
Connecting the Printer Locally
A local printer is a printer attached to your computer using a USB or parallel cable. If your printer is attached to a network instead of your computer, skip this step and go on to "Connecting the Printer to the Network."
Microsoft® Windows® 2000, XP, Server 2003, XP x64, Server 2003 x64, Vista and Mac® OS X or later operating systems support USB connections. Some UNIX® and Linux computers also support USB connections. See your computer operating system documentation to see if your system supports USB.
To attach the printer to a computer:
Make sure the printer, computer, and any other attached devices are turned off and unplugged.1. Connect the printer to the computer using a USB or parallel cable.2.
Page 63
1
Parallel port
2
USB port
A USB/parallel port requires a USB/parallel cable. Be sure to match the USB/parallel symbol on the cable to the USB/parallel symbol on the printer.
Plug the other end of the cable into a USB or parallel port on the back of the computer. For a USB cable, do not plug it into the USB keyboard.
Turn On the Printer
Plug one end of the printer power cable into the socket at the back of the printer and the other end into a properly grounded outlet.
1.
Page 64
CAUTION: The printer should not be plugged into a UPS system.
Turn on the computer and the printer.2.
Connecting the Printer to the Network
To attach the printer to a network:
Make sure the printer, computer, and any other attached devices are turned off and unplugged.1. Connect the printer to the network using an Ethernet cable or the wireless printer adapter.
To use a wireless printer adapter, you must install the Multi Protocol Card first. To install the card, see "Installing the Dell Multi Protocol Card".
2.
Page 65
1
Ethernet port
2
Optional wireless printer adapter socket
To connect the printer to the network, plug one end of an Ethernet cable into the Ethernet port on the back of the printer, and the other end into a LAN drop or hub. For a wireless connection, insert the wireless printer adapter into the wireless printer socket on the back of the printer.
Turn On the Printer
Plug one end of the printer power cable into the socket at the back of the printer and the other end into a properly grounded outlet.
1.
Page 66
CAUTION: The printer should not be plugged into a UPS system.
Turn on the computer and the printer.2.
Print and Check the Printer Settings Page
Print a printer settings page to verify the network connection. This page also provides important information that helps you configure for network printing.
NOTE: Depending on the network configuration, the printer may not be provided an IP address
immediately. If the Printer Settings page does not show an assigned IP address, wait 5 minutes and try again.
Press Menu.1.
Press until Report/List appears, and then press .2.
Printer Setting is displayed. Press .3.
The printer settings page is printed.
If the IP address shows anything other than 0.0.0.0 (the factory default) or 169.254.xx.xx, the printer has an IP address assigned and stored. Go to "Verify the IP Settings."
4.
Assign an IP Address
NOTE: When you assign an IP address manually in IPv6 Mode, use the Dell Printer Configuration
Web Tool. To open the Dell Printer Configuration Web Tool, use the link local address. (To check
a link local address, see "Print and Check the Printer Settings Page".)
An IP address is a unique number that consists of four sections that are delimited by a period and can include up to three digits in each section, for example, 111.222.33.44.
Assigning an IP address already in use can cause network performance issues.
NOTE: Assigning an IP address is considered as an advanced function and is normally done by a
system administrator.
For more information on using your operator panel, see "Operator Panel."
Turn on the printer.1.
The Ready to Print appears.
Page 67
1.
Press Menu.2.
Press until Admin Menu appears, and then press .3.
Press until Wired Network appears, and then press .4.
Press until TCP/IP appears, and then press .5.
Press until IP Address appears, and then press .6.
The cursor is located at the first digit of the IP address. Press to enter the numbers for the IP address.
7.
Press .8.
The cursor moves to the next digit.
Repeat steps 7 and 8 to enter all of the digits in the IP address, and then press .9.
Press .10.
Press until Subnet Mask appears, and then press .11.
Repeat steps 7 to 8 to set Subnet Mask, and then press .12.
Press .13.
Press until Gateway Address appears, and then press .14.
Repeat steps 7 to 8 to set Gateway Address, and then press .15. Turn off the printer, and then turn it on again.16.
The IP address is assigned to your printer. To verify the setting, open the web browser on any computer connected to the network and enter the IP address into the address bar on the browser. If the IP address is set up correctly, the Dell Printer Configuration Web Tool displays in your browser.
You can also assign the IP address to the printer when installing the printer drivers with installer. When you use the Network Installation feature, and the Get IP Address is set to AutoIP on the operator panel menu, you can set the IP address from 0.0.0.0 to the desired IP address on the printer selection window.
Verify the IP Settings
Print another printer settings page.1. Look under the TCP/IP heading on the printer settings page to make sure the IP address, netmask,
and gateway are what you expected.
2.
Page 68
2.
or Ping the printer and verify that it responds. For example, at a command prompt on a network
computer, type ping followed by the new printer IP address (for example, 192.168.0.11): ping 192.168.0.11 If the printer is active on the network, you will receive a reply.
Page 69

Enterprise Console Management Modules

The following enterprise console management modules and user's manuals are available on your Drivers and Utilities CD:
IBM Tivoli® NetView
®
CA Unicenter
®
HP OpenView
®
To use the modules, go to the following directory on your CD and run each .exe file or .chm file.
IBM Tivoli: \Utilities\SnapIns\IBM Tivoli
CA Unicenter: \Utilities\SnapIns\CA Unicenter
HP OpenView: \Utilities\SnapIns\HP OpenView
Page 70

Installing Optional Modules

You can make the printer more functional by installing the options. This chapter describes how to install the printer's options such as the duplexer and 550-sheet feeder.
Installing the Optional 550-Sheet Feeder Installing a Duplexer Installing a Memory Card Installing the Dell Multi Protocol Card Installing the Dell Wireless Printer Adapter 3310 USB
Installing the Optional 550-Sheet Feeder
CAUTION: If you are adding an optional 550-sheet feeder after setting up the printer, be
sure to turn off the printer, unplug the power cable, and disconnect all cables from the back of the printer before completing these tasks.
Place the optional 550-sheet feeder in the location that the printer is located.1. Make sure that the printer is turned off.2. Lift the printer and align the four guide pins of the 550-sheet feeder with the holes at the bottom of
the printer. Gently lower the printer onto the optional 550-sheet feeder.
3.
CAUTION: To lift the printer safely, lift it with two people facing the front and back. Never
try to lift the printer while facing its right and left sides.
Page 71
NOTICE: Be careful not to pinch your fingers when lowering the printer onto the optional 550-sheet
feeder.
Pull the tray out of the printer until it stops. Hold the tray with both hands, lift the front slightly, and remove it from the printer.
4.
Join the 550-sheet feeder and the printer by tightening the two screws provided with the feeder with a coin or similar object.
5.
Page 72
Insert the tray into the printer, and push until it stops.6.
Turn on the printer.7.
NOTE: The printer will automatically detect the attached tray but will not detect the paper type.
Print a printer settings page to verify that the optional 550-sheet feeder is installed correctly.
Press Menu.a.
Press until Report/List appears, and then press .b.
Printer Setting is displayed. Press . The printer settings page is printed.
c.
Verify 550 Sheet Feeder is listed in the printer settings under Printer Options.d.
8.
Page 73
c.
d.
If the tray module is not listed, turn off the printer, unplug the power cable, and reinstall the optional 550-sheet feeder.
After loading paper in the installed tray, specify the paper type from the printer operator panel.
Press Menu.a.
Press until Tray Settings appears, and then press .b.
Press until the installed tray appears, and then press .c.
Press until Paper Type appears, and then press .d.
Press until the paper type for the installed tray appears, and then press .e. Confirm that the selected paper type is marked with an asterisk(*), and then press Menu.f.
9.
If you installed the optional 550-sheet feeder after installing the printer driver, update your driver by following the instructions for each operating system. If the printer is on a network, update the driver for each client.
10.
When Using PCL Driver
Windows Vista™
Click Start Control Panel Hardware and Sound Printers.1. Right-click this printer icon and select Properties.2. Click the Options tab, and then select Get Information from Printer.3. Click Apply, and then click OK.4. Close the Printers folder.5.
Windows XP/XP x64/Server 2003/Server 2003 x64
Click Start Printers and Faxes.1. Right-click the printer and select Properties.2. Click the Options tab, and then select Get Information from Printer.3. Click Apply, and then click OK.4. Close the Printers and Faxes dialog box.5.
Page 74
5.
Windows 2000/NT 4.0
Click Start Settings Printers.1. Right-click the printer and select Properties.2. Click the Options tab, and then select Get Information from Printer.3. Click Apply, and then click OK.4. Close the Printers dialog box.5.
If the printer information is not updated automatically after clicking Get Information from Printer, follow these steps:
Click the Options tab, and then select 550 Sheet Feeder in the Items list box.1. Select Available for the 550-sheet feeder setting.2. Click Apply, and then click OK.3. Close the Printers and Faxes (or Printers) dialog box.4.
When Using PS Driver
Windows Vista
Click Start Control Panel Hardware and Sound Printers.1. Right-click the printer that is using the PS driver, and then select Properties from the displayed list.2. Click the Device Settings tab, and then select 2-Tray Module for the Paper Tray Configuration
item under Installable Options.
3.
Click Apply, and then click OK.4. Close the Printers dialog box.5.
Windows XP/XP x64/Server 2003/Server 2003 x64
Click Start Printers and Faxes.1. Right-click the printer that is using the PS driver, and then select Properties from the displayed list.2. Click the Device Settings tab, and then select 2-Tray Module for the Paper Tray Configuration
item under Installable Options.
3.
Click Apply, and then click OK.4. Close the Printers and Faxes dialog box.5.
Page 75
5.
Windows 2000/NT 4.0
Click Start Settings Printers.1. Right-click the printer that is using the PS driver, and then select Properties from the displayed list.2. Click the Device Settings tab, and then select 2-Tray Module for the Paper Tray Configuration
item under Installable Options.
3.
Click OK.4. Close the Printers dialog box.5.
Mac OS X
Select the printer from the Printer List screen in Print Center (or Printer Setup Utility).1. Click Printers on the Print Center (or Printer Setup Utility) menu bar, and select Show Info.2. Select Installable Options, and select the options that have been installed on the printer, and then
click Apply Changes.
3.
Installing a Duplexer
NOTICE: To protect the drums of the print cartridges against bright light, close the front cover within
5 minutes. If the front cover remains open for more than 5 minutes, print quality may deteriorate.
NOTICE: Make sure nothing touches or scratches the surface (black-colored film) of the belt unit.
Scratches, dirt, or oil from your hands on the film of the belt unit may reduce print quality.
Make sure that the printer is turned off.1. Remove all packaging from duplex module.2. Push the side button and open the front cover.3.
Page 76
Pull up on the belt release levers and rotate the belt unit up as shown in the illustration.4.
Remove the connector cap.5.
Page 77
NOTE: The connector cap in your printer may look different from illustration.
With the connector of the duplexer toward the slot, push the duplexer into the slot.6.
Page 78
NOTE: Make sure that the duplexer is correctly connected to the printer with connectors and cannot
be moved easily.
Close the belt unit by pulling it down.7.
Close the front cover.8.
Page 79
8.
Turn on the printer.9. Print a printer settings page to verify that the optional duplexer is installed correctly.
Press Menu.a.
Press until Report/List appears, and then press .b.
Printer Setting is displayed. Press . The printer settings page is printed.
c.
Verify Duplexer is listed in the printer settings under Printer Options.d.
10.
If the duplexer is not listed, turn off the printer, unplug the power cable, and reinstall the optional duplexer.
If you installed the optional duplexer after installing the printer driver, update your driver by following the instructions for each operating system. If the printer is on a network, update the driver for each client.
11.
When Using PCL Driver
Windows Vista
Click Start Control Panel Hardware and Sound Printers.1. Right-click this printer icon and select Properties.2. Click the Options tab, and then select Get Information from Printer.3. Click Apply, and then click OK.4. Close the Printers folder.5.
Page 80
4.
5.
Windows XP/XP x64/Server 2003/Server 2003 x64
Click Start Printers and Faxes.1. Right-click the printer and select Properties.2. Click the Options tab, and then select Get Information from Printer.3. Click Apply, and then click OK.4. Close the Printers and Faxes dialog box.5.
Windows 2000/NT 4.0
Click Start Settings Printers.1. Right-click the printer and select Properties.2. Click the Options tab, and then select Get Information from Printer.3. Click Apply, and then click OK.4. Close the Printers dialog box.5.
If the printer information is not updated automatically after clicking Get Information from Printer, follow these steps:
Click the Options tab, and then select Duplexer in the Items list box.1. Select Available for the duplexer setting.2. Click Apply, and then click OK.3. Close the Printers and Faxes (or Printers) dialog box.4.
When Using PS Driver
Windows Vista
Click Start Control Panel Hardware and Sound Printers.1. Right-click the printer that is using the PS driver, and then select Properties from the displayed list.2. Click the Device Settings tab, and then select Available for the Duplexer item under Installable
Options.
3.
Click Apply, and then click OK.4. Close the Printers dialog box.5.
Page 81
4.
5.
Windows XP/XP x64/Server 2003/Server 2003 x64
Click Start Printers and Faxes.1. Right-click the printer that is using the PS driver, and then select Properties from the displayed list.2. Click the Device Settings tab, and then select Available for the Duplexer item under Installable
Options.
3.
Click Apply, and then click OK.4. Close the Printers and Faxes dialog box.5.
Windows 2000/NT 4.0
Click Start Settings Printers.1. Right-click the printer that is using the PS driver, and then select Properties from the displayed list.2. Click the Device Settings tab, and then select Available for the Duplexer item under Installable
Options.
3.
Click OK.4. Close the Printers dialog box.5.
Mac OS X
Select the printer from the Printer List screen in Print Center (or Printer Setup Utility).1. Click Printers on the Print Center (or Printer Setup Utility) menu bar, and select Show Info.2. Select Installable Options, and select the options that have been installed on the printer, and then
click Apply Changes.
3.
Click Apply, and then click OK.4.
Installing a Memory Card
Your printer supports 256 MB, 512 MB, and 1024 MB additional memory cards.
Make sure that the printer is turned off.1. Turn the screw on the control board cover in a counterclockwise direction and open the cover.2.
Page 82
With the connector of the memory card toward the slot, insert the memory card at an angle into the slot.
3.
Push the memory card into the slot firmly.4.
Page 83
Pivot the memory card downward until it clicks into place.5.
NOTE: Make sure that the memory card is firmly fixed in the slot and cannot be moved easily.
Close the control board cover and turn the screw clockwise.6.
Page 84
Turn on the printer.7. Print a printer settings page to verify that the additional print memory is installed correctly.
Press Menu.a.
Press until Report/List appears, and then press .b.
Printer Setting is displayed. Press . The printer settings page is printed.
c.
Verify the capacity of the installed memory listed in the printer settings under General.d.
8.
If the memory capacity has not increased, turn off the printer, unplug the power cable, and reinstall the memory card.
If you installed the additional print memory after installing the printer driver, update your driver by following the instructions for the operating system you are using. If the printer is on a network, update the driver for each client.
9.
When Using PCL Driver
Windows Vista
Click Start Control Panel Hardware and Sound Printers.1. Right-click this printer icon and select Properties.2. Click the Options tab, and then select Get Information from Printer.3. Click Apply, and then click OK.4. Close the Printers folder.5.
Windows XP/XP x64/Server 2003/Server 2003 x64
Click Start Printers and Faxes.1.
Page 85
1. Right-click the printer and select Properties.2. Click the Options tab, and then select Get Information from Printer.3. Click Apply, and then click OK.4. Close the Printers and Faxes dialog box.5.
Windows 2000/NT 4.0
Click Start Settings Printers.1. Right-click the printer and select Properties.2. Click the Options tab, and then select Get Information from Printer.3. Click Apply, and then click OK.4. Close the Printers dialog box.5.
If the printer information is not updated automatically after clicking Get Information from Printer, follow these steps:
Click the Options tab, and then select Memory Capacity on the Items list box.1. Select the total amount of the installed print memory for the memory capacity setting.2. Click Apply, and then click OK.3. Close the Printers and Faxes (or Printers) dialog box.4.
When Using PS Driver
Windows Vista
Click Start Control Panel Hardware and Sound Printers.1. Right-click the printer that is using the PS driver, and then select Properties from the displayed list.2. Click the Device Settings tab, and then select the total amount of the installed print memory for the
Memory Capacity item under Installable Options.
3.
Click Apply, and then click OK.4. Close the Printers dialog box.5.
Windows XP/XP x64/Server 2003/Server 2003 x64
Click Start Printers and Faxes.1.
Page 86
1. Right-click the printer that is using the PS driver, and then select Properties from the displayed list.2. Click the Device Settings tab, and then select the total amount of the installed print memory for the
Memory Capacity item under Installable Options.
3.
Click Apply, and then click OK.4. Close the Printers and Faxes dialog box.5.
Windows 2000/NT 4.0
Click Start Settings Printers.1. Right-click the printer that is using the PS driver, and then select Properties from the displayed list.2. Click the Device Settings tab, and then select the total amount of the installed print memory for the
Memory Capacity item under Installable Options.
3.
Click OK.4. Close the Printers dialog box.5.
Mac OS X
Select the printer from the Printer List screen in Print Center (or Printer Setup Utility).1. Click Printers on the Print Center (or Printer Setup Utility) menu bar, and select Show Info.2. Select Installable Options, and select the options that have been installed on the printer, and then
click Apply Changes.
3.
Click Apply, and then click OK.4.
Installing the Dell Multi Protocol Card
A multi protocol card allows you to use the following network protocols.
Page 87
Network protocol
Supported operating systems
IPP
Windows Vista/XP/XP x64/Server 2003/Server 2003 x64/2000/NT 4.0, Mac OS X 10.3.9/10.4.3
SMB
Windows Vista/XP/XP x64/Server 2003/Server 2003 x64/2000/ NT 4.0
IPX/SPX
NetWare3.12/3.2/4.1/4.11/4.2/5/6/6.5*
AppleTalk
Mac OS X 10.2.8/10.3.9/10.4.3
Bonjour
Mac OS X 10.2.8/10.3.9/10.4.3
IPv6
Windows Vista
*Only compatible with Support Pack 1.1 or later.
Make sure that the printer is turned off and unplug all cables including the power cord from the rear of the printer.
1.
Turn the screw on the control board cover in counterclockwise direction and open the cover.2.
With the connector of the multi protocol card aligned over the mating connector on the control board, make connections together by pressing on the back of the MPC card nearest the connecter pins.
3.
Page 88
Press the printed circles with your fingers to secure the multi protocol card to the connector.4.
NOTE: Avoid pressing down on the multi protocol card's connector.
NOTE: Make sure that the multi protocol card is firmly fixed in the connector and cannot be moved
easily.
Insert the two screws through the control board case and into the Multi Protocol Card as shown, and tighten the screws.
5.
Page 89
Close the control board cover and turn the screw clockwise.6.
Confirming the Installation of the Multi Protocol Card
Print a printer settings page to verify that the optional multi protocol card is installed correctly.
Press Menu.a.
Press until Report/List appears, and then press .b.
Printer Setting is displayed. Press . The printer settings page is printed.
c.
Verify Multi-Protocol Card is listed in the printer settings under Printer Options.d.
1.
If it is not listed, turn off the printer, unplug the power cable, and reinstall the optional multi protocol card.
Installing the Dell Wireless Printer Adapter 3310 USB
Page 90
Connectivity Technology
Wireless
Compliant Standards
802.11b/802.11g
Bandwidth
2.4GHz
Data Transfer Rate
11g mode: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 11b mode: 11, 5.5, 2, 1 Mbps
Device Type
Wireless Printer Adapter
Security
64(40-bit key)/128(104-bit key) WEP Encryption/WPA/WPA2
NOTE: To use the wireless printer adapter, you must install the multi protocol card first. To install the
card, see "Installing the Dell Multi Protocol Card".
Make sure that the printer is turned off and unplug all cables including the power cord from the rear of the printer.
1.
NOTE: Make sure that the multi protocol card is installed.
Remove the single thumbscrew from the top of the plate covering the wireless printer adapter socket and then remove the plate.
2.
Insert the wireless printer adapter into the USB socket with the Dell logo of the adapter facing out.3.
Page 91
NOTE: Make sure that the adapter is firmly fixed in the socket and cannot be moved easily.
Attach the wireless printer adapter cap by inserting the cap with the mark facing out until it clicks into place.
4.
Turn on the printer and configure the wireless network settings.5.
Wireless Installation using USB connection
NOTE: The optional multi protocol card with the Wireless Printer Adapter attached must be installed
on the printer.
Scene 1. Install a printer to the already-operating wireless network (When wireless setting is already set to your computer)
Insert the Drivers and Utilities CD into your computer.1. The Drivers and Utilities CD should launch the installation software automatically.2.
Page 92
1.
If the CD does not automatically launch, click Start Run, type D:\Setup.exe (where D is the drive letter of your CD), and then click OK.
2.
NOTE: For Windows Vista, click Continue when the User Account Control dialog box appears.
Select the Network Installation option button, and then click Next.3. Select the Configure Wireless Printer using a USB connection (Recommended) option button,
and then click Next.
4.
Reset the wireless setting of the printer following the steps on the Reset Wireless Setting screen.5. In the list on the Select Printer screen, check the check box of the target printer that you are making
wireless setting for, and then click Next. On the Enter Wireless Network Settings screen, set each wireless setting item, and then click Next. When you select the Fixed IP option button for IP address assignment, click Settings... and enter the IP address and subnet mask on the screen.
6.
NOTE: When you enter a fixed IP address, avoid the "169.254.xxx.xxx" address used by AutoIP.
Set each item on the Enter Printer Settings screen, and then click Next.7. On the Printer Software screen, specify the software that you want to install and installation path,
and then click Next. At this point, the wireless setting specified on the Enter Wireless Network Settings screen is sent to the printer.
8.
On the Wireless configuration is now complete screen, click Next. Since wireless setting is already made to your computer, no operation is necessary on this screen.
9.
On the Setting-Ready Printer screen, verify that the correct IP address is assigned to the printer to which the wireless setting is set, and then click Install.
10.
If you select the I am setting up this printer on server check box on the Select Printer screen and also select the PostScript Driver check box on the Enter Printer Settings screen, the Adobe
Systems Inc. License Agreement screen appears. Select the I accept the terms of the license agreement option button, and then click Install.
11.
On the Congratulations! screen, click Finish to complete the installation. A test page will be printed with the installed printer by clicking the Print Test Page button.
12.
Scene 2. Construct new wireless network environment for both computer and printer (When wireless setting needs to be set to your computer)
Insert the Drivers and Utilities CD into your computer.1. The Drivers and Utilities CD should launch the installation software automatically.
If the CD does not automatically launch, click Start Run, type D:\Setup.exe (where D is the drive letter of your CD), and then click OK.
2.
NOTE: For Windows Vista, click Continue when the User Account Control dialog box appears.
Page 93
Select the Network Installation option button, and then click Next.3. Select the Configure Wireless Printer using a USB connection (Recommended) option button,
and then click Next.
4.
Reset the wireless setting of the printer following the steps on the Reset Wireless Setting screen.5. In the list on the Select Printer screen, check the check box of the target printer that you are making
wireless setting for, and then click Next.
6.
NOTE: When you enter a fixed IP address, avoid the "169.254.xxx.xxx" address used by AutoIP.
On the Enter Wireless Network Settings screen, set each wireless setting item, and then click Next. When you select the Fixed IP option button for IP address assignment, click Settings... and
enter the IP address and subnet mask on the screen.
7.
Set each item on the Enter Printer Settings screen, and then click Next.8. On the Printer Software screen, specify the software that you want to install and installation path,
and then click Next. At this point, the wireless setting specified on the Enter Wireless Network Settings screen is sent to the printer.
9.
On the Wireless configuration is now complete screen, create the wireless setting sent to the printer on your computer following the steps below, and then click Next.
10.
NOTE: If your computer provides a wireless LAN adapter tool, change the wireless settings using this
tool. Or you can change the wireless settings using the tool provided by the operating system. See the instructions below.
Select Network Connections from Control Panel.a.
Right-click Wireless Network Connection and select Properties.b. Select the Wireless Network tab.c. Make sure the check box for Use Windows to configure my wireless network settings is
checked.
d.
Click Advanced.e. Do either of the following:f.
When wireless ad-hoc mode is set to the printer:
Select Computer to Computer (ad hoc) networks only and close the Advanced dialog box.
When wireless infrastructure mode is set to the printer:
Select Access point (Infrastructure) networks only and close the Advanced dialog box.
Click Add to display Wireless network properties.g. Enter the setting that you send to the printer and click OK.h.
Page 94
g. h.
Click Move up to move the setting to the top of the list.i. Click OK to close the Property dialog box.j.
On the Setting-Ready Printer screen, verify that the correct IP address is assigned to the printer to which the wireless setting is set, and then click Install.
11.
If you select the I am setting up this printer on server check box on the Select Printer screen and also select the PostScript Driver check box on the Enter Printer Settings screen, the Adobe
Systems Inc. License Agreement screen appears. Select the I accept the terms of the license agreement option button, and then click Install.
12.
On the Congratulations! screen, click Finish to complete the installation. A test page will be printed with the installed printer by clicking the Print Test Page button.
13.
Use the Dell Printer Configuration Web Tool to monitor the status of your network printer without leaving your desk. You can view and/or change the printer configuration settings, monitor toner level, and when it is time to order replacement consumables, just click the Dell supplies link right from your Web browser.
NOTE: The Dell Printer Configuration Web Tool is not available when the printer is locally attached
to a computer or a print server.
Wireless Installation using wireless connection
Scene 1. Install a printer to the already-operating wireless network (When wireless setting is already set to your computer)
Insert the Drivers and Utilities CD into your computer to launch the installation software.1.
NOTE: If the CD does not automatically launch, click Start Run, and then type D:\setup.exe
(where D is the drive letter of your CD), and then click OK.
NOTE: For Windows Vista, click Continue when the User Account Control dialog box appears.
2. Select the Network Installation option button, and then click Next.
Select the Configure Wireless Printer using a wireless connection (Advanced) option button, and then click Next.
3.
Reset the wireless setting of the printer following the steps on the Reset Wireless Setting screen.4. Create the wireless setting of your computer following the steps shown on the Enable
Communication with Printer screen, and then click Next.
5.
NOTE: If your computer provides a wireless LAN adapter tool, change the wireless settings using this
tool. Or you can change the wireless settings using the tool provided by the operating system. See the instructions below.
The steps are as follows.
Page 95
Select Network Connections from Control Panel.a.
Right-click Wireless Network Connection and select Properties.b. Select the Wireless Networks tab.c. Make sure the check box for Use Windows to configure my wireless network settings is
checked.
d.
NOTE: Be sure to write down the current wireless computer settings in steps d and f so that you
can restore them later.
Click the Advanced button.e. Select Computer to Computer (ad hoc) networks only and close the Advanced dialog box.f. Click the Add button to display Wireless network properties.g. Under the Association tab, enter the following information and click OK.h.
Network name (SSID): dell_device Network Authentication: Open Data encryption: Disabled Ad hoc network: checked
Click the Move up button to move the newly added SSID to the top of the list.i. Click OK to close the Property dialog box.j.
On the Enter Wireless Network Settings screen, set each wireless setting item, and then click Next.
6.
When you select the Fixed IP option button for IP address assignment, click Settings... and enter the IP address and subnet mask on the screen.
7.
NOTE: When you enter a fixed IP address, avoid the "169.254.xxx.xxx" address used by AutoIP.
Set each item on the Enter Printer Settings screen, and then click Next.8. On the Printer Software screen, specify the software that you want to install and installation path,
and then click Next. At this point, the wireless setting specified on the Enter Wireless Network Settings screen is sent to the printer.
9.
On the Wireless configuration is now complete screen, change the wireless setting of your computer to the same as that sent to the printer, and then click Next.
10.
Page 96
10.
NOTE: If your computer provides a wireless LAN adapter tool, change the wireless settings using this
tool. Or you can change the wireless settings using the tool provided by the operating system. See the instructions below.
Select Network Connections from Control Panel.a.
Right-click Wireless Network Connection and select Properties.b. Select the Wireless Network tab.c. Click Advanced.d. Do either of the following:e.
When wireless ad-hoc mode is set to the printer:
Select Computer to Computer (ad hoc) networks only and close the Advanced dialog box.
When wireless infrastructure mode is set to the printer:
Select Access point (Infrastructure) networks only and close the Advanced dialog box.
Select the setting that you send to the printer in the list in Preferred Network group.f. Click Move up to move the setting to the top of the list.g. Click OK to close the Property dialog box.h.
On the Setting-Ready Printer screen, verify that the correct IP address is assigned to the printer to which the wireless setting is set, and then click Install.
11.
If you select the I am setting up this printer on server check box on the Select Printer screen and also select the PostScript Driver check box on the Enter Printer Settings screen, the Adobe
Systems Inc. License Agreement screen appears. Select the I accept the terms of the license agreement option button, and then click Install.
12.
On the Congratulations! screen, click Finish to complete the installation. A test page will be printed with the installed printer by clicking the Print Test Page button.
13.
Scene 2. Construct new wireless network environment for both computer and printer (When wireless setting needs to be set to your computer)
Insert the Drivers and Utilities CD into your computer to launch the installation software.1.
NOTE: If the CD does not automatically launch, click Start Run, and then type D:\setup.exe
(where D is the drive letter of your CD), and then click OK.
NOTE: For Windows Vista, click Continue when the User Account Control dialog box appears.
2. Select the Network Installation option button, and then click Next.
Page 97
Select the Configure Wireless Printer using a wireless connection (Advanced) option button, and then click Next.
3.
Reset the wireless setting of the printer following the steps on the Reset Wireless Setting screen.4. Create the wireless setting of your computer following the steps shown on the Enable Communication
with Printer screen, and then click Next. The steps are as follows.
5.
NOTE: If your computer provides a wireless LAN adapter tool, change the wireless settings using this
tool. Or you can change the wireless settings using the tool provided by the operating system. See the instructions below.
Select Network Connections from Control Panel.a.
Right-click Wireless Network Connection and select Properties.b. Select the Wireless Networks tab.c. Make sure the check box for Use Windows to configure my wireless network settings is
checked.
d.
NOTE: Be sure to write down the current wireless computer settings in steps d and f so that you
can restore them later.
Click the Advanced button.e. Select Computer to Computer (ad hoc) networks only and close the Advanced dialog box.f. Click the Add button to display Wireless network properties.g. Under the Association tab, enter the following information and click OK.h.
Network name (SSID): dell_device Network Authentication: Open Data encryption: Disabled Ad hoc network: checked
Click the Move up button to move the newly added SSID to the top of the list.i. Click OK to close the Property dialog box.j.
On the Enter Wireless Network Settings screen, set each wireless setting item, and then click Next.
6.
When you select the Fixed IP option button for IP address assignment, click Settings... and enter the IP address and subnet mask on the screen.
7.
NOTE: When you enter a fixed IP address, avoid the "169.254.xxx.xxx" address used by AutoIP.
Page 98
Set each item on the Enter Printer Settings screen, and then click Next.8. On the Printer Software screen, specify the software that you want to install and installation path,
and then click Next. At this point, the wireless setting specified on the Enter Wireless Network Settings screen is sent to the printer.
9.
On the Wireless configuration is now complete screen, create the wireless setting sent to the printer on your computer following the steps below, and then click Next.
10.
NOTE: If your computer provides a wireless LAN adapter tool, change the wireless settings using this
tool. Or you can change the wireless settings using the tool provided by the operating system. See the instructions below.
Select Network Connections from Control Panel.a.
Right-click Wireless Network Connection and select Properties.b. Select the Wireless Network tab.c. Make sure the check box for Use Windows to configure my wireless network settings is
checked.
d.
Click Advanced.e. Do either of the following:f.
When wireless ad-hoc mode is set to the printer:
Select Computer to Computer (ad hoc) networks only and close the Advanced dialog box.
When wireless infrastructure mode is set to the printer:
Select Access point (Infrastructure) networks only and close the Advanced dialog box.
Click Add to display Wireless network properties.g. Enter the setting that you send to printer and click OK.h. Click Move up to move the setting to the top of the list.i. Click OK to close the Property dialog box.j.
On the Setting-Ready Printer screen, verify that the correct IP address is assigned to the printer to which the wireless setting is set, and then click Install.
11.
If you select the I am setting up this printer on server check box on the Select Printer screen and also select the PostScript Driver check box on the Enter Printer Settings screen, the Adobe
Systems Inc. License Agreement screen appears. Select the I accept the terms of the license agreement option button, and then click Install.
12.
On the Congratulations! screen, click Finish to complete the installation. A test page will be printed with the installed printer by clicking the Print Test Page button.
13.
Use the Dell Printer Configuration Web Tool to monitor the status of your network printer without
Page 99
leaving your desk. You can view and/or change the printer configuration settings, monitor toner level, and when it is time to order replacement consumables, just click the Dell supplies link right from your Web browser.
NOTE: The Dell Printer Configuration Web Tool is not available when the printer is locally attached
to a computer or a print server.
Wireless Installation using Dell Printer Configuration Web Tool
Scene 1. Install a printer to the already-operating wireless network (When wireless setting is already set to your computer)
For DHCP network:
Create wireless setting of your computer following the steps below.1.
NOTE: If your computer provides a wireless LAN adapter tool, change the wireless settings using this
tool. Or you can change the wireless settings using the tool provided by the operating system. See the instructions below.
Select Network Connections from Control Panel.a.
Right-click Wireless Network Connection and select Properties.b. Select the Wireless Networks tab.c. Make sure the check box for Use Windows to configure my wireless network settings is
checked.
d.
NOTE: Be sure to write down the current wireless computer settings in steps d and f so that you
can restore them later.
Click the Advanced button.e. Select Computer to Computer (ad hoc) networks only and close the Advanced dialog box.f. Click the Add button to display Wireless network properties.g. Under the Association tab, enter the following information and click OK.h.
Network name (SSID): dell_device Network Authentication: Open Data encryption: Disabled Ad hoc network: checked
Click the Move up button to move the newly added SSID to the top of the list.i.
Page 100
i.
Click OK to close the Property dialog box.j.
NOTE: When your operating system is earlier than Windows 2000, create settings according to
the manual of the wireless setting tool provided by your wireless device manufacturer.
Check the IP address assigned by AutoIP on the printer.2.
e.g.: 168.254.1.1
Check that the IP address on your computer is assigned by DHCP.3. Open Dell Printer Configuration Web Tool using WEB browser.4.
e.g.: http://168.254.1.1/
Change the wireless setting of the printer on Dell Printer Configuration Web Tool.5. Reboot the printer.6. Restore the wireless setting on your computer.7.
NOTE: If your computer provides a wireless LAN adapter tool, change the wireless settings using this
tool. Or you can change the wireless settings using the tool provided by the operating system. See the instructions below.
Select Network Connections from Control Panel.a.
Right-click Wireless Network Connection and select Properties.b. Select Wireless Network tab.c. Click Advanced.d. Do either of the following:e.
When wireless ad-hoc mode is set to the printer:
Select Computer to Computer (ad hoc) networks only and close the Advanced dialog box.
When wireless infrastructure mode is set to the printer:
Select Access point (Infrastructure) networks only and close the Advanced dialog box.
Select the setting that you send to the printer in the list in Preferred Network group.f. Click Move up to move the setting to the top of the list.g. Click OK to close the Property dialog box.h.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
