NOTE: To associate your computer with the wireless docking station using the cable association method, see the

User Manual

that ships with your Dell Wireless Dock.

1

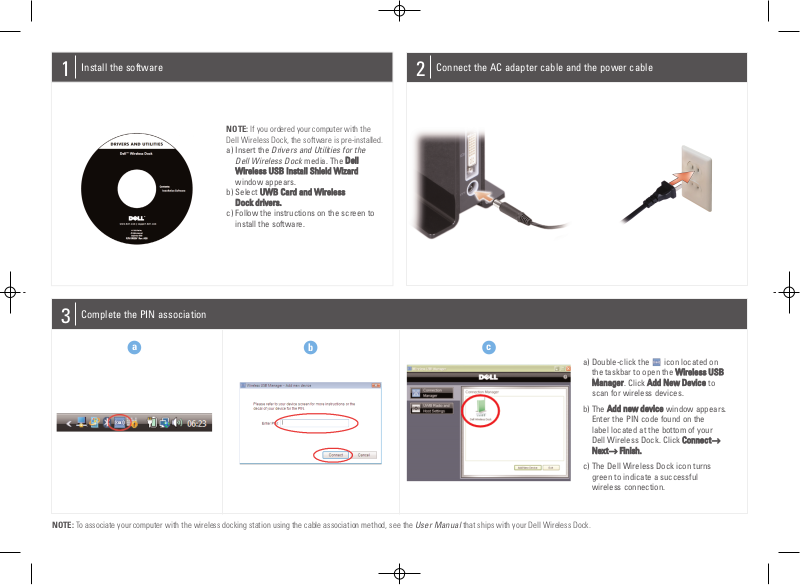

Install the software

NOTE: If you ordered your computer with the
Dell Wireless Dock, the software is pre-installed.

a) Insert the

Drivers and Utilities for the

Dell Wireless Dock

media. The

DDeellll
WWiirreelleessss UUSSBB IInnssttaallll SShhiieelldd WWiizzaarrdd
window appears.

b) Select

UUWWBB CCaarrdd aanndd WWiirreelleessss

DDoocckk ddrriivveerrss..

c) Follow the instructions on the screen to

install the software.

2

Connect the AC adapter cable and the power cable

3

Complete the PIN association

a) Double-click the icon located on

the taskbar to open the

WWiirreelleessss UUSSBB

MMaannaaggeerr

. Click

AAdddd NNeeww DDeevviiccee

to

scan for wireless devices.

b) The

AAdddd nneeww ddeevviiccee

window appears.
Enter the PIN code found on the
label located at the bottom of your
Dell Wireless Dock. Click

CCoonnnneecctt→→

NNeexxtt→→ FFiinniisshh..

c) The Dell Wireless Dock icon turns

green to indicate a successful
wireless connection.

a

b

c

Dell™ Wireless Dock

Quick Start Guide

www.dell.com | support.dell.com

04YJJ6A00

Printed in China.

Printed on recycled paper.

About Your Dell Wireless Dock

11

22

33

44

55

66

77

88

99

1100

1111

6. antenna

7. reset button

8. mini-USB connector for cable association

9. USB connector (2)

10. DVI connector

11. power cable connector

Information in this document is subject to change without notice.

© 2009 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Dell and the DELL logo are trademarks of Dell Inc. Dell disclaims proprietary interest in the marks and names of others.

October 2009

1. power light

2. wireless link and activity light

3. line out (speaker)

4. line in (mic)

5. USB connector (2)
