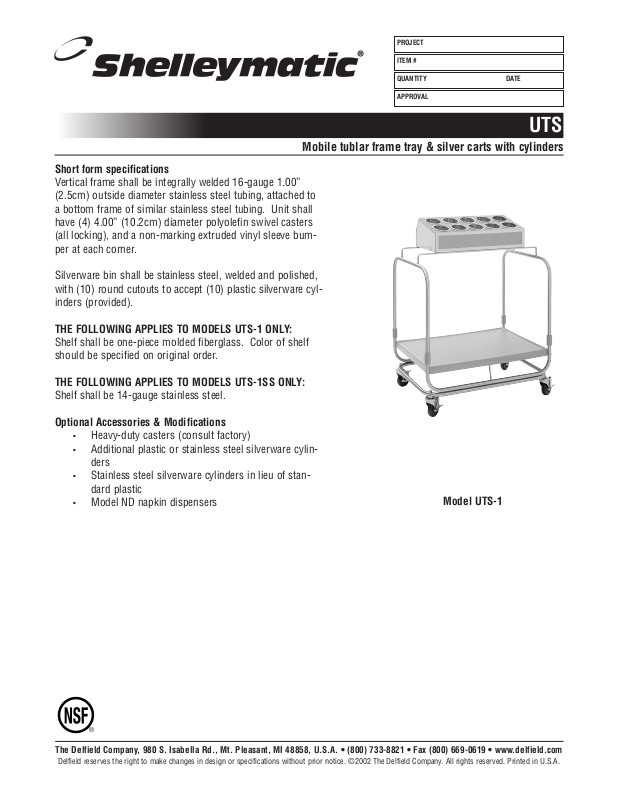

Delfield UTS General Manual

Mobile฀tublar฀frame฀tray฀&฀silver฀carts฀with฀cylinders

Short฀form฀specifications

Vertical฀frame฀shall฀be฀integrally฀welded฀16-gauge฀1.00”฀

(2.5cm)฀outside฀diameter฀stainless฀steel฀tubing,฀attached฀to฀

a฀bottom฀frame฀of฀similar฀stainless฀steel฀tubing.฀฀Unit฀shall฀

have฀(4)฀4.00”฀(10.2cm)฀diameter฀polyolefin฀swivel฀casters฀

(all฀locking),฀and฀a฀non-marking฀extruded฀vinyl฀sleeve฀bum-

per฀at฀each฀corner.

Silverware฀bin฀shall฀be฀stainless฀steel,฀welded฀and฀polished,฀

with฀(10)฀round฀cutouts฀to฀accept฀(10)฀plastic฀silverware฀cyl-

inders฀(provided).

THE฀FOLLOWING฀APPLIES฀TO฀MODELS฀UTS-1฀ONLY:

Shelf฀shall฀be฀one-piece฀molded฀fiberglass.฀฀Color฀of฀shelf฀

should฀be฀specified฀on฀original฀order.

PROJECT

ITEM฀#

QUANTITY฀฀฀DATE

APPROVAL

UTS

THE฀FOLLOWING฀APPLIES฀TO฀MODELS฀UTS-1SS฀ONLY:

Shelf฀shall฀be฀14-gauge฀stainless฀steel.

Optional฀Accessories฀&฀Modifications

•฀Heavy-duty฀casters฀(consult฀factory)

•฀Additional฀plastic฀or฀stainless฀steel฀silverware฀cylin-

ders

•฀Stainless฀steel฀silverware฀cylinders฀in฀lieu฀of฀stan-

dard฀plastic

•฀Model฀ND฀napkin฀dispensers

Model฀UTS-1

The฀Delfield฀Company,฀980฀S.฀Isabella฀Rd.,฀Mt.฀Pleasant,฀MI฀48858,฀U.S.A.฀•฀(800)฀733-8821฀•฀Fax฀(800)฀669-0619฀•฀www.delfield.com

35.25”

89.54cm

PLAN฀VIEW

MODELS฀UTS-1,฀&฀UTS-1SS

UTS

Mobile฀tublar฀frame฀tray฀&฀silver฀carts฀with฀cylinders

23.38”

59.39cm

46.68”

118.57cm

35.75”

90.81cm

5.00”

12.7cm

ELEVATION฀VIEW

MODELS฀UTSP-1,฀&฀UTS-1SS

MODELS฀UTS-1,฀&฀UTS-1SS

MODEL฀SHELF฀SHELF฀SHIP

NUMBER฀DIMENSIONS฀(LxD)฀CAPACITY฀(each)฀WEIGHT

UTS-1฀34.25”฀x฀22.37”฀200lbs฀120lbs

฀87.0cm฀x฀56.8cm฀91kg฀54kg

UTS-1SS฀34.25”฀x฀22.37”฀200lbs฀125lbs

฀87.0cm฀x฀56.8cm฀91kg฀57kg

RIGHT฀END฀VIEW

The฀Delfield฀Company,฀980฀S.฀Isabella฀Rd.,฀Mt.฀Pleasant,฀MI฀48858,฀U.S.A.฀•฀(800)฀733-8821฀•฀Fax฀(800)฀669-0619฀•฀www.delfield.com

MSUTS฀฀05/02
