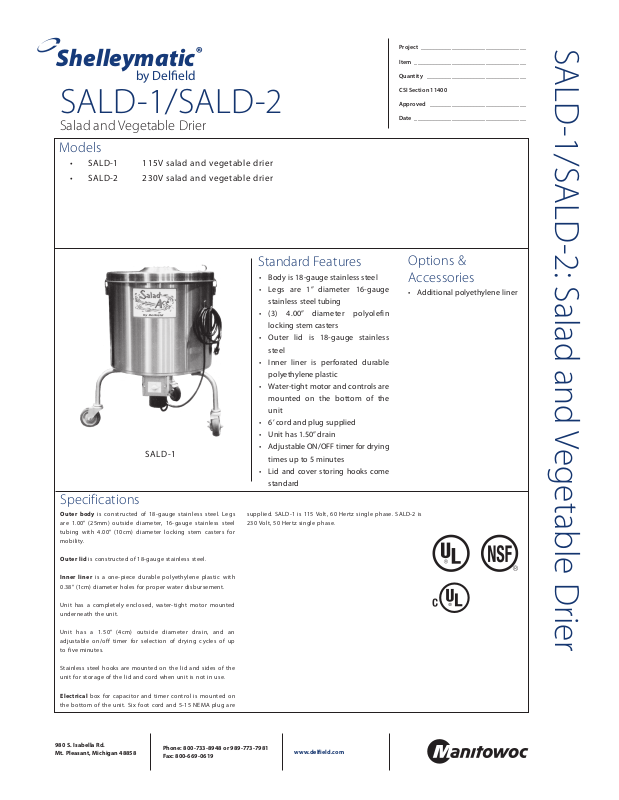

Delfield SALD-2 User Manual
Shelleymatic
®
by Deleld
SALD-1/SALD-2
Salad and Vegetable Drier
Models
• SALD-1 115V salad and vegetable drier
• SALD-2 230V salad and vegetable drier
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
SALD-1/SALD-2: Salad and Vegetable Drier
SALD-1
Specifications
Outer body is constructed of 18-gauge stainless steel. Legs
are 1.00” (25mm) outside diameter, 16-gauge stainless steel
tubing with 4.00” (10cm) diameter locking stem casters for
mobility.
Standard Features
• Body is 18-gauge stainless steel
• Legs are 1” diameter 16-gauge
stainless steel tubing
• (3) 4.00” diameter polyolefin
locking stem casters
• Outer lid is 18-gauge stainless
steel
• Inner liner is perforated durable
polyethylene plastic
• Water-tight motor and controls are
mounted on the bottom of the
unit
• 6’ cord and plug supplied
• Unit has 1.50” drain
• Adjustable ON/OFF timer for drying
times up to 5 minutes
• Lid and cover storing hooks come
standard
supplied. SALD-1 is 115 Volt, 60 Hertz single phase. SALD-2 is
230 Volt, 50 Hertz single phase.
Options &
Accessories
• Additional polyethylene liner
Outer lid is constructed of 18-gauge stainless steel.
Inner liner is a one-piece durable polyethylene plastic with
0.38” (1cm) diameter holes for proper water disbursement.
Unit has a completely enclosed, water-tight motor mounted
underneath the unit.
Unit has a 1.50” (4cm) outside diameter drain, and an
adjustable on/off timer for selection of drying cycles of up
to five minutes.
Stainless steel hooks are mounted on the lid and sides of the
unit for storage of the lid and cord when unit is not in use.
Electrical box for capacitor and timer control is mounted on
the bottom of the unit. Six foot cord and 5-15 NEMA plug are
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
Shelleymatic
by Deleld
ø21.87”
56cm
Plan View
SALD-1, SALD-2
®
21.87”
56cm
19.93”
51cm
Salad and Vegetable Drier
Specifications
Model Height Width Depth Inner Liner
SALD-1
SALD-2
*Inner liner can hold up to 18 heads of chopped lettuce.
SALD-1/SALD-2
Deleld reserves the right to make changes to the design or specications without prior notice.
Elevation View
SALD-1, SALD-2
32.50”
(83cm)
32.50”
(83cm)
27.00”
(69cm)
27.00”
(69cm)
27.00”
(69cm)
27.00”
(69cm)
Capacity
20 Gal
(77L)*
20 Gal
(77L)*
22.92”
58cm
Side View
SALD-1, SALD-2
Inner Liner
Diameter
15.62”
(40cm)
15.62”
(40cm)
3.50”
9cm
Inner Liner
Depth
16.87”
(43cm)
16.87”
(43cm)
32.22”
82cm
12.29”
31cm
5.09”
13cm
V/Hz/Ph Amps Ship Weight
115/60/1 2.7 85lbs/ 38kg
230/50/1 1.35 85lbs/ 38kg
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
Printed in the U.S.A.
DSSALD
04/11
