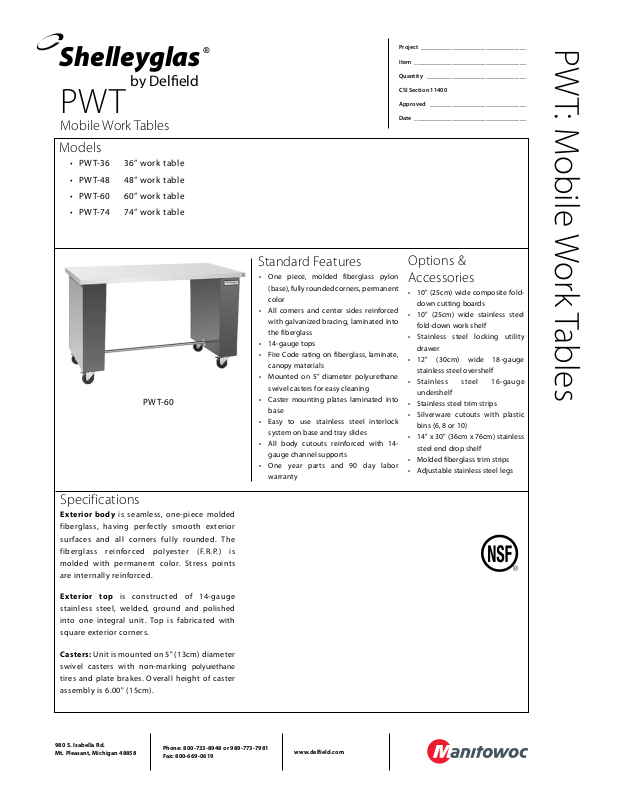

Shelleyglas
®
by Deleld
PWT
Mobile Work Tables
Models
PW T-36 36” work table
•
•
PW T-48 48” work table
•
PW T-60 60” work table
•
PW T-74 74” work table
Project ___ ____________________ ___________
Item _________________ ___________________
Quantity _________________ _______________
CSI Sec tion 11400
Approved ____________ ___________________
Date ____ _____________________ ___________
PWT: Mobile Work Tables
PW T-60
Specifications
Exterio r body is seamless, one- piece molde d
fiberglass, having p erfectly smooth ex terior
surf aces a nd al l corners ful ly ro unded. The
fi ber gl ass re in for ce d p oly es ter (F.R. P.) i s
molded wi th per mane nt color. St ress points
are int ernally rei nforc ed.
Standard Features
One piece, molded fiberglass pylon
•
(base), fully rounded corners, permanent
color
All corners and center sides reinforced
•
with galvanized bracing, laminated into
the fiberglass
14-gauge tops
•
Fire Code rating on fiberglass, laminate,
•
canopy materials
Mounted on 5” diameter polyurethane
•
swivel casters for easy cleaning
Caster mounting plates laminated into
•
base
Easy to use stainless steel interlock
•
system on base and tray slides
All body cutouts reinforced with 14-
•
gauge channel supports
One year parts and 90 day labor
•
warranty
Options &
Accessories
10" (25cm) wide composite fold-
•
down cutting boards
10" (25cm) wide stainless steel
•
fold-down work shelf
Stainless steel locking utility
•
drawer
12" (30cm) wide 18-gauge
•
stainless steel overshelf
Stain less steel 16-gau ge
•
undershelf
Stainless steel trim strips
•
Silver ware cutouts with plastic
•
bins (6, 8 or 10)
14" x 30" (36cm x 76cm) stainless
•
steel end drop shelf
Molded fiberglass trim strips
•
Adjustable stainless steel legs
•
Ex ter ior to p is con struc ted of 1 4-g auge
stainle ss steel, w elded, ground and pol ishe d
into one integral u nit. Top i s fabrica ted w ith
square exte ri or corners.
Caste rs: Unit is mou nted on 5" (13cm) diameter
swive l caste rs with n on-marking polyurethane
tires and plat e brakes . Overall height of caster
assembl y is 6.0 0" ( 15cm).
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
1.62"
4cm
36.00"
91cm
6.00"
15cm
1.62"
4cm
1.12"
3cm
1.00"/3cm
DIA. Tubing
30.00"
76cm
36.00"
91cm
30.00"
76cm
48.00"
122cm
30.00"
76cm
60.00"
152cm
30.00"
76cm
74.00"
188cm
Plan View
PWT-48
Plan View
PWT-36
Plan View
PWT-74
Plan View
PWT-60
Right End View
All PWT Models
Elevation View
All PWT Models
Shelleyglas
®
by Deleld
Mobile Work Tables
PWT
Deleld reserves the right to make changes to the design or specications without prior notice.
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
Specifications
Model L D H Ship Weight
LBS/KG
PW T-36 36” 30” 36” 100/45
PW T-48 48” 30” 36” 158/72
PW T-60 60” 30” 36” 200/91
PW T-74 74” 30” 36” 230/104
Printed in the U.S.A.
GSPWT
01/09
