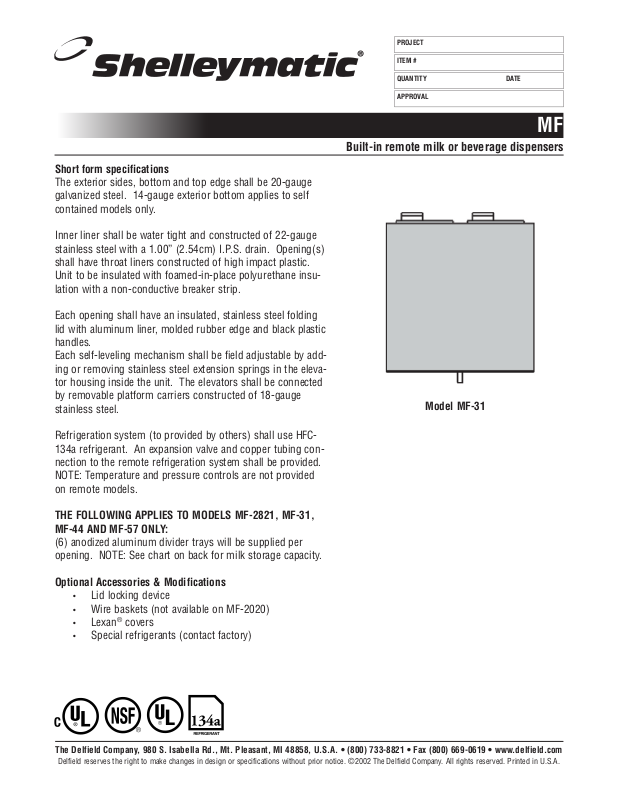

Delfield MF General Manual

Short฀form฀specifications

The฀exterior฀sides,฀bottom฀and฀top฀edge฀shall฀be฀20-gauge฀

galvanized฀steel.฀฀14-gauge฀exterior฀bottom฀applies฀to฀self฀

contained฀models฀only.

Inner฀liner฀shall฀be฀water฀tight฀and฀constructed฀of฀22-gauge฀

stainless฀steel฀with฀a฀1.00”฀(2.54cm)฀I.P.S.฀drain.฀฀Opening(s)฀

shall฀have฀throat฀liners฀constructed฀of฀high฀impact฀plastic.฀฀

Unit฀to฀be฀insulated฀with฀foamed-in-place฀polyurethane฀insu-

lation฀with฀a฀non-conductive฀breaker฀strip.

Each฀opening฀shall฀have฀an฀insulated,฀stainless฀steel฀folding฀

lid฀with฀aluminum฀liner,฀molded฀rubber฀edge฀and฀black฀plastic฀

handles.

Each฀self-leveling฀mechanism฀shall฀be฀field฀adjustable฀by฀add-

ing฀or฀removing฀stainless฀steel฀extension฀springs฀in฀the฀eleva-

tor฀housing฀inside฀the฀unit.฀฀The฀elevators฀shall฀be฀connected฀

by฀removable฀platform฀carriers฀constructed฀of฀18-gauge฀

stainless฀steel.฀

PROJECT

ITEM฀#

QUANTITY฀฀฀DATE

APPROVAL

MF

Built-in฀remote฀milk฀or฀beverage฀dispensers

Model฀MF-31

Refrigeration฀system฀(to฀provided฀by฀others)฀shall฀use฀HFC-

134a฀refrigerant.฀฀An฀expansion฀valve฀and฀copper฀tubing฀con-

nection฀to฀the฀remote฀refrigeration฀system฀shall฀be฀provided.

NOTE:฀Temperature฀and฀pressure฀controls฀are฀not฀provided฀

on฀remote฀models.

THE฀FOLLOWING฀APPLIES฀TO฀MODELS฀MF-2821,฀MF-31,฀

MF-44฀AND฀MF-57฀ONLY:

(6)฀anodized฀aluminum฀divider฀trays฀will฀be฀supplied฀per฀

opening.฀฀NOTE:฀See฀chart฀on฀back฀for฀milk฀storage฀capacity.

Optional฀Accessories฀&฀Modifications

•฀Lid฀locking฀device

•฀Wire฀baskets฀(not฀available฀on฀MF-2020)

•฀Lexan

•฀Special฀refrigerants฀(contact฀factory)

®

฀covers

The฀Delfield฀Company,฀980฀S.฀Isabella฀Rd.,฀Mt.฀Pleasant,฀MI฀48858,฀U.S.A.฀•฀(800)฀733-8821฀•฀Fax฀(800)฀669-0619฀•฀www.delfield.com

Delfield฀reserves฀the฀right฀to฀make฀changes฀in฀design฀or฀specifications฀without฀prior฀notice.฀©2002฀The฀Delfield฀Company.฀All฀rights฀reserved.฀Printed฀in฀U.S.A.฀

29.25”

74.3cm

2.00”

(5.1cm)

2.00”฀(5.1cm)

26.25”

66.7cm

MF

Built-in฀remote฀milk฀or฀beverage฀dispensers

1.87”

4.8cm

2.62”

6.7cm

26.25”

66.7cm

2.75”

7.0cm

2.62”

6.7cm

1.87”

4.8cm

26.25”

66.7cm

PLAN฀VIEW

MODELS฀MF-2020

28.00”

71.1cm

ELEVATION฀VIEW

MODELS฀MF-2020

2.87”

7.0cm

41.50”

105.4cm

2.62”

6.7cm

66.7cm

1.87”

4.8cm

26.25”

RIGHT฀END฀VIEW

MODEL฀MF-2020

55.00”

139.7cm

2.87”

7.0cm

PLAN฀VIEW฀MODELS฀MF-44PLAN฀VIEW฀MODELS฀MF-57

14.50”

36.8cm

PLAN฀VIEW

MODELS฀MF-2821

ELEVATION฀VIEW

MODELS฀MF-2821

1.87”

4.8cm

2.62”

6.7cm

26.25”

66.7cm

28.00”

71.1cm

PLAN฀VIEW

MODELS฀MF-31

ELEVATION฀VIEW

MODELS฀MF-31

12.50”

31.8cm

LID฀OPENING฀DETAIL

MODELS฀MF-2821,

MF-31,฀MF-44฀&฀MF-57

13.90”

35.3cm

฀on฀MF2020฀

only

28.00”

71.cm

ELEVATION฀VIEW฀MODELS฀MFSC-44

28.00”

71.cm

ELEVATION฀฀VIEW฀MODELS฀MFSC-57

MODEL฀CUT฀OUT฀฀HORSE฀BTU฀EVAP.฀SHIP

28.25”

66.7cm

RIGHT฀END฀VIEW

MODELS฀MF-2821,

MF-31,฀MF-44฀&฀MF-57

NUMBER฀DIMENSIONS(LxD)฀CAPACITY฀POWER†฀LOAD฀TEMP.฀WEIGHT฀

MF-2020฀(1)฀25.25”฀x฀22.25”฀n/a฀1/4†฀300฀30˚F฀240lbs

฀(1)฀64.1cm฀x฀56.5cm฀฀฀฀-1˚C฀109kg

MF-2821฀(1)฀10.75฀x฀21.00”฀126฀half฀pint฀1/4†฀260฀30˚F฀197lbs

฀(1)฀27.3cm฀x฀53.3cm฀cartons฀฀฀-1˚C฀89kg

MF-31฀(2)฀10.75฀x฀21.00”*฀252฀half฀pint฀1/4†฀300฀30˚F฀238lbs

฀(2)฀27.3cm฀x฀53.3cm*฀cartons฀฀฀-1˚C฀108kg

MF-44฀(3)฀฀10.75฀x฀21.00”*฀378฀half฀pint฀1/4†฀410฀30˚F฀312lbs

฀(3)฀27.3cm฀x฀53.3cm*฀฀cartons฀฀฀-1˚C฀142kg

MF-57฀(4)฀฀10.75฀x฀21.00”*฀504฀half฀pint฀1/4†฀520฀29˚F฀335lbs

฀(4)฀27.3cm฀x฀53.3cm*฀฀cartons฀฀฀-2˚C฀152kg

*requires฀2.75฀(7.0cm)฀between฀each฀cutout

†MF฀models฀require฀remote฀refrigeration฀systems;฀horsepower฀rating฀shown฀are฀recommended
