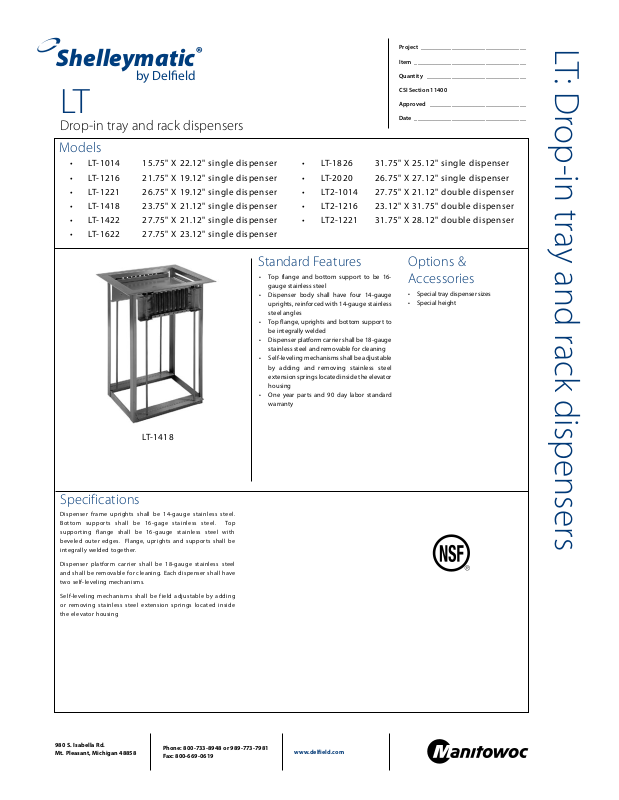

Delfield LT-1216, LT-1221, LT-1418, LT-1422, LT-1622 General Manual
...
Shelleymatic
®
by Delfield
LT
Drop-in tray and rack dispensers
Models
•
LT-1014 15.7 5" X 22.12 " single dispenser
•
LT-1216 21.7 5" X 19.12 " single dispenser
•
LT-1221 26.7 5" X 19.12 " single dispenser
•
LT-1418 23.7 5" X 21.12 " single dispenser
•
LT-1422 27.7 5" X 21.12 " single dispenser
•
LT-1622 27.7 5" X 23.12 " single dispenser
Project ___ ____________________ ___________
Item _________________ ___________________
Quantity ________________ ________________
CSI Sec tion 11400
Approved ____________ ___________________
Date ____ ____________________ ____________
LT-1826 31.7 5" X 25.12 " single dispenser
•
•
LT-2020 26.7 5" X 27.12 " single dispenser
•
LT2-1014 27.7 5" X 21.12 " double dispenser
•
LT2-1216 23.1 2" X 31.75 " double dispenser
•
LT2-1221 31.7 5" X 28.12 " double dispenser
LT: Drop-in tray and rack dispensers
LT-1418
Specifications
Dis pens er f rame upr ight s s hall be 14 -gau ge s tain less st eel.
Bo ttom s upp ort s s hal l be 16 -ga ge s tai nles s st eel. To p
su ppor tin g fl ang e sh all b e 1 6-ga uge sta inl ess st eel wi th
bev eled o uter ed ges. Flan ge, up right s and sup por ts shal l be
int egra lly welde d to geth er.
Dis pens er p latfo rm c arri er s hall be 18- gaug e st ainl ess ste el
and sha ll b e rem ovab le fo r cl eani ng. Each disp ense r sh all h ave
two sel f-le veli ng m echa nisms .
Sel f-le veli ng mec hani sms sh all be f ield a djus tabl e by add ing
or rem oving sta inles s st eel e xten sion spr ings loca ted i nsid e
the ele vato r ho usin g
Standard Features
Top flange and bottom support to be 16-
•
gauge sta inless steel
Dispenser body shall have four 14-gauge
•
uprights, reinforced with 14- gauge stainless
steel angles
Top flange, uprights and bottom support to
•
be integral ly welded
Dispenser plat form carrier shall be 18-gau ge
•
stainless steel and removable for cleaning
Self-leveling mechanisms shall be adjustable
•
by a dding and re moving st ainless steel
extension springs located inside the elevator
housing
One year parts and 90 day labor standard
•
warranty
Options &
Accessories
Special tray dispenser sizes
•
Special height
•
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
L
Shelleymatic
®
by Delfield
L
Plan View
LT Models
Elevation View
LT Models
D
27.50"
70cm
Right End View
LT Models
Plan View
LT2 Models
Elevation View
LT2 Models
D
27.50"
70cm
Right End View
LT2 Models
Specifications
Model Length Depth Counter Top Cutout Dimensions Maximum Tray Size Ship Weight
LT-1014 15.75" (40cm) 22.12" (56cm) 11.75" x 21.00" (31cm x 53cm) 10" x 15" (25cm x 38cm) 43lbs/19kg
LT-1216 21.75" (55cm) 19.12" (49cm) 17.75" x 18.00" (45cm x 46cm) 12" x 16" (30cm x 41cm) 43lbs/19kg
LT-1221 26.75" (68cm) 19.12" (49cm) 22.75" x 18.00" (58cm x 46cm) 12" x 21" (30cm x 53cm) 45lbs/20kg
LT-1418 23.75" (60cm) 21.12" (54cm) 19.75" x 20.00" (50cm x 51cm) 14" x 18" (36cm x 46cm) 43lbs/19kg
LT-1422 27.75" (70cm) 21.12" (54cm) 23.75" x 20.00" (60cm x 51cm) 14" x 22" (36cm x 56cm) 45lbs/20kg
LT-1622 27.75" (70cm) 23.12" (59cm) 23.75" x 20.00" (60cm x 51cm) 16" x 22" (41cm x 56cm) 45lbs/20kg
LT-1826 31.75" (81cm) 25.12" (64cm) 27.75" x 24.00" (70cm x 61cm) 18" x 26" (46cm x 66cm) 48lbs/22kg
LT-2020 26.75" (68cm) 27.12" (69cm) 22.75" x 26.00" (58cm x 66cm) 20" x 21" (51cm x 53cm) 45lbs/20kg
Drop -in tray and rack dispe nsers
LT2-1014 27.75" (70cm) 21.12" (54cm) 23.75" x 20.00" (60cm x 51cm) 10" x 14" (25cm x 36cm) 48lbs/22kg
LT2-1216 23.12" (59cm) 31.75" (81cm) 27.75" x 22.00" (70cm x 56cm) 12" x 16" (30cm x 41cm) 48lbs/22kg
LT2-1221 31.75" (81cm) 28.12" (71cm) 27.75" x 27.00" (70cm x 69cm) 12" x 21" (30cm x 53cm) 48lbs/22kg
LT2 models dispense two separate stacks of trays.
LT
Deleld reserves the right to make changes to the design or specications without prior notice.
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
Printed in the U.S.A.
DSLT
11/09
