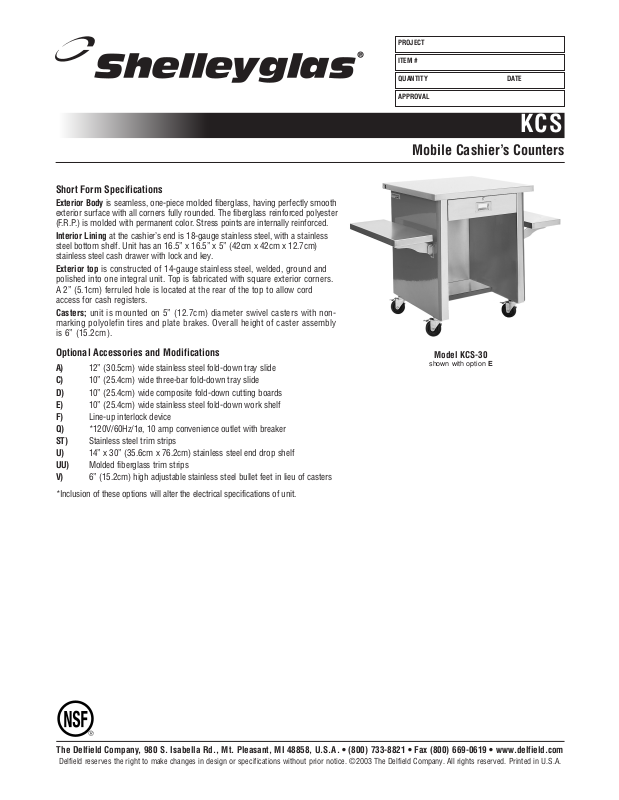

Delfield KCS General Manual

Short฀Form฀Specifications

Exterior฀Body฀is฀seamless,฀one-piece฀molded฀fiberglass,฀having฀perfectly฀smooth฀

exterior฀surface฀with฀all฀corners฀fully฀rounded.฀The฀fiberglass฀reinforced฀polyester฀

(F.R.P.)฀is฀molded฀with฀permanent฀color.฀Stress฀points฀are฀internally฀reinforced.

Interior฀Lining฀at฀the฀cashier’s฀end฀is฀18-gauge฀stainless฀steel,฀with฀a฀stainless฀

steel฀bottom฀shelf.฀Unit฀has฀an฀16.5”฀x฀16.5”฀x฀5”฀(42cm฀x฀42cm฀x฀12.7cm)฀

stainless฀steel฀cash฀drawer฀with฀lock฀and฀key.

Exterior฀top฀is฀constructed฀of฀14-gauge฀stainless฀steel,฀welded,฀ground฀and฀

polished฀into฀one฀integral฀unit.฀Top฀is฀fabricated฀with฀square฀exterior฀corners.฀

A฀2”฀(5.1cm)฀ferruled฀hole฀is฀located฀at฀the฀rear฀of฀the฀top฀to฀allow฀cord฀

access฀for฀cash฀registers.

Casters;฀unit฀is฀mounted฀on฀5”฀(12.7cm)฀diameter฀swivel฀casters฀with฀non-

marking฀polyolefin฀tires฀and฀plate฀brakes.฀Overall฀height฀of฀caster฀assembly฀

is฀6”฀(15.2cm).

PROJECT

ITEM฀#

QUANTITY฀฀฀DATE

APPROVAL

KCS

Mobile฀Cashier’s฀Counters

Optional฀Accessories฀and฀Modifications

A)฀฀฀฀฀฀฀฀฀฀฀12”฀(30.5cm)฀wide฀stainless฀steel฀fold-down฀tray฀slide

C)฀฀฀฀฀฀฀฀฀฀฀10”฀(25.4cm)฀wide฀three-bar฀fold-down฀tray฀slide

D)฀฀฀฀฀฀฀฀฀฀฀10”฀(25.4cm)฀wide฀composite฀fold-down฀cutting฀boards

E)฀฀฀฀฀฀฀฀฀฀฀10”฀(25.4cm)฀wide฀stainless฀steel฀fold-down฀work฀shelf฀

F)฀฀฀฀฀฀฀฀฀฀฀Line-up฀interlock฀device

Q)฀฀฀฀฀฀฀฀฀฀฀*120V/60Hz/1ø,฀10฀amp฀convenience฀outlet฀with฀breaker

ST)฀฀฀฀฀฀฀฀฀Stainless฀steel฀trim฀strips

U)฀฀฀฀฀฀฀฀฀฀฀14”฀x฀30”฀(35.6cm฀x฀76.2cm)฀stainless฀steel฀end฀drop฀shelf

UU)฀฀฀฀฀฀฀฀Molded฀fiberglass฀trim฀strips

V)฀฀฀฀฀฀฀฀฀฀฀6”฀(15.2cm)฀high฀adjustable฀stainless฀steel฀bullet฀feet฀in฀lieu฀of฀casters

*Inclusion฀of฀these฀options฀will฀alter฀the฀electrical฀specifications฀of฀unit.

Model฀KCS-30

shown฀with฀option฀E

The฀Delfield฀Company,฀980฀S.฀Isabella฀Rd.,฀Mt.฀Pleasant,฀MI฀48858,฀U.S.A.฀•฀(800)฀733-8821฀•฀Fax฀(800)฀669-0619฀•฀www.delfield.com

Delfield฀reserves฀the฀right฀to฀make฀changes฀in฀design฀or฀specifications฀without฀prior฀notice.฀©2003฀The฀Delfield฀Company.฀All฀rights฀reserved.฀Printed฀in฀U.S.A.฀

30"

76.2cm

30"

76.2cm

2"

5.1cm

FERRULED

HOLE

CASH

DRAWER

30"

76.2cm

36"

91.4cm

2"

5.1cm

FERRULED

HOLE

CASH

DRAWER

1.62"

4.1cm

S/S฀SHELF

ELECT.฀KNOCKOUT

W/฀COVER

1.62"

4.1cm

36"

91.4cm

6"

15.2cm

.093"

.23cm

CASH

DRAWER

3"

7.6cm

1.62"

4.1cm

S/S฀SHELF

ELECT.฀KNOCKOUT

W/฀COVER

1.62"

4.1cm

36"

91.4cm

6"

15.2cm

.093"

.23cm

CASH

DRAWER

3"

7.6cm

PLAN฀VIEW

KCS-30

ELEVATION฀VIEW

KCS-30

END฀VIEW

KCS-30

PLAN฀VIEW

KCS-36

ELEVATION฀VIEW

KCS-36

END฀VIEW

KCS-36

ELECT.฀KNOCKOUT

W/฀COVER

S/S฀SHELF

1.62"

4.1cm

50"

127cm

30"

76.2cm

CASH

DRAWER

2"

5.1cm

FERRULED

HOLE

PLAN฀VIEW

KCS-50

ELEVATION฀VIEW

KCS-50

END฀VIEW

KCS-50

1.62"

4.1cm

36"

91.4cm

6"

15.2cm

.093"

.23cm

CASH

DRAWER

KCS

Mobile฀Cashier’s฀Counters

Mechanical฀Data–Standard฀Unit

฀฀฀฀฀฀฀฀฀

฀฀฀฀฀฀฀฀฀฀฀฀NUMBER฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀WEIGHT

฀฀฀฀฀฀฀฀KCS-30฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀

฀฀฀฀฀฀฀

฀฀฀฀฀฀฀฀฀

The฀Delfield฀Company,฀980฀S.฀Isabella฀Rd.,฀Mt.฀Pleasant,฀MI฀48858,฀U.S.A.฀•฀(800)฀733-8821฀•฀Fax฀(800)฀669-0619฀•฀www.delfield.com

Delfield฀reserves฀the฀right฀to฀make฀changes฀in฀design฀or฀specifications฀without฀prior฀notice.฀©2003฀The฀Delfield฀Company.฀All฀rights฀reserved.฀Printed฀in฀U.S.A.

MODEL฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀SHIP

180฀lbs

KCS-36

KCS-50

฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀

฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀

210฀lbs

270฀lbs

GSKCS฀฀04/03฀
