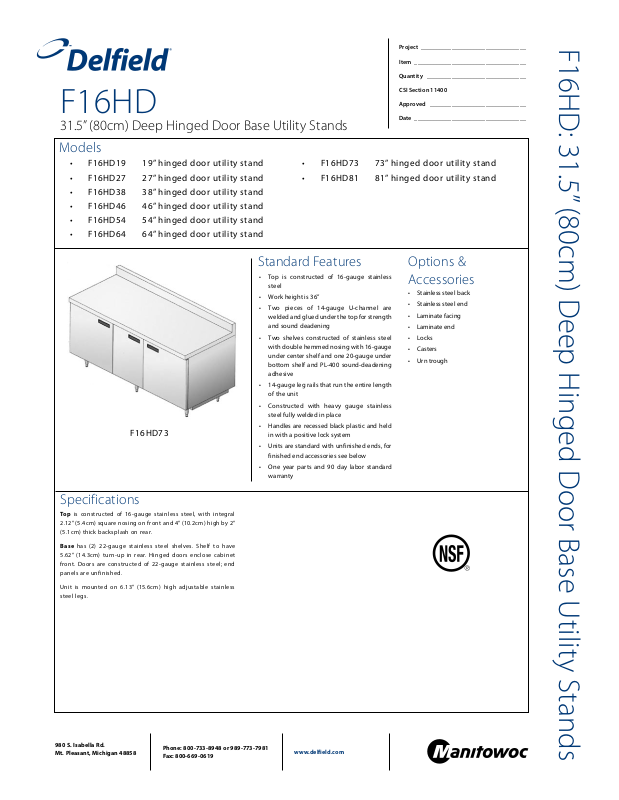

Delfield F16HD27 General Manual
F16HD
31.5” (80cm) Deep Hinged Door Base Utility Stands
Models
F16H D19 19” hinged door util ity stand
•
•
F16H D27 27” hinged door util ity stand
•
F16H D38 38” hinged door util ity stand
•
F16H D46 46” hinged door util ity stand
•
F16H D54 54” hinged door util ity stand
•
F16H D64 64” hinged door util ity stand
F16H D73 73” hinged door util ity stand
•
•
F16H D81 81” hinged door util ity stand
Project ___ ____________________ ___________
Item _________________ ___________________
Quantity _________________ _______________
CSI Sec tion 11400
Approved ____________ ___________________
Date ____ _____________________ ___________
F16HD: 31.5” (80cm) Deep Hinged Door Base Utility Stands
F16H D73
Specifications
Top i s cons truc ted o f 16- gaug e stai nles s ste el, wi th in tegra l
2.1 2” (5. 4cm) squa re no sing on f ront and 4” (10. 2cm) hig h by 2”
(5. 1cm) thi ck b acks plas h on rea r.
Bas e ha s (2) 22- gauge sta inles s st eel s helve s. Sh elf to h ave
5.6 2” (14. 3cm) t urn- up in re ar. Hin ged d oors e nclos e cab inet
fro nt. Do ors ar e const ruct ed of 22 -gau ge sta inle ss ste el; en d
pan els are unfi nish ed.
Uni t is mou nted on 6. 13” (1 5.6cm ) hi gh ad just able sta inle ss
ste el l egs.
Standard Features
Top is constructed of 1 6-gauge stainle ss
•
steel
Work height is 36”
•
Two pieces of 14- gauge U-ch annel are
•
welded and glued under the top for strength
and sound deadening
Two shelves co nstructed of stai nless steel
•
with double hemmed nosi ng with 16-gauge
under center shelf and one 20-gauge under
bottom shelf and PL-400 sound-deaden ing
adhesive
14-gauge leg rails that run the entire length
•
of the unit
Constructed with heavy gauge stainle ss
•
steel fully welded in place
Handles are recessed black plastic and held
•
in with a positive lock system
Units are standard with unfinished ends, for
•
finished end accessories see below
One year parts and 90 day labor standard
•
warranty
Options &
Accessories
Stainless steel back
•
Stainless steel end
•
Laminate facing
•
Laminate end
•
Locks
•
Casters
•
Urn trough
•
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
19" [48.3cm]
27" [68.6cm]
38" [96.5cm]
40"
[101.6cm]
40"
[101.6cm]
40"
[101.6cm]
40"
[101.6cm]
46" [116.8cm]
54" [137.2cm]
73" [185.4cm] 81" [205.7cm]
64" [162.6cm]
27" (68.6cm)
Storage
40"
[101.6cm]
40"
[101.6cm]
40"
[101.6cm]
40"
[101.6cm]
Elevation View
F16HD19
Elevation View
F16HD27
Elevation View
F16HD38
Elevation View
F16HD54
Elevation View
F16HD73
Elevation View
F16HD81
Elevation View
F16HD64
Elevation View
F16HD46
19" (48.3cm)
Storage
19" (48.3cm)
Storage
19" (48.3cm)
Storage
19" (48.3cm)
Storage
19" (48.3cm)
Storage
27" (68.6cm)
Storage
27" (68.6cm)
Storage
27" (68.6cm)
Storage
32" (81.3cm)
Storage
32" (81.3cm)
Storage
27" (68.6cm)
Storage
27" (68.6cm)
Storage
27" (68.6cm)
Storage
27" (68.6cm)
Storage
27" (68.6cm)
Storage
Plan View
All Models
31.5"
[80cm]
40"
[101.6cm]
40"
[101.6cm]
Storage
End View
All Models
36"
[91.4cm]
7.63"
[19.4cm]
6.13"
[15.6cm]
40"
[101.6cm]
2.12" [5.4cm]
25.25"
[64.1cm]
31.5 ” (80c m) Deep Hinged Door Base Utilit y Stands
Specifications
Model Length Doors # Of Shelves Shelf Capacity Ship Weight
F16HD19 19” (48cm) 19” 2 5.95ft
F16HD27 27” (69cm) 27” 2 8.75ft
F16HD38 38” (97cm) (2) 19” 2 12.6ft
F16HD46 46” (117cm) 19” & 27” 2 15.4ft
F16HD54 54” (137cm) (2) 27” 2 18.2ft
F16HD64 64” (163cm) (2) 32” 2 21.7ft
F16HD
Deleld reserves the right to make changes to the design or specications without prior notice.
F16HD73 73” (185cm) 19” & (2) 27” 2 24.85ft
F16HD81 81” (206cm) (3) 27” 2 27.65ft
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
Printed in the U.S.A.
DS16HD
10/09
2
2
2
2
2
2
2
2
210lbs/95kg
245lbs/111kg
285lbs/129kg
300lbs/136kg
335lbs/152kg
385lbs/174kg
420lbs/190kg
485lbs/220kg
