Delfield D4427N-6 PARTS LIST

ILLUSTRATED

PARTS LIST

4400 Series

Compact Refrigerators

Delfield 980 S. Isabella Rd., Mt. Pleasant, MI 48858
[phone] or [phone] • Fax [phone]
www.delfield.com

June 2006

Delfield

CONTENTS

FIGURE 1: REFRIGERATOR BASES, FRONT VIEW .................................................................................................................. 3

TABLE 1: REFRIGERATOR BASES, FRONT VIEW (Sheet 1 of 4) ........................................................................................... 4

TABLE 1: REFRIGERATOR BASES, FRONT VIEW (Sheet 2 of 4) ........................................................................................... 5

TABLE 1: REFRIGERATOR BASES, FRONT VIEW (Sheet 3 of 4) ........................................................................................... 6

TABLE 1: REFRIGERATOR BASES, FRONT VIEW (Sheet 4 of 4) ........................................................................................... 7

FIGURE 2: REFRIGERATOR BASES, REAR VIEW .................................................................................................................... 8

TABLE 2: REFRIGERATOR BASES, REAR VIEW (Sheet 1 of 2) ............................................................................................. 9

TABLE 2: REFRIGERATOR BASES, REAR VIEW (Sheet 2 of 2) ........................................................................................... 10

FIGURE 3: SALAD TOP UNITS, CUTTING BOARDS ............................................................................................................... 12

TABLE 3: SALAD TOP UNITS, CUTTING BOARDS ............................................................................................................... 13

FIGURE 4: MEGA TOP UNITS, CUTTING BOARDS ................................................................................................................ 14

TABLE 4: MEGA TOP UNITS, CUTTING BOARDS ................................................................................................................ 15

FIGURE 5: DRAWER ASSEMBLIES ......................................................................................................................................... 16

TABLE 5: DRAWER ASSEMBLIES ......................................................................................................................................... 17

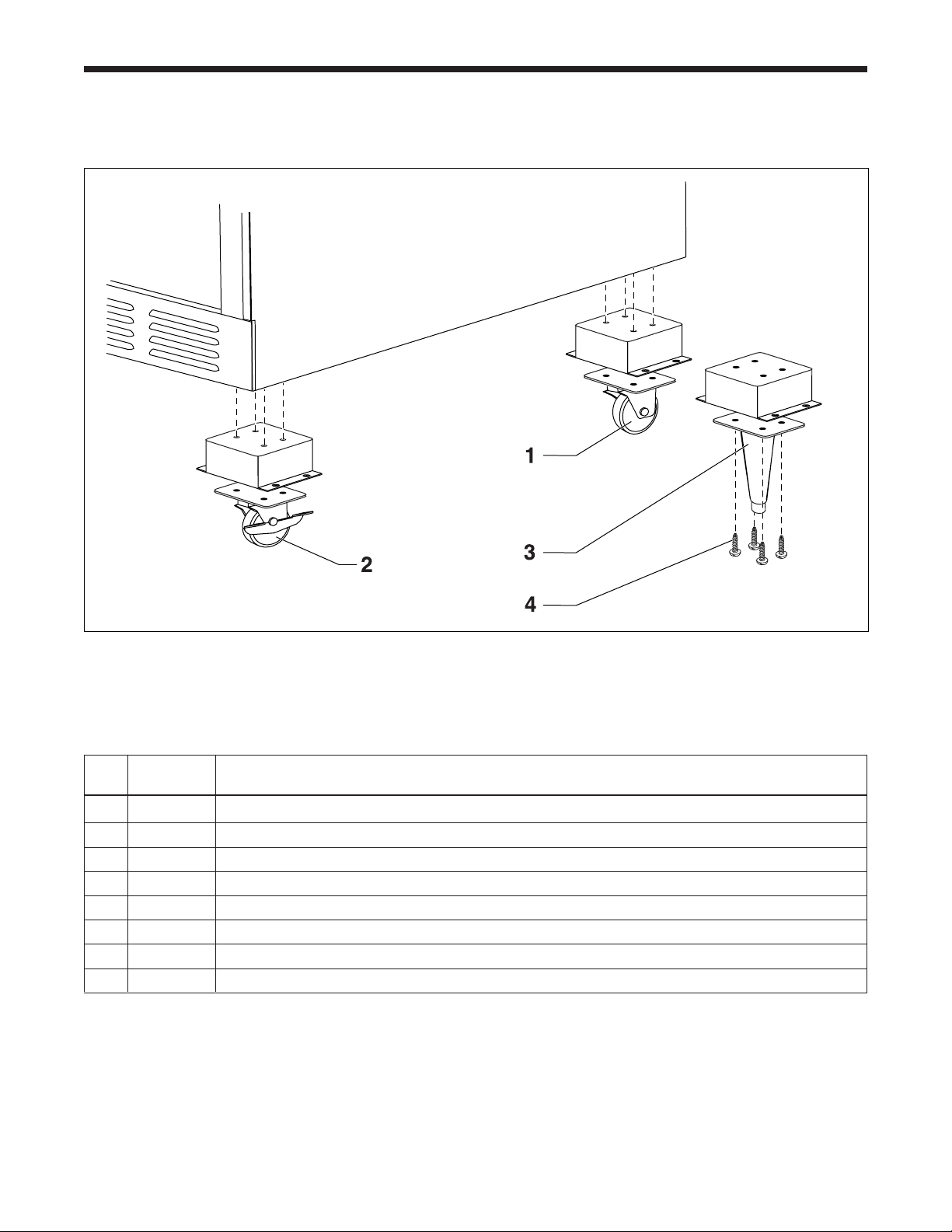

FIGURE 6: CASTER AND LEGS ...............................................................................................................................................18

TABLE 6: CASTER AND LEGS ...............................................................................................................................................18

SPARES FOR TELESCOPING COVERS ................................................................................................................................... 19

TELESCOPING COVERS REPLACEABLE PARTS ...................................................................................................................19

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

2

4400 Series Compact Refrigerators

FIGURE 1: REFRIGERATOR BASES, FRONT VIEW

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

3

Delfield

TABLE 1: REFRIGERATOR BASES, FRONT VIEW

(Sheet 1 of 4)

REFRIGERATOR BASE LENGTHS 27-inch (68.6 cm) 32-inch (81.3 cm) 48-inch (121.9cm)

REFRIGERATOR BASE FRONT STYLE 1-Door 2-Drawer 1-Door 2-Drawer 2-Door 4-Drawer

REF PART

NO. NUMBER REFRIGERATOR BASE MODEL NUMBERS

4427N D4427N 4432N D4432N 4448N D4448N

ST4427N STD4427N ST4432N STD4432N ST4448N STD4448N

UC4427N UCD4427N UC4432N UCD4432N UC4448N UCD4448N

REPLACEMENT PART DESCRIPTION

1 000-B4X-0030 DOOR ASSEMBLY, RH, 24" (61 cm) 1

000-B4X-0031 DOOR ASSEMBLY, LH, 24" (61 cm) 1

000-B4X-0032 DOOR ASSEMBLY, RH, 27" (68.6 cm) 1

000-B4X-0033 DOOR ASSEMBLY, LH, 27" (68.6 cm)

(OPTIONAL LH HINGE) 1*

000-B4X-0036 DOOR ASSEMBLY, RH, 32" (81.3 cm) 1

000-B4X-0037 DOOR ASSEMBLY, LH, 32" (81.3 cm)

(OPTIONAL LH HINGE) 1*

2 1702473 GASKET, DOOR, 24" (61 cm), 4400 2 2

1702474 GASKET, DOOR, 27" (68.6 cm), 4400 1 1

1702475 GASKET, DOOR, 32" (81.3 cm), 4400 1 1

1702562 GASKET, DOOR, 30" (76.2 cm), 4400

3 3234228 PIVOT BRACKET, RIGHT 111111

4 3234229 PIVOT BRACKET, LEFT 1 1

5 3237516 CARTRIDGE HINGE, CONCLED, 65 IN. LB. 111122

6 3237517 WASHER, NYLON,

0.150" (.38 cm) THICK x 0.775" (2 cm) OD 111122

7 3234225A SELF CLOSING HINGE CAP 111111

8 3234226 CARTRIDGE BRKT, RIGHT 111111

9 3234227 CARTRIDGE BRKT, LEFT 1 1

10 3516135 THERMOMETER, HANGING, 4" (10.2 cm) 111111

11 0077584 PAN, CONDENSATE, 14.25" (36.2 cm) 111111

12 0077307 PANEL, FRONT, LOUVERED, 4427 1 1

0077308 PANEL, FRONT, LOUVERED, 4432 1 1

0077309 PANEL, FRONT, LOUVERED, 4448 1 1

13 3978160 SHELF, 24" (61 cm) 2

3978161 SHELF, 27" (68.6 cm) 2

3978163 SHELF, 32" (81.3 cm) 1

14 0077585 SUPPORT, SHELF, BOTTOM 1

15 0077625 SUPPORT, SHELF, TOP 1

16 3234290 SUPPORT SHELF PLASTIC PLUG 2 8 16

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

*OPTIONAL

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

4

TABLE 1: REFRIGERATOR BASES, FRONT VIEW

(Sheet 2 of 4)

REFRIGERATOR BASE LENGTHS 27-inch (68.6 cm) 32-inch (81.3 cm) 48-inch (121.9cm)

REFRIGERATOR BASE FRONT STYLE 1-Door 2-Drawer 1-Door 2-Drawer 2-Door 4-Drawer

REF PART

NO. NUMBER REFRIGERATOR BASE MODEL NUMBERS

4427N D4427N 4432N D4432N 4448N D4448N

ST4427N STD4427N ST4432N STD4432N ST4448N STD4448N

UC4427N UCD4427N UC4432N UCD4432N UC4448N UCD4448N

4400 Series Compact Refrigerators

REPLACEMENT PART DESCRIPTION

17 121-BXG-0000 PAN, EVAPORATOR, 4400 111111

18 3516296 COIL, CONDENSER, 4427N/32N/48N 111111

19 0072354 BRACKET, FAN, CONDENSER, 4400N 111111

20 2162691 MOTOR, FAN, 115V, 50/60, BAY/JAKEL 111111

23 3516274

24 0072353B BAFFLE, FAN, CONDENSER, 4400N 111111

BLADE, FAN, 5.56" (14.1 cm), CW, LEXAN, BLACK

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

111111

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

5

Delfield

TABLE 1: REFRIGERATOR BASES, FRONT VIEW

(Sheet 3 of 4)

REFRIGERATOR BASE LENGTHS 60-inch (152.4 cm) 64-inch (162.6 cm) 72-inch (183 cm)

REFRIGERATOR BASE FRONT STYLE 2-Door 4-Drawer 2-Door 4-Drawer 3-Door 6-Drawer

REF PART

NO. NUMBER REFRIGERATOR BASE MODEL NUMBERS

4460N D4460N 4464N D4464N 4472N D4472N

ST4460N STD4460N ST4464N STD4464N ST4472N STD4472N

UC4460N UCD4460N UC4464N UCD4464N UC4472N UCD4472N

REPLACEMENT PART DESCRIPTION

1 000-B4X-0030 DOOR ASSEMBLY, RH, 24" (61 cm) 2

000-B4X-0031 DOOR ASSEMBLY, LH, 24" (61 cm) 1

000-B4X-0034 DOOR ASSEMBLY, RH, 30" (76.2 cm) 1

000-B4X-0035 DOOR ASSEMBLY, LH, 30" (76.2 cm) 1

000-B4X-0036 DOOR ASSEMBLY, RH, 32" (81.3 cm) 1

000-B4X-0037 DOOR ASSEMBLY, LH, 32" (81.3 cm)

(OPTIONAL LH HINGE) 1*

2 1702473 GASKET, DOOR, 24" (61 cm), 4400 3 3

1702475 GASKET, DOOR, 32" (81.3 cm), 4400 2 2

1702562 GASKET, DOOR, 30" (76.2cm), 4400 2 2

3 3234228 PIVOT BRACKET, RIGHT 111111

4 3234229 PIVOT BRACKET, LEFT 111122

5 3237516 CARTRIDGE HINGE 222233

6 3237517 WASHER, NYLON,

0.150" (.38 cm) THICK x 0.775" (2 cm) OD 222233

7 3234225A SELF-CLOSING HINGE CAP 222233

8 3234226 CARTRIDGE BRKT, RIGHT 111111

9 3234227 CARTRIDGE BRKT, LEFT 111122

10 3516135 THERMOMETER, HANGING, 4" (10.2 cm) 111111

11 0077587 PAN, CONDENSATE, 21.25" (54 cm) 1 1 1 1 1 1

12 0077618 PANEL, FRONT, LOUVERED, 4460 1 1

0077310 PANEL, FRONT, LOUVERED, 4464 1 1

0077688 PANEL, FRONT, LOUVERED, 4472 1 1

13 3978160 SHELF, 24" (61 cm) 3

3978162 SHELF, 30" (76.2 cm) 2

3978163 SHELF, 32" (81.3 cm) 2

14 0077585 SUPPORT, SHELF, BOTTOM 1 1 1

15 0077625 SUPPORT, SHELF, TOP 1 1 1

16 3234290 SUPPORT SHELF PLASTIC PLUG 16 16 24

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

*OPTIONAL

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

6

TABLE 1: REFRIGERATOR BASES, FRONT VIEW

(Sheet 4 of 4)

REFRIGERATOR BASE LENGTHS 60-inch (152.4 cm) 64-inch (162.6 cm) 72-inch (183 cm)

REFRIGERATOR BASE FRONT STYLE 2-Door 4-Drawer 2-Door 4-Drawer 3-Door 6-Drawer

REF PART

NO. NUMBER REFRIGERATOR BASE MODEL NUMBERS

4460N D4460N 4464N D4464N 4472N D4472N

ST4460N STD4460N ST4464N STD4464N ST4472N STD4472N

UC4460N UCD4460N UC4464N UCD4464N UC4472N UCD4472N

4400 Series Compact Refrigerators

REPLACEMENT PART DESCRIPTION

17 121-BXG-0000 PAN, EVAPORATOR, 4400 222222

18 3516297 COIL, CONDENSER, 4460N/64N/72N 111111

19 0072354 BRACKET, FAN, CONDENSER, 4400N 111111

20 2162691 MOTOR, FAN, 115V, 50/60, BAY/JAKEL 111111

21 2162712 MOTOR, GE, CCW, 115V, 50/60, 2850 RPM 111111

22 3516172 BLADE, FAN, 5.56", CCW, LEXAN, CLEAR 111111

23 3516274 BLADE, FAN, 5.56", CW, LEXAN, BLACK 111111

24 0072353B BAFFLE, FAN, CONDENSER, 4400N 111111

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

7

Delfield

FIGURE 2: REFRIGERATOR BASES, REAR VIEW

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

8

TABLE 2: REFRIGERATOR BASES, REAR VIEW

(Sheet 1 of 2)

REFRIGERATOR BASE LENGTHS 27-inch (68.6 cm) 32-inch (81.3 cm) 48-inch (121.9cm)

REFRIGERATOR BASE FRONT STYLE 1-Door 2-Drawer 1-Door 2-Drawer 2-Door 4-Drawer

REF PART

NO. NUMBER REFRIGERATOR BASE MODEL NUMBERS

4427N D4427N 4432N D4432N 4448N D4448N

ST4427N STD4427N ST4432N STD4432N ST4448N STD4448N

UC4427N UCD4427N UC4432N UCD4432N UC4448N UCD4448N

4400 Series Compact Refrigerators

REPLACEMENT PART DESCRIPTION

1* 2194693KT CONTROL, DANFOSS, KIT 111111

2194693 TEMP CONTROL ONLY 111111

2194755 DEFROST PROBE 111111

2194756 AIR SENSING PROBE 111111

2 0052686 BRACKET, FAN MOTOR 9000, 4200 111111

3 2162667 MOTOR, FAN, 115V/60HZ, 1450 RPM, CW 111111

4 2162681 BLADE, FAN, 7" (17.8 cm), 40 DEGREE PITCH 111111

5 3234147

6 3234148

7 3526875 COMPRESSOR, 1/5 HP, HI, R404A 111111

9 3516321 FILTER-DRIER, 250, 2 INLET, 404A 1111

10 3516298 COIL, EVAPORATOR, 4400N 111111

12 0074130 CAP TUBE, .049" (.12 cm) x 108" (274.3 cm) 111111

See Fig. 5

See Fig. 5

See Fig. 5

000-B4Y-0030

000-B4Y-0031

000-B4Y-0033

CASTER, 2" (5 cm), PLT, SWIVEL, HARD RUBBER

CASTER, 2" (5 cm), PLT, SWIVEL, BRK, HD RUBBER

DRAWER ASSEMBLY, 24" (61 cm), 4400 SERIES

DRAWER ASSEMBLY, 27" (68.6 cm), 4400 SERIES

DRAWER ASSEMBLY, 32" (81.3 cm), 4400 SERIES

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

222222

222222

2

1

1

* Part No. 2194693KT Control includes Defrost Probe and Air Sensing Probe.

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

9

Delfield

TABLE 2: REFRIGERATOR BASES, REAR VIEW

(Sheet 2 of 2)

REFRIGERATOR BASE LENGTHS 60-inch (152.4 cm) 64-inch (162.6 cm) 72-inch (183 cm)

REFRIGERATOR BASE FRONT STYLE 2-Door 4-Drawer 2-Door 4-Drawer 3-Door 6-Drawer

REF PART

NO. NUMBER REFRIGERATOR BASE MODEL NUMBERS

4460N D4460N 4464N D4464N 4472N D4472N

ST4460N STD4460N ST4464N STD4464N ST4472N STD4472N

UC4460N UCD4460N UC4464N UCD4464N UC4472N UCD4472N

REPLACEMENT PART DESCRIPTION

1* 2194763KT CONTROL, DANFOSS, DUAL KIT 111111

2194763 TEMP CONTROL ONLY 111111

2194755 DEFROST PROBE 111111

2194765 DEFROST PROBE 111111

2194756 AIR SENSING PROBE 111111

2 0052686 BRACKET, FAN MOTOR 9000, 4200 222222

3 2162667 MOTOR, FAN, 115V/60HZ, 1450 RPM, CW 111111

4 2162681 BLADE, FAN, 7" (17.8 cm), 40 DEGREE PITCH 111111

5 3234147

6 3234148

7 3526945 COMPRESSOR, 1/2 HP, R404A, 4460/64/72 111111

8 3516286 FILTER-DRIER (2), 115 ID, R-404A 111111

10 3516298 COIL, EVAPORATOR, 4400N 222222

11 3516287 SWITCH, HIGH PRESSURE, 404A, 450 111111

12 0074130 CAP TUBE, .049" (.12 cm) x 108" (274.3 cm) 222222

See Fig. 5

See Fig. 5

See Fig. 5

000-B4Y-0030 DRAWER ASSEMBLY, 24" (61 cm), 4400 SERIES 3

000-B4Y-0032 DRAWER ASSEMBLY, 30" (76.2), 4400 SERIES 2

000-B4Y-0033 DRAWER ASSEMBLY, 32" (81.3), 4400 SERIES 2

CASTER, 2" (5 cm), PLT, SWIVEL, HARD RUBBER 333333

CASTER, 2" (5 cm), PLT, SWIVEL, BRK, HD RUBBER

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

333333

* Part No. 2194763KT Control includes Defrost Probes (2) and Air Sensing Probe.

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

10

4400 Series Compact Refrigerators

THIS PAGE INTENTIONALLY LEFT BLANK

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

11

Delfield

FIGURE 3: SALAD TOP UNITS, CUTTING BOARDS

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

12

TABLE 3: SALAD TOP UNITS, CUTTING BOARDS

REFRIGERATOR BASE LENGTHS 27-inch 32-inch 48-inch

REFRIGERATOR BASE FRONT STYLE 1-Door 2-Drawer 1-Door 2-Drawer 2-Door 4-Drawer

REF PART REFRIGERATOR BASE MODEL NUMBERS

4427N-6 D4427N-6 4432N-12 D4432N-12 4448N-8 D4448N-8

4400 Series Compact Refrigerators

REPLACEMENT PART DESCRIPTION

1 1301458 BOARD, WHITE POLY, 1/2" x 10" x 27" 1 1

1301461 BOARD, WHITE POLY, 1/2" x 10" x 48" 1 1

1301476 BOARD, SANALITE, 1/2" x 10" x 32" 1 1

2 1701000 CAP, CUTTING BOARD PIN 222222

3 3234360 FERRULE, BRASS, CUTTING BOARD 222222

4 9321273 SCREW, #8 x 0.75", H-P-F8-AB 222222

5 0077232 DIVIDER BAR, 12.15" x .90"

6 0077507 DIVIDER BAR, 30.75" x .90"

7 3234587 1/6 SIZE PAN, 4" DEEP, CLEAR

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

REFRIGERATOR BASE LENGTHS 60-inch 64-inch 72-inch

REF PART

NO. NUMBER

REFRIGERATOR BASE FRONT STYLE 1-Door 2-Drawer 1-Door 2-Drawer 2-Door 4-Drawer

4460N-8 D4460N-8 4464N-8 D4464N-8

REFRIGERATOR BASE MODEL NUMBERS

4460N-12 D4460N-12 4464N-12 D4464N-12 4472N-12 D4472N-12

4464N-16 D4464N-16 4472N-18 D4472N-18

REPLACEMENT PART DESCRIPTION

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

1 1301460 BOARD, WHITE POLY, 1/2" X 10" x 64" 1 1

1301468 BOARD, SANALITE, 1/2" X 10" x 72" 1 1

1301469 BOARD, SANALITE, 1/2" X 10" x 60" 1 1

2 1701000 CAP, CUTTING BOARD PIN 222222

3 3234360 FERRULE, BRASS, CUTTING BOARD 222222

4 9321273 SCREW, #8 x 0.75, H-P-F8-AB 222222

5 0077232 DIVIDER BAR, 12.15" x .90"

6 0077507 DIVIDER BAR, 30.75" x .90"

7 3234587 1/6 SIZE PAN, 4" DEEP, CLEAR

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

13

Delfield

FIGURE 4: MEGA TOP UNITS, CUTTING BOARDS

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

14

TABLE 4: MEGA TOP UNITS, CUTTING BOARDS

REF PART

NO. NUMBER

4400 Series Compact Refrigerators

REFRIGERATOR BASE LENGTHS 27-inch (68.6 cm) 32-inch (81.3 cm) 48-inch (121.9cm)

REFRIGERATOR BASE FRONT STYLE 1-Door 2-Drawer 1-Door 2-Drawer 2-Door 4-Drawer

REFRIGERATOR BASE MODEL NUMBERS 4427NM D4427NM 4432NM D4432NM 4448NM D4448NM

PART DESCRIPTION

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

1 1301450

1301451

1301457

2 0077510 BRACKET, 8" (20.3 cm) CUTTING BOARD, RT 4400 111111

4 0077801 BRACKET, 8" (20.3 cm) CUTTING BOARD, LT, 4400 111111

5 1701000 CAP, CUTTING BOARD PIN 222222

6 9321003 NUT, 1/4-20, ACORN, SS 222222

7 9321072 SCREW, #8 x 0.75, H-P-F8-AB 444444

8 9321103 PIN, CAP, SCREW, DR HINGE, 400/4000 222222

BOARD, WHITE POLY, 1/2" x 8" x 27" (1.3 x 20.3 x 68.6 cm)

BOARD, WHITE POLY, 1/2" x 8" x 48" (1.3 x 20.3 x 121.9 cm)

BOARD, WHITE POLY, 1/2" x 8" x 32" (1.3 x 20.3 x 81.3 cm)

11

11

11

REFRIGERATOR BASE LENGTHS 60-inch (152.4 cm) 64-inch (162.6 cm) 72-inch (183 cm)

REF PART

NO. NUMBER REFRIGERATOR BASE MODEL NUMBERS

1 1301452

1301459

1301467

2 0077510 BRACKET, 8" (20.3 cm) CUTTING BOARD, RT, 4400 111111

3 0077678 BRACKET, CUTTING BOARD, 4400N-M 111111

4 0077801 BRACKET, 8" (20.3 cm) CUTTING BOARD, LT, 4400 111111

5 1701000 CAP, CUTTING BOARD PIN 222222

6 9321003 NUT, 1/4-20, ACORN, SS 222222

7 9321072 SCREW, #8 x 0.75, H-P-F8-AB 888888

8 9321103 PIN, CAP, SCREW, DR HINGE, 400/4000 222222

REFRIGERATOR BASE FRONT STYLE 1-Door 2-Drawer 1-Door 2-Drawer 2-Door 4-Drawer

4460N-18M D4460N-18M 4464N-18M D4464N-18M 4472N-24M D4472N-24M

4460N-24M D4460N-24M 4464N-24M D4464N-24M 4472N-30M D4472N-30M

PART DESCRIPTION

BOARD, WHITE POLY, 1/2" x 8" x 64" (1.3 x 20.3 x 162.6 cm)

BOARD, WHITE POLY, 1/2" x 8" x 60" (1.3 x 20.3 x 152.4 cm)

BOARD, SANALITE, 1/2" x 8" x 72" (1.3 x 20.3 x 183 cm), 4400

REPLACEMENT PART QUANTITY REQUIRED FOR EACH OF THE ABOVE MODELS

11

11

11

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

15

Delfield

FIGURE 5: DRAWER ASSEMBLIES

5

7

4

1

8

2

6

3

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

16

4400 Series Compact Refrigerators

TABLE 5: DRAWER ASSEMBLIES

REPLACEABLE PARTS

24-inch 27-inch 30-inch 32-inch
(61 cm) (68.6 cm) (76.2 cm) (81.3 cm)

KEY PART Drawer Drawer Drawer Drawer

NO. NO. PART DESCRIPTION Assy. Assy. Assy. Assy.

1 118-APT-0033 BAR, DIVIDER, DRAWER 20.5" (52 cm), 4400 4 4 2

118-APT-0036

2 000-333-003J BOX, DRAWER, 32" (81.3 cm), 4432/64 2

000-333-003K BOX, DRAWER, 30" (76.2 cm), 4460 2

000-333-003L BOX, DRAWER, 27" (68.6 cm), 4400N 2

000-333-003M BOX, DRAWER, 24" (61 cm), 4448/72 2

3 1702522 GASKET, DRAWER, 4432N, 2 HIGH 2

1702524 GASKET, DRAWER, 4427N, 2 HIGH 2

1702541 GASKET, DRAWER, 4448N, 2 HIGH 2

1702542 GASKET, DRAWER, 4460N, 2 HIGH 2

4 3234509 DRAWER SLIDE, RIGHT, 27" (68.6 cm) DRAWERS 2

3234492 DRAWER SLIDE, RIGHT,

5 3234517 DRAWER SLIDE, LEFT 27" (68.6 cm) DRAWERS 2

3234504 DRAWER SLIDE, LEFT,

6 000-C16-0030 FRONT, DRAWER BOX, 24" (61 cm), 4400N 2

000-C16-0031

000-C16-0032 FRONT, DRAWER BOX, 30" (76.2 cm), 4430 2

000-C16-0033 FRONT, DRAWER BOX, 32" (81.3 cm), 4432/64 2

7 9321620 BLUE SLEEVE, DRAWER BOX 2222

8 9321621 WHITE SLEEVE, DRAWER CARTRIDGE 2222

DIV, BAR, 20.5" (52 cm), 1.4" (3.6 cm) WIDE, 4400DRW

24" (61 cm), 30" (76.2 cm), 32" (81.3 cm) DRAWERS

24" (61 cm), 30" (76.2 cm), 32" (81.3 cm) DRAWERS

FRONT, DRAWER BOX, 27" (68.6 cm), 4400N 2

2

222

222

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

17

Delfield

FIGURE 6: CASTER AND LEGS

TABLE 6: CASTER AND LEGS

REF PART

NO. NO. PART DESCRIPTION

1 3234147 2" (5 cm) CASTER WITHOUT LOCK

2 3234148 2" (5 cm) CASTER WITH LOCK

3234795 CASTER ONLY FOR CASTER BOX INSTALLATION

3234025 3" (7.6 cm) CASTER, 3.75" (9.5 cm) LOAD HEIGHT (OPTIONAL)

3234161 5" (12.7 cm) CASTER, 6.25" (15.9 cm) LOAD HEIGHT (OPTIONAL)

3 3234791 LEG – 6" (15.2 cm) MIN. – 7" (17.8 cm) MAX. HEIGHT (OPTIONAL)

000-AXD-004F

4 9321470 MOUNTING SCREW

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

CASTER, 2" (5 cm), UC UNITS W/CASTER BOX, 2.5" (6.4 cm) OVERALL HEIGHT – 4 PIECES

18

4400 Series Compact Refrigerators

SPARES FOR TELESCOPING COVERS

PART NO. PART DESCRIPTION 27" 32" 48" 60" 64" 72"

(68.6 cm) (81.3 cm) (121.9 cm) (152.4 cm) (162.6 cm) (183 cm)

One Part Required for Each Model Number Below

000-B59-003H TELESCOPING COVERS-6 4427N-6

D4427N-6 4464N-12 4472N-12

4427N-6DHL D4464N-12 D4472N-12

000-B59-003K TELESCOPING COVERS-6M 4472-30M

D4472N-30M

000-B59-003M TELESCOPING COVERS-8 4448N-8 4460N-8 4464N-8

D4448N-8 D4460N-8 D4464N-8

000-B59-003N TELESCOPING COVERS-9 4427N-9M

4427N-9MDHL

D4427N-9M

000-B59-003P TELESCOPING COVERS-12M 4432N-12M

D4432N-12M 4460N-12M 4464N-12M

4432N-12MDHL

000-B59-003T TELESCOPING COVERS-18M 4448N-18M 4460N-18M 4464N-18 4472N-18M

Two Parts Required for Each Model Number Below

D4460N-12M D4464N-12M

D4448N-18M D4460N-18M D4464N-18M D4472N-18M

000-B59-003H TELESCOPING COVERS-6 4427N 4448N-12 4460N-12

D4448N-12 D4460N-12

000-B59-003M TELESCOPING COVERS-8 4464N-16

D4464N-16

000-B59-003P TELESCOPING COVERS-12M 4464N-24M 4472N-24M

D4464N-24M D4472N-24M

000-B59-003R TELESCOPING COVERS-12M 4460N-24M 4472N-30M

Three Parts Required for Each Model Number Below

000-B59-003H TELESCOPING COVERS-6 4472N-18

D4472N-18

000-B59-003R TELESCOPING COVERS-12M D4460N-24M

TELESCOPING COVERS REPLACEABLE PARTS

REF PART NO. PART DESCRIPTION

1 3234110 HANDLE, LIFT COVER, CHROME, 4"

2 9321170 SCREW, #10-32 x 0.50, A-Z/S-KN

3 9321250 SCREW, #6-32 x 0.25, S-P-TR-M

4 9321251 NUT, SS, #WWZ11188

Delfield • 980 S. Isabella Road, Mt. Pleasant, MI 48858 • [phone] or [phone] • Fax [phone]

19

Delfield 980 S. Isabella Rd., Mt. Pleasant, MI 48858
[phone] or [phone] • Fax [phone]
www.delfield.com

June 2006
