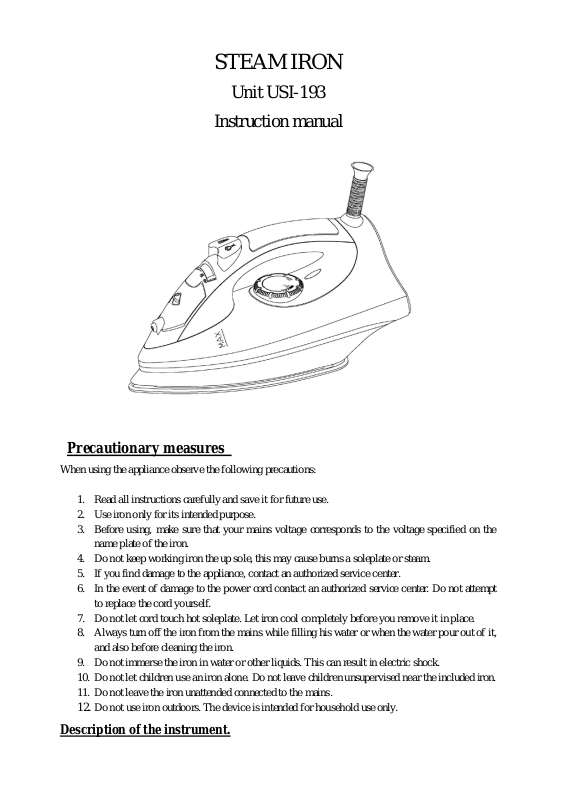

STEAM IRON

Unit USI-193

Instruction manual

Precautionary measures

When using the appliance observe the following precautions:

1. Read all instructions carefully and save it fo r future use.

2. Use iron only for its intended purpose.

3. Before using, make sure that your mains voltage corresponds to the vol tage specified on the

name plate of the iron.

4. Do not keep working iron the up sole, this may cause burns a soleplate or steam.

5. If you find damage to the appliance, contact an authorized service center.

6. In the event of damage to the power cord contact an authorized service center. Do not attempt

to replace the cord yourself.

7. Do not let cord touch hot soleplate. Let iron cool completely before you remove it in place.

8. Always turn off the iron from the mains while filling his water or when the water pour out of it,

and also before cleaning the iron.

9. Do not immerse the iron in water or other liquids. This can result in e lect ric shock .

10. Do not let children use an iron alone. Do not leave children unsupervised near the included iron.

11. Do not leave the iron unattended connected to the mains.

12. Do not use iron outdoors. T he device is in tend ed for household use only.

Description of the in st rument.

K. MAX. Water Level

A. Soleplate
B. Spraying W ater Outlet
C. Water Tank Inlet
D. The position of the Self-Cleaning
E. Regulator supply of steam
F. Spraying Water Button
G. Steam Shot Button
H. Cord Brushing
I. Ready Light
J. Temperature Dial

Soleplate

Which is made of stainless steel material, it can be heated up and be used to iron the garment.

Spraying nozzle

When pressing spraying water button instantly, water is sprayed from this outlet.

Water tank inlet

Filling water into water tank from it, Make sure water should not exceed the Max level (250ml) as
indicated on water tank.

Regulator supply of steam

Move the button to select the desired steam output for each garment, if sel ecting the “off” posit ion, it
indicates ironing without steam.

Spraying button

Pressing the button instantly provides a fine mist spray to dampen hard-to-iron fabrics.

Steam shot button

Pressing the button instantly provides a powerful shot of steam to eliminate stubborn wrinkles.

0

360

Cord bushing

Cord bushing allows free mo vement of power cord in any direction with great ma neuverability when
ironing.

Indicator light

When indicator light is illuminated, it indicates that the iron is heating; it will goes out when it has
reached selected temperatur e.

Temperature dial

Turning the dial to set ironing temperature that is different with the garment changed.

Using of steam iron.
Before first use

1. Remove all the protective stickers from the soleplate.

2. Heat up the iron to maximum temperature and iron a piece of damp cloth, to remove any

Note: When you first use the iron may emit an unpleasant odor, it will disappear with time.

residual adhesive from the sole.

1

Operation of device.

1. Hold the iron vertically, with a slight slope, fill the tank with water, using a measuring cup. You

had better use purified water with less calcium particles. Water is not to exceed “Max” level on
the tank (See pic 1).

2. Close the lid of the water tank until it click s .

3. Connect the iron to the mains and set the thermostat the desired temperature of heating,

depending on the type of fabric (See pic 2). The indicator light will illuminate.

Pic 1 Pic 2

4. Make sure steam button is on dry position. (See pic 3), then place the iron vertically (See pic 4).

Pic 3 Pic 4

5. Once the sole is heated to a predetermined temperature indicator light goes out. Then set the

steam regulator to the desired position for steam ironing or dry ironing.

WARNING: Not touch hot soleplate at any time before cooling down!

6. Press spraying water button a couple of times to moisten the laundry if necessary, before

spraying make sure that there is enough water in water tank.
