de Jong Duke Zia 7.000 Series, Zia 9.000 Series User Manual
Coffee Machine
Zia
7.000 Fresh brew series
9.000 Bean2cup series
with CoEx Brewer
User Manual
User Manual EN
Article number: 5DUCEP20
Filename: zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 2 of 34
Disclaimer Manufacturer
Although this user manual has been put together with the utmost care, J.M. de Jong Duke
automatenfabriek b.v. accepts no liability for inaccuracies or omissions. No liability is
accepted for the consequences arising from operation of the equipment in accordance with
the information contained in these instructions.
J.M. de Jong Duke automatenfabriek b.v. reserves the right to alter specifications at any
time and without prior notification to the purchaser
All rights reserved.
Copyright
J.M. de Jong Duke automatenfabriek b.v. © 2016
The contents of this manual are copyrighted. Texts, images, and source files may only be
used for professional purposes.
No part of this guide may be reused, modified, or published without the prior written
permission of the manufacturer.
Printing pages is allowed only for professional use.
Manufacturer:
De Jong DUKE
+31 (0) 184 496767
Postbus 190
+31 (0) 184 416059
3360 AD SLIEDRECHT
www.dejongduke.com
The Netherlands
support@dejongduke.nl
De Jong DUKE North America
+1 734 403 1708
12680 Delta Street
+1 734 403 1712
Taylor, MI, 48180
www.dejongduke.com
U.S.A.
support@dejongduke.com
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 3 of 34
The machine supplier/ dealer is
Company name:
Address:
Area code – City:
Country:
Telephone:
Fax:
Internet:
e-mail:
For service and support, always contact the dealer / supplier of the machine by using the
telephone service number below.
Tel. Service Number:
Preface
● Carefully read this instruction manual before you operate the machine.
●
Keep this manual in a safe place for possible later reference.
●
The manual cannot be regarded as a replacement for the training and instruction, but
must be seen as an addition to the training and as a reference work.
●
This user manual is valid for the machine supplied by the manufacturer, including the
options installed by the manufacturer. The manufacturer accepts no liability for any
damage resulting from incorrect or improper use of the machine, or resulting from
modifications that have not been authorized by the manufacturer.
●
This manual gives instructions on the operation and maintenance of the machine.
Moreover, it gives solutions to simple malfunctions that may occur. The instructions in
some paragraphs are meant only for persons who are trained in the operation and
maintenance of the machine.
●
Besides this manual, a technical manual is also available.
This technical manual gives directions for solving machine malfunctions and repairing
the machine.
●
For instructions on the installation of the machine, a separate installation manual is
available.
●
Always use original parts from the manufacturer when the machine needs to be
repaired.
●
Only properly trained personnel may carry out repairs, install the machines, or transport
the machines.
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 4 of 34
Index
1 Safety ................................................................................................................ 5
1.1 Safety and Risk levels .................................................................................... 5
1.2 Safety and Warnings ..................................................................................... 6
2 Description of the machine .................................................................................... 7
2.1 General ........................................................................................................ 7
2.2 The front of the machine ................................................................................ 7
2.3 Overview of the machine interior..................................................................... 8
2.4 Type plate .................................................................................................... 9
2.5 Standards and Regulations ............................................................................. 9
2.6 Technical specifications ................................................................................. 10
2.7 Cup and jug sizes ......................................................................................... 11
3 Before use ......................................................................................................... 12
3.1 Installation .................................................................................................. 12
3.2 Operation site .............................................................................................. 12
3.3 Putting the machine out of order .................................................................... 12
4 Operation .......................................................................................................... 13
4.1 Display and selections .................................................................................. 13
4.2 Operating the machine in pay mode (if applicable) ........................................... 13
4.3 Preparing a beverage .................................................................................... 14
4.4 Number selection ......................................................................................... 14
4.5 Jug dispensing ............................................................................................. 15
5 Maintenance and filling ........................................................................................ 16
5.1 Daily maintenance ........................................................................................ 16
5.2 Weekly maintenance .................................................................................... 17
5.3 Monthly maintenance.................................................................................... 18
5.3.1 Cleaning the canister with water .............................................................. 18
5.3.2 Cleaning the brewer with water ............................................................... 18
5.4 Fill canisters ................................................................................................ 19
5.5 Fill bean canister .......................................................................................... 21
5.6 Place safety key ........................................................................................... 22
5.7 Cleaning cycle for CoEx brewer ...................................................................... 23
5.8 Removal of the brewer .................................................................................. 24
5.9 Installing the brewer .................................................................................... 25
5.10 Disassembling the mixing system ................................................................... 26
5.11 Assembling the mixing system ....................................................................... 28
5.12 Disassembling and assembling the tea brewer ................................................. 30
6 Failure and Error messages .................................................................................. 32
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 5 of 34
1 Safety
1.1 Safety and Risk levels
Four safety and risk levels are used in this manual.
The risk levels and explanations are described below.
Danger:
To warn persons / readers about the possibility of
serious or fatal injury to themselves or others.
Warning:
To warn persons / readers about the possibility of
minor injury to themselves or others.
Caution:
To warn persons / readers about possible damage to
equipment or data or about potential problems in the
outcome of what they are doing.
Note:
To emphasize points or remind persons / readers of
something, or to indicate minor problems in the
outcome of what they are doing.
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 6 of 34
1.2 Safety and Warnings
The general safety warnings apply to the entire document.
The risk level associated with the explanation below.
Danger:
Do not use water in or near the machine unless the
instructions contain explicit directions to the
contrary.
Risk of electrocution when water comes in contact with
internal electrical parts.
HOT water! The water system (boiler, pipes, etc.)
may contain hot water
Risk of burning when HOT water comes in contact with a
person that can cause a scalding injury.
Warning:
Do not shake the machine while in use.
Risk that machine can tip and fall.
Risk of electrocution when water comes in contact with
internal electrical parts.
Do not lean on the door when open.
Risk that machine can tip and fall.
Caution:
Do not use aggressive cleaning products or
abrasives to clean (parts of) the machine.
Do not use a damaged machine.
Please contact your supplier
If a fault occurs, disconnect the machine from the
electrical and water supplies.
Please contact your supplier immediately.
Note:
Keep this manual near the machine, so the manual is
immediately available.
Use the machine only in areas where trained personnel can
monitor the operation.
Damaged water connection tubes may only be repaired by
trained personnel.
The water connection must conform to local regulations.
Do not use an extension cord.
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 7 of 34
2 Description of the machine
2.1 General
Warning:
Hot drinks are dispensed from the machine
Take care to avoid scalding yourself.
If cups or jugs are not correctly placed
The machine will spill hot liquid down the front.
This can cause serious burns.
The outlet of the machine may occasionally drip hot
liquid even when the machine is not in use.
When the hot water comes in contact with a person, this
can lead to serious burns.
The water system (boiler, tubes etc.) contains hot
water with a temperature close to the boiling point
<100 °C.
When the hot water comes in contact with a person, this
can lead to serious burns.
The machine is a compact semi-automatic machine for the preparation and vending of hot
drinks. Your supplier can adjust the taste and sizes of the drinks.
Both the 7.000 (Freshbrew) and 9.000 (Bean2cup) series are equipped with our patented
CoEx brewer. However the 9.000 Bean2cup machines are also equipped with a bean canister
and grinder for freshly grinded coffee and/or espresso beans.

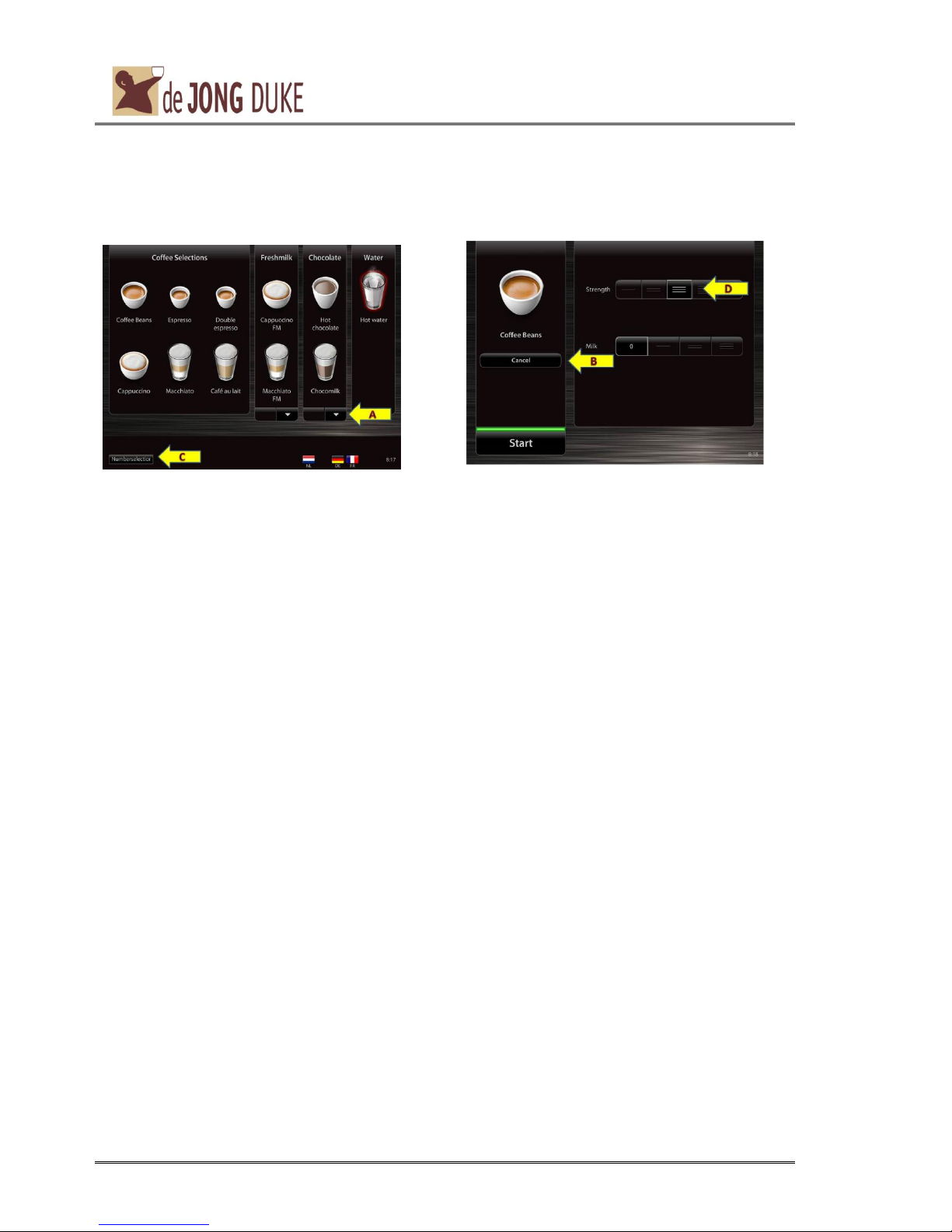

2.2 The front of the machine
The machine is operated using the touchscreen panel on the door. By pushing one of the
selection buttons on the screen, a product choice can be made. Before you dispense a
beverage, a cup or jug must be placed under one of the outlets.
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 8 of 34
2.3 Overview of the machine interior
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 9 of 34
2.4 Type plate
The type plate is mounted on the inside of the machine, at the top left.
The following data is mentioned on the type plate:
●
Name of manufacturer
●
Serial number
●
Type/model specification
●
Model specification
●
Mains power specification
●
Production date
●
Water connection specification
2.5 Standards and Regulations
The machine is built according to CE norms
The machine complies with the following standards:
●
Machine standard: 89/392/EEG
●
EMC standard: 89/336/EEG,
The machine complies with the following norms:
●
EN 292: safety of machines.
●
UL and cUL 751: norm vending machines (only if sign is on type plate)
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 10 of 34
2.6 Technical specifications
Dimensions of the machine:
Height:
890
mm
35,0
in
Width (including key):
465
mm
18,3
in
Depth:
535
mm
21,0
in Weight (empty):
55,5
kg +/-
10
%
122,4
lb
+/-
10 %
Electricity:
Mains supply (Europe):
230
Vac
+/-
10
%
Frequency:
50
Hz
+/- 2 % Max. capacity:
2,4
kW
Mains supply (North America):
115
V AC
+/-
10
%
Frequency:
50
Hz
+/- 2 % Max. capacity:
1.2
kW
Water pressure:
Minimum pressure:
90
kPa
(0,9 bar)
Maximum pressure:
600
kPa
(6,0 bar)
Water connection:
¾
BSP connection
Sound pressure:
< 70
dB(A)
Ambient temperature in storage:
+ 10
°C ~ + 50
°C
Ambient temperature in operating:
+ 5
°C ~ + 40
°C
User Manual
Zia 7.000 and 9.000 series
zia-7000-9000_9CEC_UserManual_5DUCEP20_EN_v01-00.docx
Page 11 of 34
2.7 Cup and jug sizes
CUPS
Measure A: 115 mm 4,6 in
maximum cup diameter: 85 mm 3,34 in
JUGS
Measure B: 174 mm 6,85 in
maximum jug diameter: 135 mm 5,31 in
With elevation units the maximum jug height (B) can be extended with 60
mm (1,97 in) or 120 mm (4,72 in).
Loading...
