Page 1

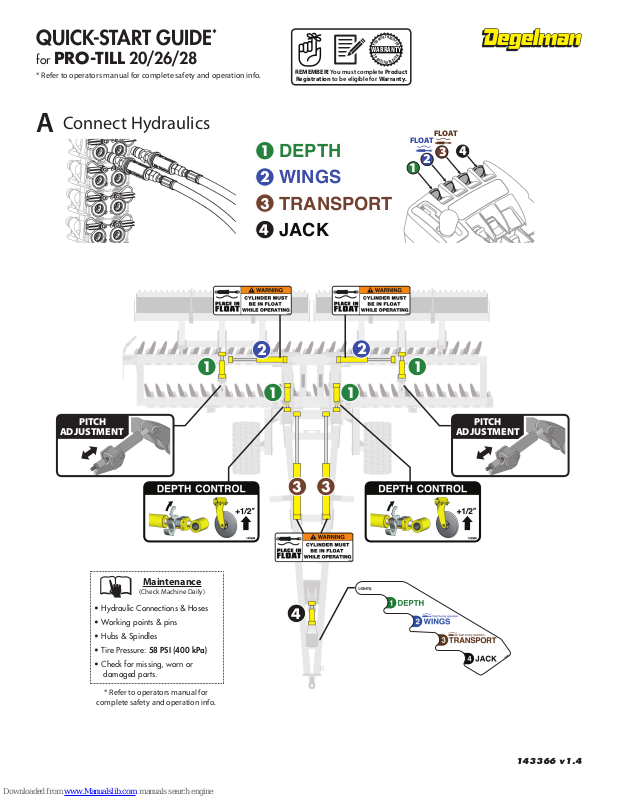

QUICK-START GUIDE
T
O
B
E
E
L
I
G
I
B
L
E
F
O
R
Y
O
U
M
U
S
T
R
E
G
I
S
T
E
R
WARRANTY
REMEMBER! You must complete Product
Registration to be eligible for Warranty.
*
for PRO-TIL L 20/26/28
* Refer to operators manual for complete safety and operation info.
Connect Hydraulics
A
1
DEPTH
2
WINGS
3
TRANSPORT
4
JACK
FLO AT
2
1
FLO AT
3
4
PITCH
ADJUSTMENT
• Hydraulic Connections & Hoses
• Working points & pins
• Hubs & Spindles
• Tire Pressure: 58 PSI (400 kPa)
• Check for missing, worn or
damaged parts.
Maintenance
(Check Machine Daily)
2
1
2
11
1
PITCH
ADJUSTMENT
3 3
4
* Refer to operators manual for
complete safety and operation info.
143366 v1.4
Page 2
Put in Field Position
B
i)
ii)
1”
iii)
Set Cutting Depth
C
iv)
3
3
2
2
v)
Pitch Adjustment
(2 Outer Cylinder
Adjustment Rods)
Depth Adjustment
1
(2 Inner Wheel Cylinders)
2
3
(Start with 8 stops
per cylinder, test
depth & adjust)
(IMPORTANT: Add depth
stops starting from depth plate end )
Test. Check. Adjust.
D
Raise for Headland Turns.
E
F
1
MAX Transport Speed: 40 km/h (25 MPH)
(Tool Storage Location)
10-12 MPH
100m
Typically
Set to 2”
Scraper Position Overview (Rubber Rollers)
Remove the 4 bolts to rotate into
Storage Position
Maintenance
Position
Engaged Position
from roller surface.
or out of “Storage position”,
then re-install.
Loosen the 4 bolts to rotate up into
Set Gap
distance at
1/4” to 3/8”
“Maintenance
Position”
& secure.
Loosen the 4
bolts to rotate
downward.
Set the scraper
clearance
(1/4” to 3/8”).
Properly tighten.
