Degelman LANDROLLER FIVE-PLEX 8000 Series, LANDROLLER FIVE-PLEX LR8064, LANDROLLER FIVE-PLEX LR8080 Operator's & Parts Manual
OPERATOR & PARTS
MANUAL
DEGELMAN INDUSTRIES LTD.
BOX 830-272 INDUSTRIAL DRIVE,
REGINA, SK, CANADA, S4P 3B1
FAX 306.543.2140 PH 306.543.4447
1.800.667.3545 DEGELMAN.COM
143390 v1.1
LANDROLLER 8000 FIVE-PLEX
LR8064 & LR8080
Serial Numbers 7220 and above
QUICK-START GUIDE
T
O
B
E
E
L
I
G
I
B
L
E
F
O
R
Y
O
U
M
U
S
T
R
E
G
I
S
T
E
R
WARRANTY
REMEMBER! You must complete Product
Registration to be eligible for Warranty.
*
for LANDROLLER Five Plex
* Refer to operators manual for complete safety and operation info.
1
Connect Hydraulics
A
Backing Into Field Position
B
1) Drive landroller onto level ground, straight behind
the tractor.
- Ensure there is plenty of room behind and to the sides
of the landroller for backing into fi eld position.
2) Remove all fi ve red transport bars. Place the
transport bars onto the storage brackets provided
and secure with lock-pin.
(4 on wheel cylinders, and 1 on front hitch cylinder).
Note: You may need to activate (extend) the
hydraulic cylinders slightly to allow removal of the
cylinder transport bars.
ROLLER LIFT CIRCUIT....................Wheel Cylinders
2
FRONT HITCH CIRCUIT..............Front Hitch Cylinder
3
SPREADER ARM CIRCUIT....Spreader Arm Cylinders
1
2
2
2
3
3) Slowly back-up while activating the spreader
arm hydraulics until the wings are mostly open or
approximately 15º-30º degrees from being in line.
3
The spreader arms will
assist to spread the
wings apart.
- Retract this circuit upon completion -
4) Fully raise the transport wheels to lower the
rollers to the ground.
5) Continue backing up until both Swing-Arms
lock into the latches.
6)
IMPORTANT: Set the tractor hydraulic remote
that activates the hitch pole cylinder into “fl oat”
position. This will allow the hitch pole to contour
more effectively and prevent strain or possible
damage to the machine.
2
2
4
4
5
4
6
5
5
7) The Landroller is now in fi eld ready position.
7
142645 v1.1
Moving Into Transport Position
C
1) Drive onto level ground. Ensure that the hitch pole
cylinder circuit is out of “fl oat” position.
1
2) Fully extend the transport wheel cylinders to raise the
rollers off ground and activate the hitch pole cylinder to
allow installation of all fi ve (5) red transport bars.
(4 located on wheel cylinders, and 1 on front hitch cylinder).
22
2 2
2
4) Slowly drive forward and wings should fall-back in line
behind the center frame.
4
55
6
3) Activate these circuits again to allow cylinders to rest on
the red transport bars.
33
3 3
3
Maintenance
(Check Machine Daily)
• Check for missing, worn or damaged parts.
• Working points & pins
• Hydraulic Connections & Hoses
• Hubs & Spindles
* Refer to operators manual for complete safety and operation info.
5) Switch on safety lights and check operation.
6) The Landroller is now in transport position.
* Reference Sheet Quick-Start Guide
OPERATORS SECTION - TABLE OF CONTENTS
Introduction 1
Safety 2
Operation 4
Pre-Operation Checklist 5
Hook-Up / Floating Hitch System 6
Transport to Field Position 7
Field to Transport Position 8
Service & Maintenance
Maintenance Checklist and Specifications 10
Repair - Hydraulic Cylinder Repair 14
Repair - Wheel Hub 15
Repair - Bearing Installation 16
Decal Location Overview 17
Troubleshooting 18
PARTS SECTION - TABLE OF CONTENTS
Part Assemblies & Components
Hitch Frame Components 19
Center Frame Components 20
Inner Wing Frame Components 22
Outer Wing Frame Components 23
Hub & Spindle Components 24
Hydraulic Routing
Hydraulic Cylinders 25
Hydraulic Hose Holder Locations 26
Hydraulic Routing - Wheels Cylinders 27
Hydraulic Routing - Front Hitch Cylinder 28
Hydraulic Routing - Spreader Arm Cylinders 29
Electrical Layout & Light Components 30
Warrant y 31
DEGELMAN INDUSTRIES LTD.
BOX 830-272 INDUSTRIAL DRIVE,
REGINA, SK, CANADA, S4P 3B1
FAX 306.543.2140 PH 306.543.4447
1.800.667.3545 DEGELMAN.COM
IMPORTANT:
READ MANUAL
Introduction
CONGRATULATIONS on your choice of a Degelman Landroller to complement your farming operation. It
has been designed and manufactured to meet the needs of a discerning agricultural market for increasing
yields for high quality pulse crops and preparing the perfect bed for haying, grasses and silage. Degelman
rollers provide a smooth and level surface for faster, easier harvest operations and better seed-to-soil contact. Use this manual as your first source of information about this machine.
Safe, efficient and trouble free operation of your Degelman Landroller requires that you and anyone else
who will be operating or maintaining it, read and understand the Safety, Operation, Maintenance and
Troubleshooting information contained within this manual.
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your
Degelman Dealer if you need assistance, information, or additional copies of the manual.
OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout the manual, are
as seen from the tractor drivers’ seat and facing in the direction of travel.
143390 - LR 8000 Five-Plex (01-May-2017)
-1-
Safety
Why is SAFETY important to YOU?
3 BIG Reasons:
•Accidents Can Disable and Kill
•Accidents Are Costly
•Accidents Can Be Avoided
SAFETY ALERT SYMBOL
The Safety Alert Symbol identifies important safety
messages applied to the Landroller and in this
manual. When you see this symbol, be alert to the
possibility of injury or death. Follow the
instructions provided on the safety messages.
SIGNAL WORDS
Note the use of the Signal Words: DANGER, WARNING, and CAUTION with the safety messages.
The appropriate Signal Word has been selected using the following guidelines:
DANGER
The Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
DANGER:
that, if not avoided, WILL result in death or serious injury
if proper precautions are not taken.
Indicates an imminently hazardous situation
WARNING
CAUTION
143390 - LR 8000 Five-Plex (01-May-2017)
WARNING: Indicates a potentially hazardous
situation that, if not avoided, COULD result in death or
serious injury if proper precautions are not taken.
CAUTION: Indicates a potentially hazardous situation
that, if not avoided, MAY result in minor or moderate
injury if proper practices are not taken, or, serves as a
reminder to follow appropriate safety practices.
-2-
Safety
SAFETY GENERAL SAFETY
YOU are responsible for the safe operation and
maintenance of your Degelman Landroller.
YOU must ensure that you and anyone else who
is going to operate, maintain or work around
the Landroller be familiar with the operating and
maintenance procedures and related SAFETY
information contained in this manual.
This manual will take you step-by-step through
your working day and alerts you to all good safety
practices that should be adhered to while operating
this equipment.
Remember, YOU are the key to safety. Good safety
practices not only protect you but also the people
around you. Make these practices a working
part of your safety program. Be certain that
EVERYONE operating this equipment is familiar
with the recommended operating and maintenance
procedures and follows all the safety precautions.
Most accidents can be prevented. Do not risk injury
or death by ignoring good safety practices.
• Landroller owners must give operating
instructions to operators or employees
before allowing them to operate the
Landroller, and at least annually thereafter
per OSHA regulation 1928.51.
• The most important safety device on this
equipment is a SAFE operator. It is the
operator’s responsibility to read and
understand ALL Safety and Operating
instructions in the manual and to follow
these. All accidents can be avoided.
1. Read and understand the Operator’s
Manual and all safety signs before
operating, maintaining or adjusting
the Landroller.
2. Install and properly secure all shields and
guards before operating. Use hitch pin with a
mechanical locking device.
3. Have a first-aid kit available for use
should the need arise and know
how to use it.
4. Have a fire extinguisher available
for use should the need arise and
know how to use it.
5. Wear appropriate protective gear. This list
includes but is not limited to:
• A hard hat
• Protective shoes with slip resistant soles
• Protective glasses or goggles
• Heavy gloves
• Wet weather gear
• Hearing protection
• Respirator or filter mask
6. Clear the area of people, especially small
children, and remove foreign objects from the
machine before starting and operating.
7. Do not allow riders.
• A person who has not read and
understood all operating and safety
instructions is not qualified to operate the
machine. An untrained operator exposes
himself and bystanders to possible serious
injury or death.
• Do not modify the equipment in any way.
Unauthorized modification may impair the
function and/or safety and could affect the
life of the equipment.
• Think SAFETY! Work SAFELY!
143390 - LR 8000 Five-Plex (01-May-2017)
8. Stop tractor engine, set park brake, remove
ignition key and wait for all moving parts to
stop before servicing, adjusting, repairing or
unplugging.
9. Review safety related items with all operators
annually.
-3-
Operation
TO THE NEW OPERATOR OR OWNER
The Degelman Landroller is designed to
provide a smooth and level surface.
It is the responsibility of the owner or
operator to read this manual carefully to
learn how to operate the machine safely.
Safety is everyone’s business. By following
safe operating practices, a safe environment
is provided for the operator and bystanders.
By following the operating instructions
in conjunction with a good maintenance
program your machine will provide many
years of trouble-free service.
Outer Wing
Frame
LH SIDE
Inner Wing
Frame
OPERATING SAFETY
1. Read and understand the Operator’s Manual
and all safety signs before using.
2. Stop tractor engine, set park brake, remove
ignition key and wait for all moving parts to
stop before servicing, adjusting, repairing or
unplugging.
3. Keep hands, feet, hair and clothing away from
all moving and/or rotating parts.
4. Do not allow riders on the Landroller tractor
during operation or transporting.
5. Keep all shields and guards in place when
operating.
6. Clear the area of all bystanders, especially
children, before starting.
7. Do not operate machine on overly steep side
hills or slopes.
8. Be careful when working around or
maintaining a high-pressure hydraulic system.
Ensure all components are tight and in good
repair before starting.
Center
Frame
Inner Wing
Frame
RH SIDE
Outer Wing
Frame
Field Position
Front Hitch
Swing Arm
Auto-Fold Latch
Wing Joint
Rear Transport
Wheel
9. Clean all reflectors, lights and the SMV sign
before transporting on a highway or public
road. Be sure to check with local highway
authorities and comply with their lighting
requirements.
Transport Position
LH SIDE
Wing Assist
Spreader Arms
RH SIDE
Cross Joint
Swing
Arm
Front Hitch
Cylinder
Hitch-Center
Frame Joint
143390 - LR 8000 Five-Plex (01-May-2017)
-4-
Operation
BREAK-IN
Although there are no operational restrictions on
the Landroller when it is new, there are some checks
that should be done when using the machine for the
first time, follow this procedure:
IMPORTANT: It is important to follow the Break-In
procedures especially those listed in the “Before using”
section below to avoid damage:
A. Before using:
1. Read Safety Info. & Operator’s Manual.
2. Complete steps in “Pre-Operation Checklist”.
3. Lubricate all grease points.
(Note: Do NOT grease the spherical bearings on the
roller ends even though they may have grease fittings.
They come pre-lubricated and sealed from the factory)
4. Check all bolt tightness.
5. Check tires. Inflate to:
Front Tires: 12.5L x 15-12 PLY 90 PSI (620 kPa)
Rear Tires: 385/65R x 22.5 90 PSI (620 kPa)
B. After operating for 2 hours:
1. Check all hardware. Tighten as required.
PRE-OPERATION CHECKLIST
It is important for both personal safety and maintaining
good operational condition of the machine that the
pre-operational checklist be followed.
Before operating the machine and each time thereafter, the following areas should be checked off:
1. Lubricate the machine per the schedule outlined in
the “Maintenance Section”.
2. Use only a tractor with adequate power to pull the
Landroller under ordinary operating conditions.
Minimum: 250 HP (186 KW)
3. Ensure that the machine is properly attached to
the tractor using a drawbar pin with provisions
for a mechanical retainer. Make sure that a retainer such as a Klik pin is installed.
NOTE: It is important to pin the draw bar in the
central location only.
4. Before using, inflate tires to:
Front Tires: 12.5L x 15-12 PLY 90 PSI (620 kPa)
Rear Tires: 385/65R x 22.5 90 PSI (620 kPa)
5. Ensure that a safety chain is installed on the hitch.
2. Check all hydraulic system connections.
Tighten if any are leaking.
6. Check oil level in the tractor hydraulic reservoir.
Top up as required.
7. Inspect all hydraulic lines, hoses, fittings and
couplers for tightness. Tighten if there are leaks.
Use a clean cloth to wipe any accumulated dirt
from the couplers before connecting to the tractor’s hydraulic system.
143390 - LR 8000 Five-Plex (01-May-2017)
-5-
Operation
HOOK-UP / UNHOOKING FLOATING HITCH SYSTEM
The Landroller should always be parked on a level,
dry area that is free of debris and foreign objects.
Follow this procedure to hook-up:
1. Clear the area of bystanders and remove
foreign objects from the machine and working
area.
2. Make sure there is enough room to back the
tractor up to the trailer hitch.
3. Start the tractor and slowly back it up to the
hitch point.
4. Stop the tractor engine, place all controls in
neutral, set park brake and remove ignition key
before dismounting.
5. Use the jack to raise or lower the hitch to align
with the drawbar.
6. Install a drawbar pin with provisions for a
mechanical retainer such as a KLIK pin.
Install the retainer.
FRONT HYDRAULIC CYLINDER CIRCUIT MUST BE
SET TO FLOAT DURING FIELD OPERATION
The floating hitch system provides the Landroller
with more flexibility while in the field position. The
hydraulic cylinder must be set on “float” to allow
the roller to move freely over the terrain without
being restricted by the hitch. Failure to set the set the
cylinder to float may cause serious damage to the
machine.
IMPORTANT: It is extremely important that the
front hitch cylinder circuit be set in the “float”
position when operating the Landroller for proper
operation and to prevent damage to the machine.
For more information on setting a hydraulic circuit
in “float” please refer to your tractor’s operational
manual.
7. Install a safety chain between the tractor and
the hitch.
8. Connect the hydraulics. To connect, proceed as
follows:
• Use a clean cloth or paper towel to clean the
couplers on the ends of the hoses. Also clean
the area around the couplers on the tractor.
Remove the plastic plugs from the couplers and
insert the male ends.
• Be sure to match the pressure and return line to
one valve bank.
9. Connect lights (electrical socket plug) to tractor.
10. Raise the hitch jack and rotate it 90º to place in
its stowed position.
11. When unhooking from the tractor, reverse the
above procedure.
143390 - LR 8000 Five-Plex (01-May-2017)
-6-
Operation
TRANSPORT TO FIELD POSITION
1. Drive the Landroller onto level ground so it is
straight behind the tractor.
2. Activate the appropriate hydraulics to allow
removal of all five (5) red transport bars. Place
the transport bars onto the storage brackets
provided and secure with lock-pin.
3. Slowly back-up the Landroller while at the same
time activating the hydraulics which operate
the wing spreader arms until the wings are
approximately 15-30 Degrees from being in
line with the center frame.
The spreader arms will assist (if necessary)
to spread the wings apart to a limited angle.
Retract this circuit upon completion.
(Note: the relief valve plumbed into this circuit
will prevent accidental damage should the
operator forget to retract these arms.)
1
2
2 2
3
22
4
4. Fully retract the transport wheels to lower rollers
to ground.
5. Continue backing up until the Swing-Arms lock
into latches.
6.
IMPORTANT: Set the tractor hydraulic
remote that activates the hitch pole cylinder into
“float” position which will allow the hitch pole to
contour more effectively and prevent strain and
possible damage to the machine.
7. The roller is now in field ready position.
5
6
7
143390 - LR 8000 Five-Plex (01-May-2017)
-7-
Operation
FIELD POSITION TO TRANSPORT
1. Drive onto level ground. Ensure that the hitch
pole cylinder circuit is out of “float” position.
2. Fully extend the transport wheel cylinders to
raise the rollers off ground and activate the
hitch pole cylinder to allow installation of all five
(5) red transport bars.
3. Activate these circuits again to allow the
cylinder’s to rest on the red transport bars.
4. Slowly drive forward and wings should fallback in line behind the center frame.
5. Switch on safety lights and check operation.
6. The machine is now in transport position.
1
2 2
3 3
2
3
2
2
3
3
143390 - LR 8000 Five-Plex (01-May-2017)
4
55
6
-8-
Operation
TRANSPORT SAFETY
1. Read and understand ALL the information in the
Operator’s Manual regarding procedures and
SAFETY when operating the Landroller in the
field/yard or on the road.
2. Check with local authorities regarding machine
transport on public roads. Obey all applicable
laws and regulations.
3. Always travel at a safe speed. Use caution when
making corners or meeting traffic.
4. Make sure the SMV (Slow Moving Vehicle)
emblem and all the lights and reflectors that are
required by the local highway and transport
authorities are in place, are clean and can be
seen clearly by all overtaking and oncoming
traffic.
5. Keep to the right and yield the right-of-way to
allow faster traffic to pass. Drive on the road
shoulder, if permitted by law.
6. Always use hazard warning flashers on tractor
when transporting unless prohibited by law.
TRANSPORTING
Use the following guidelines while transporting the
Landroller:
1. Use a safety chain.
2. Ensure all transport locks are securely in place.
3. Be sure hazard lights are flashing and SMV
decal is visible.
4. MAXIMUM RECOMMENDED TRANSPORT
SPEED: 30 km/h or 19 mph. (Road Conditions.
Field speeds may be lower.)
IMPORTANT: UNDER NO CIRCUMSTANCES
SHOULD THERE EVER BE RIDERS WHILE THE
LANDROLLER IS IN TRANSPORT.
NO
RIDERS
7. Always use a pin with provisions for a mechanical
retainer and a safety chain when attaching to a
tractor or towing vehicle.
143390 - LR 8000 Five-Plex (01-May-2017)
-9-
Service & Maintenance
MAINTENANCE SAFETY
1. Review the Operator’s Manual and all safety
items before working with, maintaining or
operating the Landroller.
2. Stop the tractor engine, set park brake, remove
ignition key and wait for all moving parts to
stop before servicing, adjusting, repairing or
unplugging.
3. Keep hands, feet, clothing and hair away from
all moving and/or rotating parts.
4. Clear the area of bystanders, especially
children, when carrying out any maintenance
and repairs or making any adjustments.
5. Place safety stands or large blocks under the
frame before removing tires or working beneath
the machine.
6. Be careful when working around or maintaining
a high-pressure hydraulic system. Wear proper
eye and hand protection when searching for
a high pressure hydraulic leak. Use a piece
of wood or cardboard as a backstop when
searching for a pin hole leak in a hose or a
fitting.
7. Always relieve pressure before disconnecting or
working on hydraulic system.
MAINTENANCE CHECKLIST
Use the Maintenance Checklist provided for regular
service intervals and keep a record of all scheduled
maintenance:
(Note: Do NOT grease the spherical bearings)
Maintenance Check - 10 Hours
• Hydraulic fluid leaks
• Damaged hoses
• Check tire pressure:
Front: 12.5L x 15 - 90 PSI (620 kPa)
Rear Tires: 385/65R - 90 PSI (620 kPa)
Grease Points - 25 Hours
• Front Hitch Frame Pins
• Swing-Arm Holders
• Cylinder Pins
• Spreader-Arm Pins
• Cast Bearings
(not spherical bearings)
• Cross Joint Pins
• Wing Joint Pins
• Transport Wheel Arm Holders
• Transport Wheel Pins
143390 - LR 8000 Five-Plex (01-May-2017)
• Hubs & Spindles
Grease Points - 50 Hours
• Working points & pins
• Safety signs clean
Annually
• Bolt tightness
• Wheel bearings
• Latch mechanism
• Cable assembly
-10-
Service & Maintenance
SERVICE
GREASING
Grease: Use an SAE multipurpose grease with
extreme pressure (EP) performance. Also acceptable
is an SAE multipurpose lithium.
1. Use only a hand-held grease gun for all
greasing.
2. Wipe grease fitting with a clean cloth before
greasing, to avoid injecting dirt.
3. Replace and repair broken fittings immediately.
4. If fittings will not take grease, remove and clean
thoroughly. Also clean lubricant passageway.
Replace fitting if necessary.
5. Inject grease until you see grease being
expelled from the bearing or bushing areas.
(Note: Do NOT
grease the spherical
bearings on
the roller ends
even though
they may have
grease fittings.
They come pre-lubricated
and sealed from the factory)
STORAGE
The Landroller should be carefully prepared for
storage to ensure that all dirt, mud, debris and
moisture has been removed.
Follow this procedure when preparing to store:
1. Wash the entire machine thoroughly using a
water hose or pressure washer to remove all
dirt, mud, debris or residue.
2. Inspect all parts to see if anything has become
entangled in them. Remove the entangled
material.
3. Lubricate all grease fittings to remove any
moisture in the bearings.
4. Inspect all hydraulic hoses, fittings, lines and
couplers. Tighten any loose fittings. Replace any
hose that is badly cut, nicked or abraded or is
separating from the crimped end of the fitting.
5. Touch up all paint nicks and scratches to prevent
rusting.
6. Oil the exposed rams on the hydraulic cylinder
to prevent rusting.
7. Select an area that is dry, level and free of
debris.
TIRE SAFETY
1. Failure to follow proper procedures when
mounting a tire on a wheel or rim can produce
a blow out which may result in serious injury or
death.
2. Do not attempt to mount a tire unless you have
the proper equipment and experience to do the
job.
3. Have a qualified tire dealer or repair
serviceman perform required tire maintenance.
143390 - LR 8000 Five-Plex (01-May-2017)
-11-
Service & Maintenance
HARDWARE SPECIFICATIONS
Note: Unless stated otherwise, hardware is typically:
Hex, Plated GR5 UNC or P8.8 (metric)
TORQUE SPECIFICATIONS
Checking Bolt Torque
The tables below give correct torque values for various bolts
and capscrews. Tighten all bolts to the torques specifi ed in
chart unless otherwise noted. Check the tightness of bolts
periodically, using these bolt torque charts as a guide.
Replace hardware with the same strength (Grade/Class) bolt.
IMPERIAL TORQUE SPECIFICATIONS
(Coarse Thread - based on “Zinc Plated” values)
SAE-5 SAE-8
Size Grade 5 Grade 8
1/4” 7 (10) 10 (14)
5/16” 15 (20) 20 (28)
3/8” 25 (35) 35 (50)
7/16” 40 (55) 60 (80)
1/2” 65 (90) 90 (120)
9/16” 90 (125) 130 (175)
5/8” 130 (175) 180 (245)
3/4” 230 (310) 320 (435)
7/8” 365 (495) 515 (700)
1” 550 (745) 770 (1050)
1-1/8” 675 (915) 1095 (1485)
1-1/4” 950 (1290) 1545 (2095)
1-3/8” 1250 (1695) 2025 (2745)
1-1/2” 1650 (2245) 2690 (3645)
lb.ft (N.m) lb.ft (N.m)
TORQUE
HYDRAULIC SAFETY
• Make sure that all components in the hydraulic
system are kept in good condition and are clean.
• Replace any worn, cut, abraded, fl attened or
crimped hoses and metal lines.
• Do not attempt any makeshift repairs to the
hydraulic lines, fi ttings or hoses by using tape,
clamps or cements. The hydraulic system operates
under extremely high-pressure. Such repairs will
fail suddenly and create a hazardous and unsafe
condition.
• Wear proper hand and eye
protection when searching for a
high-pressure hydraulic leak. Use
a piece of wood or cardboard as
a backstop instead of hands to
isolate and identify a leak.
• If injured by a concentrated high-pressure stream of
hydraulic fl uid, seek medical attention immediately.
Serious infection or toxic reaction can develop from
hydraulic fl uid piercing the skin surface.
• Before applying pressure to the system, make sure
all components are tight and that lines, hoses and
couplings are not damaged.
HYDRAULIC HOSE SPECIFICATIONS
Note: Unless otherwise stated, Hydraulic Hoses are
either 3/8 or 1/2 with 3/4 JIC female swivel ends.
METRIC TORQUE SPECIFICATIONS
(Coarse Thread - based on “Zinc Plated” values)
8.8 10.9
Size Class 8.8 Class 10.9
M6 7 (10) 10 (14)
M8 16 (22) 23 (31)
M10 30 (42) 45 (60)
M12 55 (75) 80 (108)
M14 90 (120) 125 (170)
M16 135 (185) 195 (265)
M18 190 (255) 270 (365)
M20 265 (360) 380 (515)
M22 365 (495) 520 (705)
M24 460 (625) 660 (895)
M27 675 (915) 970 (1315)
M30 915 (1240) 1310 (1780)
M33 1250 (1695) 1785 (2420)
M36 1600 (2175) 2290 (3110)
143390 - LR 8000 Five-Plex (01-May-2017)
lb.ft (N.m) lb.ft (N.m)
HYDRAULIC HOSE INSTALLATION TIPS
The following tips are to help you identify some possible
problem areas in the installation of hydraulic hoses.
1. Ensure hoses are not twisted during installation as
this may weaken the hose. Also, the pressure in a
twisted hose may loosen fi ttings or connections.
2. Allow suffi cient bend radius in hoses when installing
to prevent lines from collapsing and fl ow becoming
restricted.
3. When installing hoses in an area of movement or
fl exing, allow enough free length for motion and to
ensure fi tting connections are not stressed.
4. Ensure hoses are properly clamped and secured in
position after routing is complete to provide a cleaner
installation and prevent possible damage or hazards.
v1.0
-12-
HYDRAULIC FITTING INSTALLATION
The following info is to help you identify and properly
install some of our standard hydraulic fi ttings.
SAE (JIC) 37° Flare
JIC fi ttings - Metal-to-metal sealing type fi ttings featuring
a 37° fl are (angle of sealing surface) and straight UNF
(United National Fine) Threads.
(Lubricated
Dash Thread Size Torque - lb.ft (N.m)
Values)
-4 7/16 - 20 9-12 (12-16)
-6 9/16 - 18 14-20 (19-27 )
-8 3/4 - 16 27-39 (37-53)
-10 7/8 - 14 36-63 (50-85)
-12 1-1/16 - 12 65-88 (90-119)
Tightening JIC 37° Flare Type Fittings
1. Check fl are and fl are seat for
defects that might cause leakage.
2. Align fi ttings before tightening.
Lubricate connections & hand
tighten swivel nut until snug.
3. Using two wrenches, torque to values shown in table.
Alternate Installation Method
3. Using two wrenches. Place
one wrench on the fi xed
connector body at a clock
position of 6 o’clock.
4. Place the second wrench
on the second connection
as close to the 3 o’clock
position as possible.
5. Tighten by rotating the
MAX
second connection fi rmly to at least the 4 o’clock position,
but no more than the 7 o’clock position. Typically, the
larger the fi tting size the less rotation required.
ORFS (O-Ring Face Seal)
ORFS fi ttings use an O-ring compression method to seal.
This method offers a high level of sealing along with good
vibration resistance. Male fi ttings include an O-ring located
in a groove on the fl at face. Female fi ttings feature a fl at
face and UNF straight threaded swivel nut.
The Torque method is recommended for ORFS installation.
Dash Thread Size Torque - lb.ft (N.m)
-4 9/16 - 18 18 (25)
-6 11/16 - 16 30 (40)
-8 13/16 - 16 40 (55)
-10 1 - 14 60 (80)
-12 1-3/16 - 12 85 (115 )
Tightening ORFS (O-Ring Face Seal) Fittings
1. Inspect components and ensure the O-Ring seal is
undamaged and properly installed in the groove of the
face seal. Replacing the O-Ring may be necessary.
2. Align, thread into place and hand tighten.
3. Tighten to proper torque from the table shown above.
1
2
4
3
MIN
5
Note: A DASH size refers to a diameter of a hose (inside)
or of a tube (outside) measured in 1/16” increments.
For example, a Hose specifi ed as dash 8 or -8 would
have an inside diameter of 8/16” or 1/2”.
Alternatively, a Tube specifi ed as dash 8 or -8 would
have an outside diameter of 8/16” or 1/2”.
ORB (O-Ring Boss)
Male ORB fi ttings have straight UNF threads, a sealing face
and an O-ring. The female fi ttings are generally found in the
ports of machines and feature straight threads, a machined
surface, and a chamfer to accept the O-ring. Sealing is
achieved through the compression of the male O-ring
against the chamfered sealing face of the female fi tting.
Torque Torque
(Lubricated
Dash Thread Size Non-Adjustable Adjustable
Values)
lb.ft (N.m) lb.ft (N.m)
-4 7/16 - 20 30 (40) 15 (20)
-6 9/16 - 18 35 (46) 35 (46)
-8 3/4 - 16 60 (80) 60 (80)
-10 7/8 - 14 100 (135) 100 (135)
-12 1-1/16 - 12 135 (185) 135 (185)
Tightening ORB (O-Ring Boss) Fittings
Non-adjustable Port End Assembly
1. Inspect the components to ensure that male and female
threads and sealing surfaces are free of nicks, burrs,
scratches, or any foreign material.
2. Ensure O-Ring seal is properly installed and undamaged.
3. Lubricate threads and O-ring to help the O-ring slide
past the port entrance corner and avoid damaging it.
4. Screw the fi tting into position tighten to proper torque
value from the table shown above.
Adjustable Port End Assembly
1. Inspect the components to ensure
male & female threads and sealing
surfaces are free of nicks, burrs,
scratches, or any foreign material.
2. Ensure O-Ring seal is properly installed and undamaged.
3. Lubricate threads and O-ring to help the O-ring slide
smoothly into the port and avoid damage.
4. Loosen back the lock nut as far as possible. Make sure
back-up washer is not loose and is pushed up as far as
possible.
5. Screw the fi tting into port until the back-up washer or the
retaining ring contacts face of the port. Light wrenching
may be necessary. Over tightening may damage washer.
6. To align the end of the fi tting to accept incoming tube
or hose assembly, unscrew the fi tting by the required
amount, but not more than one full turn.
7. Using two wrenches, hold the fi tting in desired position
and tighten the locknut to the proper torque value from
the table located above.
8. Inspect to ensure that O-ring is not pinched and that
washer is seated fl at on the face of the port.
Lock Nut
Back-up
Washer
O-Ring
143390 - LR 8000 Five-Plex (01-May-2017)
-13-
Service & Maintenance
HYDRAULIC CYLINDER REPAIR
PREPARATION
When cylinder repair is required, clean off unit,
disconnect hoses and plug ports before removing
cylinder.
When removed, open the cylinder ports and drain the
cylinder's hydraulic fl uid.
Examine the type of
cylinder. Make sure
you have the correct
tools for the job.
You may require the
following tools:
• Proper Seal Kit
• Allen Key Set
• Emery cloth
• Torque Wrench
Threaded Head Cylinder
(Monarch)
Set Screw
Threaded
Head
REPAIRING A THREADED HEAD CYLINDER
Set Screw Style
Wear
Ring
Lock
Nut
Piston
Barrel
Piston
Seal
U-Cup
Seal
Wear Ring
Gland
Rod
Assembly
DISASSEMBLY
1. Loosen Set Screw and turn off end cap.
2. Carefully remove piston/rod/gland assemblies.
3. Disassemble the piston from the rod assembly
by removing lock nut.
Set Screw
Dual Seal
Wiper
Seal
End
Cap
CYLINDER ROD LOCKNUT TORQUE VALUES
O.D. Threads =
Locknut Size
LOCKNUT SIZE (PISTON) TORQUE VALUE
3/8 - 24 UNF 25-30
1/2 - 20 UNF 40-60
5/8 - 18 UNF 95-105
3/4 - 16 UNF 175-225 lb.ft
7/8 - 14 UNF 200-275
1 - 14 UNF 300-380 lb.ft
1 1/8 - 12 UNF 400-500
1 1/4 - 12 UNF 500-600
1 1/2 - 12 UNF 700-800
1 3/4 - 12 UNF 800-900
lb.ft (35-42 N.m)
lb.ft (55-80 N.m)
lb.ft (130-140 N.m)
(240-305 N.m)
lb.ft (270-370 N.m)
(405-515 N.m)
lb.ft (540-675 N.m)
lb.ft (675-810 N.m)
lb.ft (950-1085 N.m)
lb.ft (1085-1220 N.m)
NOTE: DO NOT clamp rod by chrome surface.
4. Slide off gland assembly & end cap.
5. Remove seals and inspect all parts for damage.
6. Install new seals and replace damaged parts with
new components.
7. Inspect the inside of the cylinder barrel, piston, rod
and other polished parts for burrs and scratches.
Smooth areas as needed with an emery cloth.
REASSEMBLY
1. Reinstall rod through end cap & gland assembly.
2. Secure piston to rod with lock nut. Torque lock nut
to proper value (refer to chart for proper torque
value).
3. Lube inside of barrel, piston seals, and gland seals
with hydraulic oil.
4. With cylinder body held gently in a vise, insert
piston, gland, end cap and rod combination using
a slight rocking motion.
5. Apply Loctite anti-seize before installing cylinder
end cap.
143390 - LR 8000 Five-Plex (01-May-2017)
6. Torque cylinder end cap to 440 lb.ft (600 N.m).
7. Tighten Set Screw on end cap to 6 lb.ft (8 N.m).
-14-
Service & Maintenance
WHEEL HUB REPAIR
DISASSEMBLY
1. Remove dust cap.
2. Remove cotter pin from nut.
3. Remove nut and washer.
4. Pull hub off spindle.
5. Dislodge the inner cone
bearing and dust seal.
6. Inspect cups that are press
fitted into hub for pits or
corrosion and remove if
neces sary.
7. Inspect and replace defective
parts with new ones.
ASSEMBLY
1. If cups need replacing, be
careful to install them gently
and evenly into hub until they
are fully seated.
2. Apply a thick wall of grease
inside hub. Pack grease in
cones.
3. Install inner cone and dust
seal as illustrated.
4. Position hub onto
spindle and fill
surrounding cavity with
grease.
5. Assemble outer cone, washer
and nut.
6. Tighten nut while rotating hub
until there is a slight drag.
7. Turn nut back approximately
1/2 turn to align cotter pin
hole with notches on nut.
8. Install cotter pin and bend legs
sideways over nut.
9. Fill dust cap half full of grease
and gently tap into position.
10. Pump grease into hub through grease fitting until
lubricant can be seen from dust seal.
IMPORTANT: Be sure
to block up unit securely
before removing tires.
COMMON
HUB & SPINDLE
COMPONENTS
Flat Washer
& Cotter Pin
Spindle
Dust
Seal
Inner
Cone
Inner
Cup
Hub
Outer
Cup
Outer
Cone
Slotted Nut
Dust Cap
WHEEL NUT & WHEEL BOLT TORQUE
BOLT PATTERNS
1
3 4
2
5
5 BOLT PATTERN
1
4
5 3
6 BOLT PATTERN
Wheel Nut/Bolt Torque
Size lb.ft (N.m)
9/16 120-130 (165-175)
5/8 185-190 (250-260)
3/4 280-300 (380-405)
6
2
Wheel Tightening Procedure
1. Install and hand tighten nuts/bolts.
2. Tighten to approx. 20% Torque value using the
Bolt Star or CrissCross patterns shown above.
3. Tighten to Full Torque value using the Star or
CrissCross pattern.
4. If applicable, install Rear Locknuts using Wheel
Torque Values.
1
8
3
5 7
2
8 BOLT PATTERN
3
4
10 BOLT PATTERN
10 8
7 9
TIRE SPECIFICATIONS
Front Tires: 12.5L x 15 - 12 PLY 90 PSI (620 kPa)
Rear Tires: 385/65R x 22.5 90 PSI (620 kPa)
REMOVE & REPLACE REAR WHEEL
1.
IMPORTANT:
Lower the rollers
onto the ground and
raise transport wheel arms
off the ground (ensure the
weight is no longer on the
transport wheels).
2. Loosen bolts on spindle offset assembly and
remove bottom two bolts.
3. Remove spindle offset assembly/wheel from
transport arm.
4. Remove and replace tire as needed.
5. Torque the 5/8 wheel nuts to 185-190 ft·lbs.
6. Reverse the sequence when installing.
7. Check tire inflation. See “Tire Specifications”.
TORQUE
1
5
46
2
143390 - LR 8000 Five-Plex (01-May-2017)
-15-
Service & Maintenance
SPHERICAL BEARING INSTALLATION
SPHERICAL BEARING
COMPONENTS
Lock Nut
Lock
Washer
(Note: Do NOT grease spherical bearings)
1. Support and secure roller frame. Center roller drum between roller frame before installing bearings.
2. IMPORTANT: Check the position of the snap rings in the assembled bearing unit. They should be
located in the “fixed” position (See fig.1). On occasion they have may been sent in the default
“floating” position from the supplier but must be relocated to the ”fixed” position before installation.
Note: Appropriate eye protection should be worn when handling snap rings.
3. Loosen the locknut almost all the way, with the exception of a few threads to keep it on the sleeve.
4. Push the locknut/sleeve firmly inward against the bearing and hold. While holding, slide the assembly
onto the shaft until the bearing housing is in position against the roller frame (holding the locknut is
important so the sleeve doesn’t tighten between the bearing and the shaft while sliding into position).
117198 - Retaining Ring
117196 - Bearing
BearingSnap Ring
117195 - Bearing Housing, c/w Retaining Rings
Adapter Sleeve.
Snap Ring
117197 - Bearing Adapter
Sleeve, c/w Lock Nut and
Lock Washer
Fixed Configuration
Correct
Snap Ring
Locations
5. Install the bearing mounting hardware loosely, re-check that drum is centered, adjust as necessary,
then tighten mounting hardware.
6. Hand tighten the locknut and ensure adapter sleeve no longer rotates.
7. Tighten the locknut 1/3 of a rotation or 120º. A hook spanner or a hammer and punch are
commonly used. Torque to 140 lb.ft (190 N.m) if possible.
8. Bend one of the tabs on the circumference of the lockwasher into the nearest notch on the rim of the
locknut. If no tabs line up, tighten the locknut slightly. The locknut should not be loosened in order to
align the tab with a notch.
Bearings come pre-lubricated with Shell Alvania #3
and require no lubrication upon initial installation.
9. After final assembly of machine, spin drums to ensure they spin freely.
Note: Do NOT grease spherical bearings - even if grease fitting is present.
REMOVAL INSTRUCTIONS
1. Support and secure roller frame.
2. To remove the bearing unit from the shaft, raise the bent lockwasher tab, loosen the locknut two or three turns, then
tap the nut over its entire circumference with a hammer and punch. Ensure sufficient threads remain engaged as to not
damage them. Continue tapping until the adapter sleeve can be moved.
3. Loosen and remove the mounting hardware. Clean outer shaft for easier removal. Slide complete bearing unit off.
Figure 1
3. To remove the bearing insert from the housing, remove one of the snap rings and slide the bearing out.
Appropriate eye protection should be worn when handling snap rings.
143390 - LR 8000 Five-Plex (01-May-2017)
-16-
Service & Maintenance
SAFETY DECALS AND REFLECTORS
1 142383 - Decal, Caution - 1-6 Point Safety (1)
2 142422 - Decal, Danger - Stay Clear Crush (3)
3 143280 - Decal, Important - Float Hitch (1)
4 142387 - Decal, Important - Red Transport Lock (5)
5 142557 - Reflector, Amber - 2 x 9 (12)
6 142556 - Reflector, Red - 2 x 9 (4)
7 142650 - Reflector, Fluorescent - 2 x 9 (4)
8 143162- Decal, Read Operator’s Manual (1)
9 142008 - Decal, Degelman (5)
10 143055 - Decal, Landroller (2)
11 143054 - Decal, 8000 (1)
12 142135 - Sign, SMV (1)
9
3
11
4
8
5
4
5
5
1
7
6
5
2
1
6
5
4
3
8
12
5
9
2
10
9
11
7
10
12
9
2
4
143390 - LR 8000 Five-Plex (11-October-2019)
-17-
5
6
7
6
7
Troubleshooting
GENERAL TROUBLESHOOTING
SYMPTOM PROBLEM SOLUTION
Uneven ground contour,
and more compaction on
the center section of the
Landroller.
When driving in the field
position, the wings fall
back.
One wing won’t open up
into field position.
Landroller rollers won’t turn. Material build-up around rollers. If it is only
Excessive play or excessive
binding in rockshaft area
(center frame wheel
assembly).
The center hitch cylinder is not in the float
position.
When putting the Landroller into field position
it is not latching correctly.
Uneven ground, faulty relief, swing arm tubes
seized and also possible binding in the cross
joint area.
one roller that doesn’t turn, it might be a
faulty bearing.
Cast support blocks around rockshaft not
correctly adjusted.
Ensure that the operator has the center hitch cylinder in the float
position on his tractor.
Ensure the Landroller is on level ground when backing up to the
latch mechanism, and that the swing-arms fully engage into the
latches. The transport wheels must be fully up in order for the
latches to fully engage. If problem still occurs, adjust the eye bolt
on the cable for mechanism to latch tighter.
Ensure on level ground. Try backing up a slight slope to help
assist the wings to fold out. Unhook the swing arm tube, and
move manually to make sure that the swing arm is not seized.
If problem stays contact your local Degelman dealer.
Ensure that there is no material build-up around rollers.
Lower the rollers to the ground and lift the transport wheels off the
ground. Check if the play in the rockshaft area is excessive. If so,
remove the cap of the casting blocks around the rockshaft, and
remove shims until desired clearance is needed to take the play
out. Note: Do not remove too many shims, and make it too tight.
If in case of binding make sure you have adequate grease in the
block itself. Make sure, it’s not rusted from a long time of storage in
one position.
Lowering into field, and
raising into transport
uneven.
Can’t remove rear transport
wheel for repair.
Rear square tubes on rear wheel frame down
to tires become restricted or seizing.
Not enough clearance between roller drum
and wheel hub.
Lower the rollers to the ground undo one of the pins, and move
manually by hand to free up the tubing. Caution: If seized and
then forced by hydraulics, it could cause failure in the tube area.
Follow the Tire Maintenance procedure in the Service and
Maintenance section of the manual which involves removing the
cylinder pins.
143390 - LR 8000 Five-Plex (01-May-2017)
-18-
Hitch Frame Components
(See Detail)
Front Hitch Components Detail
116302 - Safety Chain - 40,000 LB (1)
118615 - Flat washer, 1 x
118073 - Bolt, 1 x 3-1/2
118520 - Flat washer, 1 (1)
118911 - Lock nut,
1 GRC - Unitorq (1)
3-1/8 x 1/4 (1)
UNC GR8 (1)
143111 - Hose
Holder (1)
118026 - Bolt, 5/8
118514 - Flat washer,
118508 - Lock washer, 5/8 (1)
118407 - Nut, 5/8 UNC (1)
248330 - Hitch Frame Assembly (1)
(See Detail)
x 2 UNC (1)
5/8 (1)
142383 - Decal, Caution
1-6 Point Safety (1)
142422 - Decal, Danger -
Stay Clear Crush (1)
Hitch to Center Frame Connection Detail
142387 - Decal, Important - Red Transport Lock (1)
248107 - Transport Lock, Monarch (1)
243500 - Lock Pin, 5/16 x 2-1/2 (1)
118483 - Lock Nut, 1/4 - Unitorque (4)
118555 - Flat Washer, 1/4 (8)
118123 - Bolt, 1/4 x 1 (4)
133100 - Manual
Holder (1)
132050 - Jack,
Sidewind (1)
(Refer to Cylinder Page for Detail)
123093 - Hitch Cylinder, Monarch (1)
117087 - Bushing, 1-1/4 x 1 x 1 (2)
248075 - Pin, 1-15/16 x 9-1/4 (3)
118447 - Lock Nut, 5/8 - Unitorque (3)
118094 - Bolt, 5/8 x 4 (3)
143390 - LR 8000 Five-Plex (11-September-2017)
-19-

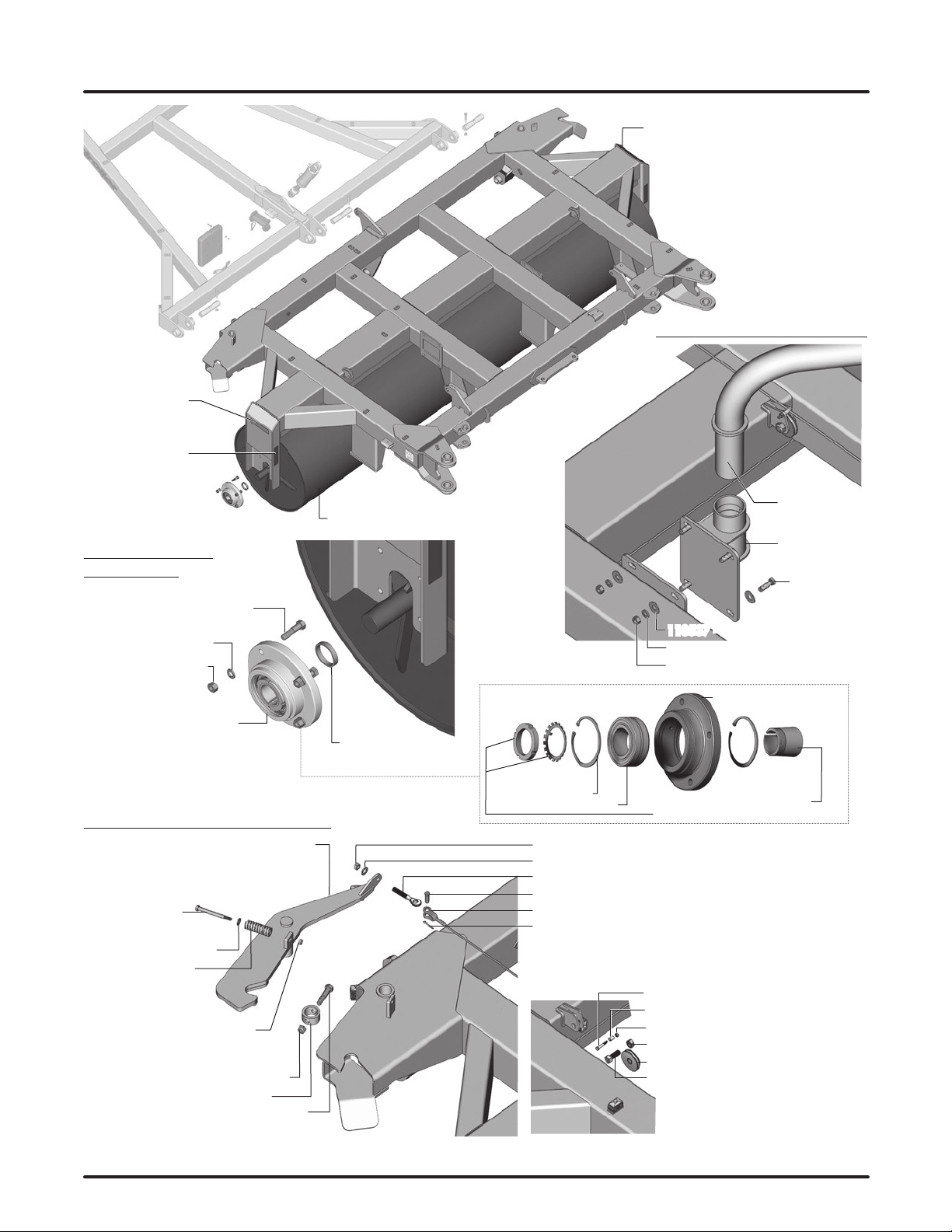

Center Frame Components
(See Detail)
142557 - Reflector,
Amber - 2 x 9 (2)
142556 - Reflector,
Red - 2 x 9 (2)
248320 - Centre Frame Assembly (1)
(See
Detail)
Swing Arm Holder Components
(See Detail)
Typical Drum Roller
Bearing Detail
118028 - Bolt, 5/8 x 2-1/2 (4)
118508 - Lock Washer,
5/8 (4)
118407 - Nut, 5/8 (4)
117194 - Spherical Bearing,
2-7/16 - 4H (1)
(Note: Do NOT grease spherical
bearings - even if grease fitting is
present)
Autofold Latch Component Overview
248171 - Autofold Latch Assembly - LH (1)
248170 - Autofold Latch Assembly - RH (1)
118628 - Bolt,
1/2 x 5-1/2 (2)
118512 - Flat Washer,
1/2 - F436 (2)
143034 - Spring (2)
118420 - Lock Nut 1/2 (2)
118422 - Lock Nut, 3/4 (2)
243158 - Lock Collar (2)
118053 - Bolt, 3/4 x 3-1/2 (2)
248345 - Centre Roller Assembly (1)
SPHERICAL BEARING COMPONENTS
Lock Nut
243604 - Bushing,
2-7/8 OD x 1/2 (1)
117198 - Retaining
118537 - Flat Washer, 5/8 F436 (16)
118508 - Lock Washer, 5/8 (8)
118407 - Nut, 5/8 (8)
Lock
Snap Ring
Washer
Ring
117196 - Bearing
Bearing
117197 - Bearing Adapter Sleeve,
c/w Lock Nut and Lock Washer
117195 - Bearing Housing,
Snap Ring
118447 - Lock Nut, 5/8 - Unitorque (2)
118537 - Flat Washer, 5/8 - F436 (2)
243188 - Eye Bolt, 5/8 x 5-1/4 (2)
243001 - Clevis Pin, 11/16 x 1-3/4 (4)
248077 - Cable Assembly, c/w clevis (2)
118835 - Cotter Pin, 3/16 x 1-1/2 (4)
118121 - Bolt, 5/16 x 2 (2)
248076 - Bushing, .54 OD x 3/4 (2)
118718 - Lock Nut, 5/16 - Unitorque (2)
118422 - Lock Nut, 3/4 (2)
129062 - Steel Sheave (2)
118743 - Bolt, 3/4 x 2-1/4 (2)
248165 - Swing
Arm Assembly (2)
248160 - Swing
Arm Holder (2)
118026 - Bolt,
5/8 x 2 (8)
c/w Retaining Rings
Adapter Sleeve.
143390 - LR 8000 Five-Plex (01-May-2017)
-20-
Center Frame Components
Spreader Arm
Component Detail
117087 - Bushing,
1-1/4 x 1 x 1 (2)
123092 - Cylinder, Monarch (2)
(Refer to Cylinder Page for Detail)
243500 - Lock Pin,
5/16 x 2-1/2 (2)
243996 - Transport
Lock, Monarch (2)
Rockshaft Component Detail
118422 - Lock Nut, 3/4 (8)
118516 - Flat Washer, 3/4 (8)
110040 - Cast Bearing Base (4)
248230 - Pin,
9-1/4 Eff (2)
142387 - Decal, Important
- Red Transport Lock (2)
118053 - Bolt, 3/4 x 3-1/2 (2)
243158 - Lock Collar (2)
118422 - Lock Nut, 3/4 (2)
(See Detail)
118605 - Bolt, 5/8 x 1 UNC (2)
118508 - Lock washer, 5/8 (2)
118514 - Flat washer, 5/8 (2)
117087 - Bushing, 1-1/4 x 1 x 1 (2)
248220 - Spreader Arm Assembly (2)
248216 - Spreader Arm Bundle - LH c/w Roller
(Pin and Pin hardware not included)
248215 - Spreader Arm Bundle - RH c/w Roller
123092 - Cylinder, Monarch (2)
(Refer to Cylinder
Page)
118115 - Bolt, 1 x 6-1/2 (2)
248204 - Bushing (2)
248226 - Roller, 6 OD (2)
118456 - Lock Nut, 1 (2)
248340 - Rockshaft Assembly (1)
110051 - Shim, 16 ga (8)
110042 - Cast Bearing Cap (4)
118114 - Bolt, 3/4 x 8 (8)
131515 - Tire Assembly (4)
131709 - Wheel Nut, 9/16 - 18 UNF (24)
143390 - LR 8000 Five-Plex (10-October-2018)
118643 - Bolt, 1/2 x 4 GR8 (4)
242982 - Bushing, Keeper (4)
118420 - Lock Nut 1/2 (4)
117087 - Bushing, 1-1/4 x 1 (2)
131324 - Hub & Spindle Assembly (4)
127018 - Tire, 12.5L x 15 (1)
131328 - Rim, 15 x 10 - 6 Bolt (1)
127006 - Valve Stem - TR415 (1)
-21-
Float Valve Mounting Detail
118105 - Bolt, 5/16
x 2-1/2 (2)
118731 - Flat washer, 5/16 (4)
248362 - Float Valve (1)
118718 - Locknut, 5/16 (2)
248369 - Float Valve Bracket (1)
Inner Wing Frame Components
Inner Wing Frame Component Overview
(See Cross
Joint Detail)
248306 - Inner Wing Frame
Assembly - 80 ft - LH (1)
248305 - Inner Wing Frame
Assembly - 80 ft - RH (1)
248155 - Truss Arm
Assembly (2)
Cross Joint Detail
248315 - Inner Wing Frame
Assembly - 64 ft - LH (1)
248314 - Inner Wing Frame
Assembly - 64 ft - RH (1)
(See
Detail)
(See Detail)
248145 - Cross
Joint Pin (4)
248140 - Cross
Joint Assembly (2)
118193 - Bolt, 3/4
x 5 GR8 (4)
118422 - Lock Nut,
3/4 (4)
Truss Arm-Wing Connection Wing Connection Detail
142557
Reflector,
Amber
2 x 9 (2)
118694 - Lock Nut, 1-1/2 (4)
118391 - Bolt, 1-1/2 x 7 GR8 (2)
117145 - Bushing, 1-7/8 x 1-1/2 x 1 (4)
243753 - Wing Roller Assembly - 80 ft (2)
248275 - Wing Roller Assembly - 64 ft (2)
248364 - Wing Pin
1-15/16 (4)
118514 - Flat Washer, 5/8 (2)
118508 - Lock Washer, 5/8 (2)
118605 - Bolt, 5/8 x 1 (2)
248210 - Pin Assembly, 5-5/8 eff (2)
118514 - Flat Washer, 5/8 (2)
118508 - Lock Washer, 5/8 (2)
118605 - Bolt, 5/8 x 1 (2)
143390 - LR 8000 Five-Plex (01-May-2017)
-22-
Outer Wing Frame Components
Outer Wing Frame Component Overview
248318 - Outer Wing Frame
Assembly - 64 ft - LH (1)
248317 - Outer Wing Frame
Assembly - 64 ft - RH (1)
248311 - Outer Wing Frame
Assembly - 80 ft - LH (1)
248310 - Outer Wing Frame
Assembly - 80 ft - RH (1)
(See Light Details
on Electrical
Routing Page)
248192 - Push Tube
Bundle (2)
248200 - Push
Tube Inner (1)
248195 -
Push Tube
Outer (1)
248205 - Pin
Assembly,
7-5/8 eff (2)
118514 - Flat
Washer, 5/8 (2)
118508 - Lock
Washer, 5/8 (2)
118605 - Bolt,
5/8 x 1 (2)
248185 - Transport
Wheel Arm Holder (4)
118043 - Bolt, 3/4
x 2 (16)
118775 - Flat Washer,
3/4 F436 (16)
118422 - Lock Nut, 3/4 (16)
117613 - Bolt, 1 x 5-1/2 GR9 (2)
118520 - Flat Washer, 1 (4)
118088 - Bolt, 3/4 x 9 (8)
244885 - Transport Wheel Offset (2)
244880 - Transport Wheel Arm
244881 - Transport Wheel Arm
117087Bushing (2)
(Use hole closest to middle)
(See Light Details on
Electrical Routing Page)
Assembly - LH (shown) (1)
Assembly - RH (1)
Transport Wheel
Cylinder, Monarch (2)
(See Details on Hyd.
Cylinder Page)
118900 - Hitch Pin, 1/2 x 4 (2)
244053 - Transport Lock (2)
118901 - Lynch Pin, 3/16
118422 - Lock Nut, 1 UNF
Unitorque (8)
118775 - Flat Washer,
3/4 - F436 (16)
118422 - Lock Nut 3/4 (8)
118027 - Bolt, 5/8 x 2 GR8 (2)
118416 - Jam Nut, 5/8 GR2 (8)
118643 - Bolt, 1/2 x 4 GR8 (2)
242982 - Bushing, Keeper (2)
118420 - Lock Nut, 1/2 (2)
x 1-1/2 (2)
243753 - Wing Roller Assembly - 80 ft (2)
248275 - Wing Roller Assembly - 64 ft (2)
142557 - Reflector, Amber - 2 x 9 (4)
142556 - Reflector, Red - 2 x 9 (4)
131771 - Tire Assembly (2)
131772 - Rim, 22.5 x
11.75 - 8 Bolt (1)
131773 - Tire, 385/65 R22.5 (1)
131735 - Hub & Spindle Assembly (2)
131776 - Wheel
Nut, 5/8 - 18
UNF (16)
143390 - LR 8000 Five-Plex (10-October-2018)
-23-
Hubs & Spindles
131324 - Hub/Spindle Assembly (4)
Center Frame Wheels
131701 - Hub Cap - CTD618 (1)
118835 - Cotter Pin
3/16 x 1-1/2 (1)
131700 - Hub CTD 618
131025 - Bearing Cup #LM48510 (1)
131024 - Bearing Cone #48548 (1)
131020 - Flat Washer, 1 F436 (1)
118423 - Slotted Nut 1-14 UNS (1)
- c/w Cups (1)
131322 - Spindle S618 - c/w Nut (1)
131026 - Dust Seal - CR#20140 (1)
131022 - Bearing Cone #25580 (1)
131023 - Bearing Cup #25520 (1)
Also Requires: 131709 - Wheel Nut 9/16 -18 UNF (6)
Torque, 9/16 Wheel Nut: 120-130 lb.ft (165-175 N.m)
131735 - Hub/Spindle Assembly (2)
Rear Transport Wheels
131737 - Hub CTD 817
Q1100 - c/w Cups (1)
131739 - Hub Cap (1)
117555 - Cotter Pin
3/16 x 2-1/4 (1)
131746 - Bearing Cup, LM501310 (1)
131745 - Bearing Cone, LM501349 (1)
131741 - Flat Washer, 1-5/16 x 1/4 (1)
131740 - Castle Nut, 1-1/4 (1)
131775 - Stud, Wheel
(Replacement Part)
131736 - Spindle S817 - Q1100 (1)
131742 - Dust Seal - CTD SE36 (1)
131744 - Bearing Cone, 387AS (1)
131028 - Bearing Cup, 382A (1)
Also Requires: 131776 - Wheel Nut, 5/8 -18 UNF (8)
Torque, 5/8 Wheel Nut: 185-190 lb.ft (250-260 N.m)
143390 - LR 8000 Five-Plex (01-May-2017)
-24-
Hydraulic Cylinders
ROCKSHAFT / SPREADER ARM CYLINDERS
123092 - Cylinder - 3-1/2 x 16 x 1-1/2, Monarch
123087 - Seal Kit (1)
Requires:
118930 - Pin, 1 x 2-13/16 (2)
118924 - Flat Washer .59 ID x .9 OD (2)
118796 - Shoulder Bolt, 1/2 GR8 UNC (2)
REAR TRANSPORT WHEEL CYLINDERS
Requires:
118930 - Pin, 1 x 2-13/16 (1)
118924 - Flat Washer .59 ID x .9 OD (1)
118796 - Shoulder Bolt, 1/2 GR8 UNC (1)
Rockshaft and Swing Arm
Cylinders
64’ - 123092 - Cylinder - 3-1/2 x 16 x 1-1/2, Monarch
(Uses pin
& hardware)
80’ - 123414 - Cylinder - 4 x 16 x 2, Monarch
(Uses pin
& hardware)
FRONT HITCH CYLINDER
Rear Transport Wheel
Cylinders - 64’ Only
123087 - Seal Kit (1)
(Use hardware from Transport
Lock for mounting - this location)
Rear Transport Wheel
Cylinders - 80’ Only
123079 - Seal Kit (1)
(Use hardware from Transport
Lock for mounting - this location)
123093 - Cylinder - 3-1/2 x 8 x 1-1/2, Monarch
123087 - Seal Kit (1)
Requires:
118930 - Pin, 1 x 2-13/16 (2)
118924 - Flat Washer .59 ID x .9 OD (2)
118796 - Shoulder Bolt, 1/2 GR8 UNC (2)
143390 - LR 8000 Five-Plex (01-May-2017)
Front Hitch Cylinder
-25-
Hydraulic Hose Holder Locations
Double Stack Hose Clamp
118945 - Bolt, 5/16 x 2-3/4
780279 - Top Plate (1)
780278 - Hose Clamp-2 Halves
780278 - Hose Clamp-2 Halves
Note: 80’ Model
shown. 64’ Model
has two less clamp
locations in this area.
Single Hose Clamp
118144 - Bolt, 5/16 x 1-1/2
780279 - Top Plate
780278 - Hose Clamp-2 Halves
143390 - LR 8000 Five-Plex (01-May-2017)
-26-
Hydraulic Routing - Wheel Cylinders
141581 - Coupler, Tip - 3/4 ORB (2)
141515 - Nipple, 3/4 JIC M x 3/4 ORB M (2)
126550 - Hose, 3/8 x 75 (2)
141501 - Tee, 3/4 JIC MxMxM (2)
126504 - Hose,
3/8 x 32 (2)
126583 - Hose,
3/8 x 44 (2)
126676 - Hose,
3/8 x 270 (4)
126663 - Hose, 3/8 x 420 (4) - 80’ Landroller
126671 - Hose, 3/8 x 372 (4) - 64’ Landroller
126583 - Hose, 3/8 x 44 (2)
126504 - Hose, 3/8 x 32 (2)
141501 - Tee, 3/4
JIC MxMxM (4)
- OR -
123092 - Rockshaft
Cylinder, Monarch (2)
(Refer to Cylinder Page)
141504 - Elbow, 90º
3/4 JIC m x ORB m (4)
143390 - LR 8000 Five-Plex (01-May-2017)
Transport Wheel Cylinder,
Monarch (2)
(Refer to Cylinder Page)
141504 - Elbow, 90º - 3/4
JIC m x ORB m (4)
-27-
Hydraulic Routing - Front Hitch Cylinder
Float Valve Detail
248368 - Float Valve
Bracket (1)
118718 - Locknut,
5/16 (2)
248362 - Float Valve (1)
Float Cam Installation:
1 - Lower Landroller down with wheels fully
retracted.
2 - Mount float valve onto bracket with the
spool fully retracted and then back it off 1/16”
(basically, bolt the valve onto the bracket slots
loosely, slide the valve down the slot until the
button is pushed in all the way then raise it back
up about 1/16”, hold and tighten bolts)
3 - Tighten Hardware.
126552 - Hose, 3/8 x 144 (1)
126645 - Hose, 3/8 x 138 (1)
248385 - Plug, 3/4 ORB m (1)
141504 - Elbow, 90º 3/4 JIC
m x ORB m (2)
118105 - Bolt, 5/16 x 2-1/2 (2)
118731 - Flat washer, 5/16 (4)
141581 - Coupler, Tip - 3/4 ORB (2)
141515 - Nipple, 3/4 JIC M x 3/4 ORB M (2)
126518 - Hose, 3/8 x 330 (2)
123093 - Hitch Cylinder,
Monarch (1)
(Refer to Cylinder
Page for Detail)
1
2
141504 - Elbow, 90º 3/4
JIC m x ORB m (2)
(See Detail)
126552 - Hose, 3/8 x 144 (1)
Float Valve
See Detail
141518 - Elbow, 90º - 3/4
JIC m x JIC f-sw (2)
141527 - Tee, 3/4 ORB m x 3/4
JIC m x 3/4 JIC m (2)
126645 - Hose, 3/8 x 138 (1)
143390 - LR 8000 Five-Plex (01-May-2017)
-28-
Hydraulic Routing - Spreader Arm Cylinders
141581 - Coupler, Tip - 3/4 ORB (2)
141515 - Nipple, 3/4 JIC m x 3/4
126662 - Hose, 3/8 x 390 (2)
ORB m (2)
123092 - Spreader Arm
Cylinders, Monarch (2)
(Refer to Cylinder Page)
141504 - Elbow,
90º - 3/4 JIC m x
ORB m (1)
Fitting Overview
141505 - Tee, 3/4
JIC m x 3/4 JIC m x
3/4 ORB m (1)
141518 - Elbow, 90º -
3/4 JIC m x JIC f-sw (2)
141515 - Nipple, 3/4
JIC m x 3/4 ORB m (5)
141594 - Dual
Relief Valve (1)
126585 - Hose,
3/8 x 25 (2)
141527 - Tee, 3/4 ORB m
x 3/4 JIC m x 3/4 JIC m (1)
Dual Relief Valve Hardware
118105 - Bolt, 5/16
x 2-1/2 (2)
141594 - Dual Relief
Valve (1)
118538 - Flat Washer,
5/16 (2)
118718 - Lock Nut,
5/16 - Unitorque (2)
126606 - Hose, 3/8 x 30 (1)
126646 - Hose, 3/8 x 62 (1)
143390 - LR 8000 Five-Plex (01-May-2017)
-29-
Electrical Wiring
AMBER LIGHTS / SIGN BRACKETS
4-WIRE ROUTING OVERVIEW
Wire Harness - 4 Wire, w/plugs (1)
244615 - Wire Harness, LR8000-64’
244616 - Wire Harness, LR8000-80’
129045 - Hose Tie, 1/8 x 8
Light Wiring Cable runs
along side the hydraulic
hoses and is secured in
place with hose ties.
244875 - Bracket, Light/Sign - LH (1)
118533 - Lock Washer, 1/4 (2)
118402 - Nut, 1/4 (2)
118483 - Lock
Nut, 1/4 (8)
118756 -
Bolt, 1/4 x
1-1/4 (8)
129127 - Lamp, Amber (2)
244876 - Bracket, Light - RH (1)
118009 - Bolt,
1/2 x 1-1/4 (4)
118504 - Lock
Washer, 1/2 (4)
118405 - Nut, 1/2 (4)
REAR DUAL LIGHTS & HARDWARE
142135 - Sign,
SMV (1)
118123 - Bolt,
1/4 x 1 (2)
118983 - Bolt, 1/4 x 3/4 (8)
118533 - Lock Washer, 1/4 (8)
118555 - Flat Washer, 1/4 (8)
143390 - LR 8000 Five-Plex (10-October-2018)
129125 - Dual Lamp, LH (1)
129126 - Dual Lamp, RH (1)(Opposite)
-30-
129127 - Amber
Lamp (2)
64’ (2) / 80’ (4)
118735 - Screw,
1/4-20 x 3/4 (2 or 4)
129042 - Clamp,
Rubber Cushion,
3/8 (2 or 4)
Warranty
2 Year
Limited Warranty - Agricultural Products
Degelman Industries Ltd. (“Degelman”) warrants to the original purchaser of any new Degelman equipment, purchased
from an authorized Degelman dealer, that the equipment will be free from defects in material and workmanship for a
period of two (2) years from the date of delivery, for non-commercial use (including farm, institutional, government, and
municipality) and (1) year from the date of delivery for commercial use. The obligation of Degelman to the purchaser
under this warranty is limited to the repair or replacement of defective parts in the first year and to the provision, but not
the installation of replacement parts in the second year. Degelman reserves the right to inspect any equipment or parts
which are claimed to have been defective in material or workmanship.
This warranty limits its replacement or repair coverage to what is consistent with the warranty of Degelman’s suppliers of
purchased components.
Replacement or repair parts installed in the equipment covered by this limited warranty are warranted for ninety (90)
days from the date of delivery of such part or the expiration of the applicable new equipment warranty period, which ever
occurs later. Warranted parts shall be provided at no cost to the user at an authorized Degelman dealer during regular
working hours. Warranted replacement parts will either be replaced or rebuilt at Degelman’s discretion.
Disclaimer of implied warranties & consequential damages
This warranty shall not be interpreted to render Degelman Industries Ltd. liable for injury, death, property damage or
damages of any kind, whether direct, consequential, or contingent to property. Without limiting the generality of the
foregoing, Degelman shall not be liable for damages resulting from any cause beyond its reasonable control, including,
without limitation, loss of crops, any expense or loss of labour, supplies, rental machinery or loss of use.
No other warranty of any kind whatsoever, express or implied is made with respect to this sale; and all implied warranties
of merchantability and fitness for a particular purpose which exceed the obligations set forth in this written warranty are
hereby disclaimed and excluded from this sale. This exclusion shall not apply in any jurisdiction where it is not permitted
by law.
This limited warranty shall not apply:
1. If, in the sole opinion of Degelman, the unit has been subjected to misapplication, abuse, misuse, negligence
accident or incorrect off-site machine set-up.
2. To any goods that have sustained damage or deterioration attributable to a lack of routine maintenance (eg. Check
and Re-torque of fastening hardware, Hydraulic fluid purities, drive train alignments, and clutch operation)
3. If parts not made or supplied by Degelman have been used in the connection with the unit, if, in the sole judgement
of Degelman such use affects its performance, safety, stability or reliability.
4. If the unit has been altered or repaired outside of an authorized Degelman dealership in a manner which, in the sole
judgement of Degelman, affects its performance, safety, stability or reliability.
5. To expendable or wear items such as (eg. Harrow tines, Rock Picker and Rock Rake wear teeth and replaceable
bushings and pins.) and any other items that in the company’s sole judgement are a wear item.
No employee or representative of Degelman Industries Ltd. is authorized to change this limited warranty in any way or
grant any other warranty unless such change is made in writing and signed by the Degelman Service Manager.
This limited warranty is subject to any future availability of supply, which may directly affect Degelman’s ability to obtain
materials or manufacture replacement parts.
Degelman reserves the right to make improvements in design or changes in specifications at any time, without incurring
obligations to owners of equipment previously delivered.
This limited warranty is subject to compliance by the customer to the enclosed Retail Customer’s Responsibility Under
Degelman Warranty.
143390 - LR 8000 Five-Plex (01-May-2017)
-31-
Warranty
Retail Customer’s Responsibility Under Degelman Warranty.
It is the retail customer and/or Operator’s responsibility to read the Operator’s Manual, to operate, lubricate, maintain
and store the equipment in accordance with all instructions and safety procedures. Failure of the operator to read the
operators manual is a misuse of this equipment.
It is the retail customer and/or operators responsibility to inspect the product and to have any part(s) repaired or replaced
when continued operation would cause damage or excessive wear to other parts or cause safety hazard.
It is the retail customer’s responsibility to deliver the product to the authorized Degelman dealer, from whom he purchased
it, for service or replacement of defective parts, which are covered by warranty. Repairs to be submitted for warranty
consideration must be made within forty-five days of failure.
It is the Retail Customer’s responsibility for any cost incurred by the dealer for hauling of the product for the purpose of
performing a warranty obligation or inspection.
WARRANTY INFORMATION
Make certain the warranty registration card has been forwarded to: Degelman Industries Ltd.
Box 830 -272 Industrial Dr.
Regina, SK, Canada
S4P 3B1
Always give your dealer the serial number of your Degelman product when ordering parts or requesting service or other information.
The serial number is located on the machine as shown in the diagram below. In the space provided record the
model number, the serial number and the date of purchase to assist your dealer in providing you with prompt
and efficient service.
SERIAL NUMBER:
MODEL NUMBER:
DATE OF PURCHASE:
Serial Number
Plate Location
143390 - LR 8000 Five-Plex (01-May-2017)
-32-
Loading...
