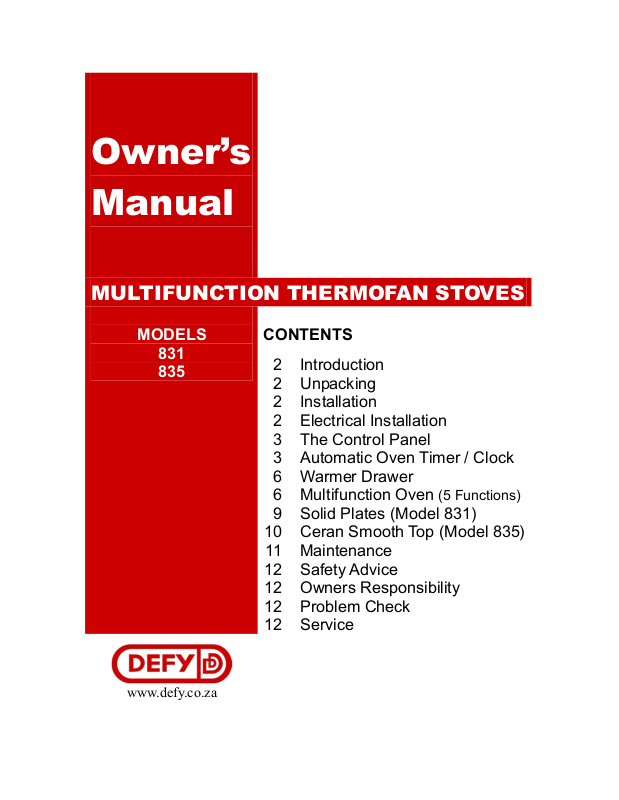

Owner’s Manual

MULTIFUNCTION THERMOFAN STOVES

MODELS

831 835

CONTENTS

2 Introduction 2 Unpacking 2 Installation 2 Electrical Installation 3 The Control Panel 3 Automatic Oven Timer / Clock 6 Warmer Drawer 6 Multifunction Oven 9 Solid Plates (Model 831) 10 Ceran Smooth Top (Model 835) 11 Maintenance 12 Safety Advice 12 Owners Responsibility 12 Problem Check

(5 Functions)

12 Service

www.defy.co.za

INTRODUCTION

Congratulations on the purchase of this quality product. We trust that you will enjoy many years of trouble free use. Please read these instructions carefully before using the stove. This manual will provide you with information on how to operate and care for your product in order that you gain the maximum benefit from it.

UNPACKING

• Please ensure that packaging material is disposed of in a responsible manner.

• Plastic bags should be cut up to prevent children playing with them and accidentally

suffocating.

• Remove all packing from the oven cavity and position the accessories.

• If the appliance is damaged in any way, do not use it. Report the damage to your

dealer, who will take the necessary corrective action.

INSTALLATION

• Levelling feet are provided to assist you in positioning your stove, so that it will stand

firm and level. To adjust the level, turn the relevant foot to either raise or lower the stove.

• Surfaces immediately adjacent to the oven should be able to withstand temperatures

of up to 100°C without delaminating or discolouring.

ELECTRICAL INSTALLATION

“This appliance must be earthed and the manufacturer and the seller do not accept responsibility for any damage due to incorrect installation or electrical connection.”

• This appliance should not be connected through an earth leakage system. Refer to

S.A.B.S. 0147.

Connection to the power supply This appliance has a type ‘Y’ supply cord connection and must be installed by a licensed electrician, who will ensure that the oven is correctly connected and safely earthed. The power consumption is printed on the serial number label attached to the stove upper back panel

The appliance must be connected to the mains through an All pole isolating switch which has a minimum clearance between the contacts of 3 mm. In All poles. A means for disconnection must be provided in the fixed wiring.

CONTROL PANEL

12:45

AUTOMATIC

DIGITAL

CLOCK AND

TIMER

OVEN

THERMOSTAT

STOP

WARMING DRAWER

MULTI FUNCTION SELECTOR

Off position

Oven light

LEFT

FRONT

PLATE CONTROLS AND PILOT LIGHTS

Fan only ( defrost)

Thermofan cooking

Conventional cooking

Conventional grilling

Turbo grilling

AUTOMATIC OVEN TIMER / CLOCK

BUTTON FUNCTIONS

1 = MINUTE MINDER 2 = COOKING PERIOD 3 = STOP TIME 4 = MANUAL CONTROL 5 = SUBTRACT 6 = ADD

LEFT

BACK

NOTE A variable grill option is catered for by selecting Turbo Grill and then setting the oven thermostat to the desired grill temperature

RIGHT BACK

RIGHT FRONT

65 4 321

SETTING THE TIME OF DAY

• When the power is first connected (or after a power failure), the clock display will

flash 00.00.

• To set the clock, press buttons 1 and 2 and hold them down.

• Press button 5 or 6 until the correct time of day is displayed.

• Release the buttons. The clock is now set.

• Please note that the clock has a 24-hour display.

• For example 3.00 PM will be displayed as 15.00.

MINUTE MINDER

• Suppose that you wish to time the boiling of a 5 minute egg.

• First boil the water

• Press and hold button 1. The display will show 00.00

• Press button 6 until the display shows 00.05

• Release the buttons and place the egg in the boiling water. The display will again

show the time of day.

• After 5 minutes the timer will emit an electronic tone which lasts for about one

minute (2 beeps every 2 seconds). To cancel the tone, press any of the buttons.

Note:

• During the operation of the minute minder, the

remaining time may be displayed by pushing button 1

• The minute minder can be used simultaneously

and independent of any automatic control

program

• The display will always revert to the time of day

after any program has been set.

65 4 3 21

SWITCHING THE OVEN ON AND OFF AUTOMATICALLY (AUTOBAKE)

Autobake is intended for dishes such as roasts and casseroles. These are not affected by a waiting period in a cold oven.

• Prepare your meal and place it in the oven.

• Set the cooking period required by pressing buttons 2 and 6 until the desired period is

displayed.

• Set the stop time by pushing buttons 3 and 6 until the desired stop time is displayed.

• Release the buttons and the clock will again display the time of day.

• The word AUTO will light up on the clock display.

• Set the multi function selector where applicable to the desired function..

• Now set the relevant oven thermostat to the desired temperature setting

The automatic control will automatically switch the oven on and the symbol will light up in the clock display. Cooking will commence at the selected temperature and for the selected cooking period. The oven will automatically switch off at the selected stop time and emit an electronic tone for about one minute (4 beeps every 2 seconds). To cancel the tone, press any of the buttons.

• The word AUTO will flash until button 4 is pressed and manual control is restored.

• Return the multi function selector to the OFF position

• The oven thermostat must be turned to the OFF position in an anticlockwise

direction.
