Technical

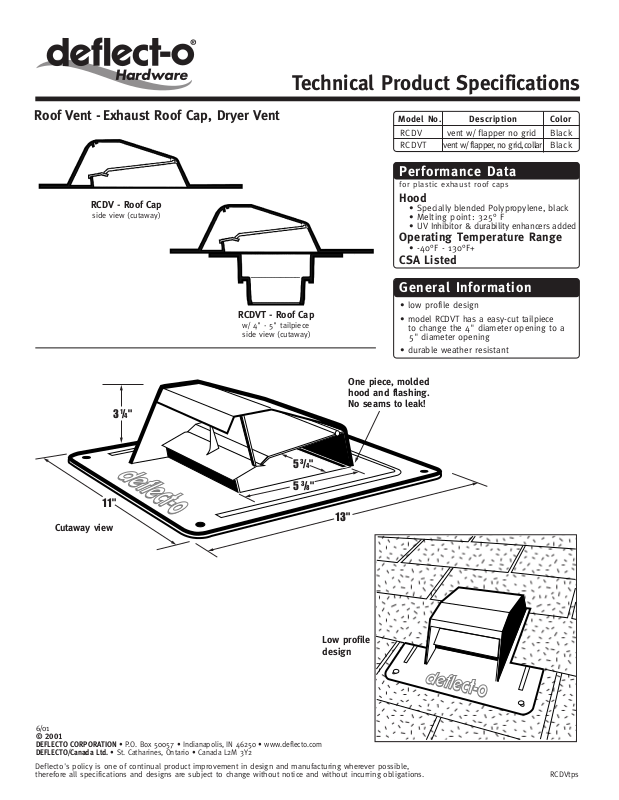

Technical Product Specifications
Roof Vent - Exhaust Roof Cap, Dryer Vent
RCDV - Roof Cap
side view (cutaway)
RCDVT - Roof Cap
w/ 4" - 5" tailpiece
side view (cutaway)
31/4"
Model No. Description Color
RCDV vent w/ flapper no grid Black
RCDVT vent w/ flapper, no grid, collar Black
Performance Data
for plastic exhaust roof caps
Hood
• Specially blended Polypropylene, black
• Melting point: 325° F
• UV Inhibitor & durability enhancers added
Operating Temperature Range
• -40°F - 130°F+
CSA Listed
General Information
• low profile design
• model RCDVT has a easy-cut tailpiece
to change the 4" diameter opening to a
5" diameter opening
• durable weather resistant
One piece, molded
hood and flashing.
No seams to leak!
53/4"
53/8"
11"
13"
Cutaway view
Low profile
design
6/01
© 2001
DEFLECTO CORPORATION • P.O. Box 50057 • Indianapolis, IN 46250 • www.deflecto.com
DEFLECTO/Canada Ltd. • St. Catharines, Ontario • Canada L2M 3Y2
Deflecto's policy is one of continual product improvement in design and manufacturing wherever possible,
therefore all specifications and designs are subject to change without notice and without incurring obligations. RCDVtps
