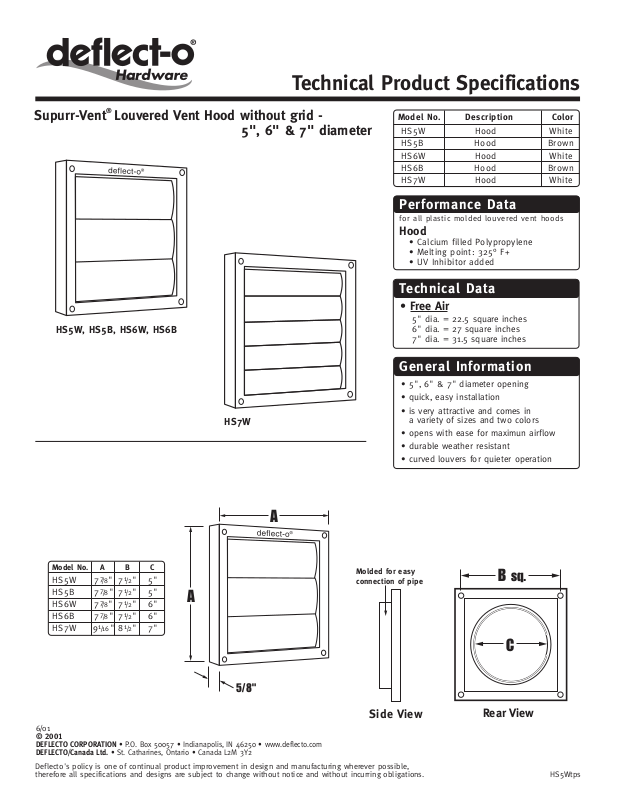

Technical Product Specifications
Supurr-Vent® Louvered Vent Hood without grid 5", 6" & 7" diameter
HS5W, HS5B, HS6W, HS6B
HS7W
Model No. Description Color
HS5W Hood White
HS5B Hood Brown
HS6W Hood White
HS6B Hood Brown
HS7W Hood White
Performance Data
for all plastic molded louvered vent hoods
Hood
• Calcium filled Polypropylene
• Melting point: 325° F+
• UV Inhibitor added
Technical Data
• Free Air
5" dia. = 22.5 square inches
6" dia. = 27 square inches
7" dia. = 31.5 square inches
General Information
• 5", 6" & 7" diameter opening
• quick, easy installation
• is very attractive and comes in
a variety of sizes and two colors
• opens with ease for maximun airflow
• durable weather resistant
• curved louvers for quieter operation
A
Model No. A B C
7
1
/8
HS5W 7
HS5B 7
HS6W 7
HS6B 7
HS7W 9
/2
" 7
" 5"
7
1
/8
/2
" 7
" 5"
7
1
/8
/2
" 7
" 6"
7
1
/8
/2
" 7
" 6"
1
1
/16
/2
" 8
" 7"
A
Molded for easy
connection of pipe
B sq.
C
5/8"
Side View
6/01
© 2001
DEFLECTO CORPORATION • P.O. Box 50057 • Indianapolis, IN 46250 • www.deflecto.com
DEFLECTO/Canada Ltd. • St. Catharines, Ontario • Canada L2M 3Y2
Deflecto's policy is one of continual product improvement in design and manufacturing wherever possible,
therefore all specifications and designs are subject to change without notice and without incurring obligations. HS5Wtps
Rear View
