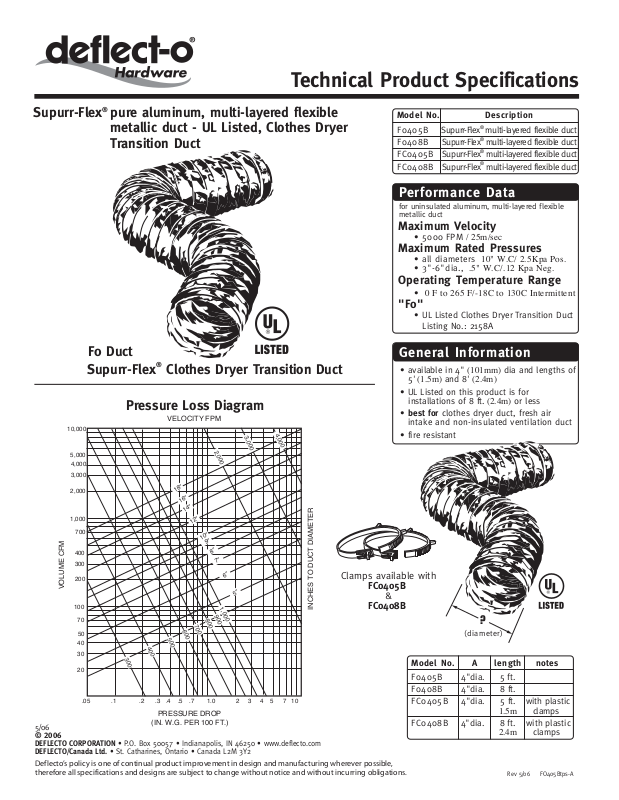

Deflecto FC-B User Manual
T echnical Product Specifications
Su purr-Flex ® pure aluminum, multi-layered flexible
metallic duct - UL Listed, Clothes Dryer
Transition Duct
M odel No. Description
F0405B Supurr-Flex ® multi-layered flexible duct
F0408B Supurr-Flex
FC0405B Supurr-Flex
FC0408B Supurr-Flex
Pe r formance Data
for uninsulated aluminum, multi-layered flexible
metallic duct
M aximum Velocity
• 5000 FPM / 25 m/ sec
M aximum Rated Pressures
• all diameters 10" W.C/ 2.5Kpa Pos.
• 3"-6"dia., .5" W.C/.12 Kpa Neg.
O perating Temperature Range
• 0 F to 265 F/-18C to 130C Intermittent
"F0"
• UL Listed Clothes Dryer Transition Duct
F0 Duct
Supurr-Flex ® Clothes Dryer Transition Duct
Pr essure Loss Diagram
10,000
5,000
4,000
3,000
2,000
1,000
700
400
300
200
VOLUME CFM
100
70
50
40
30
20
.05
300
.1
5/06
© 2006
DEFLECTO CORPOR A TION • P .O. B o x 50057 • I ndianapolis, IN 46250 • ww w .deflect o .com
DEFLECTO/ C anada Ltd. • S t. Catharines, O ntario • Canada L2M 3Y2
Deflecto’s policy is one of continual product improvement in design and manufacturing wherever possible,
therefore all specifications and designs are subject to change without notice and without incurring obligations.
VELOCITY FPM
18”
16”
14”
12”
700
600
500
400
.2
.3
PRESSURE DROP
(IN. W.G. PER 100 FT.)
.7 1.0 2
.4 .5
10”
9”
800
2,000
8”
7”
900
6”
1,000
5”
3,000
3
4,000
4 5 7 10
Clamps available with
INCHES TO DUCT DIAMETER
FC0405B
&
FC0408B
neral Information
Ge
• a v ailable in 4" (101mm) dia and lengths of
5' (1.5m) and 8' (2.4m)
• UL Listed on this product is for
installations of 8 ft. (2.4m) or less
• best for clothes dryer duct, fresh air
intake and non-insulated ventilation duct
• fire resistant
Mo del No. A length notes
F0405B 4"dia. 5 ft.
F0408B 4"dia. 8 ft.
FC0405B 4"dia. 5 ft. with plastic
FC0408B 4"dia. 8 ft. with plastic
®
multi-layered flexible duct
®
multi-layered flexible duct
®
multi-layered flexible duct
Listing No.: 2158A
?
(diameter)
1.5m clamps
2.4m clamps
Rev 5/06 FO405Btps-A
