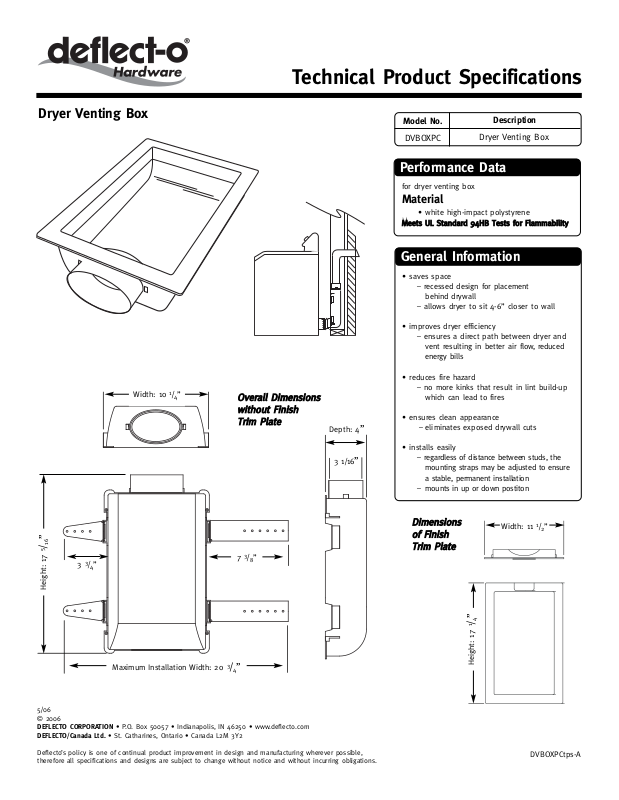

Technical Product Specifications
Performance Data
for dryer venting box
Material
• white high-impact polystyrene
MMeeeettss UULL SSttaannddaarrdd 9944HHBB TTeessttss ffoorr FFllaammmmaabbiilliittyy
General Information
• saves space
– recessed design for placement
behind drywall
– allows dryer to sit 4-6” closer to wall
• improves dryer efficiency
– ensures a direct path between dryer and
vent resulting in better air flow, reduced
energy bills
• reduces fire hazard
– no more kinks that result in lint build-up
which can lead to fires
• ensures clean appearance
– eliminates exposed drywall cuts
• installs easily
– regardless of distance between studs, the
mounting straps may be adjusted to ensure
a stable, permanent installation
– mounts in up or down postiton
Model No.
Description
Dryer Venting Box
DVBOXPC
Dryer Venting Box
Maximum Installation Width: 20
3
/4”
Depth: 4”
Height: 17
5
/
16
”
7 3/8”
3 3/4”
Width: 10 1/4”
Height: 17
1
/
4
”
Width: 11 1/2”
OOvveerraallll DDiimmeennssiioonnss
wwiitthhoouutt FFiinniisshh
TTrriimm PPllaattee
DDiimmeennssiioonnss
ooff FFiinniisshh
TTrriimm PPllaattee
5/06
© 2006
DEFLECTO CORPORATION • P.O. Box 50057 • Indianapolis, IN 46250 • www.deflecto.com
DEFLECTO/Canada Ltd. • St. Catharines, Ontario • Canada L2M 3Y2
Deflecto’s policy is one of continual product improvement in design and manufacturing wherever possible,
therefore all specifications and designs are subject to change without notice and without incurring obligations.
3 1/16”
