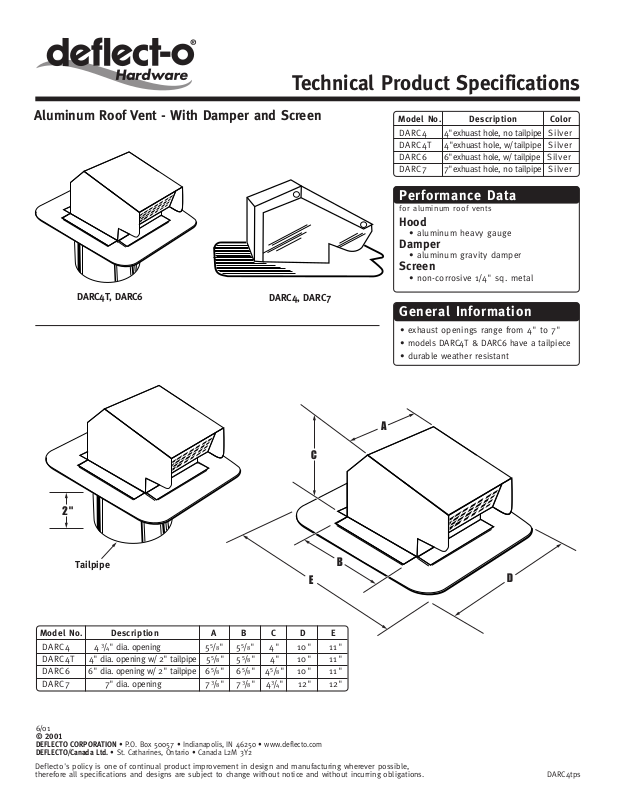

Technical Product Specifications
Aluminum Roof Vent - With Damper and Screen
DARC4T, DARC6
DARC4, DARC7
Model No. Description Color
DARC4 4"exhuast hole, no tailpipe Silver
DARC4T 4"exhuast hole, w/ tailpipe Silver
DARC6 6"exhuast hole, w/ tailpipe Silver
DARC7 7"exhuast hole, no tailpipe Silver
Performance Data
for aluminum roof vents
Hood
• aluminum heavy gauge
Damper
• aluminum gravity damper
Screen
• non-corrosive 1/4" sq. metal
General Information
• exhaust openings range from 4" to 7"
• models DARC4T & DARC6 have a tailpiece
• durable weather resistant
C
2"
Tailpipe
B
E
Model No. Description A B C D E
DARC4 4 3/4" dia. opening 55/8" 55/8" 4" 10" 11"
DARC4T 4" dia. opening w/ 2" tailpipe 55/8" 55/8" 4" 10" 11"
DARC6 6" dia. opening w/ 2" tailpipe 65/8" 65/8" 45/8" 10" 11"
DARC7 7" dia. opening 73/8" 73/8" 43/4" 12" 12"
A
D
6/01
© 2001
DEFLECTO CORPORATION • P.O. Box 50057 • Indianapolis, IN 46250 • www.deflecto.com
DEFLECTO/Canada Ltd. • St. Catharines, Ontario • Canada L2M 3Y2
Deflecto's policy is one of continual product improvement in design and manufacturing wherever possible,
therefore all specifications and designs are subject to change without notice and without incurring obligations. DARC4tps
