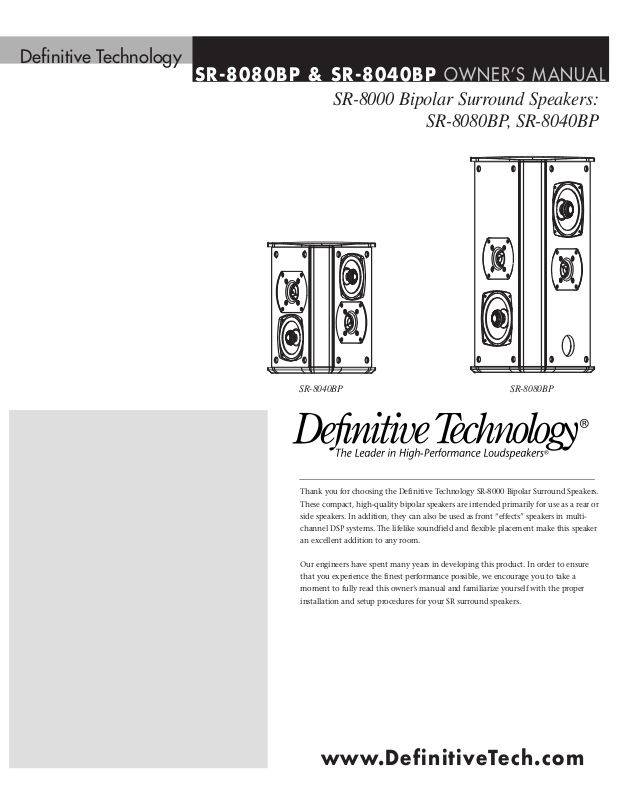

SR-8080BP & SR-8040BP OWNER’S MANUAL

SR-8000 Bipolar Surround Speakers:

SR-8080BP, SR-8040BP

SR-8040BP

Thank you for choosing the Definitive Technology SR-8000 Bipolar Surround Speakers.
These compact, high-quality bipolar speakers ar
side speakers. In addition, they can also be used as front “effects” speakers in multi­channel DSP systems. The lifelike soundfield and flexible placement make this speaker
an excellent addition to any room.

Our engineers have spent many years in developing this product. In order to ensure
that you experience the finest performance possible, we encourage you to take a
moment to fully read this owner’s manual and familiarize yourself with the proper
installation and setup procedures for your SR surround speakers.

e intended primarily for use as a r

SR-8080BP

ear or

www.DefinitiveTech.com

L R C SR SL

Definitive Technology

RECEIVER/
A

MPLIFIER

SR-8080BP & SR-8040BP

OWNER’S MANUAL

Positioning Your SR-8000 Surround Speakers

Figure 1 – Rear and Side Surround Placement

For use as rear surround speakers, position
the speakers approximately 6' (2 m) high
and 6' (2 m) apart directly behind the lis­tening area.

For use as side surround speakers, position
the speakers approximately 6' (2 m) high
and directly beside or 1-2' (30-60 cm)
behind the listening area.

Connecting Your Loudspeakers

Figure 2 – Wiring and Polarity

Figure 3 – Connecting Speaker to Amplifier

Receiver/Amplifier

Speaker Outputs

Speaker Setup:

Small,
SR-8080BP Crossover at 80Hz
SR-8060BP Crossover at 100Hz

Y IMPORTANT:

VER

Do not use your receiver’s auto setup function!!! The bipolar
nature of this speaker will often confuse the receiver’s auto
setup.

Dolby Digital and DTS multi-channel systems have critical channel balance
and speaker setup procedures which must be followed if the system is to
perform properly. Consult your receiver’s or processor’s manual to learn how
to access your system setup menus. Set speaker setup to “small” and crossover
to 80Hz for the SR-8080BP and 100Hz for the SR-8040BP.

Strip 1/4" (6mm) wire.

1

2

1. Unscrew binding post and insert wire.

2. Tighten until wire is secure.

+

-

Identify markings on wire and assign +/-.

Receiver/Amplifier

Ensure that the speaker is always con­nected to the receiver or amplifier + to +
and – to –.

Troubleshooting

If you experience any difficulties with your SR Series loudspeakers, try the
suggestions below. If you still have problems, contact your Definitive
Technology Authorized Dealer for assistance.

Audible distortion when the speakers are playing at loud levels is

1.
caused by driving (tur

speakers ar

the
their full-rated power well befor
way up, so the position of the volume control is a poor indicator of its
power limit. If your speakers distort when you play them loud, turn the
volume down!

If you experience a

2.
phase with the other and needs to be rewired paying closer attention to
connect positive to positive and negative to negative on both channels.
Most speaker wire has some indicator (such as color-coding, ribbing or
writing) on one of the two conductors to help you maintain consistency
It is essential to connect both speakers to the amplifier in the same way
(in phase).

3. Make sure all your system interconnects are solidly in place.

4. Check that no foreign objects or liquid has entered the speaker cabinet.

ning up) your receiver or amplifier louder than it or

e capable of playing. Most receivers and amplifiers put out

e the volume contr

lack of bass, it is likely that one speaker is out of

ol is turned all the

.

2

www.DefinitiveTech.com

Technical Assistance

It is our pleasure to offer assistance if you have any questions regarding your
Center Channel or its setup, please contact your nearest Definitive Technology
dealer or call us directly at [phone] (US & Canada), 01 [phone]
(all other countries) or e-mail [e-mail]. Technical support is

offered in English only.

Definitive Technology Offices

11433 Cronridge Drive, Owings Mills, Maryland 21117

Phone: [phone] (US & Canada),
01 [phone] (all other countries)

Service

Service and warranty work on your Definitive loudspeakers will normally be
performed by your local Definitive Technology dealer. If, however, you wish to
return the speaker to us, please contact us first, describing the problem and
requesting authorization as well as the location of the nearest factory service
center. Please note that the address given in this booklet is the address

of our offices only. Under no circumstances should loudspeakers be
shipped to our offices or returned without contacting us first and
obtaining return authorization.

Notes

SR-8080BP

SR-8040BP

Performance Specifications

Overall Frequency Response 40 Hz – 30 kHz 50 Hz – 30 kHz
Sensitivity 92 dB 92 dB
Nominal Impedance 8 ohms 8 ohms
Recommended Associated Amplifier Power 20 – 200w 20 – 150w

Dimensions

Height 15 5/8" (39.69 cm) 9 1/2" (24.12 cm)
Width 9" (22.76 cm) 7 13/16" (19.8 cm)
Depth 6 1/16" (15.5 cm) 5 3/8" (13.5 cm)

Speaker Complement

Bass/Midrange Driver Quantity

22
Bass/Midrange Diameter 4 1/2" (11.43 cm) 3 1/2" (8.89 cm)
Tweeter Quantity 2 2
Tweeter Diameter 1" (2.54 cm) 1" (2.54 cm)

3

SR-8080BP & SR-8040BP

Limited Warranty: 5 Years for Drivers and Cabinets, 3 Years for Electronic Components

D

EI Sales Co., dba Definitive Technology (herein “Definitive”) warrants to the original retail purchaser only that
this Definitive loudspeaker product (the “Product”) will be free from defects in material and workmanship for a peri­o

d of five (5) years covering the drivers and cabinets, and three (3) years for the electronic components from the date

o

f the original purchase from a Definitive Authorized Dealer. If the Product is defective in material or workmanship,
Definitive or its Authorized Dealer will, at its option, repair or replace the warranted product at no additional charge,
e

xcept as set forth below. All replaced parts and Product(s) become the property of Definitive. Product that is
r

epaired or replaced under this warranty will be returned to you, within a reasonable time, freight collect. This war­ranty is non-transferrable and is automatically void if the original purchaser sells or otherwise transfers the Product
to any other party.

This Warranty does not include service or parts to repair damage caused by accident, misuse, abuse, negligence,
inadequate packing or shipping procedures, commercial use, voltage in excess of the rated maximum of the unit,
c

osmetic appearance of cabinetry not directly attributable to defects in material or workmanship. This warranty does

n

ot cover the elimination of externally generated static or noise, or the correction of antenna problems or weak
reception. This warranty does not cover labor costs or damage to the Product caused by installation or removal of
the Product. Definitive Technology makes no warranty with respect to its products purchased from dealers or outlets
o

ther than Definitive Technology Authorized Dealer.
THE WARRANTY IS AUTOMATICALLY VOID IF:

1

) The product has been damaged, altered in any way, mishandled during transportation, or tampered with.

2) The product is damaged due to accident, fire, flood, unreasonable use, misuse, abuse, customer

applied cleaners, failure to observe manufacturers warnings, neglect or related events.

3

) Repair or modification of the Product has not been made or authorized by Definitive Technology.
4

) The product has been improperly installed or used.

Product must be returned (insured and prepaid), together with the original dated proof of purchase to the Authorized

OWNER’S MANUAL

Dealer from whom the Product was purchased, or to the nearest Definitive factory service center. Product must be
shipped in the original shipping container or its equivalent. Definitive is not responsible or liable for loss or damage
t

o Product in transit.

THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY THAT APPLIES TO YOUR PRODUCT.
D

EFINITIVE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT

A

NY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH YOUR PRODUCT OR THIS
WARRANTY. ALL OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS,
I

MPLIED,WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE

E

XPRESSLY EXCLUDED AND DISCLAIMED TO THE MAXIMUM EXTENT ALLOWED BY LAW. ALL
IMPLIED WARRANTIES ON PRODUCT ARE LIMITED TO THE DURATION OF THIS EXPRESSED
WARRANTY. DEFINITIVE HAS NO LIABILITY FOR ACTS OF THIRD PARTIES. DEFINITIVE’S
L

IABILITY, WHETHER BASED ON CONTRACT, TORT, STRICT LIABILITY, OR ANY OTHER THEORY,
S

HALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT FOR WHICH A CLAIM HAS BEEN
MADE. UNDER NO CIRCUMSTANCE WILL DEFINITIVE BEAR ANY LIABILITY FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES. THE CONSUMER AGREES AND CONSENTS THAT ALL
D

ISPUTES BETWEEN THE CONSUMER AND DEFINITIVE SHALL BE RESOLVED IN ACCORDANCE
WITH CALIFORNIA LAWS IN SAN DIEGO COUNTY, CALIFORNIA. DEFINITIVE RESERVES THE
RIGHT TO MODIFY THIS WARRANTY STATEMENT AT ANY TIME.

Some states do not allow the exclusion or limitation of consequential or incidental damages, or implied warranties,
so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have
o

ther rights which vary from state to state.

©2009 DEI Sales Co. All rights reserved.

7085A100 08192010

4

For more information on Definitive Technology Loudspeakers and accessories,
visit www.definitivetech.com, or email [e-mail].
Definitive Technology, Owings Mills, Maryland, USA. 800-228-7148

This product complies with the essential requirements

of the EMC directive 89/336/EEC.
