Define Instruments Javelin Operating Manual

2-wire universal input
Accepts mA, V, mV, RTD, TC and potentiometer signals
4–20mA current loop output Isolated Hassle-free DIN-rail mounting
Space-saving (12.5mm wide) case
Simple USB setup Using Define ToolBox
1
Javelin
USB Programmable Transmitter
General Description
The Javelin is a loop powered, isolated trans­mitter. One of its key features is its easy so ­ware setup using De ne ToolBox. ToolBox enables simple and  exible programming of the Javelin in less than a minute, with no input signal or power supply required.
The Javelin also o ers  exible input options to suit a virtually endless range of industries.
High quality signal conditioning is a popular application. The Javelin accepts input signals from sensors such as thermocouples, RTD's, and potentiometers, and converts them to an industry standard 4–20mA output signal, where they can then be processed by PLC's and other instruments.
The Javelin can also be used to convert other standard process signals (such as ±10V, 1–5V, and 0–10V) to a 4–20mA signal. An­other widely used application is as a simple 4–20mA in, and 4–20mA out isolator, to pro­tect inputs of PLC's and SCADA systems from ground loops, transients, and the e ects of EMC.
More sophisticated applications are also catered to. For example, a level signal from an odd shaped tank can be converted to a 4–20mA signal representing volume, by using the in-built linearization table.
To start exploring the capabilities of your Javelin, install ToolBox now (see Section 5).
Quick start
Set up the Javelin using ToolBox (p12)
Install on the DIN rail (p8)
p6
Wiring (p15)
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
2
CONTENTS
Contents ............................................................. 2
Safety Notices ..................................................... 3
1 - Speci cations .............................................. 3
1.1 - Ordering Codes ................................. 3
1.2 - General Speci cations ....................... 4
2 - Front View & Status LED ............................ 5
2.1 - Javelin Front View ............................. 5
3 - Quick-Start .................................................. 6
4 - Hardware Installation ................................ 7
4.1 - Case Diagram .................................... 7
4.2 - Installation Environment ................... 7
4.3 - Installation Instructions .................... 8
4.4 - EMC Installation Guidelines .............. 9
5 - So ware Installation ............................... 10
6 - So ware Con guration ........................... 12
Using ToolBox
6.1 - Bridge Key ....................................... 12
7 - Wiring ....................................................... 15
7.1 - Terminal Access ............................... 15
7.2 - Screw Terminal Wiring .................... 15

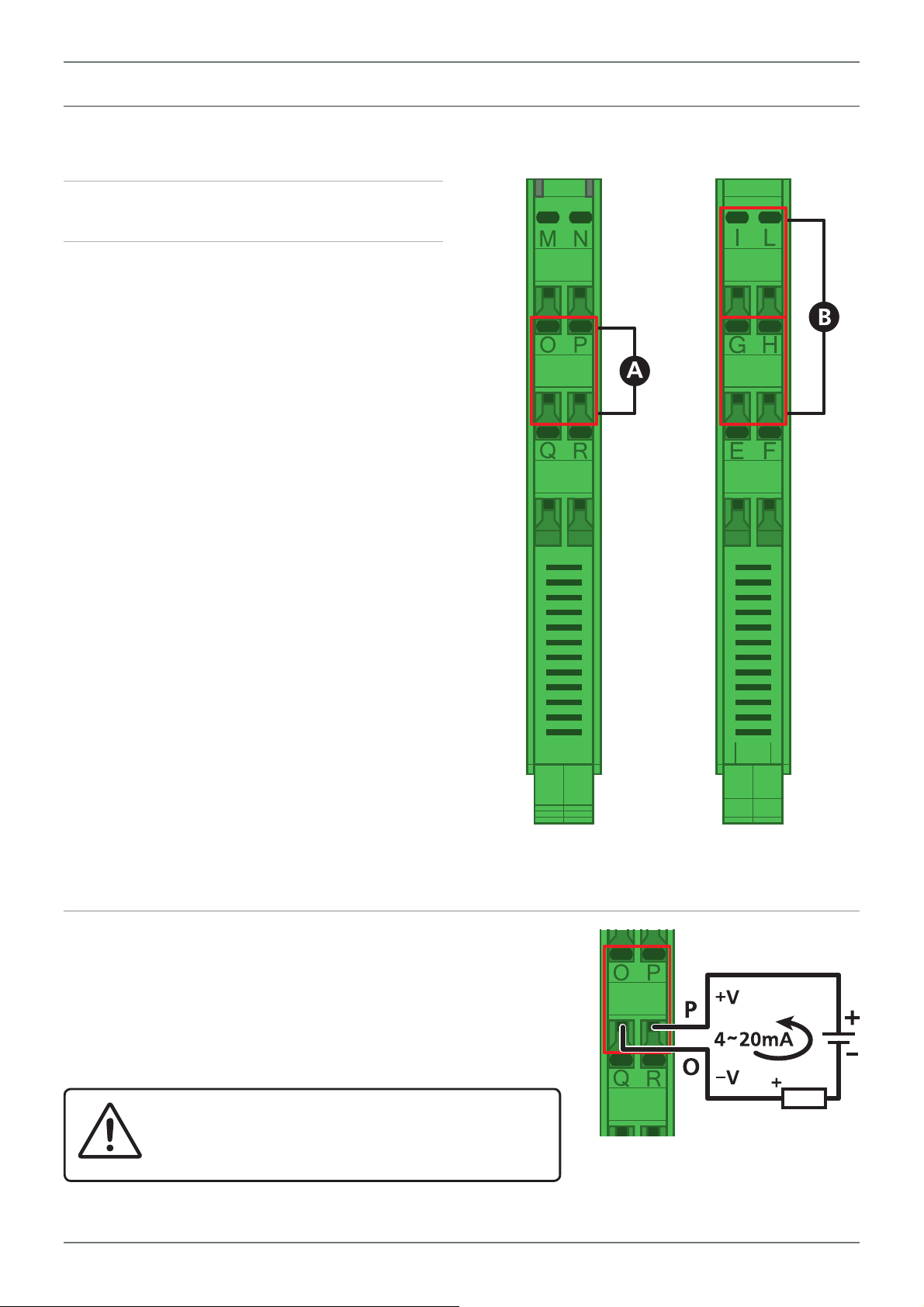

7.3 - Javelin Top & Bottom Views ............ 16
7.4 - 4–20mA Output .............................. 16
7.5 - Signal Input ..................................... 17
7.5A - Thermocouple ....................... 17

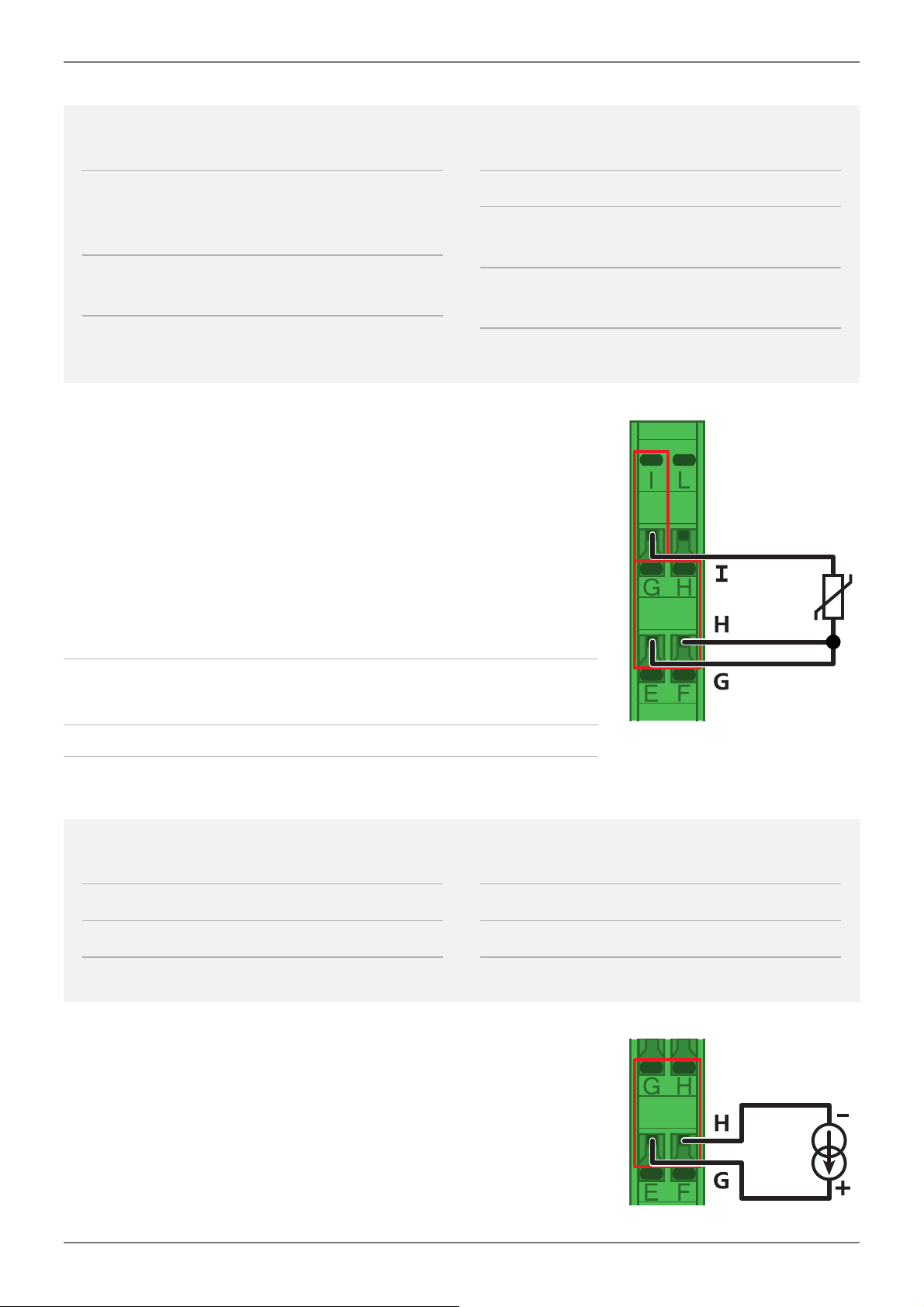

7.5B - RTD ....................................... 18

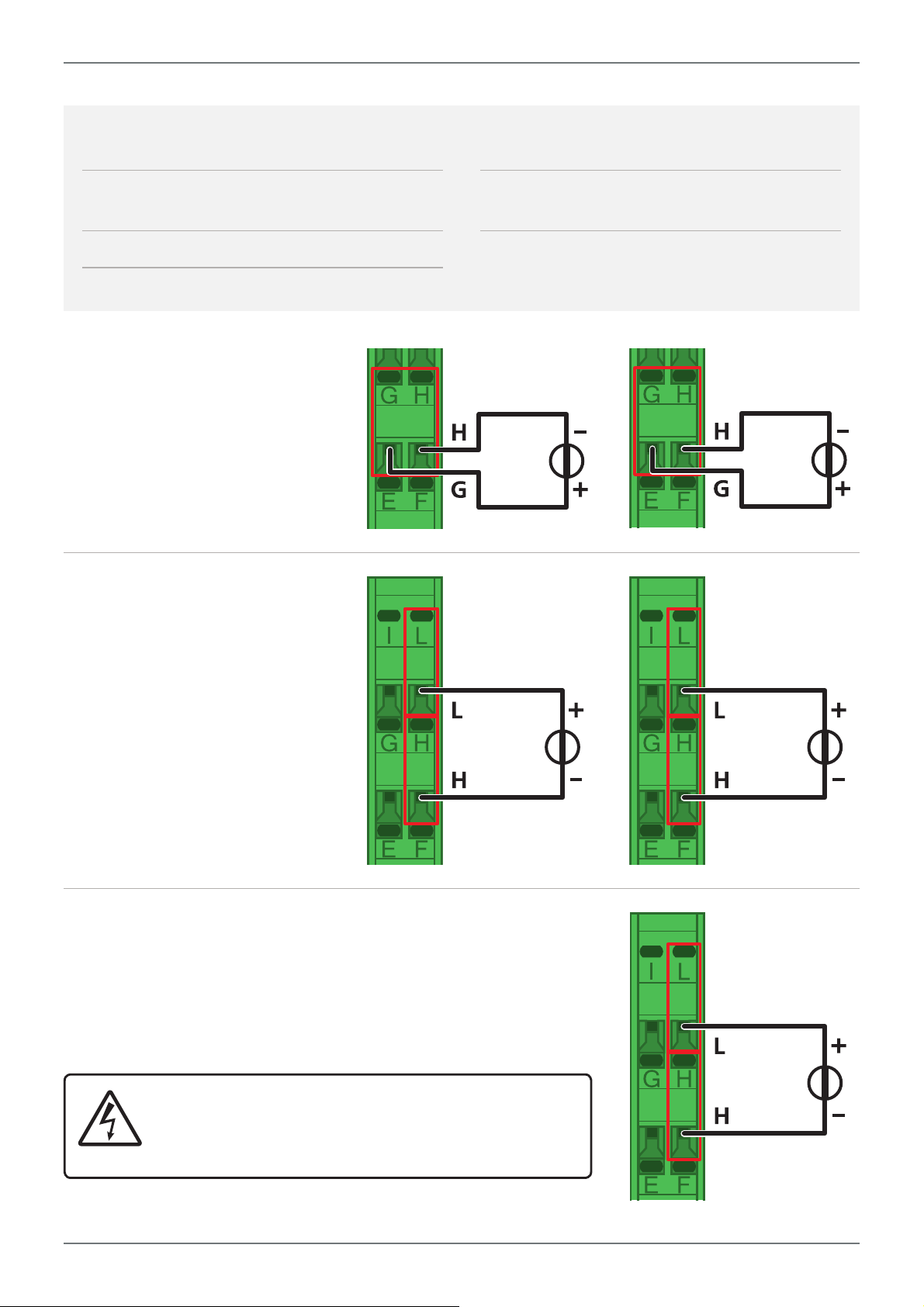

7.5C - Current .................................. 18
7.5D - Voltage ................................. 19

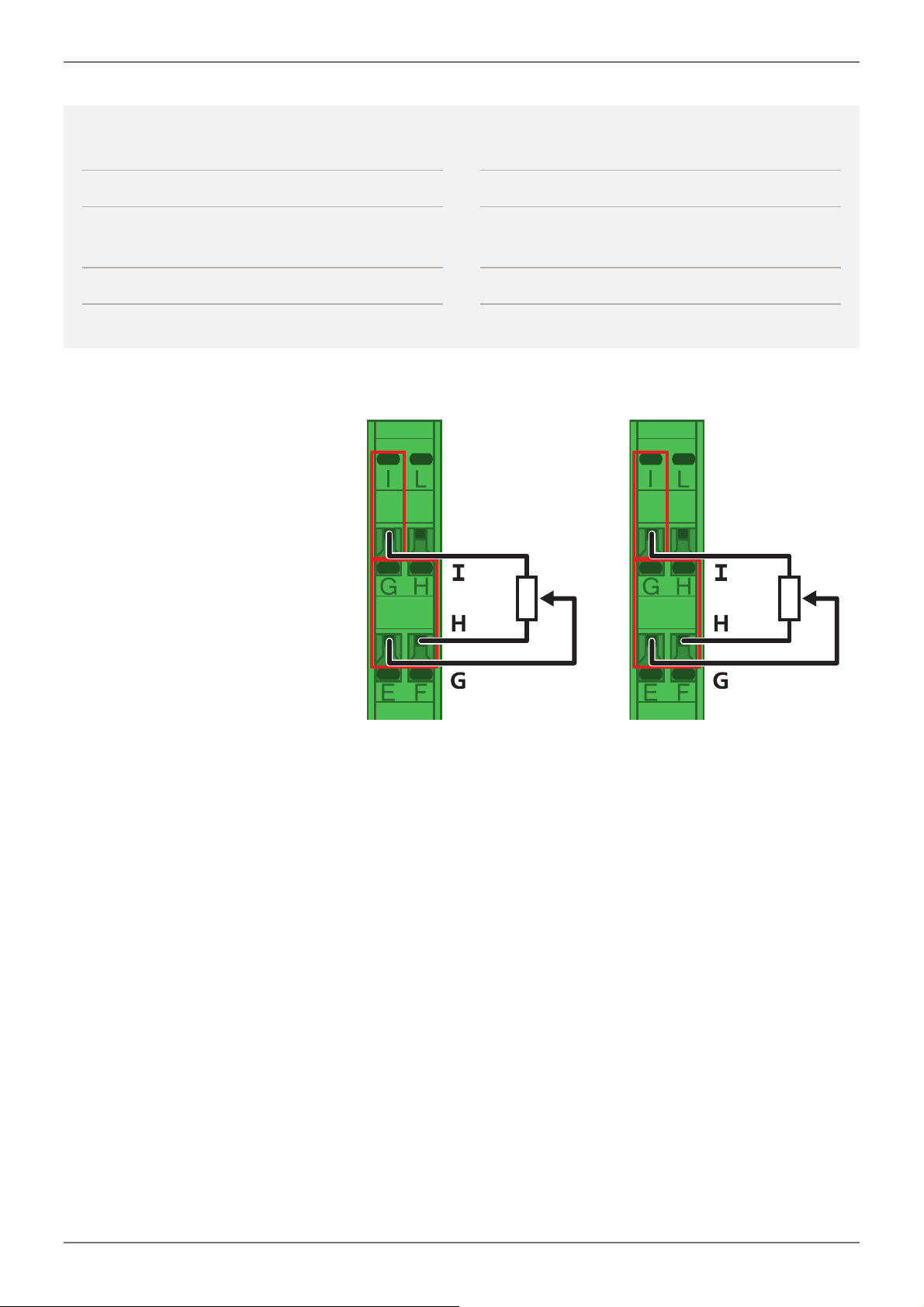

7.5E - Potentiometer ....................... 20
8 - Maintenance ............................................. 21
8.1 - Calibration ....................................... 21
8.2 - Troubleshooting .............................. 21
A - Appendix A - EMC Test Results ................ 22
B - Appendix B - Warranty & ......................... 23
User's Responsibility
6.2 - Using ToolBox .................................. 13
6.3 - ToolBox Interface Overview ............ 14
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
SAFETY NOTICES
For your safety and the prevention of damage to the Javelin, as well as other equip­ment connected to it, please read and carefully observe all safety regulations and
instructions. Consult this manual carefully in all cases where hazard symbols are marked on your Javelin unit.
De ne Instruments has not approved any change or modi cation to this device by users. Any modi cation or change could void users' authority to operate this equip­ment. Use of this instrument in a manner not speci ed by the manufacturer may compromise the protection provided by the instrument.
This instrument should not be used to directly drive valves, motors, or other ac­tuators, unless equipped with appropriate safeguards. The safety of any system incorporating this unit is the responsibility of the assembler of the system. It is the responsibility of the user to identify potential hazards that may arise in the event of a fault to unit, and implement safeguards for the prevention of harm to persons or equipment.
3
Class 2
The power supply used for the Javelin must be UL rated in accordance with UL1310/ UL1585 or LPS in accordance with UL60950-1.
Symbol de nitions
CAUTION
Risk of electric shock
Please refer to user manual.
1
SPECIFICATIONS
1.1 - Ordering codes
CAUTION
Risk of danger
Please refer to user manual.
JAV-2DLI
BRIDGE-KEY* Sold separately
* Starred accessories are not UL approved.
USB Programmable Transmitter 2-wire isolated universal input, 4–20mA loop output
USB Bridge Key for so ware programming
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
4
1.2 - General speci cations
Input
Universal 2-wire isolated input
See 7.5A–E for full speci cations
Output
Output 420mA or 204mA (loop powered)
Resolution 1µA
Output load resistance 650Ω at 24V DC
(50Ω/V above 10.5V DC)
Max output current Limited to <28mA
Isolation test voltages between input/ output 2500V AC for 1min
Accurate to <±0.03% FSO typical
Ambient dri <±0.003%/°C FSO typical
Response time 400msec typical (10–90%
300msec typical)
Construction
35mm DIN rail mount casing
IP20 rated. Installation Category II; Pollution Degree 2; Flame resistant
Dimensions (H x W x D)
90 x 12.5 x 112mm ( 3.54 x 0.49 x 4.41")
Single unit weight 77g (2.7oz)
Status LED See 2.1A for status de nitions
Environmental conditions
Operating temp -20 to 55°C (-4 to 131°F)
Storage temp -20 to 65°C (-4 to 149°F)
Operating humidity 5–85%RH max
(non-condensing)
Altitude 2000m (6561 )
Compliances
Power
Power supply 10.5–36V DC
Supply voltage sensitivity < ±0.005%/V FSO
USB programming
Simple so ware programming
Connect using the Bridge Key (sold sepa­rately). Program in less than a minute using De ne ToolBox (see Section 6).
IP20 enclosure rating
EMC compliance Emissions (EN 61326).
Immunity (EN 61326). Safety (EN 61010-1).
UL Listed File Number E473114
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
5
2
FRONT VIEW & STATUS LED
2.1 - Javelin front view
A Status LED See 8.2 for Troubleshooting
LED State De nition
On for 2 sec Power supplied - starting up
Flashing (½ sec on, ½ sec o ) Operating normally
Flashing (3 sec on, 1 sec o ) Sensor break
On continuously Fault
O Fault, or no 4–20mA current
B USB Programming Jack
See 6.1 for connection instructions
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
6
3
QUICK-START
1 - Con gure your Javelin using ToolBox
The Javelin's factory default input is RTD Pt100 (0–100°C) . If you wish to keep the default, or your distributor has already con gured the Javelin for you, skip to Step 2 now. To change your input type or output scaling:
A Install De ne ToolBox (see Section 5).
B Connect the Javelin to your computer using the USB Bridge Key (see
6.1). Then launch ToolBox and click the 'Connect' button (see 6.2).
C Con gure your system as required, referring to 6.2–6.3 in this manual,
and also the Help Panel in the so ware. You may like to wire your transmitter now, using the diagrams in the Help Panel as a guide.
D When you are  nished, click 'Disconnect' in ToolBox, and then discon-
nect the Javelin from your PC.
2 - Hardware installation
A Mount the Javelin on a DIN rail in an enclosure, referring to the in-
structions in Section 4.
3 - Wiring
A Wire the Javelin, starting from the terminals at the back of the unit
and working towards the front of the unit. Refer to Section 7 for wir­ing instructions.
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
7
4
HARDWARE INSTALLATION
4.1 - Case diagram
35mm DIN Rail
90 mm
(3.54")
12.5mm
(0.49")
112mm (4.41")
4.2 - Installation environment
The Javelin must be installed in a location that does not exceed the maximum operat­ing temperature, and at a safe distance from other devices that generate excessive heat. The installation environment should provide good air circulation to the unit.
12.5mm
(0.49")
The plastic casing and product label may be cleaned, if required, using a so , damp cloth and neutral soap product.
Caution should be exercised when cleaning the unit to avoid water to dripping inside, as this will damage the internal circuits.
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
8
4.3 - Installation instructions
The Javelin is rated IP20, and is designed for installa­tion on a 35mm DIN rail.
The unit must be installed in an enclosure, to protect it from weather conditions and dust, and also to pre­vent any accidental contact with potentially hazard­ous voltages.
A - DIN Rail Mounting (Fig 1)
To clip the unit onto the DIN rail: (1) Hook the upper part of the unit onto the rail, and then (2) Press down towards the rail until the lower hook clicks into place.
Fig 1
The Javelin may be mounted side-by-side with other Javelins on the DIN rail. Allow at least 5cm (1.97") clear space above and below the unit for air ow and wiring.
B - Wiring
Refer to Section 7 in this manual.
C - Removal from DIN Rail (Fig 2)
The unit may be unclipped from the DIN rail if re­quired by pressing the straight tab under the rail.
Squeeze the tab towards the back of the Javelin with your  nger, while levering the whole unit up with your other hand.
This will release the hook, allowing the unit to be de­tached from the DIN rail.
Fig 2
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
4.4 - EMC installation guidelines
9
The Javelin has been designed to cope with large EMC disturbances. This has been
achieved by continual testing and improve­ment of  ltering and layout techniques over many years.
The Javelin meet CE noise requirements, and even surpass them in many tests. (For full details and test results, see Appendix A.) However in some applications with less than optimum installations and large power switching, the EMC performance of the Javelin can be further improved, by:
A Installing the unit in an earthed metal
enclosure. This is particularly useful if the control box is mounted close to large power switching devices like con­tactors. Every switching cycle there is a possibility of generating a large amount of near  eld radiated noise. The metal enclosure, acting as a faraday cage, will shunt this radiation to ground and away from the Javelin.
B Using shielded cable on sensitive input
and control signal lines. Good results can be obtained by grounding the shields to the metal enclosure close to the entry point. All cables act as aerials and pick up unwanted R.F. radiated signals and noise; the earthed shield acts as a fara­day cage around the cables, shunting the unwanted energy to ground.
Shields can also help with capacitively coupled noise typically found in circum­stances when signal cable is laid on top of noisy switching power cables. Of course in this case you are better o to keep separate signal and power lines.
C Laying cable on earthed cable trays
can also help reduce noise seen by the Javelin. This is particularly useful if there are long cable runs, or the unit is close to radiating sources such as two way radios.
Further improvements can be made with this type of noise by increasing the physical distance from the power devic­es. For example, increasing the control box distance from 6” to 12” from the noise source will reduce the noise seen by the control box by a factor of 4. Prob­ably the cheapest and best results in this situation could be obtained by adding RC snubbers to the contactors or power switches.
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
10
5
ToolBox o ers a smart, no-fuss setup experience for your Javelin, and has been designed to simplify and speed up con guration.
You must install ToolBox before connecting the Javelin to your computer. If you have already connected your Javelin using the Bridge Key, please disconnect before continuing.
A Download the latest version of ToolBox from
www.de neinstruments.com/toolbox
For ease of access, we recommend saving the install  le on your desktop. If you cannot locate the install  le, check whether your browser has saved it in your Downloads folder.
B Extract the install  le from the zip folder. Right-click on the zip folder and choose 'Extract
All', (or extract the  le using another extraction utility of your choice).
SOFTWARE INSTALLATION
C Double-click on the extracted .msi install
 le. This will launch the ToolBox installer.
Depending on your security settings, a 'Security Warning' dialogue may appear. If you see the security message, click 'Run'.
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
D The ToolBox setup wizard will
launch.
Click 'Next' to get started.
E The wizard will also ask for
con rmation that you wish to begin the installation.
Click 'Next' to continue.
F The wizard will prompt you to
select an installation folder.
11
You may accept the default installation folder, or select an alternative location by clicking 'Browse'.
Click 'Next' to continue.
G The install wizard will now
install ToolBox.
Please wait. This process usu­ally takes 2-3 minutes, but may take longer in some situations.
H When the installation has suc-
cessfully completed, the fol­lowing dialogue will appear. Click 'Close' to exit.
The installer will place an icon on your desktop for easy ac­cess to ToolBox.
The downloaded .zip and .msi installer  les are no longer needed, and may be deleted if desired.
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
12
6
SOFTWARE CONFIGURATION USING TOOLBOX
6.1 - Bridge Key
Install the ToolBox so ware (see Section 5) before connecting the Javelin to your PC.
Connect the Javelin to your computer's USB port using the Bridge Key. No power supply is required during programming, as the Javelin is powered by the USB.
The interface cable connects to the USB programming jack on the front of the Javelin (see
2.1B). A USB extension cable is supplied for your use if required - this is o en used for conveni­ence in accessing USB ports located at the back of the computer.
CAUTION - Risk of damage
Ensure that all connections between the Bridge Key and your Javelin are secure. Attempting to connect when cables are not  rmly pushed in may result in connection faults, and could also cause damage to the unit or your PC. Always use the windows ‘Safely remove hardware’ function before unplugging the Bridge Key from your computer.
CAUTION
Not UL approved
The Bridge Key is sold separately to the Javelin and has not been certi ed for UL.
Javelin
Bridge Key
Interface Cable
USB Extension Cable
(If Necessary)
Install Dene ToolBox
& connect all other
cables rst.
PC
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
13
6.2 - Using ToolBox
De ne ToolBox enables full con guration of your Javelin. To set up the transmitter, only the
Bridge Key is required. No power supply or input signal is needed.
A Referring to the instructions in Section 5, download and install the latest version of
ToolBox from: www.de neinstruments.com/toolbox
B Connect the Javelin to your computer using the Bridge Key as shown in 6.1.
C Double-click the ToolBox icon on your desktop to launch the ToolBox program.
D Click the green 'Connect' button. This will scan your computer's Com ports and
automatically connect to your device.
Input/Output
The Input/Output tab is the main area for con guring your Javelin. Select your pre­calibrated input type, and adjust the input range and units.
If the unit is wired and powered up, you can also view a live graph of the analogue output - great for commissioning!
Advanced
Advanced features enable you to save a con guration, or load a previously saved con guration. This provides a simple way to duplicate a con guration, for cloning or troubleshooting.
It is also possible to export a PDF con gura­tion certi cate, with custom  elds for sup­port contact information.
Dynamic help panel
The dynamic help panel auto-updates with relevant explanations, diagrams and tips as you con gure your Javelin.
Connection problems?
ToolBox will auto-detect and connect to your Javelin when you click the 'Connect' button. If you encounter connection problems:
Ensure that all connections between the
device and your computer are secure.
Try disconnecting and reconnecting the
USB, or using a different USB port on your PC.
Disconnect any additional compatible
devices. The software's auto-detect fea­ture will not work if multiple compatible devices are connected to your computer at the same time.
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
14
6.3 - ToolBox interface overview
Main Navigation Tabs
Input/Output and Advanced con guration pages.
Control Area
Main control area for con guring your system. Any changes made in this area will bring up the Apply Bar (see below)
Connection Panel
Disconnect button Connection status
Apply Bar
Appears if you have made any changes in the Control Area. ToolBox will not allow you to browse to a new tab in the Main Navigation with unap­plied changes to your con guration.
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
Help Panel
Diagrams, explanations, and helpful tips will automatically appear in this panel as you con gure your Javelin.
15
7
WIRING
7.1 - Terminal access
Electrical connections are made via angled screw terminals on the top and bottom of the Javelin.
Due to the angle of the terminals, inserting a wire in a front terminal will block screwdriver access to the terminal directly behind it.
For example, in Fig 3 (right), the wire for Terminal L on the underside of the Javelin blocks access to Terminal H.
Because of this, the unit must be wired in sequence, starting with the terminals at the back of the unit and moving towards the front.
Fig 3
Wire for Terminal L blocks access to
Terminal H
7.2 - Screw terminal wiring
Wiring diagrams for your Javelin can be found on the product label, in this manual (7.3–7.5), or in the Help Panel of the De ne ToolBox so ware. When wiring your Javelin, check all connections against the terminal letters, which are embossed on the unit next to the screw for each terminal.
All conductors must conform to the unit's voltage and current ratings, and be suitably rated for the expected temperature range to be incurred.
Strip the wire, leaving around 0.25" (6mm) of bare lead exposed. If you are using stranded wire, this should be tinned with solder. Insert the lead into the terminal in the correct position, and tighten until the wire is secure. Verify tightness by pulling on the wire.
Follow all local codes and regulations when wiring and installing your Javelin. Each ter­minal is rated to accept one wire from #14 AWG (2.5mm) to #20 AWG. However it is also possible to accept two #18 AWG wires, or up to four #20 AWG wires.
CAUTION
All  eld wiring must be rated at a minimum of 80°C (176°F).
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
16
7.3 - Javelin top & bottom views
A 4–20mA Output
(Terminals O–P, See 7.4)
B Signal Input (Terminals G–H & –L, See 7.5) Wire terminals G–H  rst, where
applicable. See 7.1 for more on terminal access.
Terminals Q–R, M–N and E–F are not used.
Top of Unit Bottom of Unit
DIN Rail DIN Rail
7.4 - 4–20mA Output
10.5~36V DC
See 7.3A, Terminals O–P
Wire your 4–20mA loop output and 10.5–36V DC power supply as shown (right). Terminals O–P are located on the top side of the Javelin unit.
Class 2: The power supply used for the Javelin must be UL rated in accordance with UL1310/ UL1585 or LPS in accordance with UL60950-1.
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
Rload
17
7.5 - Signal input
See 7.3B, Terminals G–H & –L
Wire the universal input for your signal type, as detailed on the following pages. Input speci­ cations and wiring for all available Javelin input types can be found below (7.5A–E). All terminals for the signal input are located on the bottom side of the Javelin unit.
CAUTION
Risk of electric shock. Dangerous and lethal voltages may be present on the terminals of
the unit. Please take appropriate precautions to ensure safety.
CAUTION
Risk of danger. The sensor input can potentially  oat to dangerous and unexpected volt-
ages depending on what external circuit it is connected to. Appropriate considerations must be given to the potential of the sensor input with respect to earth common.
7.5A - Thermocouple input
Thermocouple types B, E, J, K, N, R, S, T
Input impedance >500K min
TC lead resistance 100 max
Cold junction comp. -10 to 60°C
(14 to 140°F)
Temperature (thermocouple)
The thermocouple (TC) is one of the most common tempera­ture sensors used in industry. It relies on the Seebeck coe ­cient between dissimilar metals.
TC type is selected with reference to the application tempera­ture range and environment. The most common TC types for general purpose applications are J and K.
CJC dri <0.02°C/C typical for all inputs
Sensor open Upscale/Downscale (so -
ware programmable)
Accuracy 0.1% of FSO±1°C typical
TC Input
Supported thermocouple types/ranges
K -200°C (-328°F) 1260°C (2300°F)
B 400°C (752°F) 1800°C (3272°F)
E -200°C (-328°F) 700°C (1292°F)
J -200°C (-328°F) 1000°C (1832°F)
Supported thermocouple types/ranges
R 0°C (32°F) 1700°C (3092°F)
S 0°C (32°F) 1700°C (3092°F)
T -200°C (-328°F) 400°C (752°F)
N -200°C (-328°F) 1300°C (2372°F)
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
18
7.5B - RTD input
RTD types
Pt100 (3-wire RTD DIN 43760:1980) or Pt1000 (3-wire RTD standard)
Calibrated range -200 to 850°C (-328 to 1562°F), 0.1°C res
Lead resistance 10/lead max recommended
Sensor current 0.15mA continuous
Sensor open Upscale/Downscale (so -
ware programmable)
Accuracy 0–300°C= ±0.15°C <0°C or >300°C= ±0.3°C
Ambient dri 0.003°C/C typical
Temperature (RTD)
The RTD (standing for Resistance Temperature Device) is highly stable and accurate, and is fast becoming the most popular temperature sensor in industry. O en referred to as Pt100 and Pt1000, the Pt represents platinum (the dominant metal in its construction), and 100/1000 is the resistance in ohms at 0°C.
Note that terminals G–H must be wired  rst - see 7.1 for more information.
RTD
Input
Supported RTD types/ranges
Pt100 -200°C (-328°F) 850°C (1562°F)
Pt1000 -200°C (-328°F) 850°C (1562°F)
7.5C - Current input
Range 0/4–20mA
Input resistance 10
Linearity & repeatability 0.1% FSO max
0/4–20mA DC
0/4–20mA DC is the most commonly used analogue signal in industry, and is universally accepted.
Accuracy 0.1% FSO max
Ambient dri <50ppm/°C of FS input
Response 400msec
0/4−20mA
DC Input
As a current loop, it is una ected by voltage drops in cables, and can be transmitted over long distances without signal degradation.
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
7.5D - Voltage input
19
Ranges ±200mV, –100mV to 1V, 0–10V, ±10V, 0–50V DC
Input impedance >500K on all ranges
Accuracy 0.1% FSO max
mV DC
For low signal applications, the Javelin supports ±200mV and
-100mV to 1V DC ranges.
Typical applications include measuring large DC currents using external current shunts.
0–10V & ±10V DC
The 0–10V DC and ±10V DC ranges are both common pro­cess signals that are generated by transmitters, meters and PLCs.
Linearity and repeatability
0.05% FSO max
Ambient dri <50ppm/°C of FS input
±200mV
DC Input
±10V DC
Input
-100mV to 1V DC Input
0−10V DC
Input
Terminal H must be wired  rst
- see 7.1 for more information.
0–50V DC
The 0–50V DC range is a higher voltage general purpose range is typically used to measure battery voltages, power supply outputs, etc.
Terminal H must be wired  rst - see 7.1 for more information.
CAUTION
Risk of electric shock
Exercise extreme caution when handling high voltage inputs.
0−50V DC
Input
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
20
7.5E - Potentiometer input
Potentiometer input 3-wire
Potentiometer resistance
Low range (<2K) or High range (<1M)
Excitation voltage Variable
Field programmable zero 0–90% of span
3 wire potentiometer
A 3 wire potentiometer is typi­cally used to measure position.
The low or high potentiometer range can be programmed to your unit using the ToolBox so ware.
Terminals G–H must be wired  rst - see 7.1 for more information.
Field programmable span 0.1–100%
Linearity and repeatability
<±0.05% FSO typical
Response time 400msec
Temperature dri <50ppm/°C
Potentiometer
Potentiometer
Input
Low range
(<2kΩ)
Input
High range
(<1MΩ)
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
21
8
MAINTENANCE
8.1 - Calibration
Your Javelin has been fully calibrated at the factory, and can be recalibrated in so ware using De ne ToolBox (see 6.2 to connect). Scaling to convert the input signal to a desired output value is also done using ToolBox.
If your Javelin unit appears to be behaving incorrectly or inaccurately, refer to troubleshoot­ing (8.2) before attempting to calibrate it. When recalibration is required (generally every 2 years), it should only be performed by quali ed technicians using appropriate equipment.
Calibration does not change any user programmed parameters. However, it may a ect the accuracy of the input signal values previously stored.
8.2 - Troubleshooting
Status LED De nition/Resolution
On for 2 seconds Power supplied to Javelin - starting up.
Flashing (½ sec on, ½ sec o ) Javelin is operating normally.
Flashing (3 sec on, 1 sec o ) Sensor break. Check sensor and sensor connections.
Replace sensor if necessary.
On continuously Fault. Return unit for repair.
O Fault, or no 4–20mA current. Check power supply and
connections. If OK, return unit for repair.
For further assistance, please contact technical support using the contact details listed at the end of this document.
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
22
A
APPENDIX A - EMC TEST RESULTS
The Javelin has been designed to cope with large EMC disturbances. This has been achieved by constantly testing and improving  ltering and layout techniques over many years. The Javelin o ers superior R.F.  ltering on all inputs, outputs and power supplies, when compared to most competing products.
The Javelin not only meets CE noise requirements, but surpasses them in many tests. Further­more, all testing was performed in plastic enclosures without shielded cabling.
Immunity - Enclosure Ports
Phenomenon Basic Standard Test Value Performance Criteria
EM Field IEC 61000-4-3 10Vm (80Mhz to 1GHz)
3V/m (1.4GHz to 2.7Ghz)
Electrostatic Discharge (ESD)
IEC 61000-4-2 4KV/8KV contact/air Meets Criterion A (Note 1)
Meets Criterion A
Meets NAMUR NE 21 recommendation
Immunity - Signal Ports
Phenomenon Basic Standard Test Value Performance Criteria
Conducted RF IEC 61000-4-6 3V(150Khz to 80Mhz) Meets Criterion A
Burst IEC 61000-4-4 1KV (5/50ns,5Khz)
1KV(5/50ns,100Khz)
Surge IEC 61000-4-5 1KV L-E Meets Criterion A (Note 1)
Meets Criterion A (Note 1) Meets NAMUR NE 21 recommendation
Immunity - AC power
Phenomenon Basic Standard Test Value Performance Criteria
Conducted RF IEC 61000-4-6 3V (150Khz to 80Mhz) Meets Criterion A
Burst IEC 61000-4-4 2KV (5/50ns, 5Khz) L-N
1KV (5/50ns, 5Khz) L-L
Surge IEC 61000-4-5 2KV L-E
1KV L-L
Voltage Dips IEC 61000-4-11 0% during 1 cycle
40% during 10/12 cycles 70% during 25/30 cycles
Meets Criterion A (Note 1) Meets Criterion A (Note 1)
Meets Criterion A (Note 1) Meets Criterion A (Note 1)
Meets Criterion A (Note 1) Meets Criterion A (Note 1) Meets Criterion A (Note 1)
Note 1: Where indicated by Note 1, EN61326-1 calls for a Criterion B pass; unit exceeds this by meeting Criterion A.
JAV-2DLI-MAN-15V01 (0330) Copyright © 2015 De ne Instruments
EMC Test: Performance Criteria
23
Performance Criterion A
During testing, normal performance within the speci cation limits.
B
APPENDIX B - WARRANTY & USER'S RESPONSIBILITY
Warranty
De ne Instruments warrants that its prod­ucts are free from defects in material and workmanship under normal use and ser­vice for a period of one year from date of shipment.
De ne Instruments’s obligations under this warranty are limited to replacement or repair, at its option, at its factory, of any of the products which shall, within the ap­plicable period a er shipment, be returned to De ne Instruments’s facility, transporta­tion charges pre-paid, and which are, a er examination, disclosed to the satisfaction of
Performance Criterion B
During testing, temporary degradation, or loss of performance or function which is self-recovering.
De ne Instruments to be thus defective. The warranty shall not apply to any equipment which shall have been repaired or altered, except by De ne Instruments, or which shall have been subjected to misuse, negligence or accident.
In no case shall De ne Instruments’s liabil­ity exceed the original purchase price. The aforementioned provisions do not extend the original warranty period of any product which has been either repaired or replaced by De ne Instruments.
User’s Responsibility
We are pleased to o er suggestions on the use of our various products, by way of print­ed matter, on our website, or through direct contact with our sales/application engineer­ing sta .
However, since we have no control over the use of our products once they are shipped, NO WARRANTY, WHETHER OF MERCHANT­ABILITY, FITNESS FOR PURPOSE OR OTHER­WISE is made beyond repair, replacement, or refund of purchase price at the sole discre­tion of De ne Instruments.
Users shall determine the suitability of the product for the intended application before
using, and the users assume all risk and li­ability whatsoever in connection therewith, regardless of any of our suggestions or state­ments as to application or construction.
In no event shall De ne Instruments’s liabil­ity, in law or otherwise, be in excess of the purchase price of the product.
De ne Instruments cannot assume respon­sibility for any circuitry described. No circuit patent or so ware licenses are implied. De ne Instruments reserves the right to change circuitry, operating so ware, speci­ cations, and prices without notice at any time.
JAV-2DLI-MAN-15V01 (0330)Copyright © 2015 De ne Instruments
De ne Instruments Ltd
New Zealand (Head O ce)
10B Vega Place, Mairangi Bay,
Auckland 0632, New Zealand
PO Box 245 Westpark Village,
Auckland 0661, New Zealand
Ph: +64 (9) 835-1550 | Aus: 1800 810-820 Fax: +64 (9) 835-1250
Email: rolla@de neinstruments.com
www.de neinstruments.com
South Africa
16B North Road, Dunkeld West 2196,
Johannesburg, South Africa
Ph: 087 945 2700
Email: dylan.swartz@de neinstruments.co.za
www.de neinstruments.co.za
Javelin Revision Code: JAV-2DLI-MAN-15V01 Date Code: 150330
Loading...
