OPERAT I NG INSTRUCTIONS
Adiabatic Humidifiers
2533417 EN 0807
Defensor PH27/PH27A
1 Introduction 4
1.1 To the very beginning 4
1.2
Notes on the operating instructions 4
2
For your safety 6
3
Product Overview 8
3.1
Unit versions 8
3.2
Unit construction 8
3.3
Operating panel 9
3.4
Identification of the unit 10
3.5
Functional description/Operating modes 10
3.6 Options 11
3.7 Accessories 12
3.8
Standard delivery 12
4 Commissioning 13
4.1
Unpacking the unit and checking the scope of delivery 13
4.2
Transporting/storing the unit 13
4.3
Choose location 14
4.4
Connecting the water supply (PH27A only) 15
4.5
Putting the unit into operation 16
5 Operation 17
5.1
Filling the water tank (PH27 only) 17
5.2
Switching the unit on and off 18
5.3

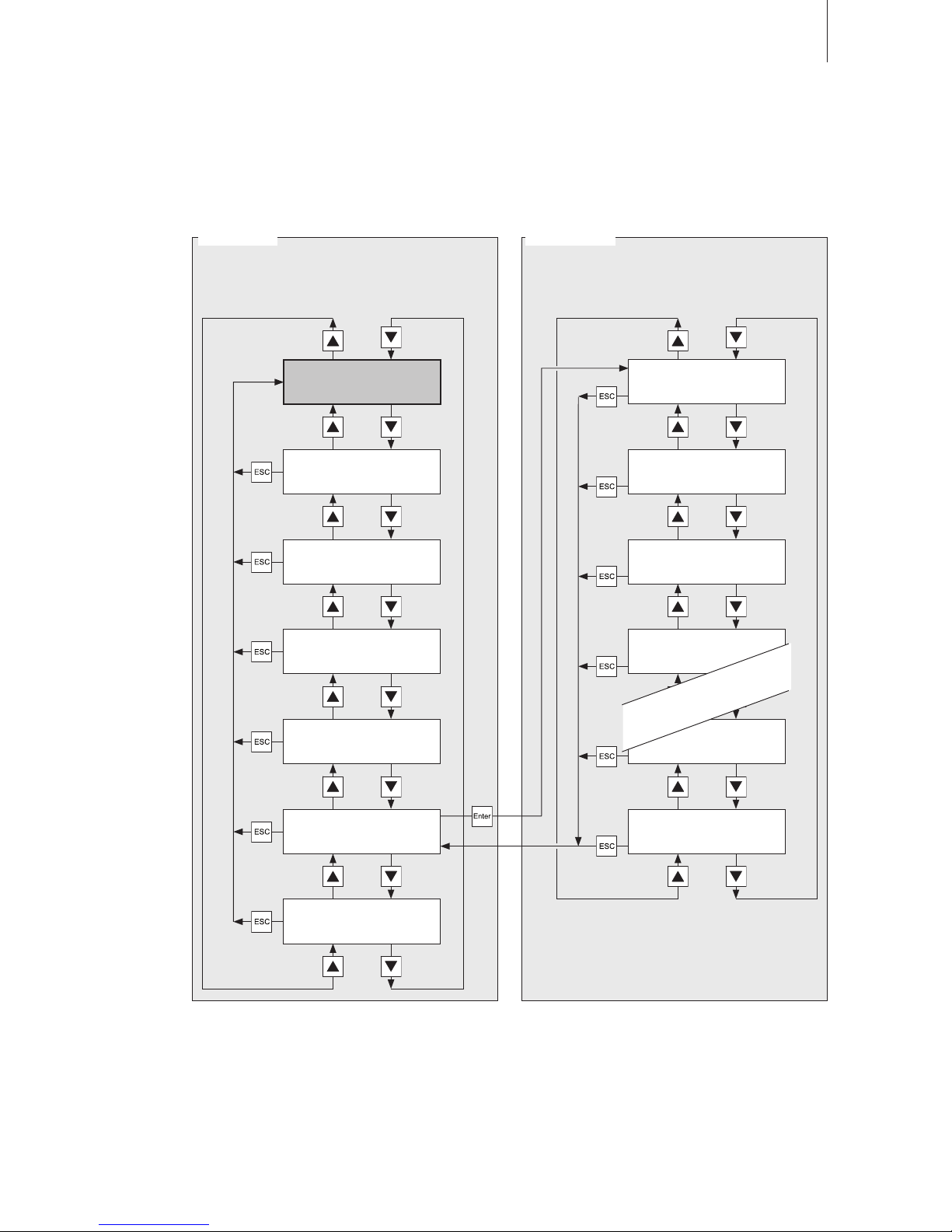

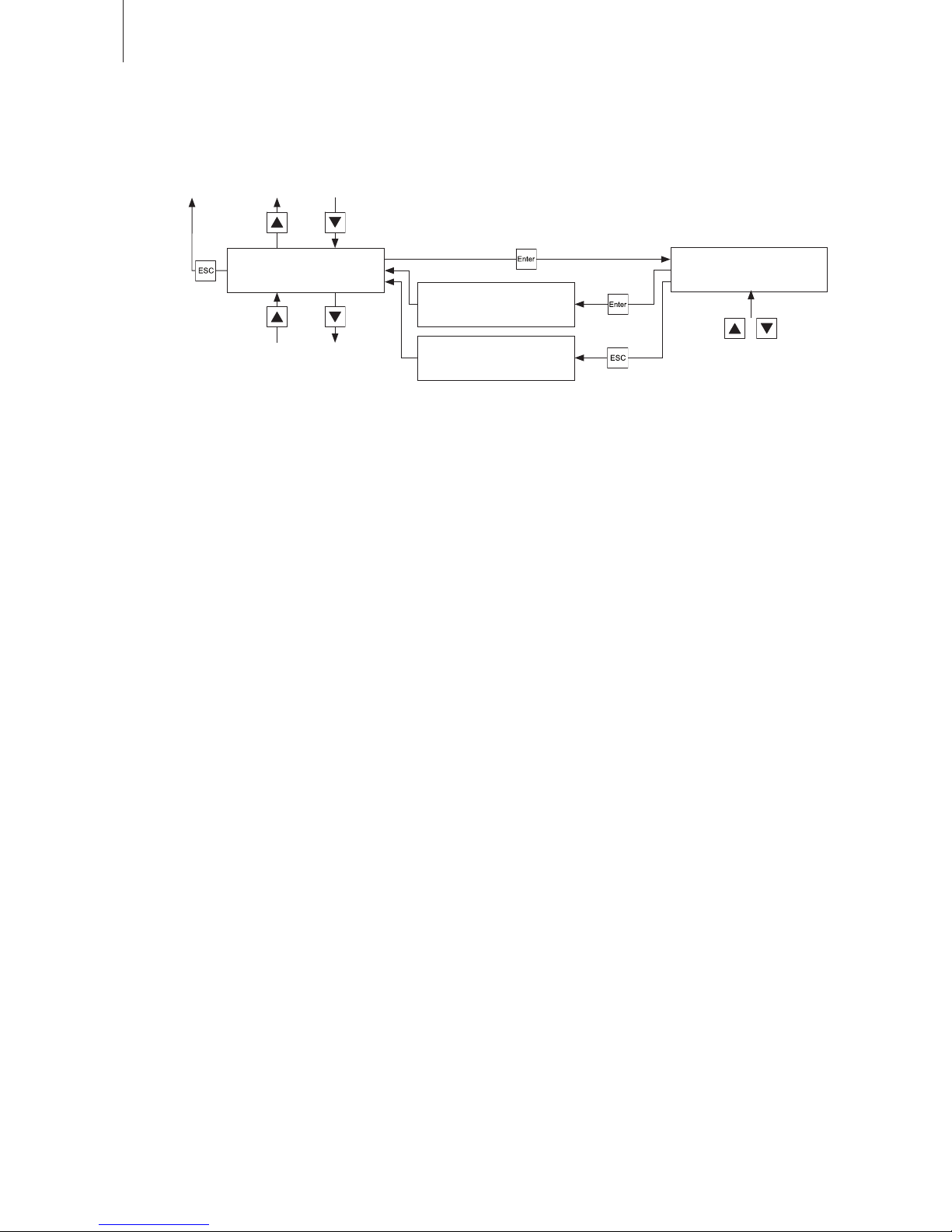

Menu overview 19
5.4
Unit settings (normal operating mode) 20
5.4.1
Setting the desired humidity value 20
5.4.2
Setting the fan step 21
5.4.3
Selecting the operating mode (Humidifying mode) 22
5.4.4 Switching the buzzer on and off 22
5.4.5
Calling timer level 23
5.4.6
Selecting the dialogue language 23
5.5
Program operation 24
5.5.1
Calling the timer level 24
5.5.2
Activating/Deactivating the program mode 25
5.4.3
Setting the current time 25
5.5.4
Setting the starting points and the operating programs 26
5.6
Locking/unlocking the keyboard 27
6 Maintenance 28
6.1
Maintenance intervals 28
6.2
Maintenance work 29
6.2.1
Disassembling the unit 29
6.2.2
Cleaning work 30
6.3
Notes on cleaning agent 32
6.4

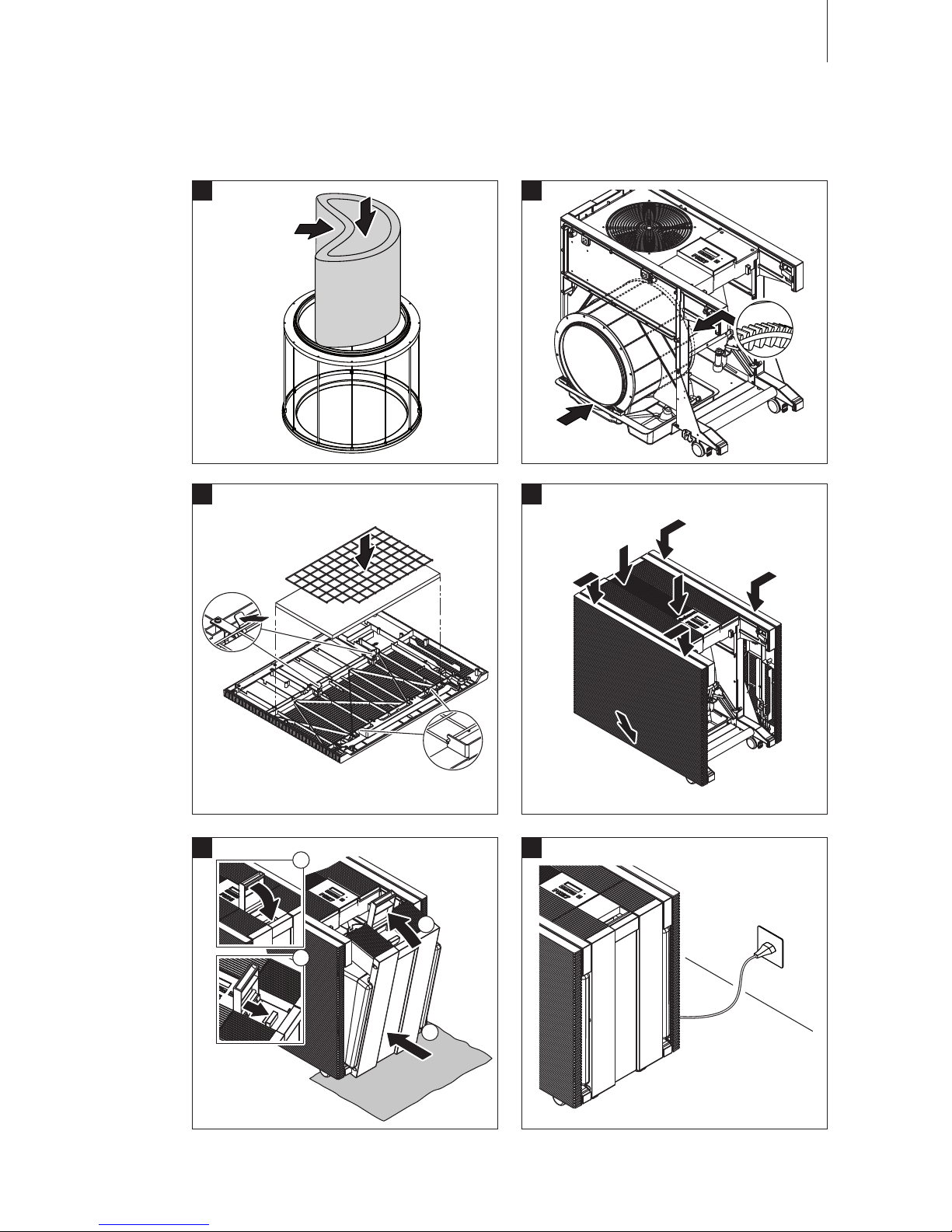

Reassembly of the unit 33
6.5
Resetting the filter changing message 34
7
Fault elimination 35
7.1
Event messages 35
7.2
Warning messages 35
7.3
Error messages 36
7.4
What, if...? 37
7.5
Notes on fault elimination 38
8
Taking out of service/Disposal 39
8.1
Taking out of service 39
8.2 Disposal/Recycling 39
9
Unit specifications 40
10 Appendix 41
10.1

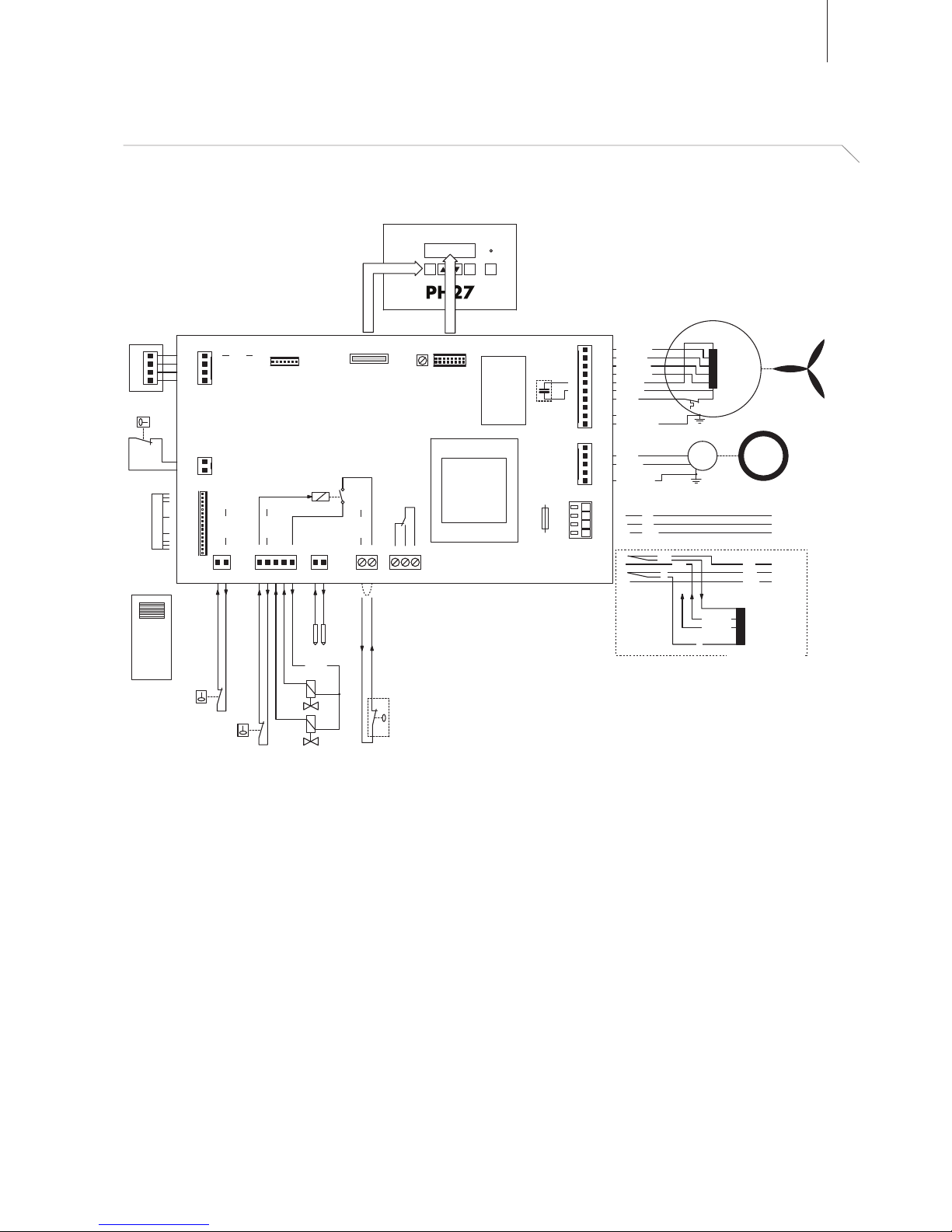

Wiring diagram 41
10.2
Spare parts list PH27 42
10.3
Spare parts list PH27A 44
Contents
4
Limitation
The subject of this operating instructions are the air purifiers/air humidifiers Defensor PH27
and PH27A.
The various accessories are only described insofar as this is necessary for proper
operation of the equipment. Further information on accessories can be obtained in the respective
instructions.
This operating instructions are restricted to the installation, commissioning, operation, servicing
and trouble shooting of the air purifier/air humidifier Defensor PH27/PH27A and is meant for well
trained personnel being sufficiently qualified for their respective work.
The operating instructions are supplemented by various separate items of documentation (e.g. manuals for accessories). Where necessary, appropriate cross-references are made to these publications
in the operating instructions.
1 Introduction
We thank you for having purchased an air purifier/air humidifier Defensor PH27 or PH27A.
The air purifier/air humidifier Defensor PH27/PH27A incorporates the latest technical advances and
meets all recognized safety standards. Nevertheless, improper use of the Defensor PH27/PH27A
may result in danger to the user or third parties and/or impairment of material assets.
To ensure a safe, proper, and economical operation of the air purifier/air humidifier Defensor PH27/
PH27A, please observe and comply with all information and safety instructions contained in the
present operating instructions as well as the instructions given in the manuals for the components
used in the humidification system.
If you have questions, which are not or insufficiently answered in this documentation, please contact
your Defensor supplier. They will be glad to assist you.
1.2 Notes on the operating instructions
1.1 To the very beginning
5
Symbols used in this manual
CAUTION!
The catchword “CAUTION” designates notes in this operating instructions that, if
neglected, may cause damage and/or malfunction of the unit or other material
assets.
WARNING!
The catchword “WARNING” used in conjunction with the general caution symbol
designates safety and danger notes in this operating instructions that, if neglected,
may cause to injury to persons.
DANGER!
The catchword “DANGER”” used in conjunction with the general caution symbol
designates safety and danger notes in this operating instructions that, if neglected,
may lead to severe injury or even death of persons.
Safekeeping
Please safeguard this operating instructions in a safe place, where it can be immediately accessed.
If the equipment changes hands, the documentation should be passed on to the new operator.
If the documentation gets mislaid, please contact your Defensor supplier.
Language versions
This operating instructions are available in various languages. Please contact your Defensor supplier
for information.
Copyright protection
The present operating instructions are protected under the Copyright Act. Passing-on and reproduction of the manual (or part thereof) as well as exploitation and communication of the contents are
prohibited without written permission by the manufacturer. Violation of copyright terms is subject
to legal prosecution and arises liability for indemnification.
The manufacturer reserves the right to fully exploit commercial patent rights.
6
2 For your safety
General
Every person working with the Defensor PH27/PH27A must have read and understood the Operating instructions before carrying out any work.
Knowing and understanding the contents of the Operating instructions is a basic requirement for
protecting the personnel against any kind of danger, to prevent faulty operation, and to operate the
unit safely and correctly.
All ideograms, signs and markings applied to the unit must be observed and kept in readable
state.
Qualification of personnel
All actions described in the present Operating instructions (installation, operation, maintenance,
etc.) must be carried out only by well trained and sufficiently qualified personnel authorised by
the owner.
For safety and warranty reasons any action beyond the scope of this manuals must be carried out
only by qualified personnel authorised by your Defensor supplier.
It is assumed that all persons working with the Defensor PH27/PH27A are familiar and comply with
the appropriate regulations on work safety and the prevention of accidents.
This unit may not be used by persons (including children) with reduced physical, sensory or mental
abilities or persons with lacking experience and/or knowledge, unless they are supervised by a person
responsible for their safety or they received instructions on how to operate the unit.
Children must be supervised to make sure that they do not play with unit.
Intended use
The air purifier/air humidifier Defensor PH27/PH27A is intended exclusively for air purification and
air humidification within the specified operating conditions (see chapter 9 “Product specifica-
tions”). Any other type of application without the express written consent of the manufacturer is
considered as not conforming with the intended purpose and may lead to the Defensor PH27/PH27A
becoming dangerous.
Operation of the equipment in the intended manner requires that all the information in these
instructions are observed (in particular the safety instructions).
7
Danger that may arise from the unit
– The Defensor PH27/PH27A is mains powered.
DANGER!
One may get in touch with live parts when the unit is open. Touching live
parts may cause severe injury or danger to life.
P
revention: Before carrying out any work set the Defensor PH27/PH27A out of operation
(switch off the unit, disconnect it from the mains, close water supply) and secure
the unit against inadvertent power-up.
–
Poorly maintained humidifiers can endanger your health.
WARNING!
If the Defensor PH27/PH27A is insufficiently maintained harmful germs can
build up in the water and the filters an can affect the ambient air.
P
revention: The Defensor PH27/PH27A has to be cleaned in regular intervals according to
chapter 6 “Maintenance”. The cleaning work has to be carried out correctly and
the evaporator mat as well as the filters have to be replaced after the specified
lifetime.
Handling the mains cable
Handle the mains cable with care: keep it away from sharp edges and do not jam or strain it.
Never remove the mains plug by pulling the mains cable. Make sure your hands are absolutely dry
when pulling the plug out of the socket.
Lay out the mains cable so that it does not become a stumbling trap.
Connect mains cable only to a mains socket with protection earth. Any extension cable used must
be equipped with a protection earth too.
Behaviour in case of danger
If it is suspected that safe operation is no longer possible, then the Defensor PH27/PH27A should
immediately be disconnected from the mains (disconnect mains connector) and secured against
accidental power-up. This can be the case under the following circumstances:
–
if the Defensor PH27/PH27A is damaged
– if the Defensor PH27/PH27A is no longer operating correctly
– if connections and/or piping are not sealed
– if the mains cable is damaged
All persons working with the Defensor PH27/PH27A must report any alterations to the unit that may
affect safety to the owner without delay.
Prohibited modifications to the unit
No modifications must be undertaken on the Defensor PH27/PH27A without the express written
consent of the manufacturer.
For the replacement of defective components use exclusively original accessories and spare parts
available from your Defensor supplier.
8
3 Product Overview
3.1 Unit versions
The Defensor PH27/PH27A air purifier/air humidifier is available in two basic versions:
– PH27:
version with integrated water tank
– PH27A:
version with inlet valve for the connection to the drinking water system
Both versions are equipped as standard with a coarse dust filter and a flock-coated evaporator mat
to operate the unit as a humidifier (winter time operation).
1 Air outlet lattice
2 Fan
3 Flock-coated evaporator mat (or activated
carbon evaporator mat)
4 R
otary humidification drum
5 Base tub
6 Coarse dust filter (or Quattro filter)
7 Air inlet lattice

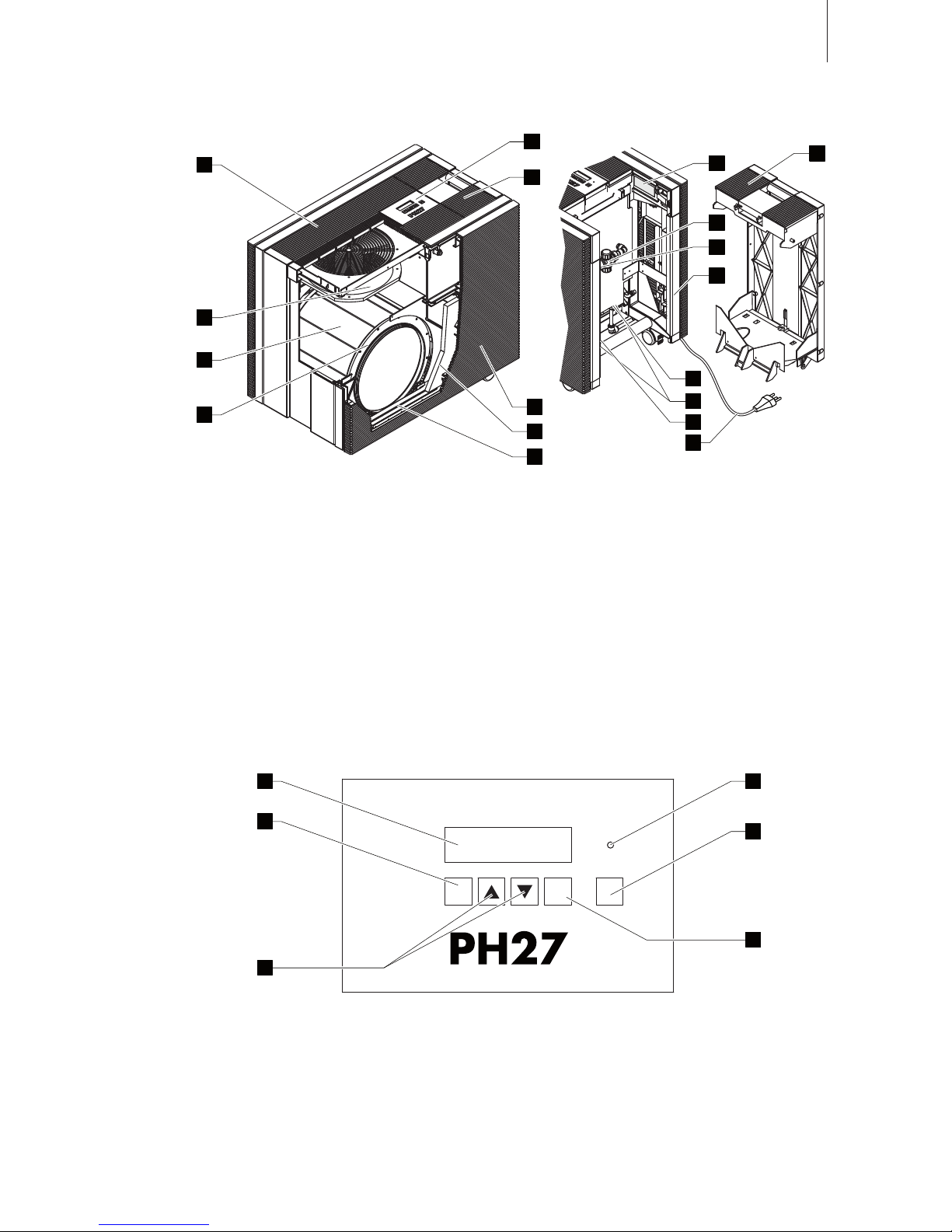

3.2 Unit construction
PH27
8 Carriage with water tank
9 Operating panel with display
10 Type plate
11 3 pole mains cable
12 Level switch
13 Silver ionisation electrodes
14 Safety switch
1
4
2
3
5
6
7
8
9
13
10
8
14
12
11
9
1 Air outlet lattice
2 Fan
3 Flock-coated evaporator mat (or activated
carbon evaporator mat)
4 Rotary humidification drum
5 Base tub
6 Coarse dust filter (or Quattro filter)
7 Air inlet lattice
8 Rear cover
9 Operating panel with display
10 Type plate
11 3 pole mains cable
12 Level switch
13 Silver ionisation electrodes
14 Safety switch
15 Water filter
16 Inlet valve
17 Water supply connector
PH27A
3.3 Operating panel
1 LC display
2 <ESC> key
3 Arrow keys
4 Error indicator
5 <I/0> key (On/Off)
6 <Enter> key
1
4
2
3
5
6
7
8
9
13
10
15
16
17
8
14
12
11
ESC Enter I / 0
1
2
3
4
5
6
10
Functional description
The fan (1) takes in the air from both sides via the coarse dust filter (2) or the Quattro filter, respectiv
ely. After passing the humidification drum, the purified air is led to the outlet lattice (5) and
distributed in the room.
The unit continuously measures the air humidity in the room with the integrated humidity sensor
and
compares it with the set reference humidity value. If the actual value (e.g. 40 %rh) is below the
reference value (e.g. 45 %rh) the humidification drum (3) starts turning. The vaporizer mat is dipped
into the base tub (4) and takes up water. The air passing through the humidification drum absorbs
the humidity.
The coarse dust filter retains dust particles up to 100 µm. If the Defensor PH27/PH27A is equipped
with a Quattro filter it can retain dust particles up to 0.1 µm. In addition the activated charcoal layer
in the Quattro filter removes unpleasant odour.
The water level in the base tub is monitored by the level regulating valve in the water tank (Defensor
PH27) or by the level controlled inlet valve (Defensor PH27A).
3.5 Functional description/Operating modes
3.4 Identification of the unit
The identification of the unit is found on the type plate (for the location of the type plate see unit
overview):
Type designation Serial number Month/Year
Unit voltage
Admissible water supply pressure
(PH27A only)
Power consumption
Walter Meier (Climate International) Ltd. 8808 Pfäffikon
PH27
XXXXXXX
AC 220...240V / 50...60 Hz
max. 148 W
Made in Switzerland
11.07
Inlet pressure = 0.5...6 bar
Field with certification symbols
5
1
4
3
2
11
Two silver ionization electrodes prevent the formation of slime and microorganisms in the base tub
and on the humidification drum. The ionizer electrodes are active as soon as the Defensor PH27/
PH27A is switched on.
Operating modes
The Defensor PH27/PH27A can be operated in the following operating modes:
–
Operation as air humidifier
In the humidifier mode the ventilator and the humidification drum are running only, if the actual
humidity value is below the set reference value.
Note: if the actual humidity value remains below the reference value for a prolonged period of
time, the fan must be switched to the next highest level.
–
Operation as air purifier with humidification
In this operating mode the fan is running continuously. The humidification drum is only switched
on if the actual humidity value is below the set reference value.
–
Operation as air purifier without humidification
In this operating mode the fan is running continuously. The humidification drum remains switched
off.
3.6 Options
Defensor PH27 Defensor PH27A
Radio humidistat
The radio humidistat can be used instead of the integrated
humidistat. The maximum range of the radio humidistat in
an open room is 2
5 m
Note: the radio humidistat as well as the receiver board must
be installed and configured only by a service technician of
your Defensor representative.
• •
Leakage sensor
Assembly kit to equip the Defensor PH27/PH27A with a
leakage sensor. If the leakage sensor detects a leakage,
the inlet valve (PH27A only) is closed and error message
is triggered.
Note: The leakage sensor must be installed and configured
only by a service technician of your Defensor representative.
• •
12
The air purifier/air humidifier Defensor PH27/PH27A is delivered in a cardboard box (W: 800 mm x H:
680 mm D: 520 mm, transport weight: 38 kg), ready for use. The standard delivery includes:
– Air purifier/Air humidifier Defensor PH27 or PH27A, equipped with the “Winter” filter set
(coarse dust filter and flock-coated evaporator mat) and the options as ordered.
– Filling hose approx. 1,2 m (PH27 only)
– Water supply pipe with R 3/4" female connector approx. 0,3 m (PH27A only)
– Operating instructions (this document)
The ordered accessories with operating instructions according chapter 3.7 are packed separately.
3.7 Accessories
Defensor PH27 Defensor PH27A
Filter set “Winter” (optimized for air humidification)
Filter set for the operation of the unit during winter season.
The set consist of:
– Flock-coated evaporator mat
– Coarse dust filter
• •
Filter set “Summer” (optimized for air purification)
Filter set for the operation of the unit during summer season.
The set consist of:
– Activated carbon evaporator mat
– Quattro filter
• •
Filter valve “Z261”
Filter valve to use as a shut-off valve in the water supply
line (PH27A only)
•
3.8 Standard delivery
13
4.1 Unpacking the unit and checking the scope of delivery
Unpacking the unit
Open the packing and remove the unit and the accessories. Check the delivery for completeness
(st
andard delivery, see chapter 3.8). Please contact your Defensor supplier in case something is
lacking, they will be glad to send you the missing part without delay.
Please check the equipment for damage. Please report any damage to your Defensor supplier and
to the carriers, as required.
Packaging
T
he original packaging of the Defensor PH27/PH27A was designed for optimum safety during transportation. Please preserve the original packing material in case you once have to return the unit for
some reason.
In case you wish to dispose of the packaging, observe the local regulations on waste disposal. Never
dispose of the packaging to the environment.
4 Commissioning
4.2 Transporting/storing the unit
Transport
The Defensor PH27/PH27A is equipped with built-in rollers for effortless displacement. If you have
to lift the unit for displacement or relocation ask another person for assistance (weight of the empty
unit: 33
kg).
Important! To prevent the water from running out make sure the water tank and the base tub are
empty before moving the unit.
Storing
Store the unit in a protected area meeting the following requirements:
–
room temperature: 1 ... 40 °C
– room humidity: 10 ... 75 %rh
14
min. 100 mm
min. 150 mm
min. 150 mm
min. 400 mm
4.3 Choose location
Please observe the following notes for the correct positioning of the Defensor PH27/PH27A:
– Place the unit on a solid horizontal surface, if possible free-standing and freely accessible (observe
minimal distances).
–
A mains socket should be located close to the unit.
– To ensure the entire volume of air is fully recirculated, do not place the unit in recessed compart-
ments, closed corridors, behind curtains, etc.
–
Do not place any objects on the unit (performance reduction).
– Make sure the air flow is not directed towards obstacles (pillars, furniture, etc.) or cold outer walls
(risk of condensation).
–
Continuous direct sunlight is harmful for the unit and can affect the correct function of the inte-
grated humidity sensor. Therefore do not expose the unit to continuous direct sunlight.
–
The unit must not be installed in hazardous locations and in rooms where water splashes may
occur.
15
4.
2.
1.
3.
After locating the unit:
• Lock the wheels of the carriage
unlock
lock
4.4 Connecting the water supply (PH27A only)
The water supply has to be connected to the unit by a qualified specialist according to the illustration
below. The installation data has to be maintained.
Important! The local regulations regarding the connection of units to drinking water systems must
be observed.
Drinking water without additives:
– Admissible water pressure: 0.5...6.0 bar
– Admissible water temperature: 5...40 °C
Plug-in coupling ø 10 mm
Filter v
alve (accessory “Z261”)
• Remove rear air inlet lattice and take it out of the unit as shown below (at the point of the delivery
the mains cable is placed behind the air inlet lattice). Then, remount air inlet lattice.
Water pipe ø 10/6 mm
with R 3/4" connector
ø 10/6 mm
16

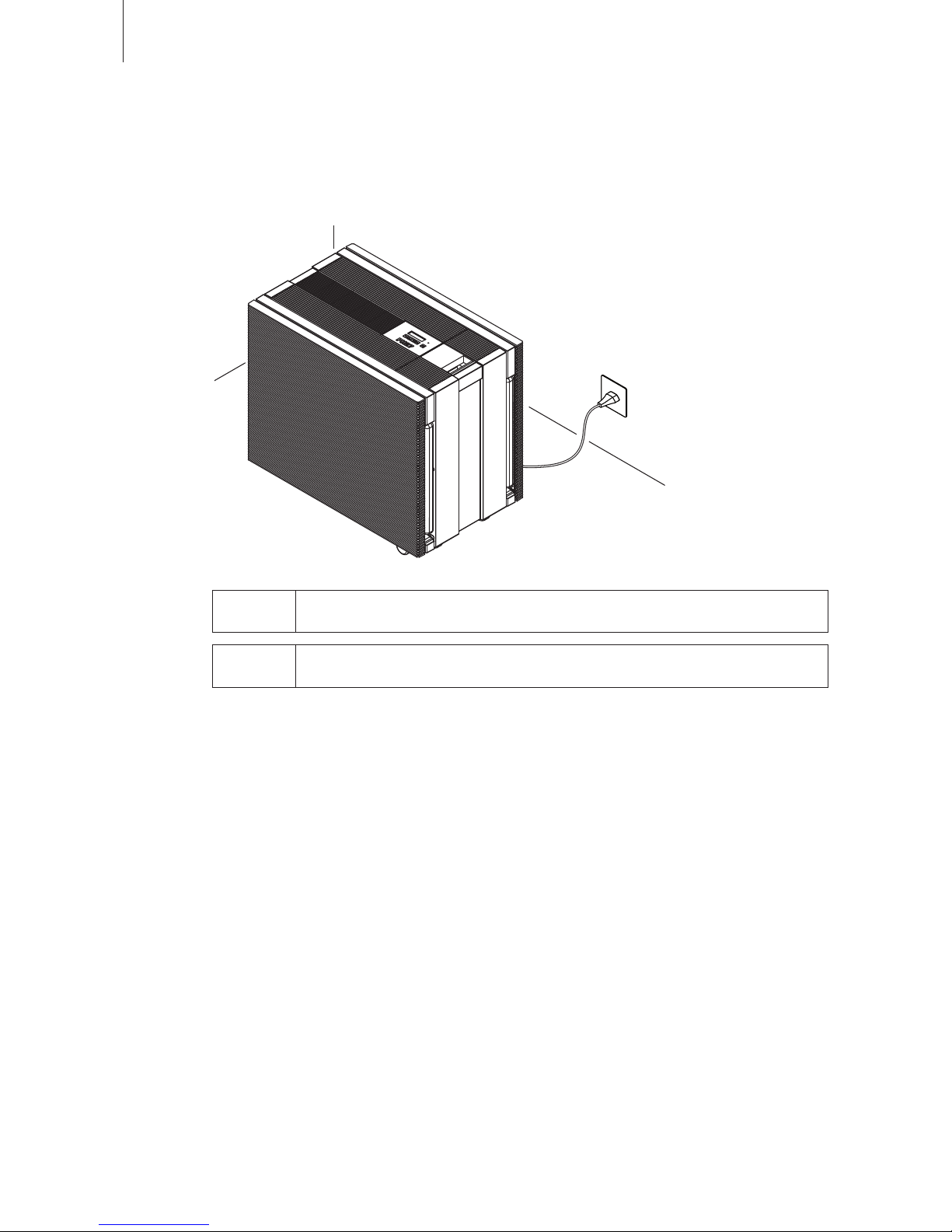

4.5 Putting the unit into operation
Proceed as follows to put the Defensor PH27/PH27A into operation:
• PH27: fill the water tank (see chapter 5.1)
PH27A: open the shut-off valve in the water supply line.
• Connect unit to the mains.
CAUTION!
Make sure the required supply voltage (see type plate) matches the local mains
voltage, otherwise do not connect the Defensor PH27/PH27A to the mains!
CAUTION!
The Defensor PH27/PH27A must be connected only to grounded mains. Never
connect the unit to an outlet without protective earthing.
The Defensor PH27/PH27A is now ready for operation. The next chapter provides detailed information on the operation of the unit.
17
2.
1.
3.
3
1 2
4
4.
2.
3.
1.
4.
2.
1.
3.
5 Operation

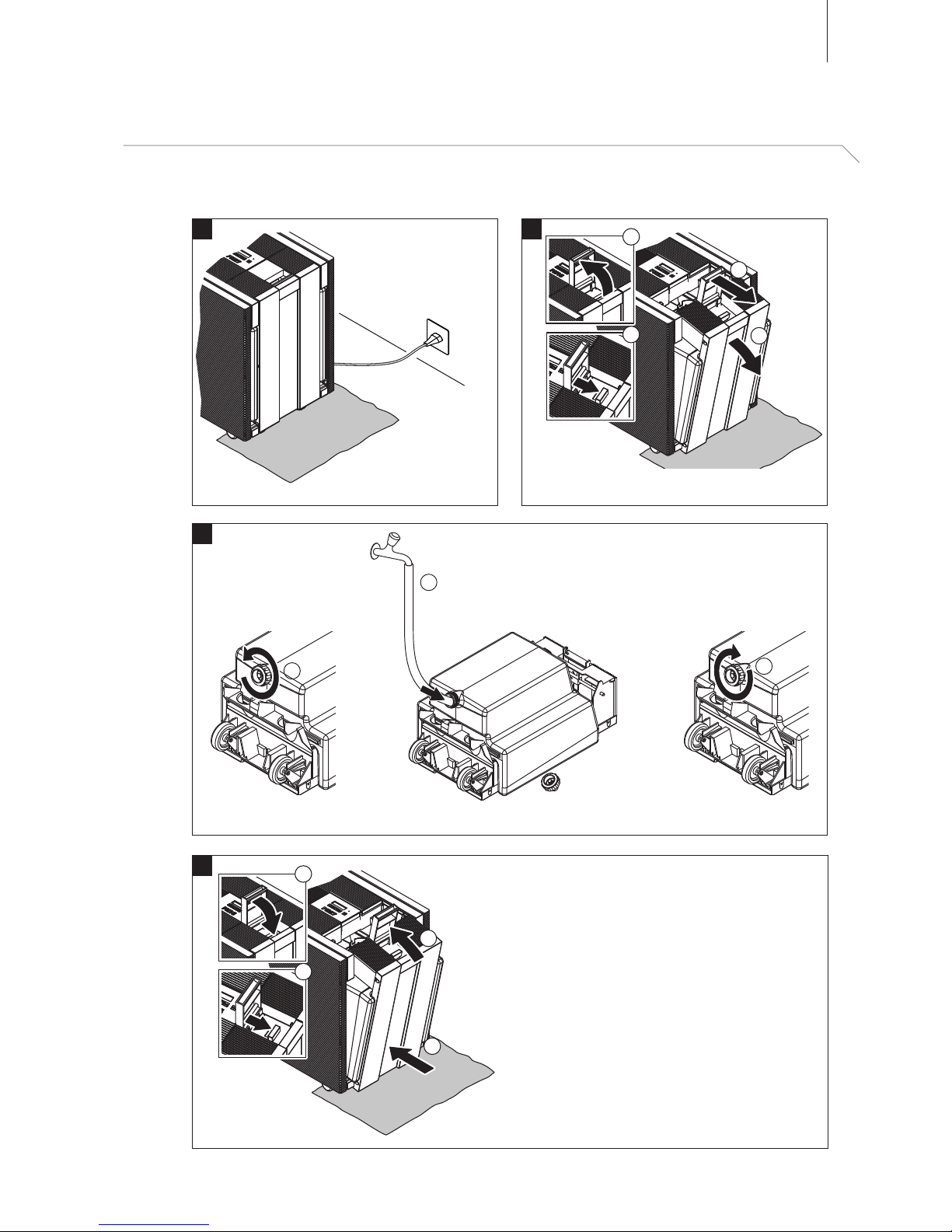

5.1 Filling the water tank (PH27 only)
Place an absorbent cloth below the unit.
Cold drinking water without additives
To maintain the monitoring
of the unit during filling,
neither switch off the unit
nor disconnect it from the
mains!
Important! Screw on tank
cap until it comes to a stop!
After reinstalling the water tank wait by the
unit until the filling sound stops.
If the lock is not released (step 3), the carriage remains
fixed to the unit in open position.
18
5.2 Switching the unit on and off
Switching the unit on
• Press the <O/I> key.
The unit loads the settings that were active when the device was shut down last. Upon completion
the operating display appears. The look of the operating display depends whether the Defensor
PH27/PH27A is operated in “Normal operating mode” or in “Program mode”.
PH27 Mo 12:32
Act 38%rH H2
Unit designation
PH27
Day of the week (appears only in program mode)
Format: “Mo”, “Tu”, “We”, “Th”, “Fr”, “Sa”, “Su”
Hour (appears only in program mode)
Format: “hh:mm”
Fan step
1, 2, 3,
4 or A (automatic operation)
Note: If humidification is active and the fan step is set to “A”, the fan
will be controlled automatically, based on the difference between
the actual and reference humidity. If humidification is inactive the
“A” setting corresponds to fan step “1”.
Mode of operation (Humidifying mode)
H: Air humidification
P: Air purification with humidification
_: Air purification without humidification
Actual humidity value in %rh
Note: The actual humidity value is always displayed (even in air
purification mode).
The fan starts in all operating modes with a delay of approx. 1 minute. Until the fan starts the
operating mode and the fan step are blinking.
If, after switching on the unit a warning or error message is displayed, please observe the
notes in chapter 7.
Switching the unit off
•
Press the <O/I> key.
The currently active settings will be stored upon shutdown.
19
Timer
On
Time
Mo 12:00
Monday 1
18:00 45%rH H3
Monday 2
--:-- 45%rH H0
Sunday 1
--:-- 45%rH H0
PH27
Act 38%rH H2
Set value
42%rH
Fan power
1
Humidifying mode
Humidify
Buzzer
On
Timer
Adjust
Language
english
5.3 Menu overview
The following diagram shows the menu overview of the Defensor PH27/PH27A. After switching on,
the unit is in the user level.
User level
Timer level
In the user level you can define the settings for the normal operating mode (see
c
hapter 5.4).
In the timer level you can define and activate
the program mode (see chapter 5.5).
Sunday 2
22:00 45%rH H0
20

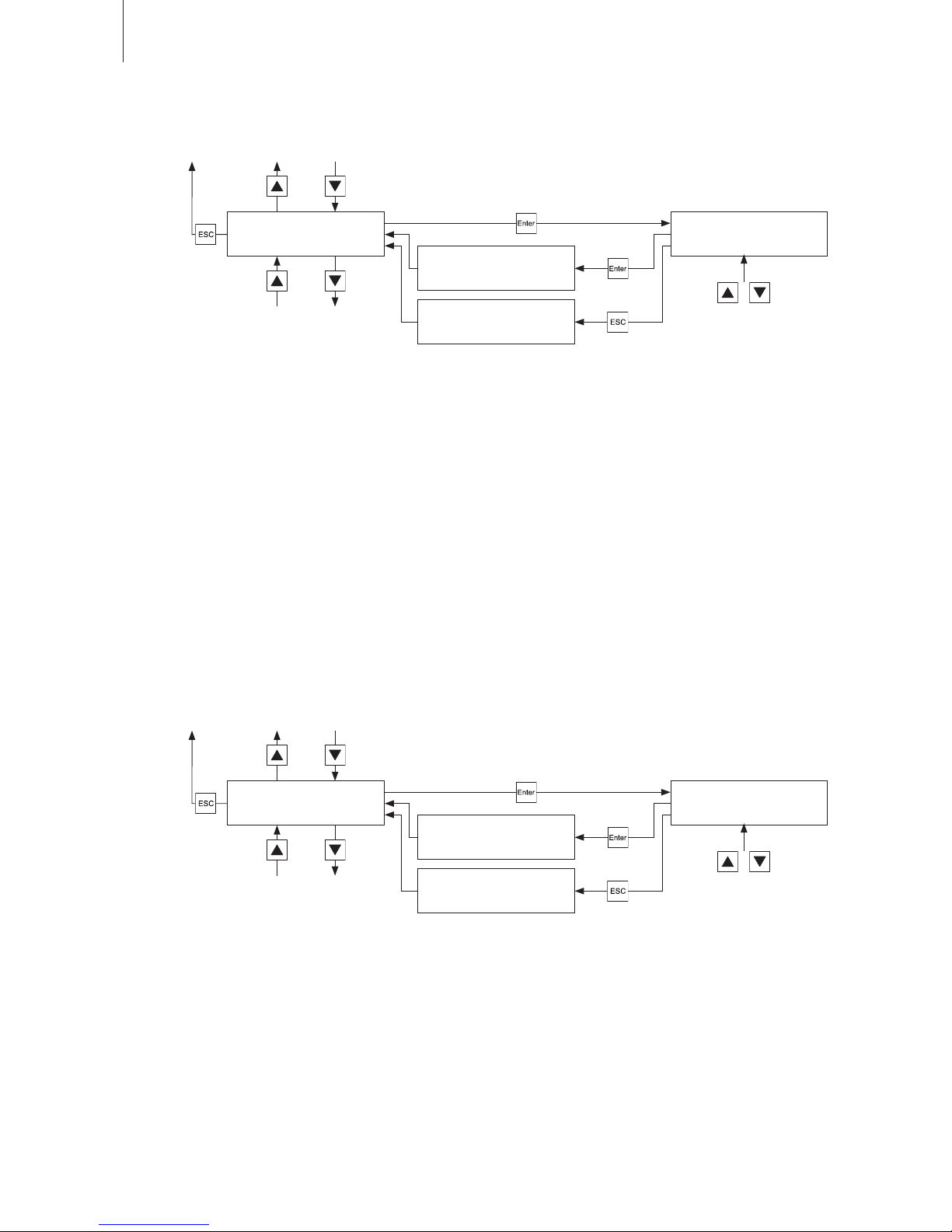

5.4 Unit settings (normal operating mode)
5.4.1 Setting the desired humidity value
modify
confirm
cancel
Note: The reference humidity value can be modified only if program mode is deactivated (see chapter 5.5).
Setting range: 30...90 %rH
Factory setting: 45 %rH
Notes on setting: The optimum reference value depends on various factors. For apartments we
recommend a value of 40 – 45 %rH.
Note: After initial commissioning or replacement of the vaporizer mat the humidification performance
of the Defensor PH27/PH27A will be slightly reduced because the evaporator mat takes a
few days to become fully saturated with water. Maximum performance is available after one week,
approximately.
Furthermore, the humidification performance depends on the ambient temperature.
30...90 %rH
Standard operating display
(see chapter 5.4.2)
Set value
45%rH
Set value
New Value
Set value
Old Value
Set value
45%rH
21
Note: The fan step can be modified only if program mode is deactivated (see chapter 5.5).
Available settings: 1, 2, 3, 4 or A (automatic operation)
Factory setting: 1
Notes on setting: The fan step to be selected depends on the operating mode and the size of
the room. The table below is meant to assist you in finding the optimum fan
step.
Fan step max. room volume in m3 for
purification
max. room volume in m3
for humidification
Air changes per hour
1 2 3 4
1 290 145 73 36 290
2 390 195 98 49 390
3 600 300 150 75 600
4 850 425 213 106 850
A 290 77 52 39 290
In automatic operation the fan step is controlled automatically based on the
difference between the actual and the reference humidity value. Automatic
operation is active only if humidification is on. If humidification is inactive the
“A” setting corresponds to fan step “1”.
The following recirculation cycles per hour are recommended for air puri-
fication:
–
Normal load: 1 – 2
– heavily polluted air (e.g. pollen, smoke, etc.): 3 – 4
5.4.2 Setting the fan step
Fan power
1
Fan power
New Value
Fan power
Old Value
Fan power
1
(see chapter 5.4.1)
(see chapter 5.4.3)
modify
confirm
cancel
1,
2, 3, 4 or A
22
Buzzer
Off
Buzzer
New Value
Buzzer
Old Value
Buzzer
Off

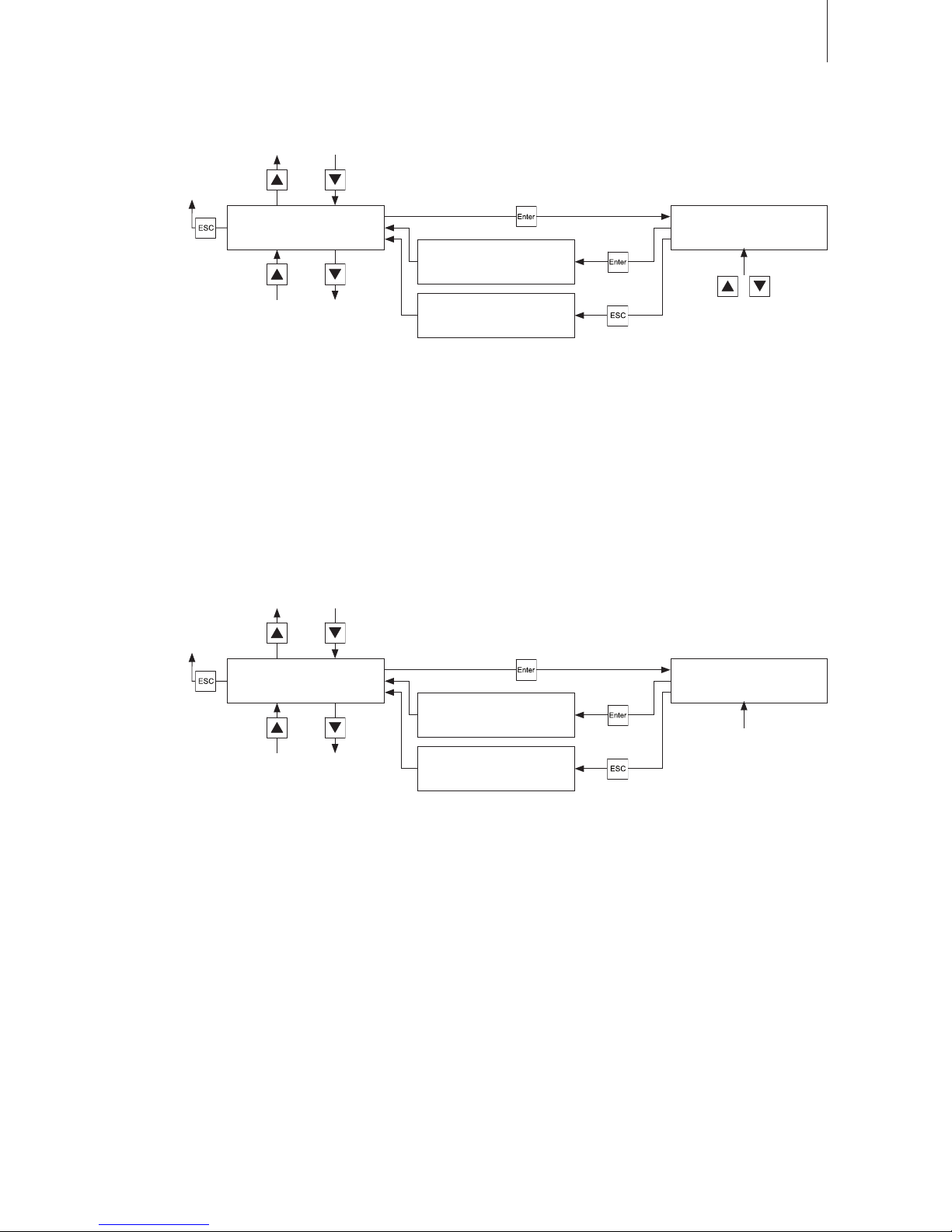

5.4.4 Switching the buzzer on and off
(see chapter 5.4.3)
(see chapter 5.4.5)
modify
confirm
cancel
On
or Off
Available settings: On (buzzer on) or Off (buzzer off)
Factory setting: Off
Notes on setting: If the buzzer is on an acoustic signal is triggered in case of a malfunction or
an irregularity during operation.
Humidifying mode
Humidify
Humidifying mode
New Value
Humidifying mode
Old Value
Humidifying mode
Humidify
5.4.3 Selecting the operating mode (Humidifying mode)
(see chapter 5.4.2)
(see chapter 5.4.4)
modify
confirm
cancel
Humidify
, Purify, Off
Note: The humidifying mode can be modified only if program mode is deactivated (see chapter 5.5).
Available settings: Humidify (air humidification), Purify (air purification with humidification) and
Off (air purification without humidification)
F
actory setting: Humidify
Notes on setting: The selection of the humidifying mode depends on whether the Defensor
PH27/PH27A shall be operated as humidifier, as purifier with humidification
or as purifier without humidification. If the unit shall be operated as purifier
without humidification the base tub and the water tank should be emptied.
23
Language
english
Language
New Value
Language
Old Value
Language
english
Timer
On
Timer
Adjust
5.4.5 Calling timer level
(see chapter 5.4.4)
(see chapter 5.4.6)
Calling timer level
Leaving timer level
For detailed information regarding the settings in the timer level see chapter 5.5 “program operation”.
5.4.6 Selecting the dialogue language
(see chapter 5.4.5)
Standard operating display
modify
confirm
cancel
German,
English, French,
Dutch, Italian, Polish
Available settings: German, English, French, Dutch, Italian, Polish
Factory setting: Country specific
Notes on setting: After confirmation, the unit switches automatically to the selected dialogue
language.
24
5.5 Program operation
The operation of the Defensor PH27/PH27A can be controlled via customisable operating programs.
These programs allow to operate the unit at a preset time with the requested operating mode and
fan step. This greatly facilitates the adaption of the Defensor PH27/PH27A to your particular requirements (e.g. adjusted to the business hours and/or working time).
Every program consists of a starting point (day of the week and hour), a reference humidity value,
the operating mode and the desired fan step. Up to 2 starting points with individual programs
may be set up per day.
In program mode the current program remains active until the following program starts (on the same
or on any other day).
Example diagram:
The program settings and the activation of the program mode takes place in the “Timer level”.
5.5.1 Calling the timer level
Within the user level call the timer level (see chapter 5.4.5). In the timer level:
– you can activate and deactivate the program mode (see chapter 5.5.2)
– you can set the day of the week and the hour (see chapter 5.5.3)
– you can define the individual operating programs with their starting points (see chapter 5.5.4)
Note: If no key is pressed in the timer level for a certain time, the unit automatically returns to
standard operation.
Monday 1 ––:–– 45%rH H0
Monday 2 ––:–– 45%rH H0
Tuesday 1 06:00 45%rH H3
Tuesday 2 ––:–– 45%rH H0
Wednesday 1 ––:–– 45%rH H0
Wednesday 2 18:00 40%rH P1
Thursday 1 ––:–– 45%rH H0
Thursday 2 ––:–– 45%rH H0
Friday 1 06:00 45%rH HA
Friday 2 ––:–– 45%rH H0
Saturday 1 ––:–– 45%rH H0
Saturday 2 12:00 45%rH H0
Sunday 1 ––:–– 45%rH H0
Sunday 2 ––:–– 45%rH H0
Saturday 2 Tuesday 1 Wednesday 2 Friday 1 Saturday 2
Off
R
ef. hum. value 45%rH
Humidification
Fan step 3
R
ef. hum. value 40%rH
Cleaning
Fan step 1
Ref. value 45%rH
Humidification
Fan step A
Off
Monday Tuesday Wednesday Thursday Friday Saturday Sunday
00:00
12:00
00:00
12:00
00:00
12:00
00:00
12:00
00:00
12:00
00:00
12:00
00:00
12:00
25
5.5.2 Activating/Deactivating the program mode
Available settings: On (program mode activated) or Off (program mode deactivated)
Factory setting: Off
Notes on setting: If program mode is activated the Defensor PH27/PH27A operates time-con-
trolled
with the operating programs (see chapter 4.3.4). If no programs or
starting points are defined the unit operates with the settings of the normal
operating mode.
Timer
On
Timer
New Value
Timer
Old Value
Timer
On
(see chapter 5.5.4)
modify
confirm
(see
chapter 5.5.3)
cancel
On/Off
5.4.3 Setting the current time
(see chapter 5.5.2)
(see chapter 5.5.4)
modify
confirm
cancel
Available settings: Day of the week (Mo, Tu, We, Th, Fr, Sa, Su)
Hour (Format: hh)
Minute (Format: mm)
Factory setting: ---
Notes on setting: The current day of the week and the current time serve as basis for the program
mode. If these settings are not set correctly the program timing is wrong.
Af
ter calling the modification mode set the current day of the week, the current
hour and the current minute. Confirm each setting with the <Enter> key.
Note:
If the Defensor PH27/PH27A has lost the time settings due to power
failure, the time indication (--:--) in the operating display flashes.
Time
Mo 12:00
Time
New Value
Time
Old Value
Time
Mo 12:00
see notes on setting
26
Monday 1
--.-- 45%rH H0
Monday 1
New Value
Monday 1
Old Value
Monday 1
--.-- 45%rH H0
Monday 2
--.-- 45%rH H0
Sunday 2
--.-- 45%rH H0
5.5.4 Setting the starting points and the operating programs
First select the desired day of the week or the starting point, respectively (Monday 1, Monday 2 .....
Sunday 1, Sunday 2), then define the operation settings which should become active at the starting
point.
Available settings: Hours (Format: hh)
Minutes (Format: mm)
Reference humidity value in %rH
Operating mode (“H”: for air humidification, “P”: for air purification with
humidification and “_”: for air purification without humidification)
F
an step (0, 1, 2, 3, 4 or A (automatic operation))
Factory setting: “– –:– – 45%rH H0”
Notes on setting: After calling the modification mode set the hour, the minute, the reference
humidity value, the operating mode and the fan step for the selected starting
point. Confirm each setting with the <Enter> key.
T
o deactivate a starting point (display: – – : – –) press both arrow keys simul-
taneously when the hour field flashes. Confirm with the <Enter> key. Repeat
this procedure with the minute field.
T
he switch off the unit at a certain time select operating mode “H” and fan
step “0”.
(see chapter 5.5.3)
(see chapter 5.5.2)
modify
confirm
cancel
see
notes on setting
27
5.6 Locking/unlocking the keyboard
The keyboard of the Defensor PH27/PH27A can be locked to prevent unauthorized access to the
stored settings.
PH27
Key lock
•
To lock the keyboard, press <ESC>
key until (approx. 4 seconds) the
adjacent message appears in the display. The keyboard is locked now.
Each time you press any key the adjacent message appears again.
• To unlock the keyboard, press <ESC>
key until (approx. 4 seconds)
the message “Key lock” disappears and the operating display is
shown.
PH27
Act 45%rH H3
28
6 Maintenance
6.1 Maintenance intervals
The Defensor PH27/PH27A can only provide full humidification and purification performance if the
unit is regularly cleaned and the wearing parts are replaced. The maintenance intervals mostly depend
on the load of the ambient air, the water quality and the operating time.
Please consider the intervals for cleaning and replacing the individual components in the table below
as approximate values. If the room air is heavily contaminated the filters must be cleaned/replaced
more often. If the water is very hard the parts in contact with water must be cleaned more often.
every 2 weeks
As soon as the message
Warning 6
Filter change
appears or at least every 6 month
Note: If the silver ionisation electrodes are worn, slime will accumulate in the base tub and on the
rot
ary humidification drum. In this case replace the silver ionisation electrodes.
29
4.
2.
1.
3.
1 2
3 4
5 6
6.2 Maintenance work
6.2.1 Disassembling the unit
Disconnect unit
from the mains
Place an absorbent cloth below the unit.
30
Unit component What to clean and how to clean
Base tub
Rotary humidification drum
•
Wash parts with a lukewarm soap solution and rinse
well with tap water.
• Occasionally remove scale coating with a household
decalcify agent (observ
e safety notes in chapter 6.6).
Finally rinse the parts well with tap water.
Evaporator mat • Rinse
the evaporator mat thoroughly with lukewarm
water without any additives.
Note: As soon as the filter replacing message appears
in the display (see error messages in chapter 7) replace
the evaporator mat together with the coarse dust filters
(Quattro filters).
Air intake and air outlet lattices •
Clean the air intake and air outlet lattices on both sides
with a vacuum cleaner.
Coarse dust filters (Quattro filters) •
Clean the coarse dust filters (Quattro filters) on the inner
side with a vacuum cleaner (lowest power step).
Note: As soon as the filter replacing message appears
in the display (see error messages in chapter 7) replace
coarse dust filters (Quattro filters) together with the
evaporator mat evaporator mat.
CAUTION!
Make sure the filters do not get wet. Wet
filters must be dry before reinstalling.
6.2.2 Cleaning work
31
Unit component What to clean and how to clean
Water filter
(PH27A only)
•
Unmount and check water filter. If necessary clean water
filter with a brush, then rinse filter well with tap water.
Remount water filter.
Level switch
Safety switch
Silver ionisation electrodes
•
Carefully wipe the level switch , the safety switch and
the silver ionisation electrodes with a damp cloth.
32
6.3 Notes on cleaning agent
Only use cleaning agents stated in the table above. The use of disinfectants is only permitted
if they do not leave any toxic residues. In any case the parts must be thoroughly rinsed with water
after cleaning.
DANGER!
Household decalcify agent attacks the mucous membranes and the skin. Protect
the hands, eyes and respiratory tracts therefore from contact with the agent and its
vapour (wear gloves, goggles and work in a well ventilated room or outside).
CAUTION!
Do not use any solvents, aromatised or halogenised hydrocarbons or other
aggressive substances, they may damage the unit components.
The information and instructions regarding cleaning agents are to be unconditionally observed and
implemented. In particular: Information relating to the protection of personnel, environmental conservation and restrictions regarding usage.
33
6.4 Reassembly of the unit
After the maintenance reassemble the unit as follows:
1 2
3 4
5
4.
2.
3.
1.
6
34
6.5 Resetting the filter changing message
After the replacement of the filters and the evaporator mat the filter changing message can be reset
as follows:
1. Switch on the unit (the filter changing message appears).
2. Press the <ESC> and <Enter> keys simultaneously until the opposite
message appears.
3.
Press the <Enter> key to reset the filter changing message and the
interval counter. The standard operating display appears.
Note: By pressing the <ESC> key the reset procedure can be cancelled without action. The filter changing message is then displayed
again.
Warning 6
Filter change
Filter change
ESC OK
35
7 Fault elimination
Display Description
Radio hygro. K1
Install.? ESC/E
Cause: If a new battery is inserted into the radio humidistat (option)
and the radio channel of the humidistat does not correspond to
the active channel of the Defensor PH27/PH27A a beep sounds
briefly (if the buzzer is activated) and a new radio channel (e.g.
K1) will be proposed.
Action: Press the <Enter> key if you want to confirm the suggested
channel. The Defensor PH27/PH27A switches to the new channel and returns to the standard operating display.
P
ress the <ESC> key if you want to reject the suggested
channel. The Defensor PH27/PH27A returns to the standard
operating display and uses the old signal source.
Radio hygro. K1
Test
Cause: If a new battery is inserted into the radio humidistat (option)
and the radio channel of the humidistat does correspond to the
active channel of the Defensor PH27/PH27A a beep sounds
briefly (if the buzzer is activated) and the unit confirms the correct channel.
Action: To reset the message and to return to the standard operating
display press the <Enter> or the <ESC> key.
7.1 Event messages
7.2 Warning messages
Display red LED Buzzer Error relay Resetting
Warning 6
Filter change
Warning message is alternating with the standard
operating display.
lights ––– activated see c
hapter 6.5.
Cause: Maximum lifetime of the filter set expired.
Action/Remedy: Replace filter set (see chapter 6 “Maintenance”), then reset warning message.
Warning 7
No water
Warning message is displayed until the water level in
the base tub is ok. again.
lights ––– activated Automatic resetting as
soon as the water level
in the base tub is at normal
level again.
Note:
This message is displayed only on the Defensor PH27
Cause: The water level in the base tub is too low, level switch has triggered.
Action/Remedy: Check/refill water tank.
Warning 8
Battery radio
Warning message is alternating with the standard
operating display.
lights beeps briefly
every 30 minutes
activated Automatic resetting af-
ter replacement of the
battery.
Cause:
Battery in radio humidistat (option) is empty.
Action/Remedy: Replace battery of the radio humidistat (see separate instructions of radio humidistat).
36
7.3 Error messages
Display red LED Buzzer Error relay Resetting
Error 1
Cover open
Error message is displayed
until the rear cover is inserted correctly and locked.
flashes ––– activated Automatic resetting as
soon as the rear cover
is inserted correctly and
locked.
Note:
This message is displayed only on the Defensor PH27A
Cause: Rear cover not inserted and locked.
Action/Remedy: Correctly insert the rear cover and flap down the handle.
Error 2
Max Niveau
Error message is displayed
until reset.
flashes buzzes loudly
(can not be
switched off)
activated Switch unit off, then on
again.
Cause:
Maximum water level in the base tub exceeded. Safety switch has triggered.
PH27: water tank not tight (tank cap not tight and/or level regulating valve in the tank cap
blocked or defective).
PH27A: inlet v
alve defective.
Action/Remedy: PH27: Remove the tank immediately. Check/clean filler neck, tank cap and level regulating
valve in tank cap (replace tank cap if necessary), then close tank cap correctly.
PH27A: c
heck/replace inlet valve.
Error 3
Filltime
Error message is displayed
until reset.
flashes buzzes activated Switch unit off, then on
again.
Note:
This message is displayed only on the Defensor PH27A
Cause: Shut-off valve in the water supply line closed. Internal water filter (near to the inlet valve)
blocked. Inlet valve defective.
A
ction/Remedy: open shut-off valve in the water supply line. Clean water filter (see chapter 6.3). Check/replace
inlet valve.
Error 4
No signal
Error message is alternating
with the standard operating
display.
flashes beeps briefly
e
very 6 min-
utes
activated Automatic resetting
as soon as the unit receives a signal from the
radio humidistat.
Cause: The Defensor PH27/PH27A does not receive any signal from the radio humidistat (option).
Battery of the radio humidistat soon empty or radio humidistat defective. Radio humidistat
inst
alled outside the signal range of 25 m.
Note: As long as the unit does not receive any signal from the radio humidistat it switches
to the internal humidistat.
Action/Remedy: Replace the battery of the radio humidistat. Check/replace radio humidistat. Install radio
humidistat inside the signal range.
37
7.4 What, if...?
The following table lists symptoms of malfunction that may occur in daily operation of the Defensor
PH27/PH27A, together with possible causes and suggested remedies.
Symptom Cause Remedy
Unit does not work, LC display
remains dark
Unit is not connected to the
mains.
Connect unit to the mains.
Unit fuse blown. Have a service technician of
your Defensor supplier check
the unit.
Unit does not humidify. Ambient air humidity is higher
than selected reference value.
No remedy required, change
reference humidity value if necessary.
Level switch is defective. Therefore no error message is displayed even though the water level in the base tub is too
low.
Have a service technician of
your Defensor supplier replace
the level switch
Room air does not reach
the set reference humidity
value.
Evaporator mat not installed. Install evaporator mat.
Room temperature too high. Reduce room temperature to
20-22°C.
Unit very dirty. Perform maintenance (see
c
hapter 6)
Doors or windows are open. Close doors and windows.
Prolonged ventilation of the
room. Therefore continuous
replacement of the humidified
room air by dry outdoor air.
Ventilate room only a short
time!
Room to large. Contact your Defensor sup-
plier.
Actual humidity much higher
than the reference value.
The actual humidity is higher
than the set reference air humidity.
Let unit running as air purifier.
Display red LED Buzzer Error relay Resetting
Error 5
Leakage sensor
Error message is displayed
until reset.
flashes buzzes loudly
(can not be
switched off)
activated Switch unit off, then on
again.
Cause:
PH27: Water tank not tight (tank cap not tight and/or level regulating valve in the tank cap
blocked or defective). Unit is not placed on a horizontal surface. Safety switch defective.
PH27A: Inlet v
alve defective. Level switch defective. Safety switch defective.
Action/Remedy: PH27: Check/clean filler neck, tank cap and level regulating valve in tank cap (replace tank cap
if necessary) , then close tank cap correctly. Place unit on a horizontal surface. Check/replace
safety switch.
PH27A: Check/replace inlet valve. Check/replace level switch. Check/replace safety switch.
38
7.5 Notes on fault elimination
DANGER!
For the elimination of faults set the Defensor PH27/PH27A out of operation, sepa-
rate the unit from the mains and secure it against inadvertent power-up.
The elimination of faults must be carried out only by qualified and well trained professionals.
Malfunctions relating to the electrical installation must only be repaired by authorized personnel or
by your Defensor representative’s service technician.
Repair work and the replacement of faulty components must be carried out only by your Defensor
representative’s service technician!
Fan does not run Humidification mode “Humidi-
fication” selected. Ambient humidity is higher than selected
reference value.
None. Unit is working properly.
Unit is in program mode. The
currently active program sets
the fan step to “0”.
None. Unit is working properly.
Fan defective. Contact your Defensor sup-
plier.
Base tub and rotary humidification drum have heavy slime
accumulation.
Silver coating on the water ionisation electrodes is worn.
Have a service technician of
your Defensor supplier replace
the water ionisation electrodes.
39
8 Taking out of service/Disposal
If the Defensor PH27/PH27A must be replaced or if the unit is not needed any more, proceed as
follows:
1. Switch off the unit, separate it from the mains and secure it against inadvertent power-up. Close
shut-off valve in the water supply line (PH27A only).
2.
Have the unit (and all other system components, if necessary) unmounted by a qualified service
technician.
8.1 Taking out of service
8.2 Disposal/Recycling
At the end of the life-span the unit and its components must be returned to the manufacturer or
brought to an authorised collection point for correct disposal and/or recycling according to the local
regulations.
In case of doubt please contact your local administration or your Defensor supplier.
40
9 Unit specifications
Dimensions (B x H x T) 730 x 610 x 450 mm
Weight (empty) 33 kg
Operating weight 6
3 kg
Water tank capacity 30 l
Mains voltage 220…2
40 VAC/50…60 Hz or 90…110 VAC/50…60 Hz
Power consumption max. 148
W
Capacity levels
1)
1 2 3 4
Air circulation rate 290 m
3
/h 390 m3/h 600 m3/h 850 m3/h
Humidification capacity
(at 2
5 °C and 20 %rh)
1,1 l/h 1,4 l/h 2,1 l/h 2,7 l/h
Humidification capacity
(at 23 °C and
45 %rh)
0,7 l/h 0,9 l/h 1,3 l/h 1,8 l/h
For rooms up to a max. of 3
80 m
3
480 m
3
710 m
3
910 m
3
Sound pressure level
(according DIN 45635, part 1)
37 dBA 44 dBA 55 dBA 65 dBA
Admissible ambient temperature 5
…40 °C
Admissible ambient humidity 0…
85 %rh non condensing
Unit version PH27A
– Water supply connector plug-in coupling ø10 mm
– Admissible water pressure 0.
5…6.0 bar
– Admissible water temperature 5
…40 °C
Certificates VDE, CE, GS, GOST
1)
The perfomance data are based on a unit with basic equipment for humidifier operation
41
10 Appendix
10.1 Wiring diagram
B1/B2 Ionisation electrodes
B3 Level switch
F1 Fuse control board (1.25 A, slow acting)
M1 4-step fan
M2 Drum motor
P1 Potentiometer display contrast
S1 Safety switch
S2 Leakage sensor (option)
S3 Micro switch rear cover (PH27A only)
X14
X15
X17
+5V
4
3
2
1
U1
P1
T1
B3
B1 B2
X5
F1
M1
M2
T2
X9
X9
7 1
X10
2 1
1
+24V
X12
2 1
X6 X5
1 2 1 2 3
+24V
X13
5 4 3 2 1
+24V
+24V
X1
L1
L
N
PE
X3
1
2
3
5
4
X16
1110
St. 1 (ws)
St. 2 (rt)
St. 3 (gu)
C2 (bn)
C1 (ge)
St. 4 (sw)
N (bl)
8
PE
PE
PE (gn/ge)
X4
1
2
3
5
6
4
7
8
9
10
ESC Enter I / 0
1.25 AT
S1
P (bl)
N (sw)
PE (gn/ge)
L1
L
N
PE
L
N 230 VAC
PE
L1
L
N
PE
L
N 100 VAC
PE
M
M
110V
110V
230V
230V/410mA
230V/240mA
N
N
N
S2
Y1
Y2
Keypad&LED
Steuerprint PH27
300000642.000
Index XX
Art.Nr. XXXXXXX
U3
U2
Display
X21
S3
U1 Internal humidity sensor
U2 Radio receiver (option)
U3 External radio humidistat (option)
T1 Transformer control board
T2 Transformer 100 V version
X5 Error contact, max. 250 VAC
X9 Programming interface
Y1 Inlet valve (PH27A only)
Y2 Inlet safety valve (PH27A only)
100 V version only
42
10.2 Spare parts list PH27
46
43
6
29
5
28
27
42
18 17
21
22
2
4
25
3
23
24
39
31
30
17
12
13
41
38
40
1
16
15
14
18
44
45
20
19
32 33
43
Pos. Art.-No. Spare parts designation
1 2
525306 Side board
2 2
525318 Intake grill
3 2
525276 Double roll with brake (2 pcs.)
4 2
525275 Double roll (2 pcs.)
5 2
532778 Water tank
6 1
104450 Level regulating valve
12 2
532968 Base tub
13 1
101326 Set of bearings/rollers (4 pcs.)
14 1110529 Humidification drum
15 1
100465 Flock-coated evaporator mat (winter set)
2532748 Activated carbon evporator mat (summer set)
16 2
532771 Toothed belt
17 2
527380 Quattro filter (2 pcs.) (summer set)
253274
9 Coarse dust filter (2 pcs.) (winter set)
18 2
532934 Filter grid
19 1
115356 Ionization electrode (2 pcs.)
20 2
525859 Support ionization electrode cpl. (2 pcs.)
21 2
532888 Control PCB
22 1
115515 Display LCD
23 2
532874 Control panel Defensor PH27
24 2532961 Fan cpl.
2
5 2532967 Synchronous motor cpl.
27 2
524759 Radio humidistat
28 1113552 Gasket level regulating valve
29 2
525258 Roll water carriage (2 pcs.)
30 2
533038 Air outlet grill right
31 2
533039 Air outlet grill left
32 2
533040 Level switch
33 2
533042 Level safety switch
38 2533101 Transformer Japan
39 1102217 Drive wheel cpl.
4
0 2533162 Bearing flange cpl.
4
1 2533163 Toothed belt pulley motor
4
2 2525353 Reiceiver module
4
3 1103719 Humidity sensor cpl.
44 2
525257 Handle
45 2
537177 Carriage PH27
46 2
535511 Tension spring (2 pcs.)
-- 1
115357 Filling hose
-- 2
527171 Leakage sensor
-- 2
529755 Salt pill leakage sensor (5 pcs.)
-- 2
532820 Ionization cable
-- 2
533049 Connecting cable synchronous motor
44
10.3 Spare parts list PH27A
35 7
3637
8
10
11
9
27
42
18 17
21
22
2
4
25
3
23
24
39
20
19
32 33
31
30
17
18
12
13
41
38
40
1
16
15
14
44
46
43
45
Pos. Art.-No. Spare parts designation
1 2
525306 Side board
2 2
525318 Intake grill
3 2
525276 Double roll with brake (2 pcs.)
4 2
525275 Double roll (2 pcs.)
7 2
525260 Valve unit cpl.
8 1
117738 PA tube ø10/8
9 2
525263 Inlet hose
10 2
525262 L-connection
11 1
119785 L-connector ø10 (5 pcs.)
12 2
532968 Base tub
13 1
101326 Set of bearings/rollers (4 pcs.)
14 1110529 Humidification drum
15 1
100465 Flock-coated evaporator mat (winter set)
2532748 Activated carbon evporator mat (summer set)
16 2
532771 Toothed belt
17 2
527380 Quattro filter (2 pcs.) (summer set)
253274
9 Coarse dust filter (2 pcs.) (winter set)
18 2
532934 Filter grid
19 1
115356 Ionization electrode (2 pcs.)
20 2
525859 Support ionization electrode cpl. (2 pcs.)
21 2
532888 Control PCB
22 1
115515 Display LCD
23 2
532874 Control panel Defensor
24 2532961 Fan cpl.
2
5 2532967 Synchronous motor cpl.
27 2
524759 Radio humidistat
30 2
533038 Air outlet grill right
31 2
533039 Air outlet grill left
32 2
533040 Level switch
34 2533046 Level safety switch A-type
3
5 2533070 Stem L-connector ø10 (5 pcs.)
36 2533071 Screw-type connector ø10-1/4" (5 pcs.)
37 2
533072 Connection adapter ø10 -> 1/4"
38 2533101 Transformer Japan
39 1102217 Drive wheel cpl.
4
0 2533162 Bearing flange cpl.
4
1 2533163 Toothed belt pulley motor
4
2 2525353 Reiceiver module
4
3 1103719 Humidity sensor cpl.
44 2
525257 Handle
46 2
535511 Tension spring (2 pcs.)
-- 2
527171 Leakage sensor
-- 2
529755 Salt pill leakage sensor (5 pcs.)
-- 2
532820 Ionization cable
-- 2
533049 Connecting cable synchronous motor
Notes
© Walter Meier (Climate International) Ltd. 2007, Printed in Switzerland
Technical modifications reserved
Reg.No. 40002-2
Manufacturer:
Walter Meier (Climate International) Ltd.
Talstr. 35-37, P.O. Box, CH-8808 Pfäffikon (Switzerland)
Phone +41 55 416 61 11, Fax +41 55 416 62 62
www.waltermeier.com, international.climate@waltermeier.com
CONSULTING, SALES AND SERVICE:
Solutions for Indoor Climate
Loading...
