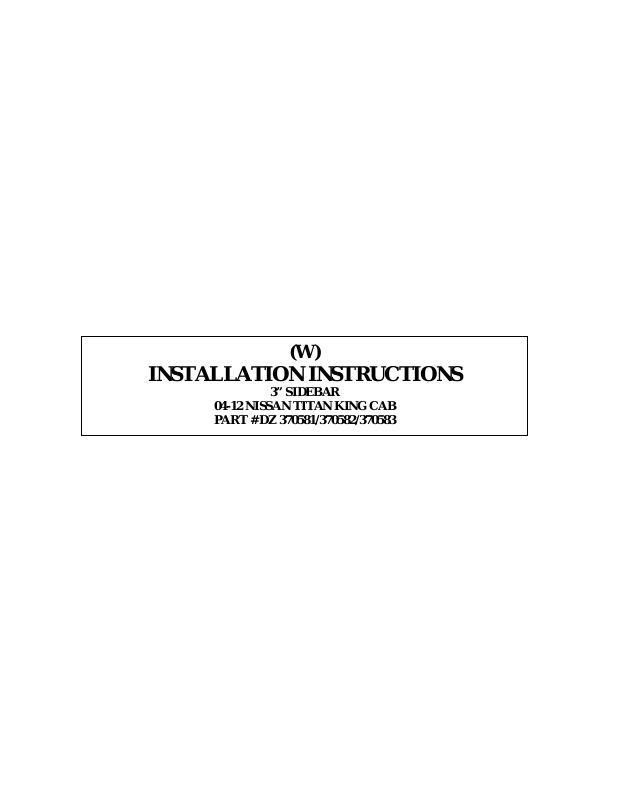

Page 1
(W)
INSTALLATION INSTRUCTIONS
3” SIDEBAR
04-12 NISSAN TITAN KING CAB
PART # DZ 370581/370582/370583
Page 2
3” SIDEBAR
04-12 NISSAN TITAN KING CAB
Page 1 of 3 03/26/12 Rev 2 (DP)
PARTS LIST:
1
Driver/Left Sidebar
12
8-1.25mm x 25mm Hex Bolts
1
Passenger/Right Sidebar
18
8mm Lock Washers
3
Driver/Left Mounting Brackets
18
8mm x 24mm OD x 2mm STD Flat Washers
3
Passenger/Right Mounting Brackets
6
8mm x 16mm OD x 1.6mm Small Flat Washers
6
8-1.25mm x 30mm Hex Bolts
6
8mm Nylon Lock Nuts
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
2. Start installation at the front of the driver side of the vehicle and locate the factory threaded
stud and the threaded hole located on the side of the inner body panel, (Figure 1). NOTE:
Remove the plastic plug or any insulation on the side panel to locate the threaded holes.
3. Select (1) driver side Mounting Bracket. Attach the Bracket to the threaded stud with (1) 8mm x
24mm STD Flat Washer and (1) 8mm Nylon Lock Nut. Next, insert (1) 8mm x 30mm Hex Bolt
with (1) 8mm Lock Washer and (1) 8mm x 16mm Small Flat Washer through the remaining
lower hole in the Bracket and into the threaded hole, (Figure 2). Snug but do not tighten
hardware at this time.
4. Repeat Steps 2 – 3 to install the center and rear Mounting Brackets, (Figures 2 – 4). NOTE:
The cradles on the Mounting Brackets should be facing the rear of the vehicle when properly
installed.
Driver/Left Side
Mounting Brackets
Passenger/Right Side
Mounting Brackets
Front of
Vehicle
Front of
Vehicle
Driver Side
Passenger Side
Insert locations
for brackets
Front of
Vehicle
Page 3
3” SIDEBAR
04-12 NISSAN TITAN KING CAB
Page 2 of 3 03/26/12 Rev 2 (DP)
5. Once all three Mounting Brackets are partially installed, carefully place the driver Sidebar onto
the Mounting Brackets. Use the included (6) 8mmx 25mm Hex Bolts, (6) 8mm Lock Washers
and (6) 8mm x 24mm STD Flat Washers to bolt the Sidebar to Mounting Brackets, (Figures 3
& 4).
6. Level and adjust the Sidebar and tighten all hardware at this time.
7. Repeat Steps 2 – 6 for passenger Sidebar installation.
8. Do periodic inspections of the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives
that could damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish.
Mild soap may be used also to clean the Sidebar.
For gloss black finishes: Mild soap may be used to clean the Sidebar.
Driver Side Installation Pictured
8mm Nylon Lock Nut
8mm x 24mm STD
Flat Washer
Front
Threaded Hole
Threaded Stud
(Fig 1) Driver side rear mounting location
pictured. Note: Remove plastic plugs to
locate factory threaded holes
8mm x 30mm Hex Bolt
8mm Lock Washer
8mm x 16mm Small Flat Washer
(Fig 2) Driver side front mounting location pictured
Front
Page 4
3” SIDEBAR
04-12 NISSAN TITAN KING CAB
Page 3 of 3 03/26/12 Rev 2 (DP)
Driver Side Installation Pictured
8mm Nylon Lock Nut
8mm x 24mm STD
Flat Washer
8mm x 30mm Hex Bolt
8mm Lock Washer
8mm x 16mm Small Flat Washer
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm x 24mm STD Flat Washers
(Fig 3) Driver side center mounting location pictured
(Fig 4) Driver side rear mounting location pictured
8mm x 30mm Hex Bolt
8mm Lock Washer
8mm x 16mm Small Flat Washer
Front
Front
Complete Installation
