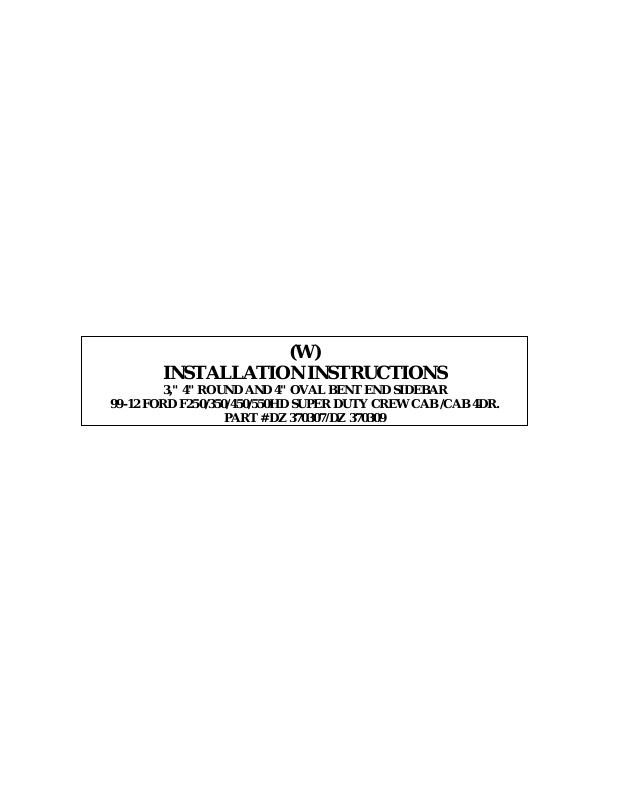

(W)
INSTALLATION INSTRUCTIONS
3," 4" ROUND AND 4" OVAL BENT END SIDEBAR
99-12 FORD F250/350/450/550HD SUPER DUTY CREW CAB /CAB 4DR.
PART # DZ 370307/DZ 370309
90-DEGREE BENT END SIDEBAR
99-12 FORD F-250/450 SUPERDUTY REG, SUPER AND SUPER CREW CABS
Page 1 of 3 6/29/12 Rev3 (DP)
PARTS LIST:
1
Passenger Sidebar
4
1/2 x 1-1/2" OD x 1/8" Flat Washers
1
Driver Sidebar
6
10mm Clip Nuts
2
Driver Side Front/Passenger Side Rear Mounting Brackets
14
10-1.50mm x 40mm Hex Head Bolts
2
Driver Side Rear/Passenger Side Front Mounting Brackets
22
10mm x 27mm OD x 3mm Flat Washers
2
Front Bracket Spacers
14
10mm Lock Washers
4
1/2" x 2" Hex Bolts
8
10mm Hex Nuts
4
1/2" Lock Washers
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED.
2. Starting on the driver side-front of the vehicle, locate the front set of factory holes in the body panel and
the (2) holes in the pinch weld under the front of the front door, (Figures 1 & 2). Insert (1) 10mm Clip
Nut into the rectangular opening and line up the threaded hole in the Clip with the round hole next to
the opening. NOTE: Threaded nut must go towards the inside of the body panel, (Figures 1 & 2).
3. Next, select (1) Front Bracket Spacer and (1) Driver Side Front Bracket. Line up the (2) holes in the
Spacer with the Clip Nut and (1) hole in the pinch weld, (Figures 3 & 4). Insert (1) 10mm x 40mm Hex
Bolt, (1) 10mm Lock Washer and (1) 10mm Flat Washer through the top hole in the Bracket, the Spacer
and into the Clip Nut, (Figure 5). Leave hardware loose. Bolt the bottom of the Bracket to the pinch
weld and Spacer with the included (2) 10mm x 40mm Hex Bolts, (2) 10mm Lock Washers, (4) 10mm
Flat Washers and (2) 10mm Hex Nuts, (Figure 5). NOTE: Insert Hex Bolts in from the outside, through
the pinch weld and then the Bracket.
4. Move to the last mounting location at the rear of the cab. Repeat Steps 2 – 3 for Rear Mounting
Bracket installation, (Figures 6 & 7). NOTE: Each rear mounting location is made up of a rectangular
hole with a round hole on each side and two holes through pinch weld, (Figure 7).
5. With assistance, carefully place the Sidebar into position and attach it to the Mounting Brackets using
the included (2) 1/2" x 2" Hex Bolts, (2) 1/2" Lock Washers and (2) 1/2" Flat Washers, (Figures 5 & 8).
6. Level and align the Sidebar with the side of the vehicle then tighten all hardware.
7. Repeat Steps 2 – 6 for passenger side Mounting Bracket and Sidebar installation.
8. Periodically check and retighten the hardware as necessary.
Passenger/Right Front
Mounting Bracket
Driver/Left Front
Mounting Bracket
Front Bracket to
Body Spacer
Front Bracket to
Body Spacer
Passenger/Right
Rear Mounting
Bracket
Driver/Left Rear
Mounting Bracket
Same Bracket
Same Bracket
