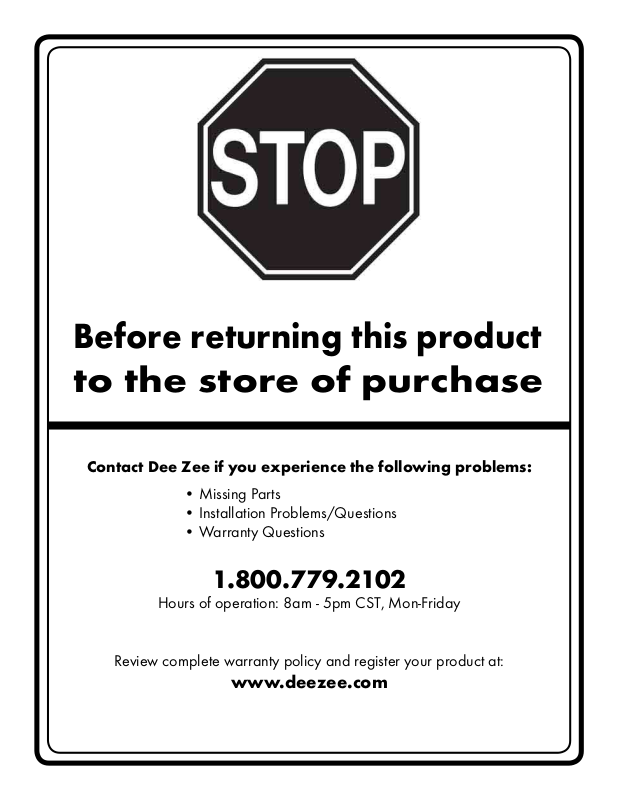

Before returning this product to the store of purchase
Contact Dee Zee if you experience the following problems:
•MissingParts  •InstallationProblems/Questions  •WarrantyQuestions
1.800.779.2102
Reviewcompletewarrantypolicyandregisteryourproductat:
www.deezee.com
Page 2
INSTALLATION INSTRUCTIONS
SIDE BAR
92-99 CHEVY SUBURBAN
PART# DZ 370151/DZ 370152/DZ 370153
Page 3
IMPORTANT ALERT: GM uses a very strong thread-locking compound on all body bolts. Use of an air assisted impact ratchet can cause damage to the threads on factory body mount bolts and the internal nut assembly because of this thread locking compound. We only recommend the use of hand tools to slowly remove and reinstall body mount bolts on all GM vehicles.
PROCEDURE: CRITICAL INFORMATION: If during the removal process, it becomes increasingly
difficult to unscrew the body mount bolt with hand tools, tighten the bolt several rotations to clear the thread locking compound from the threads, then reverse direction and continue to unscrew until the body mount bolt is out. Repeat this process as necessary on all GM body mount bolts. Use of an appropriate anti­seize compound is highly recommended for re-installation. Tighten body mount bolt to factory torque specifications for your particular model year.
Example of GM factory body mount bolt
Page 4
QTY DES C RIPT ION
1 Side Bar, left side 1 Side Bar, right side 1 hardware kit
NOTE: Please read this information before installing. Check components received with components listed above. NO DRILLING REQUIRED for installation of these side bars. To obtain correct installation, we recommend you to follow
these step by step installation instructions carefully. Please take care when installing this product to protect the finish and your investment.
Step One: Check contents of the hardware.
QTY DES C RIPT ION
2 12mm x 1.75mm x 120mm hex bolts 6 1/2 flat washers 6 1/2 split lock washers 4 12mmx50mm hex bolts, GR.5 2 9/16 x 2 1/2 x 3/16 spacers, zinc plated 4 3” plastic rings 1 front support bracket, left side 1 front support bracket, right side 1 rear support bracket, left side 1 rear support bracket, right side
Step Two: Locate the side bar, one support bracket, one 3” plastic ring, two ½ x 2” hex bolts, two ½” flat washers and two ½” split lock washers. Secure the brack et an d r in g t o t he si de ba r u si n g th e ha r d wa re li st ed in th is st ep . ( Fi g # 1) Do no t f ul l y ti gh te n h ar dw ar e at h i s ti me . Re pe at th i s p ro ce du r e on t he o th er e n d of t he s id e b ar u si ng t he s u pp or t br ac ke t .
St ep T hr e e : L oc at e o n e s pa ce r, o ne 12 mm he x bo lt , t wo ½” f la t w as he rs a nd on e ½ ” s p li t l oc k w as h e r . R em ov e t h e f ro nt ca b mount bolt located under the cab. Remove the rear spring hanger nut. “CAUTION” does not remove the rear spring hanger bolt; doing so could result in injury or damage to the vehicle. P l ac e th e s p a ce r ov er t h e sp ri ng h a n g e r b ol t a nd position the rear support bracket over the rear spring hanger bolt. Secure the support bracket and spacer to the spring hanger with the factory nut as shown in fig #2. Do not fully tighten the nut at this time. Po si t io n t h e f r o n t s u pp or t b r ac ke t u n de r t he fr on t ca b m o u nt . S ec u r e th e s u pp or t b ra ck et t o t he bo t to m o f t he c a b mo un t a s sh ow n i n f i g # 3 u si n g t he re ma in i n g ha rd wa re li st e d i n t hi s st e p . F ul ly t ig ht en a l l ha rd wa re a t t hi s ti me .
Fi g #1 Fi g #2 Fig #3
( P ho to s ar e fo r r ef er en ce o nl y, a c tu al b ra c ket s m ay b e di ff er e nt )
Step Four: Repeat steps two and three on opposite side of vehicle.
Be s ur e t o us e al l h ar dw ar e su pp li e d an d ti gh te n a ll b ol ts .
IMPORTANT : Side bars have a 300 lb. weight capacity. To protect your investment, wax this product after
installing. Regular waxing is recommended to add a protective layer over the finish.
