Deepcool V95 Installation Manual

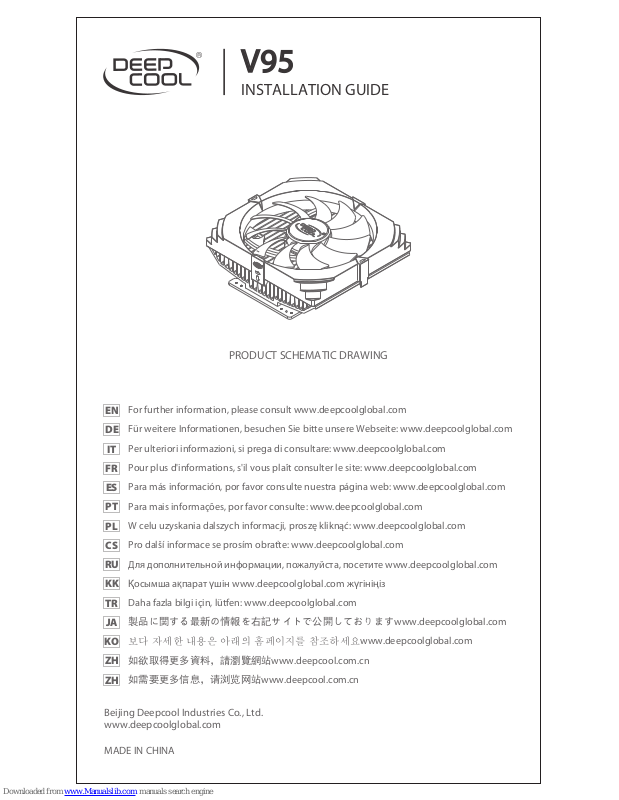

INSTALLATION GUIDE
V95
PRODUCT SCHEMATIC DRAWING
Beijing Deepcool Industries Co., Ltd.
www.deepcoolglobal.com
MADE IN CHINA
For further information, please consult www.deepcoolglobal.com
Für weitere Informationen, besuchen Sie bitte unsere Webseite: www.deepcoolglobal.com
Per ulteriori informazioni, si prega di consultare: www.deepcoolglobal.com
Pour plus d'informations, s'il vous plaît consulter le site: www.deepcoolglobal.com
Para más información, por favor consulte nuestra página web: www.deepcoolglobal.com
Para mais informações, por favor consulte: www.deepcoolglobal.com
W celu uzyskania dalszych informacji, proszę kliknąć: www.deepcoolglobal.com
Pro další informace se prosím obraťte: www.deepcoolglobal.com
Для дополнительной информации, пожалуйста, посетите www.deepcoolglobal.com
Қ
осымша ақпарат үшін www.deepcoolglobal.com жүгініңіз
Daha fazla bilgi için, lütfen: www.deepcoolglobal.com
製品に関する最新の情報を右記サイトで公開しております
www.deepcoolglobal.com
보다 자세한 내용은 아래의 홈페이지를 참조하세요
www.deepcoolglobal.com
如欲取得更多資料，請瀏覽網站
www.deepcool.com.cn
如需要更多信息，请浏览网站
www.deepcool.com.cn
EN
DE
IT
FR
ES
PT
PL
CS
RU
KK
TR
JA
KO
ZH
ZH
COMPONENTS LIST
COOLER INSTALLATION
MOUNTING HOLES LOCATION
Cooler X1
Spring Nut X4
Insulation Pad X4
TIM X1
1
1
2
2
3
3
4
4
43mm
80mm
53mm
55mm
43mm Mounting holes
NVIDIA GeForce GT 240
NVIDIA Geforce 8500/8600/7300/7600
/6000(Except 6600 AGP Series)
AMD Radeon HD 6700（6770/6750）
ATI Radeon HD 5700（5770/5750）/5670
ATI Radeon HD 2400/2600 Series
ATI Radeon X1600/X1650 Series
53mm Mounting holes
NVIDIA GeForce GTX 550 Ti
NVIDIA GeForce GTS 450/GTS 250
NVIDIA GeForce 9800 Series
NVIDIA GeForce 8800GTS/8800GT
NVIDIA GeForce 9600GT/9500GT/9400GT
NVIDIA GeForce 7950/7900/7800/7600/6800
ATI Radeon HD 5500 Series/ 4800 Series/4700
Series4600 Series/3800 Series/ 3600 Series
ATI Radeon HD 3450
ATI Radeon X1900/1950/X1800
55mm Mounting holes
NVIDIA GeForce FX 5700/5600 Series
NVIDIA GeForce FX 5200/5500 Series
NVIDIA GeForce 4 MX Series
ATI Radeon X1300 Series
ATI Radeon X Series
ATI Radeon 9000Series（Excep 9550/9600）
80mm Mounting holes
NVIDIA Geforce 7400 Series
NVIDIA Geforce 7600 Series
