DeepCool DN650 Energy label

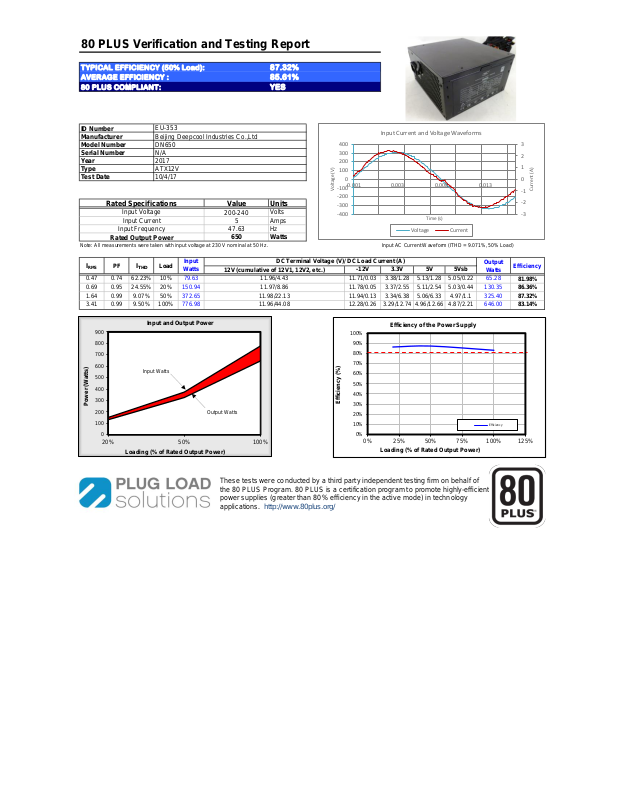

80 PLUS Verification and Testing Report

TYPICAL EFFICIENCY (50% Load):

87.32%

AVERAGE EFFICIENCY :

85.61%

80 PLUS COMPLIANT:

YES

Value Units

200-240

Volts

5 Amps

47.63 Hz

650 Watts

Note: All measurements were taken with input voltage at 230 V nominal at 50 Hz. Input AC Current Waveform (ITHD = 9.071%, 50% Load)

-12V 3.3V 5V 5Vsb

0.47 0.74 62.23% 10% 79.63 11.71/0.03 3.38/1.28 5.13/1.28 5.05/0.22 65.28

81.98%

0.69 0.95 24.55% 20% 150.94 11.78/0.05 3.37/2.55 5.11/2.54 5.03/0.44 130.35

86.36%

1.64 0.99 9.07% 50% 372.65 11.94/0.13 3.34/6.38 5.06/6.33 4.97/1.1 325.40

87.32%

3.41 0.99 9.50% 100% 776.98 12.28/0.26 3.29/12.74 4.96/12.66 4.87/2.21 646.00

83.14%

Rated Output Power

I

THD

Year

ATX12V

Rated Specifications

Input Voltage

Input

Watts

Load

12V (cumulative of 12V1, 12V2, etc.)

DC Terminal Voltage (V)/ DC Load Current (A)

Input Current

Test Date

Input Frequency

EU-353

Type

ID Number

Model Number

10/4/17

2017

Serial Number

Beijing Deepcool Industries Co.,Ltd

DN650

N/A

Manufacturer

Output

Watts

11.96/44.08

11.98/22.13

Efficiency

11.96/4.43

11.97/8.86

I

RMS

PF

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

0% 25% 50% 75% 100% 125%

Efficiency (%)

Loading (% of Rated Output Power)

Efficiency of the Power Supply

Efficiency

Input Watts

Output Watts

0

100

200

300

400

500

600

700

800

900

20% 50% 100%

Power (Watts)

Loading (% of Rated Output Power)

Input and Output Power

These tests were conducted by a third party independent testing firm on behalf of
the 80 PLUS Program. 80 PLUS is a certification program to promote highly-efficient
power supplies (greater than 80% efficiency in the active mode) in technology
applications. http://www.80plus.org/

-3

-2

-1

0

1

2

3

-400

-300

-200

-100

0

100

200

300

400

-0.001 0.003 0.008 0.013

Current (A)

Voltage (V)

Time (s)

Input Current and Voltage Waveforms

Voltage Current
