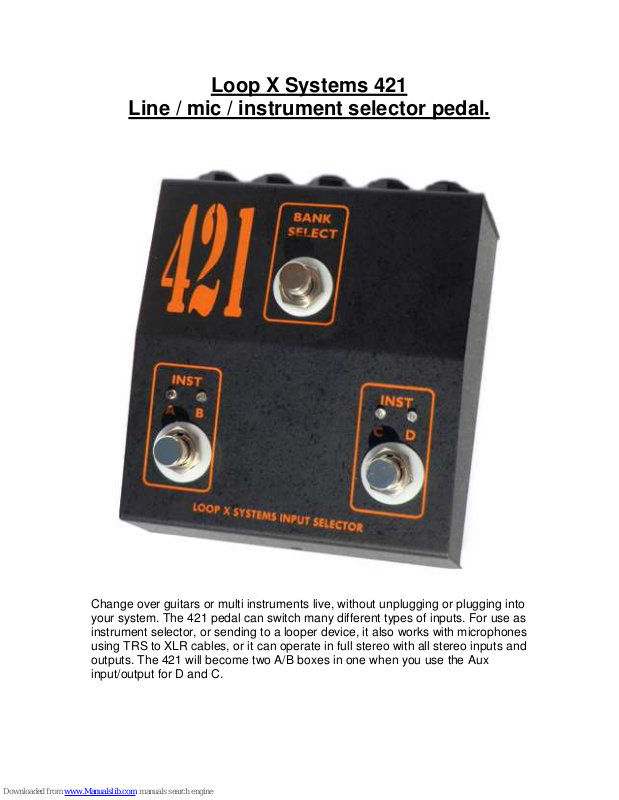

Loop X Systems 421
Line / mic / instrument selector pedal.

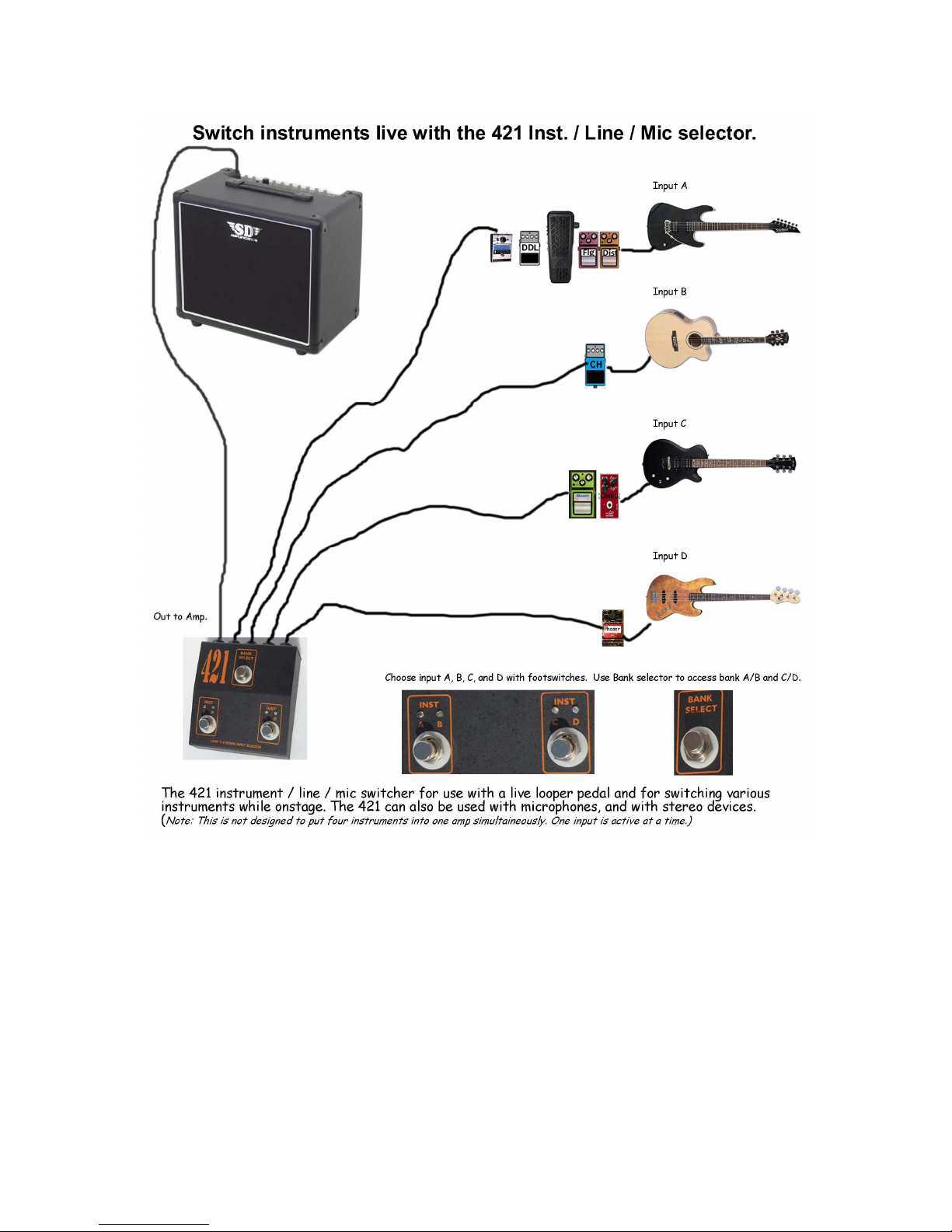

Change over guitars or multi instruments live, without unplugging or plugging into
your system. The 421 pedal can switch many different types of inputs. For use as

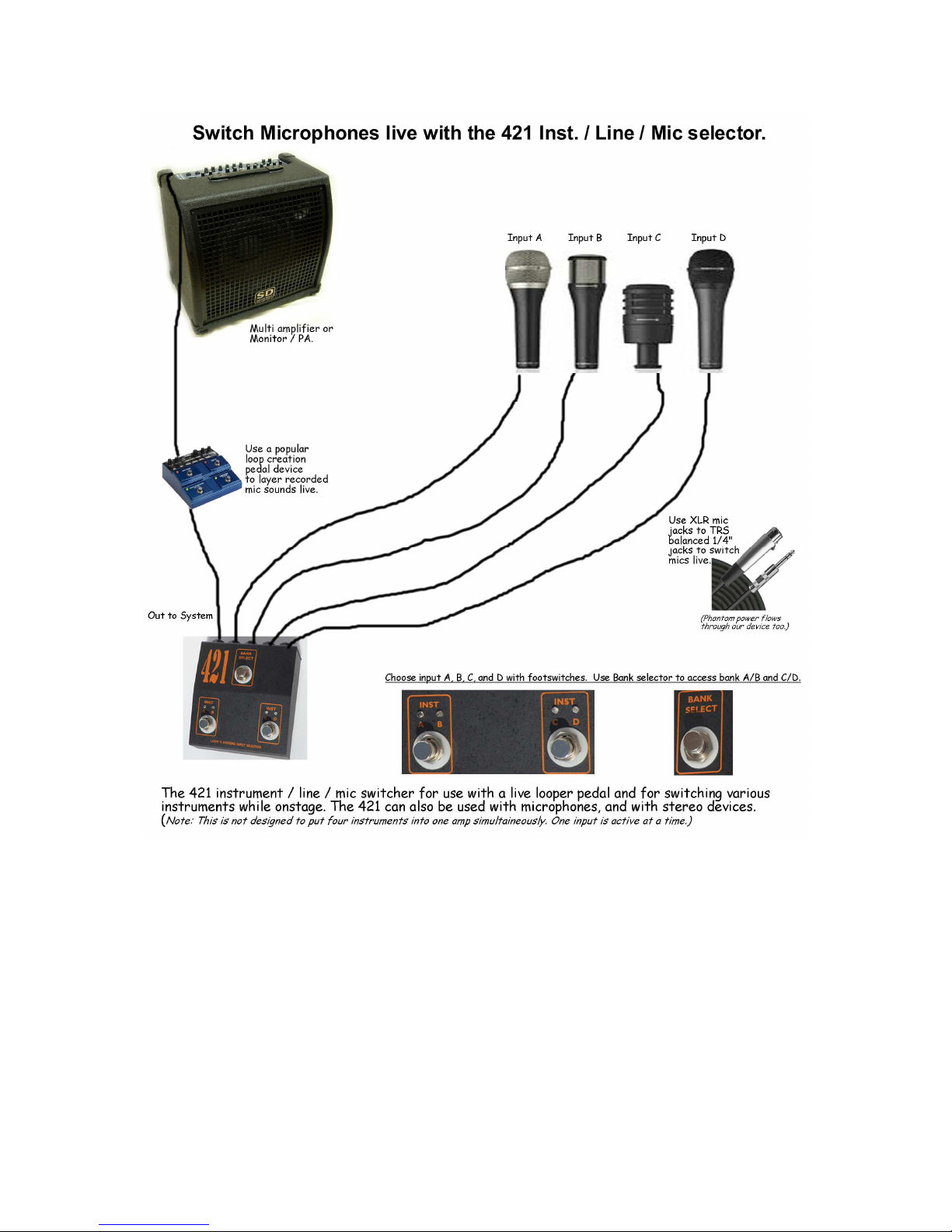

instrument selector, or sending to a looper device, it also works with microphones
using TRS to XLR cables, or it can operate in full stereo with all stereo inputs and

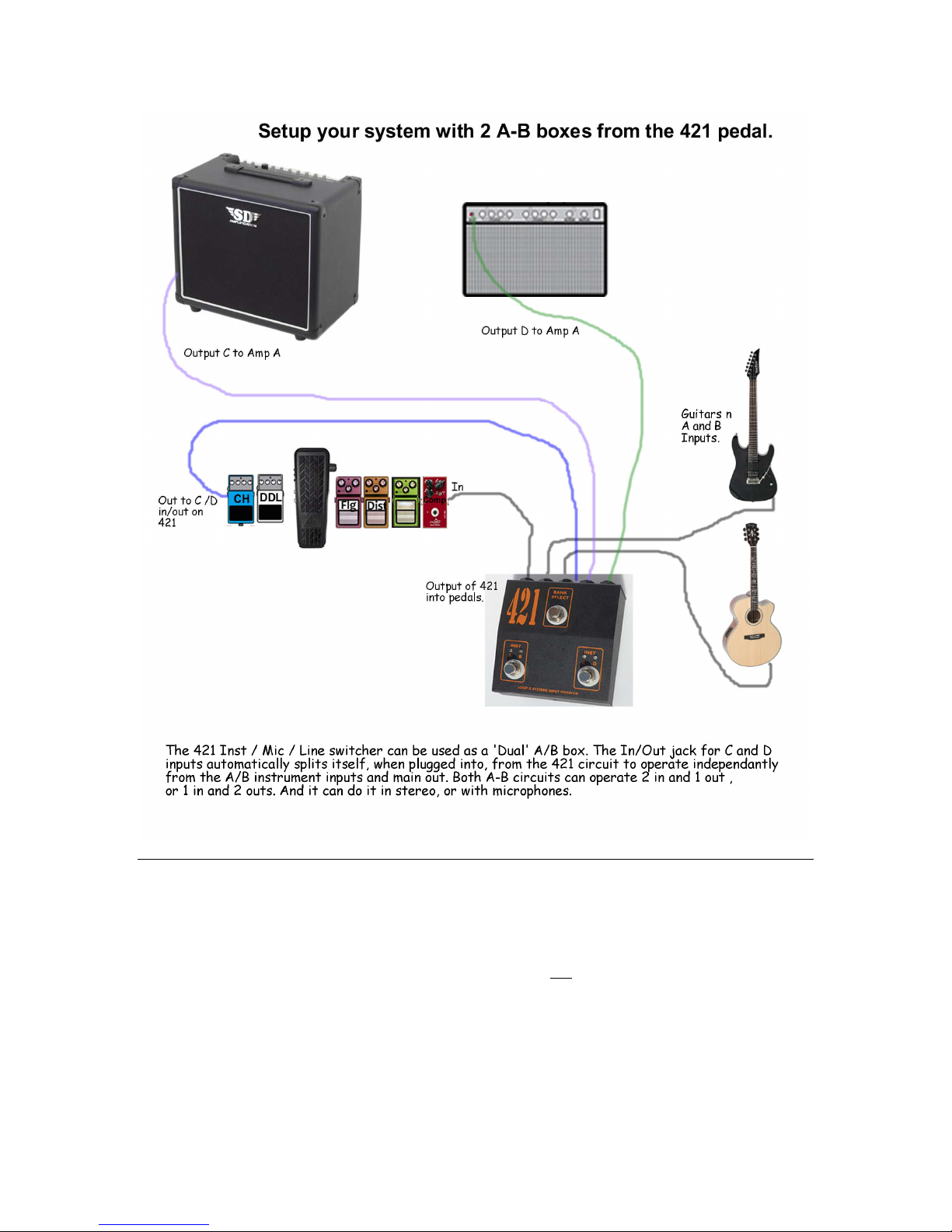

outputs. The 421 will become two A/B boxes in one when you use the Aux
input/output for D and C.
Page 2

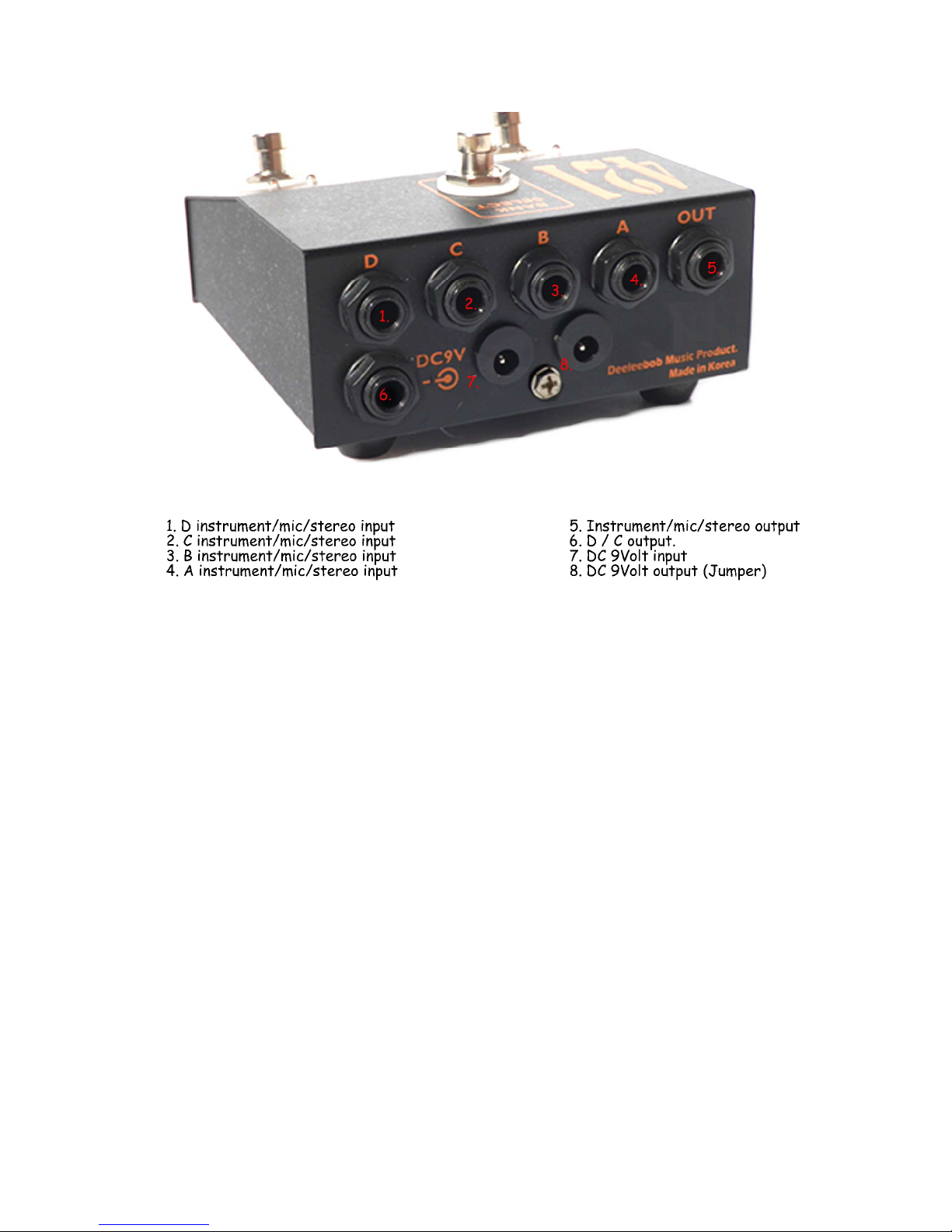

1. Input ‘D’ for inst./mic./line usable as an in/out in dual A/B mode.
2. Input ‘C’ for inst./mic./line usable as an in/out in dual A/B mode.
3. Input ‘B’ for inst./mic./line usable as an in/out in dual A/B mode.
4. Input ‘A’ for inst./mic./line usable as an in/out in dual A/B mode.
5. Main output for all 4 inputs. Usable as the in/out for A/B in dual A/B mode.
6. D and C output, or input. Signal path can flow either way.
7. 9 Volt input / output - Plug 9V power into one of these 9V jacks. 9V power
automatically comes out of the second 9 Volt jack. This is a 9 Volt jumper system.
DO NOT connect 9 Volt power into both jacks at the same time.
8. Auxiliary 9 Volt input / output - The 9 Volt jacks are either an input or an output.
Only one 9 Volt power in is required to power the 421 pedal.
Page 3
Page 4
Page 5
ONE YEAR CONSUMER LIMITED WARRANTY
DEELEEBOB Music products are warranted to be free from defects in materials or workmanship
for one year from the date of purchase. Within this period, DEELEEBOB will, at its sole option,
repair or replace any components that fail in normal use. Such repairs or replacement will be
made at no charge to the customer for parts or labor, provided that the customer shall be
responsible for any transportation cost. This warranty does not
such as scratches, nicks and dents; (ii) consumable parts, such as batteries, unless product damage
has occurred due to a defect in materials or workmanship; (iii) damage caused by accident, abuse,
misuse, water, flood, fire, or other acts of nature or external causes; (iv) damage caused by
service performed by anyone who is not an authorized service provider of DEELEEBOB; or (v)
damage to a product that has been modified or altered without the written permission of
DEELEEBOB. In addition, DEELEEBOB reserves the right to refuse warranty claims against
products or services that are obtained and/or used in contravention of the laws of any country.
apply to: (i) cosmetic damage,
Page 6
Repairs have a 90 day warranty. If the unit sent in is still under its original warranty, then the new
warranty is 90 days or to the end of the original one year warranty, depending upon which is
longer.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES EXPRESS, IMPLIED, OR
STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, STATUTORY OR OTHERWISE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM
STATE TO STATE, COUNTRY TO COUNTRY.
IN NO EVENT SHALL DEELEEBOB BE LIABLE FOR ANY INCIDENTAL, SPECIAL,
INDIRECT, OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE,
MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE
PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO
YOU.
DEELEEBOB retains the exclusive right to repair or replace (with a new or newly-overhauled
replacement product) the device or software or offer a full refund of the purchase price at its sole
discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR
ANY BREACH OF WARRANTY.
To obtain warranty service, contact DEELEEBOB Music Product’s via email for shipping
instructions and an RMA tracking number. Securely pack the device and a copy of the original
sales receipt, which is required as the proof of purchase for warranty repairs. Write the tracking
number clearly on the outside of the package. Send the device, freight charges prepaid, to
DEELEEBOB Music Products.
Full PDF manuals, updates and new product releases available on our website.
www.LoopXsystems.com
Email at : [email protected]
DEELEEBOB Music Products
37-4 Yongsan 2 Ga, Yongsan Gu,
Seoul, Korea,140-840
Fax : (82) 02 6974 1316
www.LoopXsystems.com
© 2013 DLB Music Products
