DE DIETRICH SGC 24 SOL User Manual

SOLNEO

Gas fired condensing boiler

SGC 24 SOL

EN

C001764

User Guide

300017555-001-C

.

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.1 Symbols and abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.2 General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.2.1 Manufacturer's liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.2.2 Installer's liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.2.3 User's liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.3 Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 Safety instructions and recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.1.1 Fire hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.1.2 Risk of being burnt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.2 Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

3 Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.1 General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.2 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3.3 Parameter display - Diemasol A solar regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

4 Operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.1 Start the boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.2 Description of the parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

4.3 Changing the settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4.3.1 Selecting the operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4.3.2 Changing the heating temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4.3.3 Changing the domestic hot water temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4.4 Stopping the boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4.5 Prolonged absence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4.5.1 Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4.5.2 Antifreeze protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

5 Checking and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

5.1 General instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

5.2 Periodic checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

5.3 Topping up the boiler with water (If the option is connected) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

5.4 Bleeding the heating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

5.5 Draining the installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

6.1 Breakdown codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

6.1.1 Safety alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

6.1.2 Sensor alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

6.2 Before contacting the installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

6.3 Incidents and solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

6.3.1 The burner is not working. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

6.3.2 The burner is operating but the radiators are cold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

6.3.3 The domestic hot water does not appear hot enough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

6.3.4 Hot water takes a very long time to reach certain draw-off points and not others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

7 Technical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

8 Energy savings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

8.1 Energy-saving advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

8.2 Room thermostat and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

2

SGC 24 SOL 15/10/2009 - 300017555-001-C

1 Introduction

1.1 Symbols and abbreviations

1. Introduction

In these instructions, various markings and pictograms are used to
draw your attention to particular information. In so doing,
De Dietrich Thermique S.A.S. wishes to safeguard the user's safety,
obviate hazards and guarantee correct operation of the boiler.

CRC: Communicating remote controller

CFC: Chlorofluorocarbon

DHW: Domestic hot water

1.2 General

1.2.1 Manufacturer's liability

Our products are manufactured in compliance with the essential
requirements of the various Directives applicable. They are therefore
delivered with 1 marking and all relevant documentation.

In the interest of customers, we are continuously endeavouring to
make improvements in product quality. All the specifications stated in
this document are therefore subject to change without notice.

Caution danger



Risk of injury and damage to equipment.
Attention must be paid to the warnings on safety of
persons and equipment.

Important information



Information must be kept in mind to maintain comfort.

Reference

Z

Refer to another manual or other pages in this instruction
manual.

Our liability as the manufacturer may not be invoked in the following
cases:

` Incorrect use of the appliance.

` Faulty or insufficient maintenance of the appliance.

` Incorrect installation of the appliance.

1.2.2 Installer's liability

The installer is responsible for the installation and inital start up of the
appliance.

The installer must respect the following instructions:

` Read and follow the instructions given in the manuals provided

with the appliance.

` Carry out installation in compliance with the prevailing

legislation and standards.

1.2.3 User's liability

To ensure the optimum operation of your appliance, we strongly
recommend that you abide by the following instructions:

` Read and follow the instructions given in the manuals provided

with the appliance.

` Call on qualified professionals to carry out installation and initial

start up.

` Get your fitter to explain your installation to you.

` Have the required checks and services done.

` Keep the instruction manuals in good condition close to the

appliance.

` Perform the initial start up and carry out any checks necessary.

` Explain the installation to the user.

` Warn the user of the obligation to check the appliance and

maintain it in good working order.

` Give all the instruction manuals to the user.

This appliance is not intended to be used by persons (including
children) whose physcial, sensory or mental capacity is impaired or
persons with no experience or knowledge, unless they have the
benefit, through the intermediary of a person responsible for their
safety, of supervision or prior instructions regarding use of the
appliance. Care should be taken to ensure that children do not play
with the appliance.

15/10/2009 - 300017555-001-C SGC 24 SOL

3

1. Introduction

1.3 Certifications

CE identification no CE-0085BQ0052

Type of connection Chimney: B

Forced flue: C

Ignition Automatic

* Except Belgium and France

(x) For Germany only

23P

- B

13(x)

33

- C

33(x)

- C

43(x)

- C53 - C

63(x) *

- C

83(x)

- C

93(x)

4

SGC 24 SOL 15/10/2009 - 300017555-001-C

2. Safety instructions and recommendations

2 Safety instructions and recommendations

2.1 Safety instructions

2.1.1 Fire hazard

DANGER



If you smell gas:

1. Do not use a bare flame, do not smoke, do not actuate electrical

contacts or switches ( doorbell, light, motor, lift, etc..).

2. Cut the gas supply.

3. Open the windows.

4. Evacuate the premises.

5. Call your fitter.

2.1.2 Risk of being burnt

DANGER



Depending on the settings of the appliance:

` The temperature of the flue gas conduits may exceed 60°C.

` The temperature of the radiators may reach 95°C.

2.2 Recommendations

The installation and the first start-up must be performed by a qualified
professional.

Only qualified professionals are authorised to work on the



appliance and the instalation.

DANGER



If you smell flue gases:

1. Switch the appliance off

2. Open the windows.

3. Evacuate the premises

4. Call your fitter

` The temperature of the domestic hot water may reach 65°C.

Avoid direct contact with the flame viewport.





Aeration

The air inlet into the premises must in no event be obstructed, even
partially.

Maintenance



` Regularly check the water pressure in the installation (minimum



pressure 0.8 bar, recommended pressure between 1.5 and 2
bar).

` Keep the appliance accessible at all times.

` Never remove or cover labels and rating plates affixed to the

appliance. Labels and rating plates must be legible throughout
the entire lifetime of the appliance.

15/10/2009 - 300017555-001-C SGC 24 SOL

The servicing and cleaning of the boiler and the sweeping of the flue
gas pipe and the bleed pot must be done at least once a year by a
qualified professional.

We recommend that you take out a maintenance contract.



The boiler is fitted with an antifreeze system. In the event of total
shutdown of the heating in winter which may lead to the danger of
freezing (switching off of radiators and current), we recommend using
a correctly dosed anti-freeze product to stop the heating water
freezing. Failing this, drain the installation completely (in all cases,
consult your fitter).

Do not neglect to service the appliance:
For completely safe and optimum operation, you must
have your boiler regularly serviced by an approved
installer.

Precautions against frost

5

3. Description

3 Description

3.1 General description

The SGC 24 SOL solar column is a multi-energy unit which includes
a gas-fired condensing boiler and a 200-litre solar domestic hot water
tank in the same casing.

The boiler is preset in the factory to operate on natural gases H and
E (Operating pressure: 20 mbar).

The boiler is fitted with a system to protect against overheating.

3.2 Control panel

1

2

Position Key Description

1 Alphanumeric LCD display Displays the settings for the solar circuit.

2
3 > Moves to the next menu or increases the value of a setting.

4

N Temperature display The display shows the temperature of the water in the domestic hot water heating outlet when there is

I

O

4

< Returns to the previous menu or reduces the value of a setting.

SET Allows the displayed parameter to be accessed and modified.

Domestic hot water temperature
maintenance override button

3

a request for domestic hot water.

For SGC 24 SOL with Easymatic or Easyradio remote control:

Pressing the button for 1 second makes it possible to override domestic hot water tank loading
outside the time period programmed in the control unit up to midnight (indicator light O2 flash).

- Light O1 lit : The burner is ignited to reheat the domestic hot water tank.

- Light O2 off : No override or programme running.

- Light O2 lit : Comfort programme activated.

C001771B

For SGC 24 SOL without remote control:

Light O1 lit : The burner is ignited to reheat the domestic hot water tank.
A power cut does not modify the selected operating mode.

P Safety shutdown light Indicates an error in the boiler.

Q

R

6

Unlock button To restart the boiler after safety shutdown.



Button  Used only in measurement 8888, installer K and sweep M mode.

H

S Button Used only in sweep mode M.

SGC 24 SOL 15/10/2009 - 300017555-001-C

Position Key Description

T 6-position switch - . : Shutdown/antifreeze/vent.

: Domestic hot water (Summer).

-



-

-

-

-

U "Heating" on light The light is on when the heating/domestic hot water reversal valve is in the heating position and the

circulator pump is operating.

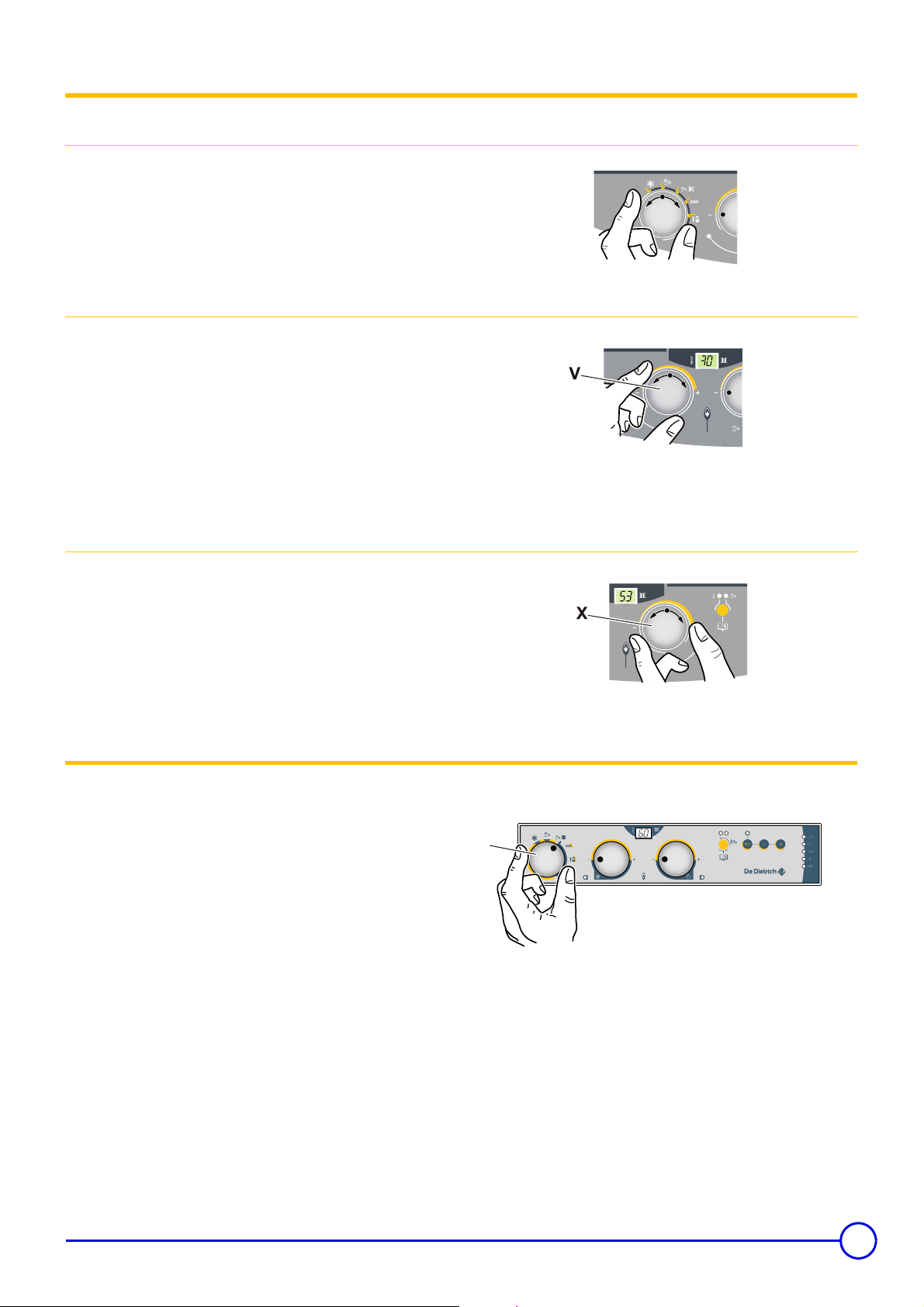

V Heating temperature setting Adjustment range : 30 °C to 90 °C (Hard spot at 68°C).

W Flame presence light The light is on when the burner is operating.

X Setting the domestic water

temperature

Y "Domestic hot water" on light The light is on when the heating/domestic hot water reversal valve is in the domestic hot water

Z Pressure indicator Indicates the pressure in the heating circuit from 0.5 to 2.5 bar.

Adjustment range : 40 °C to 60 °C (Hard spot at 55°C).

position and the circulator pump is operating.

: Heating and domestic hot water (Winter).

"

: Measurement mode (Key to access the parameters reserved for the installer).

V

: Fitter mode (Key to access the parameters reserved for the installer).

K

: Sweeping mode (Key to access the parameters reserved for the installer).

M

3.3 Parameter display - Diemasol A solar regulator

3. Description

` To scroll the parameters, push on key < or >.

Abbreviation Parameter Range

TC Collector temperature [-50.0...+250.0°C]

TS Tank temperature [-50.0...+250.0°C]

kWh Amount of heat [0...9999 kWh]

PC Pump regime [0...100 %]

tc Self-calibration time [0...5] minutes

TR Return temperature [-50.0...+250.0°C]

TM Additional temperature

with S3 sensor only (optional)

[-50.0...+250.0°C]

15/10/2009 - 300017555-001-C SGC 24 SOL

7

4. Operating instructions

C001790

T

4 Operating instructions

4.1 Start the boiler

` Check the water pressure in the installation several times a

year.
If necessary, top up the boiler with water.
The water pressure in the installation must be between 1.5 and
2 bar.

` Open the gas valve.

` Set the 6-position switch T to

(winter mode).

` If using a room temperature thermostat or a communicating

remote control, turn them to heating request.

`

` The boiler will begin an automatic venting-programme (which

lasts approx. 3 minutes) and will do this every time the power
supply is isolated.

` The regulator starts an initialisation phase during which the LED

flashes red and green. When initialisation is complete, the
regulator changes to automatic mode. The factory settings for
this mode give optimum performance with most installations.

(summer mode) or



"

4.2 Description of the parameters

LED state:

Display Action

Continuously green Regulation operating normally (System Operating).

Solar system Operating.

Continuously red The installation is stopped.

The solar collectors are not hot enough (parameter TC) to enable operation.

Flashing green/red Initialisation phase

The installation is in manual mode

Maximum water tank temperature exceeded

Maximum solar collector temperature exceeded

Sensor fault

Off Control system power fault

M000391-B

8

SGC 24 SOL 15/10/2009 - 300017555-001-C

4.3 Changing the settings

4.3.1 Selecting the operating mode

` Set the 6-position switch T to the desired operating mode.

-- . : Shutdown/antifreeze/vent.

--

: Domestic hot water (Summer).



--

4.3.2 Changing the heating temperature

` Set the temperature of the heating water using button V.

- Minimum = 30 °C

-Maximum=90°C

- Hard point = 68 °C

` The temperature set in shown on the display.

If using an outside temperature sensor, the heating flow



temperature is adjusted automatically.

: Heating and domestic hot water (Winter).

"

4. Operating instructions

C000879-B

C000880-C

4.3.3 Changing the domestic hot water temperature

` Set the domestic hot water temperature using button X.

- Minimum = 40 °C

-Maximum=60°C

- Recommended temperature = 55 °C (Hard point) to combine
comfort and economy.

` The temperature set in shown on the display.

4.4 Stopping the boiler

` Set the 6-position switch T to . (stop / antifreeze / vent).

The boiler goes into standby mode.
The display shows " .. ".

In this operating scenario, the boiler and the domestic hot water



tank are protected against the risk of frost.

Do not shut down power to the control system or drain the



heat-exchanging fluid.

The system is designed in such a way that no special precautions are
necessary during long periods of absence in summer.

The Diemasol A solar control system protects the installation from
overheating.

C000881-C

T

C001793-B

15/10/2009 - 300017555-001-C SGC 24 SOL

9

4. Operating instructions

4.5 Prolonged absence

4.5.1 Switching off the appliance

If the central heating system is not used for a long period, we
recommend switching the boiler off.

1. Switch the boiler off.

4.5.2 Antifreeze protection

The boiler must be installed in a frost-free environment.



We recommend setting the boiler thermostat to a value off 10°C if
using a classic installation.

If the temperature of the central heating water in the boiler falls too
much, the integrated protection device switches itself on:

- If the water temperature is lower than 7°C, the circulating pump is
activated.

- If the water temperature is lower than 3°C, the boiler is activated.

- When the water temperature is above 10 °C, the boiler is switched
off and the circulation pump runs for another 15 minutes.

2. Cut the power supply to the boiler.

3. Close the gas valve.

10

SGC 24 SOL 15/10/2009 - 300017555-001-C

5 Checking and maintenance

5.1 General instructions

5. Checking and maintenance

An annual inspection is compulsory.



We recommend that you take out a maintenance contract.



5.2 Periodic checks

` Regularly check the water pressure in the installation (minimum

pressure 0.8 bar, recommended pressure between 1.5 and 2
bar).
If the water pressure is too low, add more water to the
installation (See

` Carry out a visual check for the presence of any water leaks.

` Open and close the radiator valves several times a year (this

prevents the valves from seizing up).

` Clean the outside of the boiler using a damp cloth and a light

detergent.

Only a qualified professional is authorised to clean the



inside of the boiler.

Topping up the boiler with water).

Maintenance operations must be done by a qualified



professional.

Only original spare parts must be used.



1

2

3

4

C002174-A

5.3 Topping up the boiler with water (If the option is connected)

` Regularly check the level of water in the system and top up if

required, taking care that cold water is not added suddenly into
the boiler when it is hot.
This operation must be carried out several times per season ; if
not, look for the probable leak and immediately fix it.

` Contact the fitter.

Do not drain the installation, except in cases of absolute



necessity.

T000181-B

15/10/2009 - 300017555-001-C SGC 24 SOL

11

5. Checking and maintenance

5.4 Bleeding the heating system

It is essential that you vent any air in the appliance, the ducts or the
valves to prevent the noise annoyance likely to be produced during
heating or water draw-off.

To do this, proceed as follows:

1. Open the valves on all radiators connected to the heating system.

1

2

3

4

T000181-B

2. Set the heating set point to as high a temperature as possible.

3. Wait until the radiators are hot.

6. Bleed the radiators.

Start with the lower floors.

5

3

1

7. Open the bleed connection using the bleed key, keeping a rag
pressed against the connection.

8. Wait until water begins to come out of the bleed valve, then close
the bleed connection.

4

2

T000854-A

T000184-A

4. Switch the boiler off.

5. Wait around 10 minutes until the radiators are cold.

T000185-A

The water may still be hot.



9. Turn the boiler on.

10. Check the pressure of the installation.

If the water pressure is too low, add more water to the installation
(See Topping up the boiler with water).

11. Set the heating set point.

12

SGC 24 SOL 15/10/2009 - 300017555-001-C

5.5 Draining the installation

It may become necessary to empty the water from the heating system
when the radiators have to be replaced, should there be a major
water leak or a risk of frost.

To do this, proceed as follows

1. Open the valves on all radiators connected to the heating system.

1

2

3

4

T000181-B

2. Cut the power supply to the boiler.

5. Checking and maintenance

3. Wait around 10 minutes until the radiators are cold.

T000185-A

4. Connect an evacuation hose to the plug located at the lowest
level.

5. Place the end of the hose in a discharge sump or in a place where
the water discharged from the valve can not do any damage.

T000858-A

6. Open the filling/draw-off valve on the heating system.

The water may still be hot.



7. When no more water comes out of the drainage plug, close the
drainage valve.

15/10/2009 - 300017555-001-C SGC 24 SOL

13

6. Troubleshooting

6 Troubleshooting

6.1 Breakdown codes

In the event of a fault, the display indicates an alarm message by
alternately showing AL and a code from which the type of fault can
be determined.

6.1.1 Safety alarms

Alarm code Meaning

cA Igniter fault

cI Ionization error

tS Overheating alarm

PA No water

cd Communication error with the safety control box (card side)

c8 Internal error safety control box

A1 Communication error with the safety control box (box side)

tH Communication with the communicating remote interrupted

6.1.2 Sensor alarms

Alarm code Meaning

40 Fault external sensor

41 No outside sensor on start-up if outlet sensor B present

42 Fault outlet sensor B

50 or 51 DHW outlet sensor error DHW

58 or 59 Fault electronic manometer

6.2 Before contacting the installer

` Try to restart the boiler once by pressing the key Q  on the

control panel.

` If this fails after a second try to restart, inform the professional

responsible for maintaining the boiler.

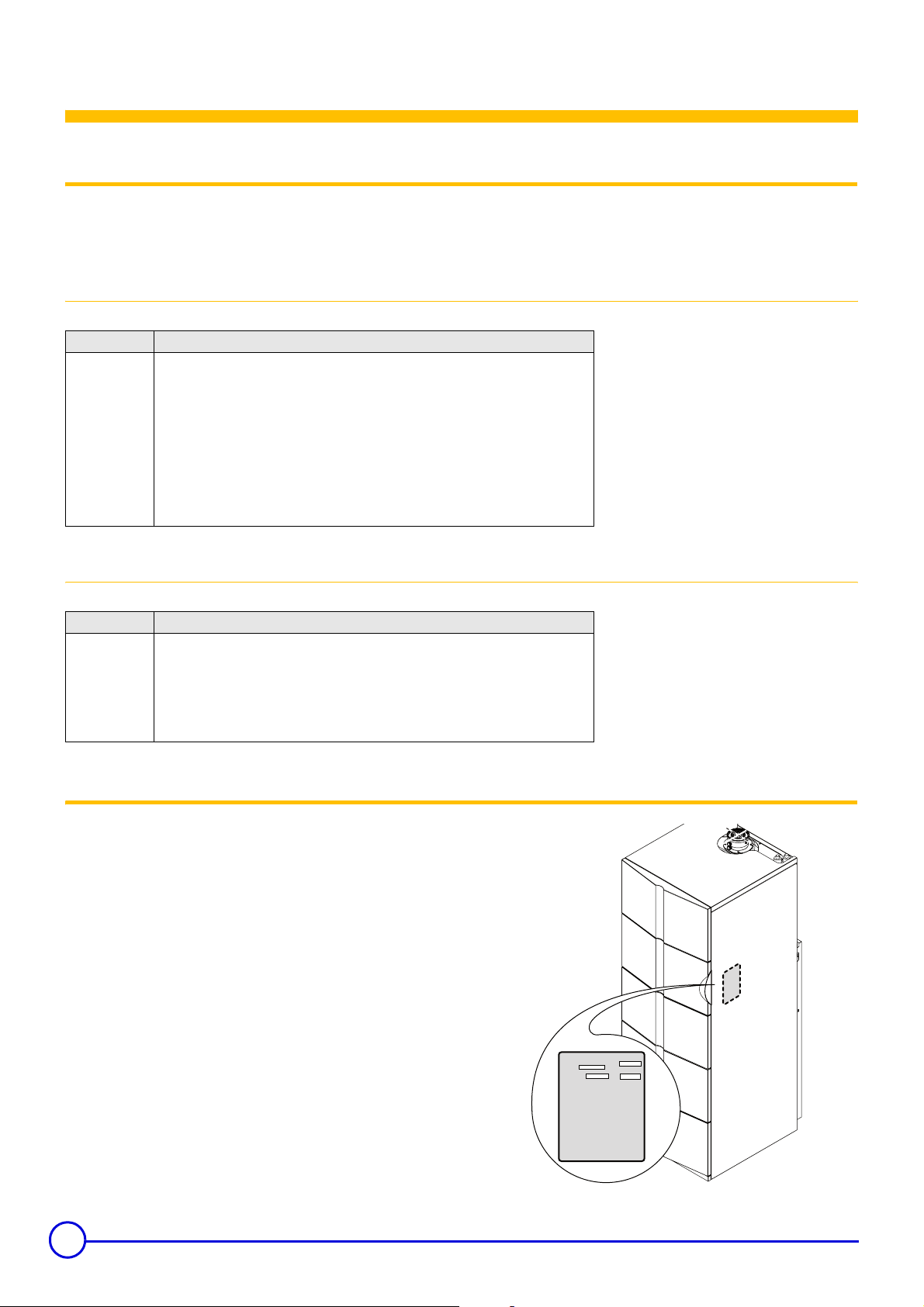

` Note the following information on the appliance's rating plate:

- Boiler type

- Date of manufacture

- Serial no. of the appliance

- Type of gas used.

14

D001040

SGC 24 SOL 15/10/2009 - 300017555-001-C

6.3 Incidents and solutions

Checks to make before calling your fitter



6.3.1 The burner is not working

 It is cold.

` Check the boiler thermostat settings.

` If using a room temperature thermostat or a remote control

(Easymatic or Easyradio), check that it is set according to the
instructions.

6. Troubleshooting

 It is cold. There is no domestic hot water

` Note the code displayed AL + _ _.

` Press button Q

` Release the button. The boiler restarts.

15/10/2009 - 300017555-001-C SGC 24 SOL

until the red light goes out.



` If there is a problem, contact your fitter, specifying the alarm

C002175-A

code.

15

6. Troubleshooting

6.3.2 The burner is operating but the radiators are cold

 Air and water noise in the radiators

` Bleed the radiators.

` Top up the heating circuit with water.

` If it is often necessary to top up the installation with water,

contact your fitter.

` If the problem persists, consult your fitter.



The burner is operating but the radiators are cold

` Check that the boiler heating pump is operating correctly.

` If the problem persists, consult your fitter

6.3.3 The domestic hot water does not appear hot enough

 Flow of water from the tap too high.

The higher the flow, the lower the temperature.

` Reduce the flow from the hot water tap.

` If several draw-off points are open at the same time, close one

or other of the points.

6.3.4 Hot water takes a very long time to reach certain draw-off points and not others

This is due to the length of the hot water pipes between the draw-off
points and the boiler.
The greater the length, the longer the time necessary for the hot
water to replace the colder water in the pipes.

16

SGC 24 SOL 15/10/2009 - 300017555-001-C

7. Technical characteristics

7 Technical characteristics

Boiler SGC 24 SOL

General Useful output 50 / 30 °C

(heating and DHW modes)

Useful output 80 / 60 °C

(heating and DHW modes)

Power input

(heating and DHW modes)

Operating efficiency 80 / 60 °C (4) % 107.8

Load and water temperature efficiency 100% Pn, Average temperature 70 °C % 96.8

Gas flow rate at Pn (15 °C- 1013 mbar) Natural gas H (G20)

Gas flow rate at Pn Butane (G30) Kg/h 1.79

Maximum temperature (Safety thermostat cut-off) °C 110

Characteristics of the heating
circuit

Characteristics of the
domestic hot water circuit

Double coil hot water tank Water content Top up volume Aux V l 100

Diemasol A solar regulator Ambient temperature °C 0 - 40

Electrical specifications Electrical connection V / Hz / A 230 / 50 / 6

Nominal water flow (

Rated net head (1000 l/h) mCE 1

Flow temperature °C 30 - 90

Maximum pressure bar 3

Expansion vessel l 12

Initial pressure of the expansion vessel bar 0.75

Minimum operating pressure bar 0.3

Specific flow at ∆T = 30K (2) (3) l/min 19

Flow per hour at ∆T = 35K (1) (3) l/h 560

Flow in 10 min at ∆T = 30K (2) (3) l/10 mm 190

Boiler heat exchanger Maximum operating temperature °C 90

Solar exchanger Glycol water capacity l 5.0

Performance Standby consumption ∆T = 45K, TotalV kWh/24h 2.3

Storage temperature °C -20 - +70

Range of measurement °C -40 - +250

Max. current A / V 4 / 250

Power consumption VA about 2

Power consumption W 1 - 134

Insulation class DIN 40050 IP 42 (IPX2D)

Battery backup (Control panel) 2 years

∆T = 20 K) l/h 1000

Nominal output kW 23.7

Minimum output

Nominal output kW 22.0

Minimum output kW 5.7

Nominal output kW 22.8

Minimum output kW 5.9

40 / 30 °C (4) % 110.1

30% Pn,Return temperature 30 °C % 110

Natural gas L (G25)

Solar volume Sun V l 100

Max operating pressure, DHW bar 10

Water content l 4.7

Exchange surface

Exchange surface

Cooling constant Cr Wh/24h·L·K 0.26

kW 6.0

3

m

/h

3

/h

m

2

m

2

m

2.41

2.80

0.7

1.0

minimum

15/10/2009 - 300017555-001-C SGC 24 SOL

17

7. Technical characteristics

Boiler SGC 24 SOL

Dimensions Height mm 1710

Width mm 600

Depth mm 657

Shipping weight kg 196

(1) Heat exchanger inlet temperature: 80 °C

Domestic hot water temperature: 45 °C

(2) DHW setting: 60 °C

Average domestic hot water temperature: 40 °C
Boiler setting: 80 °C

8 Energy savings

8.1 Energy-saving advice

` Keep the room in which the boiler is installed well ventilated.

` Do not obstruct aeration grates (even partially). They help to

reduce humidity in the home. The more humid a home, the
more heating it consumes.

` Do not cover the radiators. Do not hang curtains in front of the

radiators.

` Install reflector panels behind the radiators.

` Insulate pipes to prevent thermal losses and condensation.

` Turn heating off when airing a room (5 minutes a day is

sufficient)
Avoid deregulating the thermostat. Place the start/stop switch
on Off.

(3) Cold water temperature: 10 °C

` Close the radiators in rooms not in use.

` Do not run hot (or cold) water pointlessly.

` Fit a water-saving shower head to save up to 40 energy.

` Take showers rather than baths.A bath consumes twice as

much water and energy.

` Do not shut down heating completely if you are absent.

Lower the thermostat by 3-4°C.

` Use the sun's heat as much as possible.

8.2 Room thermostat and settings

The type of thermostat and its setting have a considerable influence
on energy consumption.

A few tips:

` A modulable thermostat, possibly in combination with

thermostatic valve radiators, saves energy and offers
considerable comfort. This combination allows you to set the
temperature on each flow.
In the room in which the room thermostat is installed, do not fit
thermostatic valve radiators.

` Completely closing and opening thermostatic valve radiators

causes undesirable temperature fluctuations.
Open and close thermostatic valves in small steps.

` Lower the room thermostat when you air the rooms.

` When setting an hourly programmable thermostat, bear days

when you are absent and holidays in mind.

18

SGC 24 SOL 15/10/2009 - 300017555-001-C

Warranty

7. Technical characteristics

You have just purchased one of our appliances and we thank you
for the trust you have placed in our products. Please note that your
appliance will provide good service for a longer period of time if it is
regularly checked and maintained. Your fitter and our customer
support network are at your disposal at all times.



Warranty terms

Starting from the purchase date shown on the original fitter's
invoice, your appliance has a contractual guarantee against any
manufacturing defect.

The length of the guarantee is mentioned in the price catalogue.
The manufacturer is not liable for any improper use of the appliance

or failure to maintain or install the unit correctly (the user shall take
care to ensure that the system is installed by a qualified fitter). In
particular, the manufacturer shall not be held responsible for any
damage, loss or injury caused by installations which do not comply
with the following:

- applicable local laws and regulations

- specific requirements relating to the installation, such as national
and/or local regulations

- the manufacturer's instructions, in particular those relating to the
regular maintenance of the unit

- the rules of the profession

The warranty is limited to the exchange or repair of such parts as
have been recognised to be faulty by our technical department and
does not cover labour, travel and carriage costs. The warranty shall
not apply to the replacement or repair of parts damaged by normal
wear and tear, negligence, repairs by unqualified parties, faulty or
insufficient monitoring and maintenance, faulty power supply or the
use of unsuitable fuel. Sub-assemblies such as motors, pumps,
electric valves etc. are guaranteed only if they have never been
dismantled.



Italy

The duration of our warranty is shown on the certificate delivered
with the appliance.

Our liability as manufacturer may not be invoked in respect of
incorrect use of the appliance, incorrect or insufficient maintenance
thereof, or incorrect installation of the appliance (you must
therefore ensure that installation and maintenance operations are
carried out respectively by a qualified professional and by an after
sales service company).

The legislation laid down by European Directive 99/44/EEC,
transposed by Legislative Decree No. 24 of 2 February 2002
published in O.J. No. 57 of 8 March 2002, continues to apply.



Russia

The foregoing provisions in no way affect the rights of the
consumer, which are guaranteed by the legislation of the Russian
Federation as regards hidden defects.

The terms and conditions of warranty and the terms and conditions
of application of the warranty are indicated on the warranty form.

The warranty shall not apply as regards the replacement or repair
of wearing parts under normal use. Such parts include
thermocouples, injection nozzles, flame control and ignition
systems, fuses and gaskets.



Turkey

Due to the laws and regulations the product life for this product is
10 years. During that time the producer and/or the distributor has
to provide after sales services and spare parts.

Other countries



The above provisions do not restrict the benefit of the legal laws
regarding hidden defects applicable in the buyer's country.



France

The preceding dispositions are not exclusive of benefits for the
purchaser of the legal guarantee as stated in Civil Code articles
1641 to 1648.

Poland



Warranty conditions are included in the warranty card.



Switzerland

The application of the warranty is subject to the terms and
conditions of sale, delivery and warranty of the company marketing
our products.



Belgium

The preceding dispositions about the contractual guarantee are not
exclusive of profit if the need arises for the purchaser in Belgium of
the applicable legal dispositions on hidden defects.

15/10/2009 - 300017555-001-C SGC 24 SOL

19

FR

DE DIETRICH THERMIQUE S.A.S.

www.dedietrich-thermique.fr

Direction des Ventes France

57, rue de la Gare

F- 67580 MERTZWILLER

[phone]
[phone]

T000249-B

DE

BE

CN

DE DIETRICH REMEHA GmbH

www.dedietrich-remeha.de

Rheiner Strasse 151

D- 48282 EMSDETTEN

+49 (0)25 72 / 23-5

+49 (0)25 72 / 23-102

[e-mail]

VAN MARCKE

www.vanmarcke.be

Weggevoerdenlaan 5

B- 8500 KORTRIJK

+32 (0)56/23 75 11

DE DIETRICH

www.dedietrich-heating.com

Room 512, Tower A, Kelun Building
12A Guanghua Rd, Chaoyang District

C-100020 BEIJING
+86 (0)106.581.4017
+86 (0)106.581.4018
+86 (0)106.581.7056
+86 (0)106.581.4019

[e-mail]

LU

RU

AT

NEUBERG S.A.

www.dedietrich-heating.com

39 rue Jacques Stas

L- 2010 LUXEMBOURG

[phone]

DE DIETRICH

www.dedietrich-otoplenie.ru

129090 г. Москва

ул. Гил яр ов ск ого, д. 8

офис 52

[phone]
[phone]
[e-mail]

ÖAG AG

www.oeag.at

Schemmerlstrasse 66-70

A-1110 WIEN

[phone] - 61624

[phone] - 61569

[e-mail]

CH

WALTER MEIER (Klima Schweiz) AG

www.waltermeier.com

Bahnstrasse 24

CH-8603 SCHWERZENBACH

[phone]

Serviceline [phone]

[phone]

[e-mail]

WALTER MEIER (Climat Suisse) SA

www.waltermeier.com

Z.I. de la Veyre B, St-Légier

CH-1800 VEVEY 1
[phone]

Serviceline [phone]

[phone]

[e-mail]

© Copyright

All technical and technological information contained in these technical instructions, as well as any
drawings and technical descriptions supplied, remain our property and shall not be multiplied
without our prior consent in writing.

Subject to alterations.

15/10/2009

AD001NU-AC

DE DIETRICH THERMIQUE
57, rue de la Gare F- 67580 MERTZWILLER - BP 30
