Layer 3 Enhanced CCTV Switch
A fundamental component in Dedicated Micros award winning
Closed IPTV solution – the Layer 3 Enhanced CCTV Switch
offers a simple plug and play solution for IP cameras. Specifically
designed for IP CCTV networks the switch provides a zero configuration solution for IP cameras allowing installers to deploy a
safe, secure and simple IP CCTV solution.
SIMPLE INSTALLATION OF AN IP CCTV NETWORK
The deterministic nature of Closed IPTV means that it is very
simple to add and set up cameras to a Closed IPTV system.
Through the Layer 3 Enhanced CCTV Switch cameras are automatically allocated IP addressed and assigned to specific network
ports removing the need for any manual intervention and rapidly
decreasing the time it takes to install and IP CCTV system.
TRUSTED ENDPOINTS
Critical to the security of a Closed IPTV system is the implementation of Trusted Endpoints. A Trusted Endpoint has a unique
secret signature that is shared and verified with the switch and
DVR. Even if the Endpoint can be spoofed (the IP address, MAC
address etc. copied to another device such as a laptop) the signature cannot so and rogue interference with the Closed IPTV
network will immediately trigger a security alert. *
SECURE NETWORK MODES
From restricting the communication between end points and
locking traffic by MAC address to removing access to the
General/Corporate network via an exposed endpoint such as
a camera – the Layer 3 Enhanced CCTV Switch offers a wide
range of secure network modes to be enabled on a Closed
IPTV system depending on the requirement of the user making
the system totally secure with a single click.
AUTOMATIC ASSIGNMENT OF CAMERA SETTINGS
Using the Layer 3 Enhanced CCTV Switch a Closed IPTV
network can determine the capability of any connected camera
and automatically assign appropriate default settings to the
camera based on features such as; resolution, telemetry, aspect
ratio, lens configuration, alarms and audio.*
INCREMENTAL IP GROWTH
Cascading multiple switches together enables the Closed IPTV
system to grow incrementally, all the time retaining its secure
capabilities thanks to its unique Closed IPTV technology.
FEATURES
Specifically designed for IP CCTV networks
Fundamental part of Dedicated Micros award winning
Closed IPTV solution
Deterministic IP camera assignment to network port
Traffic management on a port by port basis
Create Trusted Endpoints that protect your CCTV and
Corporate networks from unwanted intrusion
Security settings allow Closed IPTV system to be tailored to
how you want it
Automatic assignment of cameras to channels on a DVR /
Video Server removes the need to manually assign IP ad
dresses, simplifying the process and reducing cost
Allows installers to deploy a safe, secure and simple IP
CCTV solution
Transparent Camera Configuration
16 network ports (10/100 BaseT) with PoE option
4 cascade / uplink ports (1x Primary Host, 1x Public Port, 2x
Configurable )
Cascade Layer 3 Enhanced CCTV switches together to create
a large installed system
PoE capability enables power to be supplied direct to camera
products using standard ethernet cabling
SPECIFICATION
Partcode Description
DM/NSW/CP 16 port Layer 3Enhanced CCTV Switch
DM/NSW/CPP 16 port Layer 3Enhanced CCTV Switch, POE

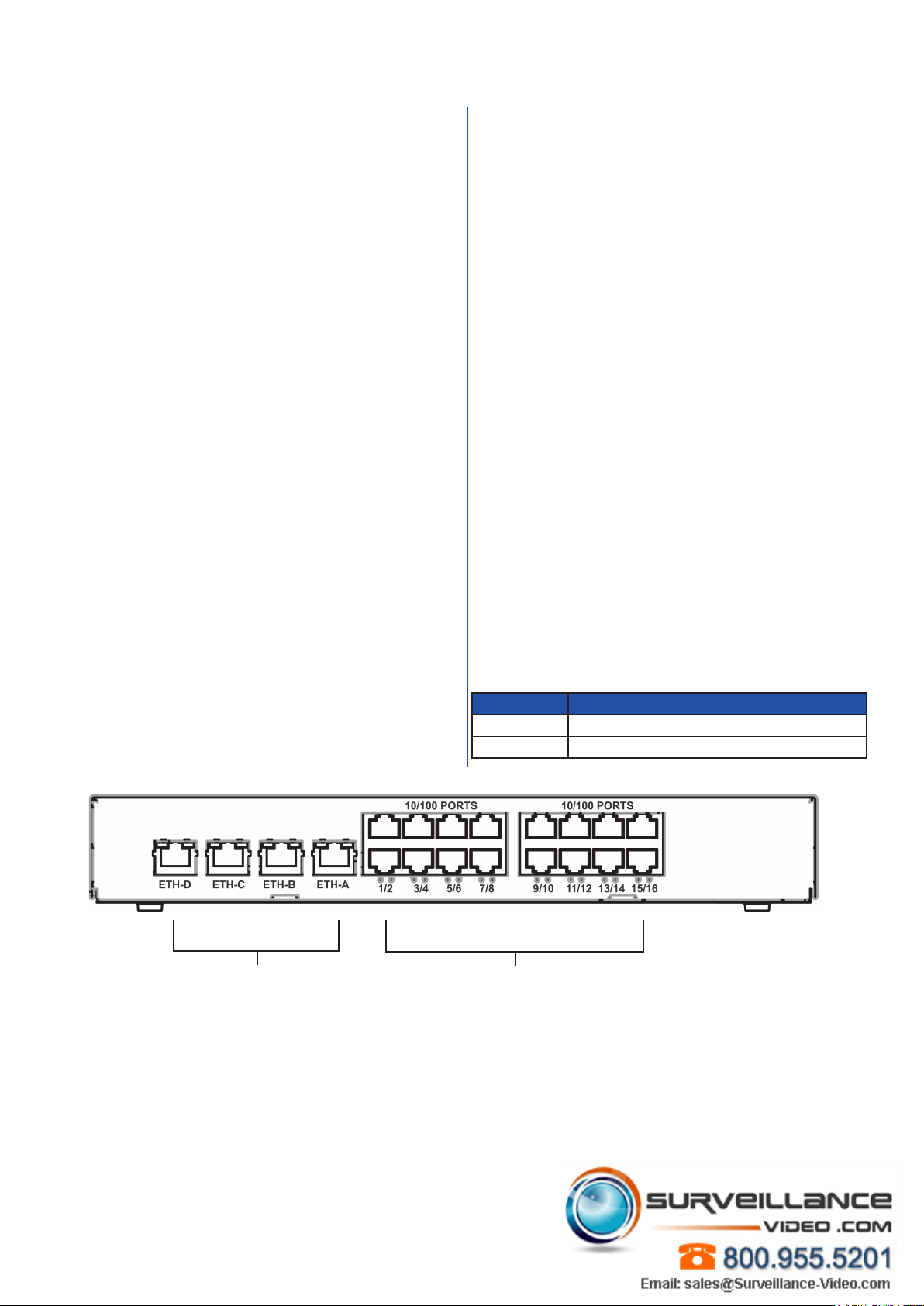

16 x 10/100 Ethernet Connections for Closed
IPTV Cameras
ETH-A: Closed IPTV Control Port - Connect
Directly to DVR
ETH-B: General/Corporate Network Port Access public network (lockable)
ETH-C: Closed IPTV Cascade Port connnects to additional Layer 3 Switches
ETH-D: Zero_Conf Network Port
CLOSED IPTV
Dedicated Micros’ ground breaking Closed IPTV solution makes
deploying an IP Video, CCTV system safe, secure and simple. Combining patent-pending innovation with zeroconf networking technology, Closed IPTV automatically allocates IP addresses to IP cameras
by physical port. In this way the system is completely deterministic,
creating firewalls and monitoring IP connections by individual network
ports so they cannot be hacked or intercepted. This ground breaking
solution provides a very simple and secure answer to IP Video, meaning that no prior knowledge of IP networking is required. Sophisticated and Dependable network security can be achieved with a single
click.
Closed IPTV includes a range of products such as DVRs, NVRs and
static and PTZ cameras and 3rd Party Camera Encoders.
CABLING TYPE
Category 5 Ethernet or higher
ACCESS CONTROL
MAC-based access control lists (ACLs)
DISPLAY
Link/Activity per port
DATA PORTS
16 x Ethernet Ports for direct connection of IP Cameras (10/100 RJ-45
connections)
4 x Cascade / Uplink Ports (1000BASE-T RJ-45 connections)
1 x Host Port for Closed IPTV Cascading
1 x Corporate / General Network Port
2 x Configurable Ports (private / cascade ports)
POWER SUPPLY
DM/NSW/CP: External 12V DC power supply (included)
DM/NSW/CPP: External 48V DC power supply (included)
SECURE MODE SETTINGS
Apply a range of security features – relevant to the Closed IPTV
installation with a single click. Any violation of these settings (such
as an unauthorised user attempting to take control of a camera)
will automatically create a security alert with the operator.
Restrict endpoints – Endpoints such as cameras do not have network access to other endpoints
Restrict General / Corporate Network Access – Prevents access to
the General network from any endpoint
Lock by MAC Address – Lock network ports to specific MAC addresses at an endpoint.
Trusted Endpoint – Unique signature verification of the video signal
shared between the camera, switch and DVR/Video Server means
that if tampered with at all (such as an attempt to duplicate the
MAC address of the camera) a security alert is raised.
Restrict Multicast – No one network endpoint can gain access to
video from any other cameras or endpoints on the network.
Firewall settings – Prevents any endpoint from opening a connection to a TCP server on the network and performing malicious
activities such as a DoS Attack
WEIGHTS & MEASURES
Dimensions: 45mm (H) x 258mm (W) x 146mm (D)
Weight: 1.18 kg excluding PSU
TEMPERATURE RANGE
Temperature Range: 5 – 40oC
RELATIVE HUMIDITY
Relative Humidity: 10% - 85% Non-condensing
WARRANTY
1 Year
