1. Introduction

Manufactured to the highest standards, this enclosure offers weatherproof protection to IP65 of
BS EN.60529 and is supplied with an adjustable bracket.

504 Installation Manual Page. 1

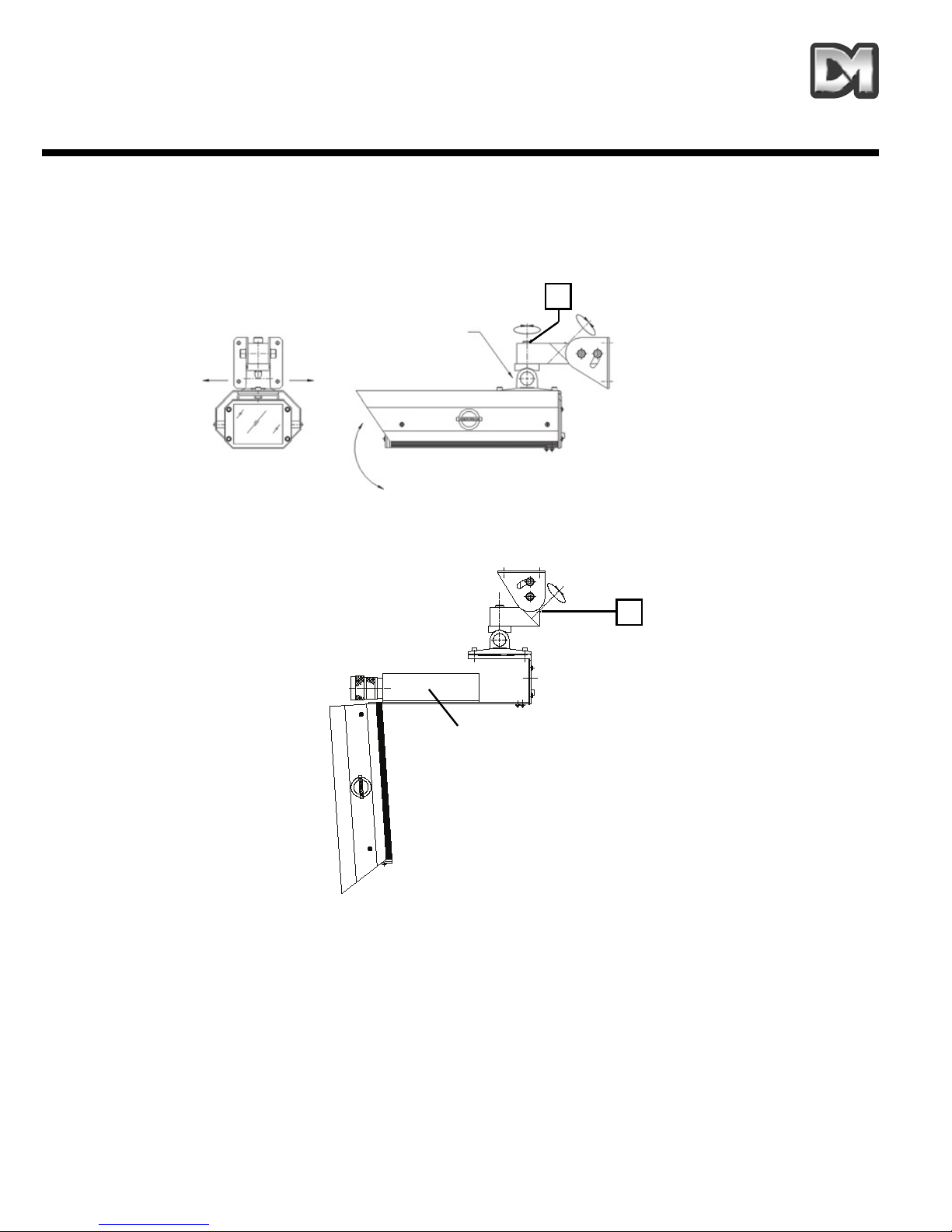

Fig.1 Camera fitment

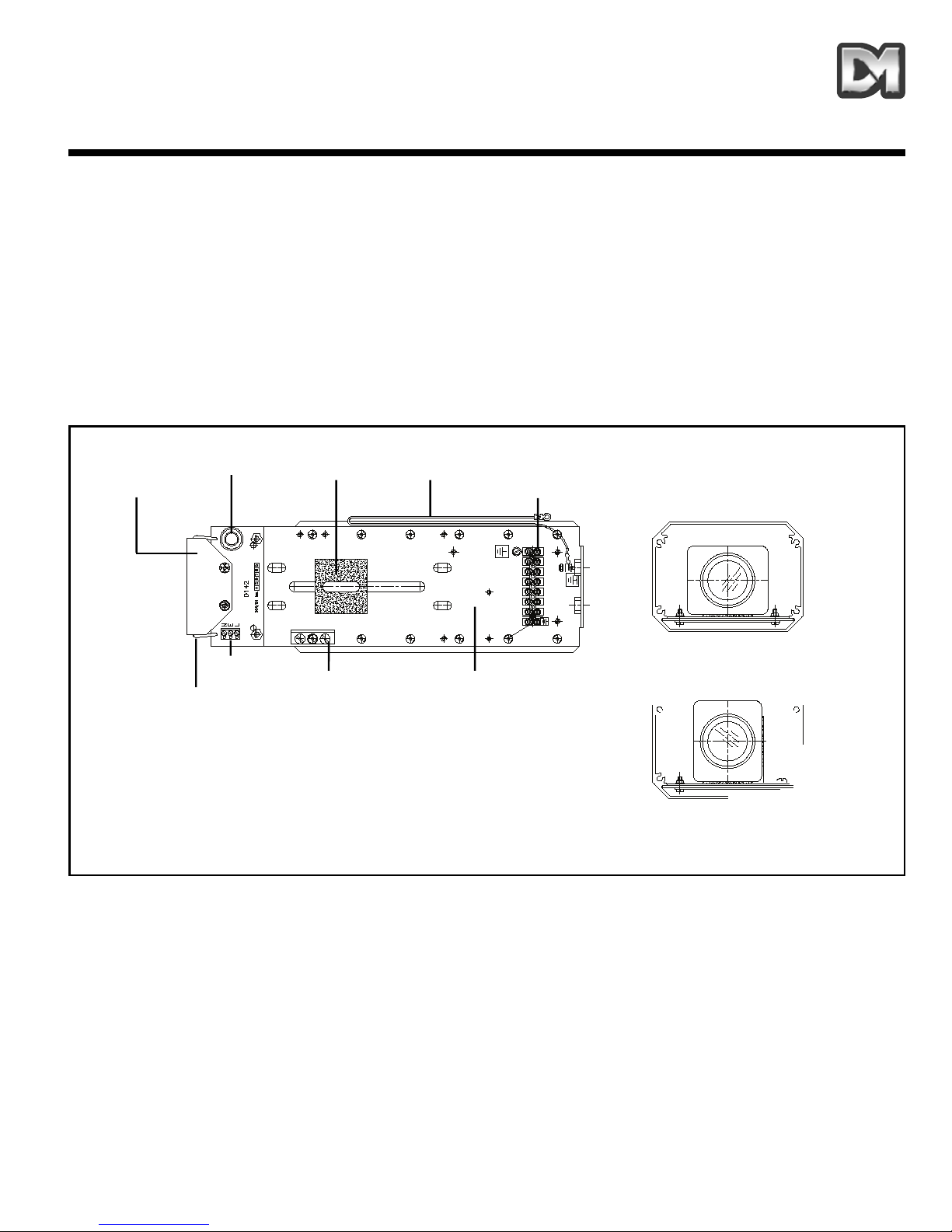

Fig.2 Circuit Diagram

Thermostat opens at 20 Deg.C rising temp

Stat.1

H1

N E L

P.C.B Earth

Chassis Earth

T.B.1

Stat.1 = 20 Deg/C Thermostat.

H1 = 12.25W Resistor 4K7 - 240Va.c.

12.25W Resistor 1K - 110Va.c.

12.25W Resistor 47R - 24Va.c.

12.25W Resistor 10R - 12Va.c.

T.B.1 = 3 Way terminal block.

Hole size depends on fixing method chosen.

72mm

72mm

101.6mm P.C.D.

1.

Mark position of mounting holes.

2. Drill holes to suit fixing method

chosen.

3. Attach mount to wall using fixings

provided.

Note: Bracket has 7mm dia. clearance

holes.

Specification:
Material: Aluminium alloy extrusion Heater Voltage: 240V, 110V, 24V, 12V
Finish: Powder coated and stoved Heater Power: 12.25W
Weight: 5kg IP Rating: 65
