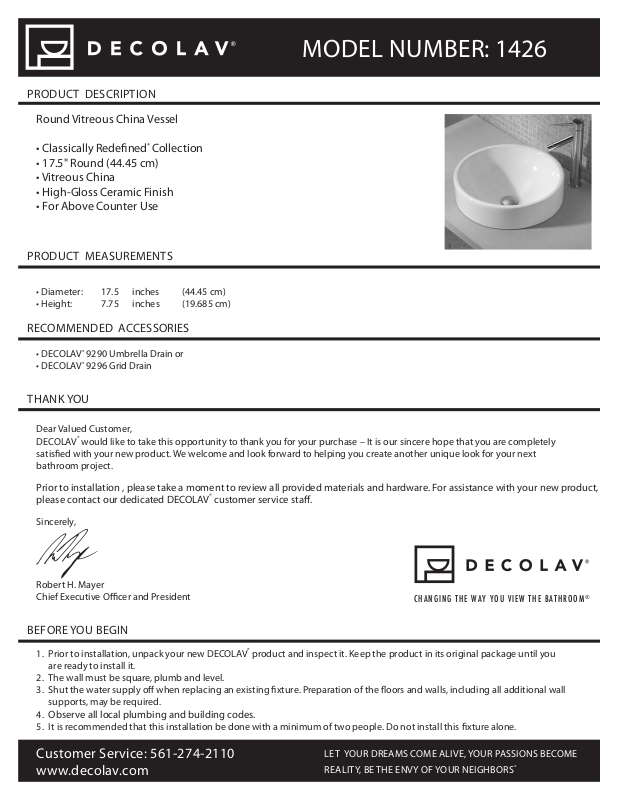

PRODUCT DESCRIPTION
Round Vitreous China Vessel
• Classically Rede ned® Collection
• 17.5" Round (44.45 cm)
• Vitreous China
• High-Gloss Ceramic Finish
• For Above Counter Use
PRODUCT MEASUREMENTS
• Diameter: 17.5 inches (44.45 cm)
• Height: 7.75 inches (19.685 cm)
RECOMMENDED ACCESSORIES
MODEL NUMBER: 1426
• DECOLAV® 9290 Umbrella Drain or
• DECOLAV® 9296 Grid Drain
THANK YOU
Dear Valued Customer,
DECOLAV® would like to take this opportunity to thank you for your purchase – It is our sincere hope that you are completely
satis ed with your new product. We welcome and look forward to helping you create another unique look for your next
bathroom project.
Prior to installation , please take a moment to review all provided materials and hardware. For assistance with your new product,
please contact our dedicated DECOLAV® customer service sta .
Sincerely,
Robert H. Mayer
Chief Executive O cer and President
CHANGING THE WAY YOU VIEW THE BATHROOM
BEFORE YOU BEGIN
®
1. Prior to installation, unpack your new DECOLAV® product and inspect it. Keep the product in its original package until you
are ready to install it.
2. The wall must be square, plumb and level.
3. Shut the water supply o when replacing an existing xture. Preparation of the oors and walls, including all additional wall
supports, may be required.
4. Observe all local plumbing and building codes.
5. It is recommended that this installation be done with a minimum of two people. Do not install this xture alone.
Customer Service: 561-274-2110
www.decolav.com
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS BECOME
REALITY, BE THE ENVY OF YOUR NEIGHBORS
®
RECOMMENDED TOOLS
MODEL NUMBER: 1426
2
Tape Measure
Phillips
Screwdriver
Pencil
Adjustable Wrench
Pipe Wrench
Square Ruler
ROUGHINGIN DIMENSIONS
Finished Wall
1 3/8" [3.4925 cm]
Faucet Hole
1 3/4"
[4.445 cm]
Drain
Hole
Pipe Clamp
Plumber’s Putty or
Caulking
Fitting Line
Channel Locks
Putty Knife
2 1/2" [6.35 cm]
Flathead
Screwdriver
2" [5.08 cm]
Sugg.
Drill
Sugg.
Hacks aw
Scroll Saw
Level
Pipe Cutter
17 1/2" [44.45 cm]
Top View
17 1/2" [44.45 cm]
7 3/4"
[19.685 cm]
8" [20.32 cm]
Supplies as
Suggested
34" [86.36 cm]
required
[3.175 cm]
Finished Floor
Front View
Customer Service: 561-274-2110
www.decolav.com
1 1/4"
Waste
Countertop
Finished Wall
6 1/2"
8 1/2"
[16.51 cm]
[21.59 cm]
8 1/2" [21.59 cm]
Suggested
34" [86.36 cm]
Finished Floor
Side View
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS BECOME
REALITY, BE THE ENVY OF YOUR NEIGHBORS
®
MODEL NUMBER: 1426
PAR TS
Item Description Qty
A Round Vitreous China Vessel 1
• NOTE: Cutout Template Included
A
INSTALLATION INSTRUCTIONS
• STEP #1
o A x Template provided for Countertop at desired location with Cellophane Tape.
o Mark guidelines on Countertop in several places.
o Drill a clearance hole approximately ¼" to ½" (0.635cm – 1.27cm) inside the perimeter line of
Template.
o Cut opening following the perimeter line of Template.
3
Clearance Hole Cut Opening
• STEP #2
o Check for cutout alignment by placing Lavatory (A) in desired mounting position.
Lavatory
Countertop
Customer Service: 561-274-2110
www.decolav.com
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS BECOME
REALITY, BE THE ENVY OF YOUR NEIGHBORS
®
MODEL NUMBER: 1426
INSTALLATION INSTRUCTIONS
• STEP #3
o Apply Plumber’s Putty or Caulking around the underside of rim near the edge as shown.
o Carefully lower Lavatory in place, align, and press rmly.
o Wipe o excess sealant.
o Refer to Figure #1.
o NOTE: ALLOW SEALANT TO SET BEFORE PROCEEDING!
Apply Plumber’s Putty
or Caulking here
4
• STEP #4
o NOTE: DRAIN SHOWN, DECOLAV
®
9290 UMBRELLA DRAIN, IS A RECOMMENDED
ACCESSORY AND NOT INCLUDED!
o Install Drain according to manufacturer’s installation instructions.
o NOTE: DO NOT OVERTIGHTEN DRAIN!
o Refer to Figure #2.
Lavatory
Drain
Thick Washer
Drain Nut
Tailpiece
Countertop
Figure #1
Thick Washer
Drain Nut
Drain
Figure #2
Customer Service: 561-274-2110
www.decolav.com
Tailpiece
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS BECOME
REALITY, BE THE ENVY OF YOUR NEIGHBORS
®
MODEL NUMBER: 1426
INSTALLATION INSTRUCTIONS
• STEP #5
o NOTE: WASTE SYSTEM SHOWN IS NOT INCLUDED!
o Install Waste System according to manufacturer’s installation instructions.
o Refer to Figure #3.
Waste System
5
Slip Joint Nut
Washer
Bottle Trap
Slip Washer Nut
Washer
Wall Cover
Horizontal Leg
Figure #3
• STEP #6
o Install faucet and water supply according to manufacturer’s installation instructions.
o NOTE: FAUCET AND WATER SUPPLY NOT INCLUDED!
o Check for leakage.
Customer Service: 561-274-2110
www.decolav.com
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS BECOME
REALITY, BE THE ENVY OF YOUR NEIGHBORS
®
CARE AND CLEANING
MODEL NUMBER: 1426
6
• DO NOT OVERTIGHTEN DRAIN. Overtightening of the drain can damage your DECOLAV® product.
DO NOT clean the product with Detergents, Acid, Abrasives, Harsh Cleaners or a cloth with a coarse surface (S.O.S.
•
This is good advice for any plumbing xture regardless of material.
DO NOT leave any cleaning agents other than water on your DECOLAV
•
DO NOT allow your DECOLAV
•
DO clean your DECOLAV
•
used. Use a mild furniture polish to clean wood frame.
DO clean underside of your DECOLAV
•
DO wipe your DECOLAV
•
DO clean your DECOLAV
•
DECOLAV® recommends proper sealing of ALL natural stone products PRIOR TO INSTALLATION.
•
®
product to unnecessarily encounter other solid objects.
®
product. Wipe with a damp cloth and dry with a soft cloth. If necessary, a general mild soap and water solution can be
®
®
product with a clean, dry, soft cloth after each use, as it will limit water spots, especially in hard water areas.
®
mirror. Wipe with a glass cleaner and a clean soft cloth. Use a mild furniture polish to clean wood frame.
product with mild soap and water ONLY.
®
product.
®
Pads, Scotch Brite® Pads).
FULL LIFETIME WARRANTY
Any Deco Lav, Inc. (“DECOLAV”) product(s), sold after January 1, 2006, will be warranted to the original end consumer to be free of true defect(s) in
material and workmanship for life of the product(s) subject to the following restrictions:
• DECOLAV is noti ed promptly in writing, via fax or mail, by the Retail/Wholesale Purchaser upon discovery of any alleged defect(s) in the product(s),
including a detailed description of the alleged defect(s).
• Proof of purchase (original sales receipt) from the original end consumer must be made available to DECOLAV for all warranty claims.
• Authorized DECOLAV personnel has inspected the product(s) and determined the product(s) to have true manufacturing defect(s).
• Such product(s) are returned to DECOLAV (unless other arrangements satisfactory to DECOLAV have been agreed upon).
This Lifetime Warranty is non-transferable and applies only to the original end consumer and to the original installation of the product(s). This Lifetime
Warranty is void if the product(s) has been moved from its initial installation site or if ownership of the product(s) has changed.
THIS LIFETIME W ARRANTY DOES NOT C OVER AN Y D AM A GES CAUSED BY SHIPPING, MISUSE, ABUSE, ACCIDENTS, NEGLECT, UNAUTHORIZED REPAIRS OR ALTERATIONS, MODIFICATIONS,
USE OF OTHER THAN GENUINE DECOLAV REPLACEMENT PARTS, DIRT, LIME SCALE, AND OTHER MINERALS, SCUFFS AND SCRATCHES, EXPOSURE TO MARINE AREAS, ABNORMAL
USAGE, AND NORMAL WEAR AND TEAR. ANY IMPROPER INSTALLATION, IMPROPER MAINTENANCE, IMPROPER HANDLING, IMPROPER AND CONTRARY USES NOT STATED WITHIN
INSTRUCTIONS, AND ALL ACTS BEYOND DECOLAV’s CONTROL WILL VOID THIS LIFETIME WARRANTY.
DECOLAV’s product(s) are produced from natural raw materials and there is a slight color variance. This is NOT a manufacturing defect(s) and will not be
covered under this Lifetime Warranty.
This Lifetime Warranty does not apply to local building code compliance. Since local building codes vary considerably, the original end consumer of the
product(s) should check with a local building or plumbing contractor to ensure local code compliance before installation.
This Lifetime Warranty does not cover any mechanical pieces of any DECOLAV product(s). These mechanical pieces will be covered under a One Year
Warranty, based on the same criteria as this Lifetime Warranty, from the date of the initial purchase.
Upon satisfaction of each of the foregoing conditions and requirements, DECOLAV shall, at its option, either repair or replace such defective product(s).
DECOLAV shall return any product(s) repaired or replaced under this Lifetime Warranty to the original end consumer transportation prepaid. All Closeout/
Discontinued product(s), at time of claim, will either be repaired or replaced with a comparable item.
DECOLAV’s option to repair or replace the product(s) under this Lifetime Warranty does not cover any cost of labor to remove or install the DECOLAV
product, usage and delay time, or other costs of removal or installation whatsoever.
OF ANY INSTALLATION MATERIALS, INCLUDING BUT NOT LIMITED TO, TILES, MARBLE, ETC.
This Lifetime Warranty does not cover any liability for consequential or incidental damages, all of which are hereby expressly disclaimed, or the extension
beyond the duration of this Lifetime Warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
THE WARRANTIES HEREIN (A) ARE EXCLUSIVE AND STATED IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS, STATUTORY, OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR AN INTENDED PURPOSE, ALL OF WHICH ARE HEREBY
EXPRESSLY DISCLAIMED; (B) NEITHER ASSUME NOR AUTHORIZE PURCHASER NOR ANY OTHER PARTY TO ASSUME FOR DECOLAV ANY OTHER
LIABILITIES IN CONNECTION WITH THE MANUFACTURE OR SALE OF PRODUCTS; AND (C) ARE SUBJECT TO THE LIMITATIONS ON DAMAGES AS SET
FORTH ABOVE
IN NO EVENT WILL DECOLAV BE LIABLE FOR THE COST OF REPAIR OR REPLACEMENT
