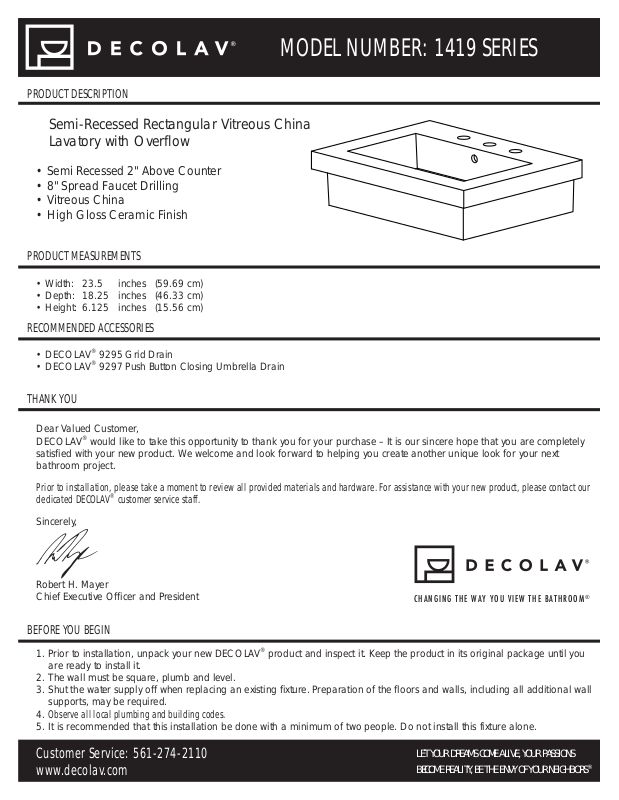

Decolav 1419 User Manual
MODEL NUMBER: 1419 SERIES
MODEL NUMBER: 1419 SERIES
PRODUCT DESCRIPTION
Semi-Recessed Rectangular Vitreous China
Lavatory with Overflow
• Semi Recessed 2" Above Counter
• 8" Spread Faucet Drilling
• Vitreous China
• High Gloss Ceramic Finish
PRODUCT MEASUREMENTS
• Width: 23.5 inches (59.69 cm)
• Depth: 18.25 inches (46.33 cm)
• Height: 6.125 inches (15.56 cm)
RECOMMENDED ACCESSORIES
1
• DECOLAV® 9295 Grid Drain
• DECOLAV® 9297 Push Button Closing Umbrella Drain
THANK YOU
Dear Valued Customer,
DECOLAV® would like to take this opportunity to thank you for your purchase – It is our sincere hope that you are completely
satisfied with your new product. We welcome and look forward to helping you create another unique look for your next
bathroom project.
Prior to installation, please take a moment to review all provided materials and hardware. For assistance with your new product, please contact our
dedicated DECOLAV® customer service staff.
Sincerely,
Robert H. Mayer
Chief Executive Officer and President
CHANGING THE WAY YOU VIEW THE BATHROOM
BEFORE YOU BEGIN
®
1. Prior to installation, unpack your new DECOLAV® product and inspect it. Keep the product in its original package until you
are ready to install it.
2. The wall must be square, plumb and level.
3. Shut the water supply off when replacing an existing fixture. Preparation of the floors and walls, including all additional wall
supports, may be required.
4. Observe all local plumbing and building codes.
5. It is recommended that this installation be done with a minimum of two people. Do not install this fixture alone.
Customer Service: 561-274-2110
www.decolav.com
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS
BECOME REALITY, BE THE ENVY OF YOUR NEIGHBORS
®
RECOMMENDED TOOLS
MODEL NUMBER: 1419 SERIES
2
Tape Measure
Drill
ROUGHING-IN DIMENSIONS
8" [20.3cm]
2½"
[6.4cm]
Scroll Saw
23½"
[59.7cm]
TOP VIEW
Pencil
OPTIONAL
7½"
[19.1cm]
18¼"
[46.4cm]
Level
Finished Wall
Apron
[2.5cm]
1"
Pipe Wrench
Lavatory
Sealant
Finished Wall
Countertop
7½"
[19.1cm]
10"
[25.4cm]
Finished Floor
Customer Service: 561-274-2110
Customer Service: 561-274-2110
www.decolav.com
www.decolav.com
8"
[20.3cm]
FRONT VIEW
[10.4cm]
Supplies as
required
Ø 1¼"
[3.2cm]
Waste
34"
[86.4cm]
MAX.
8"
[20.3cm]
1
6
1
4
/8"
/8"
[15.5cm]
29"
[73.7cm]
MIN.
27"
[68.6cm]
MIN.
MIN.
6"
BARRIER FREE
CLEARANCE
[43.2cm]
Finished Floor
SIDE VIEW
