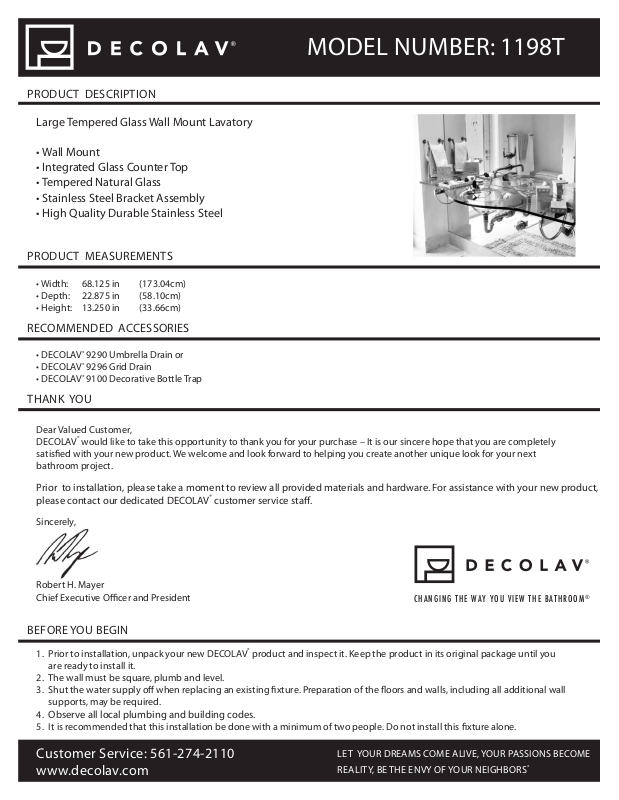

Decolav 1198T User Manual
PRODUCT DESCRIPTION
Large Tempered Glass Wall Mount Lavatory
• Wall Mount
• Integrated Glass Counter Top
• Tempered Natural Glass
• Stainless Steel Bracket Assembly
• High Quality Durable Stainless Steel
PRODUCT MEASUREMENTS
• Width: 68.125 in (173.04cm)
• Depth: 22.875 in (58.10cm)
• Height: 13.250 in (33.66cm)
RECOMMENDED ACCESSORIES
MODEL NUMBER: 1198T
• DECOLAV® 9290 Umbrella Drain or
• DECOLAV® 9296 Grid Drain
• DECOLAV® 9100 Decorative Bottle Trap
THANK YOU
Dear Valued Customer,
DECOLAV® would like to take this opportunity to thank you for your purchase – It is our sincere hope that you are completely
satis ed with your new product. We welcome and look forward to helping you create another unique look for your next
bathroom project.
Prior to installation, please take a moment to review all provided materials and hardware. For assistance with your new product,
please contact our dedicated DECOLAV® customer service sta .
Sincerely,
Robert H. Mayer
Chief Executive O cer and President
CHANGING THE WAY YOU VIEW THE BATHROOM
BEFORE YOU BEGIN
®
1. Prior to installation, unpack your new DECOLAV® product and inspect it. Keep the product in its original package until you
are ready to install it.
2. The wall must be square, plumb and level.
3. Shut the water supply o when replacing an existing xture. Preparation of the oors and walls, including all additional wall
supports, may be required.
4. Observe all local plumbing and building codes.
5. It is recommended that this installation be done with a minimum of two people. Do not install this xture alone.
Customer Service: 561-274-2110
www.decolav.com
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS BECOME
REALITY, BE THE ENVY OF YOUR NEIGHBORS
®
RECOMMENDED TOOLS
MODEL NUMBER: 1198T
2
Tape Measure
Phillips
Screwdriver
Pencil
Adjustable Wrench
Pipe Wrench
Square
ROUGHINGIN DIMENSIONS
14 1/4" [36.20 cm]
3 1/8"
[7.62 cm]
8 5/8"
[21.91 cm]
15" [38.10 cm]
1 3/4" [4.45 cm]
Pipe Clamp Channel Locks
Plumber’s Putty
or Caulking
Putty Knife
Ruler
68 1/8" [173.04 cm]
14 1/4" [36.20 cm]
3 1/8"
[7.62 cm]
6 3/4" [17.15 cm]
1 1/4"
[3.18 cm]
1 3/4" [4.45 cm]
Waste
8 5/8"
[21.91 cm]
Drill
Flathead
Screwdriver
Suggested
Hack saw
Scroll Saw
22 7/8" [58.12 cm]
13 1/4" [33.66 cm]
Level
Pipe Cutter
Front View
16 1/2" [41.91 cm]
22 7/8" [58.12 cm]
Customer Service: 561-274-2110
www.decolav.com
Top View
68 1/8" [173.04 cm]
34 1/16" [86.52 cm]
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS BECOME
REALITY, BE THE ENVY OF YOUR NEIGHBORS
34" [86.36 cm]
Side View
17" [43.18 cm]
1 3/4" [4.45 cm]
Drain Hole
®
PAR TS
MODEL NUMBER: 1198T
3
A
Item Description Qty
A Glass Top 1
B Glass Top Brace 2
C Glass Top Support 4
D 8mm Concrete Anchors 8
B
C
D
INSTALLATION INSTRUCTIONS
• STEP #1
o To ensure adequate support, DECOLAV recommends removing wall board and re-enforcing area with
2" x 4" Wall Crosspieces.
o Drill Mounting Holes in Finished Wall through Wall Support Crosspieces.
o Refer to Figure #1.
41 1/4" [104.78 cm]
Eight (8) Lavatory
Mounting Holes
37 3/4
"
[95.89 cm]
Lavatory Wall Support
Crosspieces
Figure #1
Customer Service: 561-274-2110
www.decolav.com
22 1/4" [56.52 cm]
30 7/8" [78.42 cm]
LET YOUR DREAMS COME ALIVE, YOUR PASSIONS BECOME
REALITY, BE THE ENVY OF YOUR NEIGHBORS
®
