DECKED DS2 User Manual

Installation Instructions:

DS2

FORD SUPER DUTY

6’9” BED LENGTH

20092016

TOOLS REQUIRED

• Adjustable wrench (that opens to about 1”)

• 1/2” open end wrench

• #2 Phillip screwdriver

• 3/8” socket

Watch short installation videos at www.decked.com/video | Register your system at www.decked.com/warranty

FOLLOW US:

VERSION 4

DECKED.COM | [e-mail] | 208.806.0251

• 7/16” deep socket

• 7/32” Allen wrench

• 1/2” drill bit

• Wire cutters

• 10 mm socket or open end wrench

@DECKEDUSA | #DECKEDUSA

CONTENTS

DECKED carton

LEFT/DRIVER deck half - 1
RIGHT/PASSENGER deck half - 1
Center vert - 1
Drawer - 2
Cabside ammo can - 2
Tailgate side ammo can - 2
Ammo can lid - 4
Ammo can window - 2
C-channel - 2
Ruler - 1
Hardware box - 1

Hardware box - unbagged components

(inside DECKED carton):

Weather strips - 2

Handle - 1

Bottle opener - 1

▼ ASSEMBLY OVERVIEW ▼

HARDWARE box - bagged components

PREP SD/TUN - 1

CCHANNEL HW  1

BOLT 1 FS - 1

CS AMMO CANS - 1

J8 - 2

J10 - 2

DRAWER 1  1

DRAWER 3  1

HANDLE  1

WHEELS  1

FINAL FS  1

PREPEXTRA  1

LEFT/DRIVER

DECK HALF

AMMO CAN

WINDOW

COVER

JHOOK

ATTACHMENTS

RIGHT/PASSENGER
DECK HALF

AMMO
CAN LID

CABSIDE AMMO
CAN

RULER

CCHANNEL

TAILGATE
AMMO CAN

CENTER VERT DRAWER

Page 2 | v.4 | DS2 DECKED. COM | #DECKEDUSA | @DECKEDUSA

▼ HEY! TORQUE BOY: READ BEFORE YOU INSTALL DECKED ▼

1. DON’T be an idiot read the instructions.

2. DON'T over tighten bolts, get em' hand-tight.

3. DON'T use power tools.

4. If you don't follow directions and do use power tools:

1). Set clutch at a very low setting. 2). If you blow it, see NOTE.*

NOTE* Two extra threaded inserts are included in BAG PREP-EXTRA. That’s all you get. The inserts will replace any

stripped inserts in the tailgate ammo cans, but NOT THE CENTER VERT, so hand tighten until snug only! You can
also screw the inserts back in if dislocated. There is a straight screwdriver slot on the underside of the insert.

TAILGATE ammo cans have wide bottoms; CABSIDE ammo cans have narrow bottoms.
NOTE: You will need a buddy to help with exactly two steps, not including draining the sixpack or snapping

pics of you posing.

5. DON'T over tighten J-hooks during installation.
Make 'em good and snug enough to keep the
system from moving in the bed.

6. Nice job if you’re still reading .

Prevent abusive, expletitive-filled language, watch our detailed installation video

or give us a call. We’re happy to help!

[e-mail] | 208.806.0251 | DECKED.COM/INSTALLVIDEO

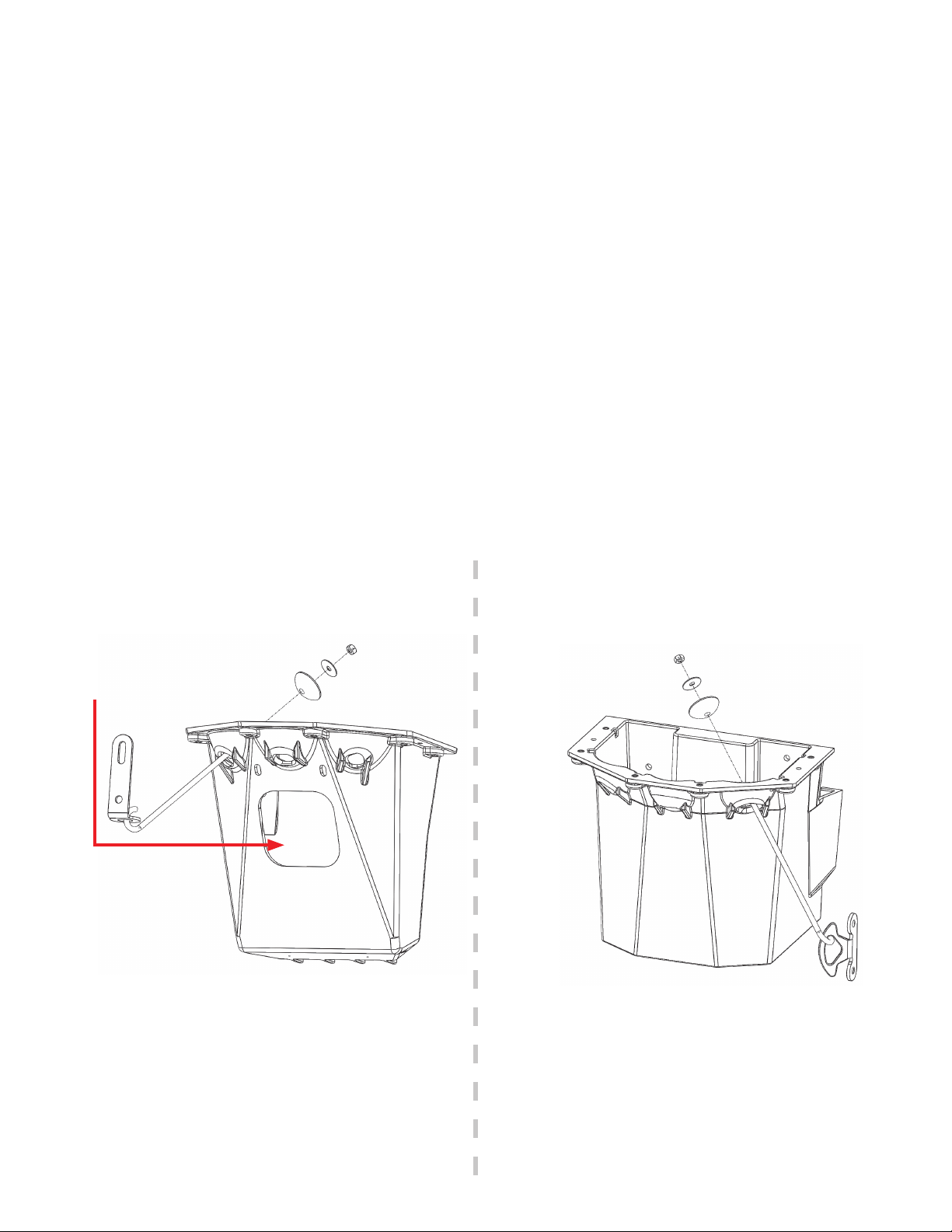

AMMO CAN DRAIN HOLES

(TO DRILL OR NOT TO DRILL.)

• Do you use a tonneau or shell over your DECKED system?
There is no need to drill holes.

• Does your DECKED system live outside?

The ammo cans will get water in them. You’ll need to drill holes in the ammo cans.
There are two dimples in the bottom of each ammo can. Drill a 1/2” hole at each dimple. A smaller hole
will get clogged.

DECKED. COM | #DECKEDUSA | @DECKEDUSA DS2 | v.4 | Page 3

PREP BED

(JUST LIKE YOUR MOMMA TAUGHT YOU.)

• Remove cabside factory tie-downs on both sides of truck bed (10 mm wrench required).
Make sure to SAVE THE FACTORY SUPER DUTY BOLTS, as you will need them for the DECKED brackets.

• Install DECKED tie-down brackets on both sides of truck using bolts from step above; BAG PREP SD/TUN.

SAVE THESE BOLTS REUSE BOLTS

PREP SD/TUN

FACTORY TUNDRA

TIEDOWN BRACKETS

Page 4 | v.4 | DS2 DECKED. COM | #DECKEDUSA | @DECKEDUSA

TIEDOWN BRACKETS

DECKED
