Installation Instructions:
DN4
NISSAN TITAN
6’7” BED LENGTH
2016CURRENT
TOOLS REQUIRED
• Adjustable wrench (that opens to about 1”)
• 1/2” open end wrench
• #2 Phillip screwdriver
• 3/8” socket
Watch short installation videos at www.decked.com/video | Register your system at www.decked.com/warranty
FOLLOW US:
VERSION 4
DECKED.COM | SERVICE@DECKED.COM | 208.806.0251
• 7/16” deep socket
• 7/32” Allen wrench
• 1/2” drill bit
• Wire cutters
@DECKEDUSA | #DECKEDUSA
CONTENTS
DECKED carton
LEFT/DRIVER deck half - 1
RIGHT/PASSENGER deck half - 1
Center vert - 1
Drawer - 2
Cabside ammo can - 2
Tailgate side ammo can - 2
Ammo can lid - 4
Ammo can window - 2
C-channel - 2
Ruler - 1
Hardware box - 1
Hardware box - unbagged components
(inside DECKED carton):
Shims NISSAN - DN3/DN4 - 4
Weather strips - 2
Handle - 1
Bottle opener - 1
▼ ASSEMBLY OVERVIEW ▼
HARDWARE box - bagged components
CCHANNEL HW 1
BOLT 1 FS - 1
CS AMMO CANS - 1
J5 - 4
DRAWER 1 1
DRAWER 3 1
HANDLE 1
WHEELS 1
FINAL FS 1
PREPEXTRA 1
LEFT/DRIVER
DECK HALF
AMMO CAN
WINDOW
COVER
JHOOK
ATTACHMENTS
RIGHT/PASSENGER
DECK HALF
AMMO
CAN LID
CABSIDE AMMO
CAN
RULER
CCHANNEL
TAILGATE
AMMO CAN
CENTER VERT DRAWER
Page 2 | v.4 | DN4 DECKED. COM | #DECKEDUSA | @DECKEDUSA
▼ HEY! TORQUE BOY: READ BEFORE YOU INSTALL DECKED ▼
1. DON’T be an idiot read the instructions.
2. DON'T over tighten bolts, get em' hand-tight.
3. DON'T use power tools.
4. If you don't follow directions and do use power tools:
1). Set clutch at a very low setting. 2). If you blow it, see NOTE.*
NOTE* Two extra threaded inserts are included in BAG PREP-EXTRA. That’s all you get. The inserts will replace any
stripped inserts in the tailgate ammo cans, but NOT THE CENTER VERT, so hand tighten until snug only! You can
also screw the inserts back in if dislocated. There is a straight screwdriver slot on the underside of the insert.
TAILGATE ammo cans have wide bottoms; CABSIDE ammo cans have narrow bottoms.
NOTE: You will need a buddy to help with exactly two steps, not including draining the sixpack or snapping
pics of you posing.
5. DON'T over tighten J-hooks during installation.
Make 'em good and snug enough to keep the
system from moving in the bed.
6. Nice job if you’re still reading .
Prevent abusive, expletitive-filled language, watch our detailed installation video
or give us a call. We’re happy to help!
SERVICE@DECKED.COM | 208.806.0251 | DECKED.COM/INSTALLVIDEO
AMMO CAN DRAIN HOLES
(TO DRILL OR NOT TO DRILL.)
• Do you use a tonneau or shell over your DECKED system?
There is no need to drill holes.
• Does your DECKED system live outside?
The ammo cans will get water in them. You’ll need to drill holes in the ammo cans.
There are two dimples in the bottom of each ammo can. Drill a 1/2” hole at each dimple. A smaller hole
will get clogged.
DECKED. COM | #DECKEDUSA | @DECKEDUSA DN4 | v.4 | Page 3
SHIMS
• There are 4 DOUBLE STACKED shims provided:
• Using the information in the respective circular detail views:
a) Clean the surfaces thoroughly where the shims will be located (isopropyl alcohol is recommended).
b) Remove the layer of tape on the bottom of the shim to expose the adhesive surface.
c) Place the shim and apply with pressure.
NOTE: Repeat details A and B on passenger side.
DETAIL B
Place shim 1 1/2” from seam in floor (blue). Align tailgate side
of shim 4” from rear of floor. Repeat on passenger side.
1 1/2”
4”
DETAIL A
Align shim to seam in floor (blue). Place shim
2” from cabside panel of bed. Repeat on passenger side.
2”
CABSIDE
A
B
TAILGATE
Page 4 | v.4 | DN4 DECKED. COM | #DECKEDUSA | @DECKEDUSA

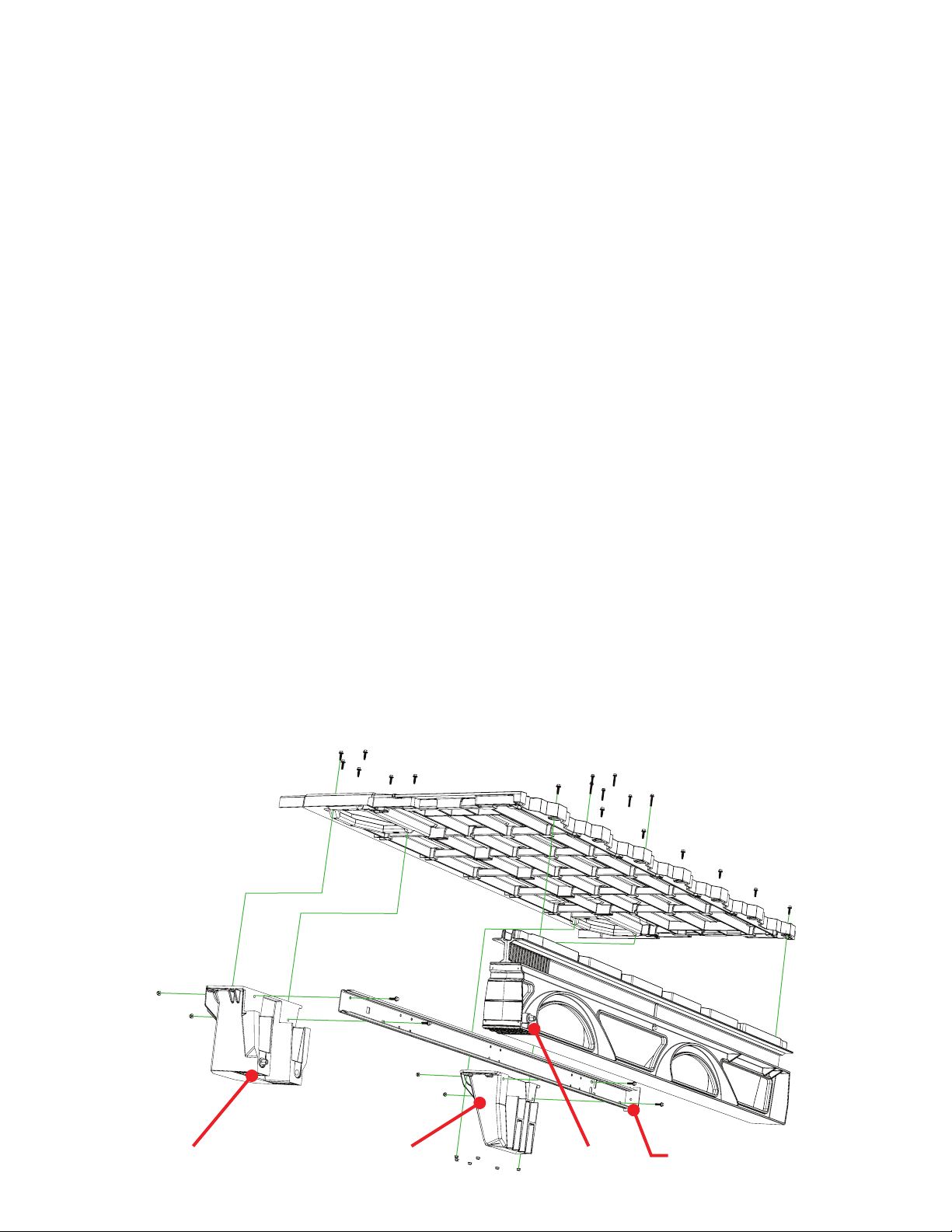

ASSEMBLY: DRIVER’S SIDE DECK
(LET’S DO THIS!)
• There are three pre-installed gaskets – one on the center vert, one on each underside of the decks where they rest
on the center vert. Do yours look weird? See them here: DECKED.COM/GASKETS

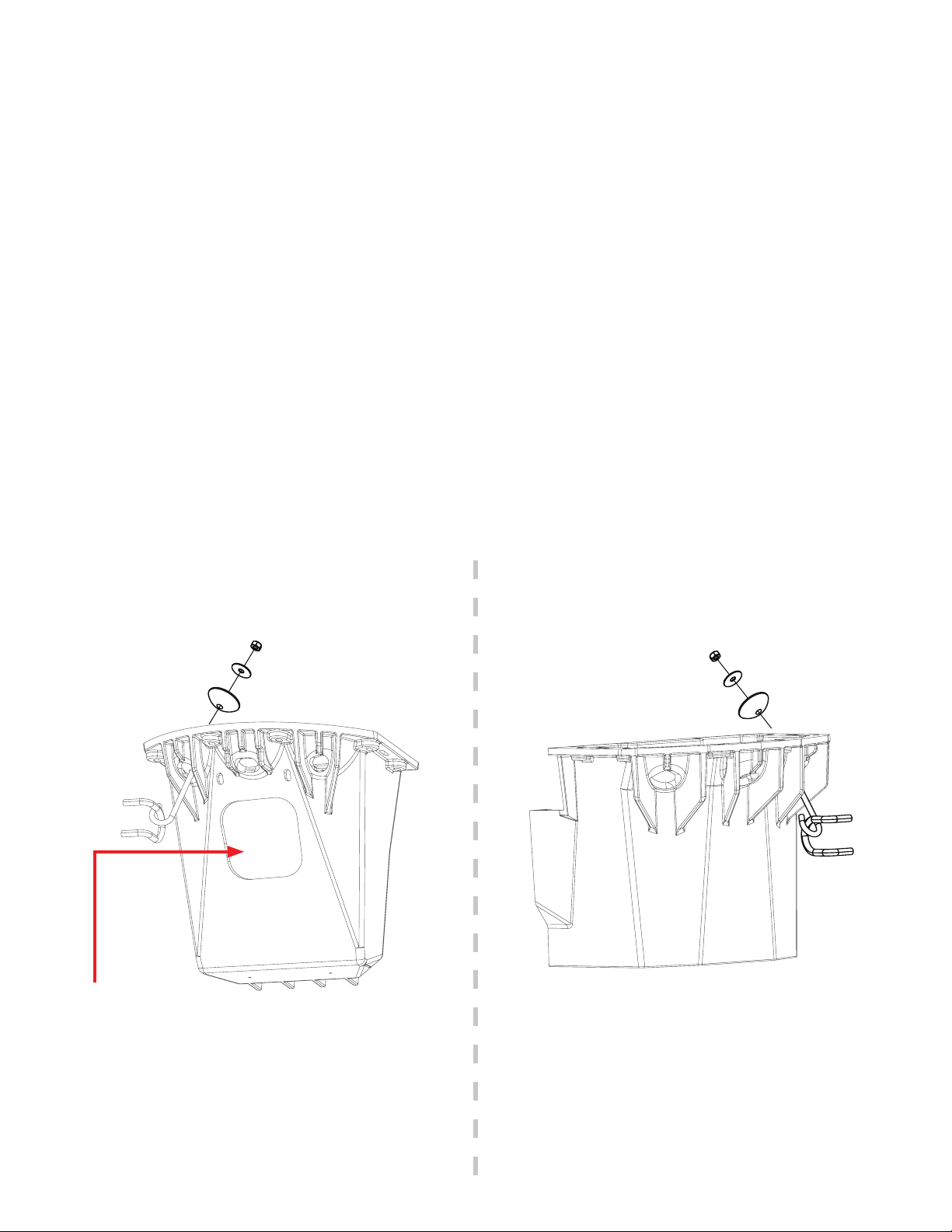

• Place C-channel on the inside ledges of a cabside ammo can and a tailgate ammo can.
• The end of the C-channel with the endplate must rest on the cabside ammo can.
• Verify that the tailgate ammo can’s axle is closest to the tailgate; if not, grab the other tailgate ammo can.
• Loosely bolt C-channel to the two ammo cans. Make sure the bolt head is on the C-channel side, not inside the
ammo can; BAG CCHANNEL HW. Don’t tighten yet.
• Line up the driver’s side deck (sticker on end of deck panel indicates LEFT/DRIVER) on top of the
C-channel/ammo can assembly and the center vert bosses. NOTE: Tailgate side of the center vert has an axle
installed; the center vert and ammo can axles must be on the tailgate end (not cabside end) of the assembly.
• Bolt the deck to the ammo cans; BAG B1 for the tailgate ammo can, BAG CS AMMO CAN for the cabside ammo can.
• Now go back and tighten the loose bolts connecting the ammo cans to the C-channel.
• Bolt the deck to the center vert; BAG B1: Do not use power tools!
• Grab your buddy to help you lift the assembly into the driver side of the truck bed.
DRIVER SIDE DECK HALF
B1
CCHANNEL HW
CS AMMO CANS
B1
CAB
➡
TAILGATE AMMO CAN AXLE CABSIDE AMMO CAN VERT AXLE CCHANNEL ENDPLATE
DECKED. COM | #DECKEDUSA | @DECKEDUSA DN4 | v.4 | Page 5

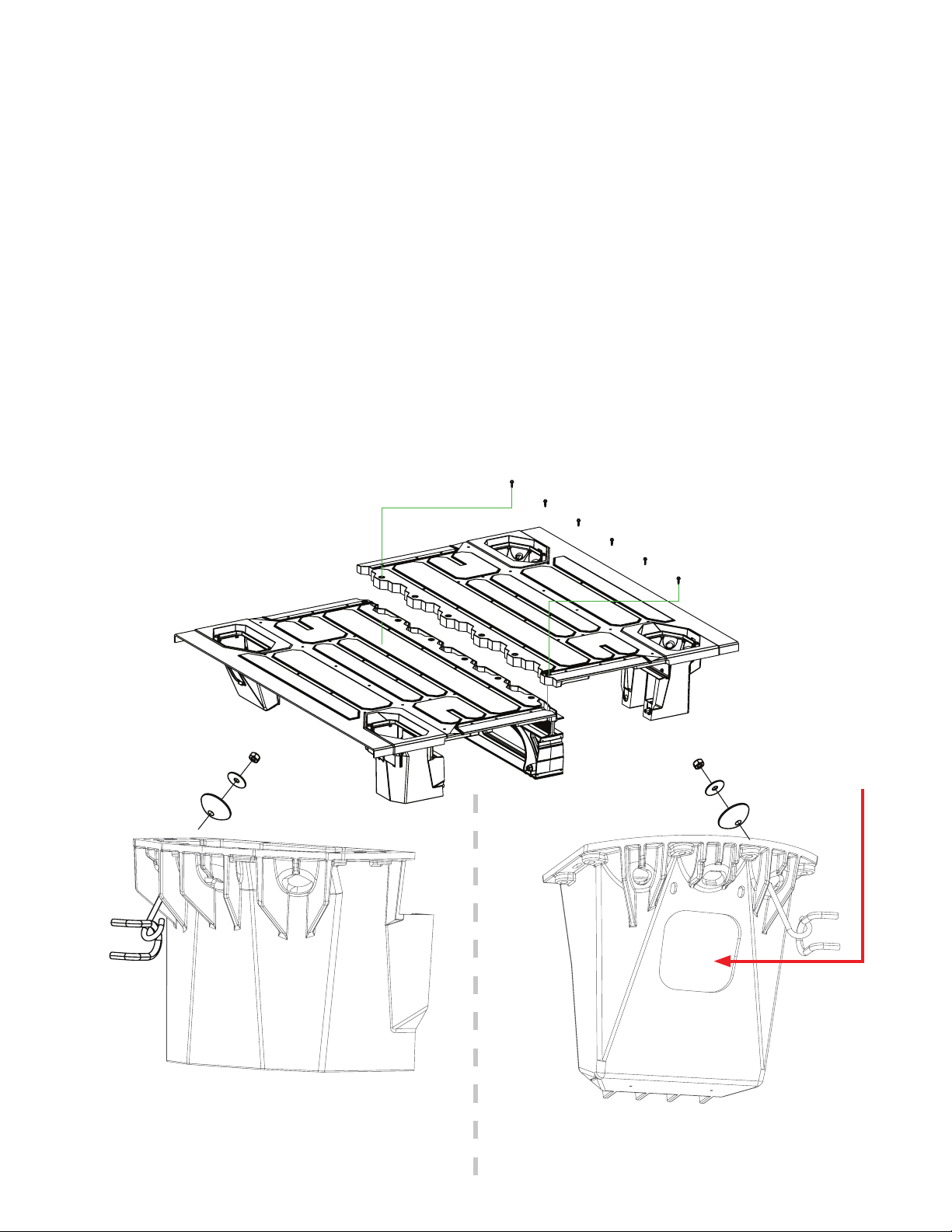

ASSEMBLY: PASSENGER’S SIDE DECK
(NOW YOU’RE ACTUALLY GETTING SOMEWHERE!)
• Place C-channel on the inside ledges of a cabside ammo can and a tailgate ammo can.
• The end of the C-channel with the endplate must rest on the cabside ammo can.
• You should have the correct tailgate ammo can for this step. The axle will be on the tailgate side of the system.
If not, swap the tailgate ammo cans now.
• Loosely bolt C-channel to the two ammo cans. Make sure the bolt head is on the C-channel side, not inside the
ammo can; BAG CCHANNEL HW. Don’t tighten yet.
• Line up the passenger’s side deck (sticker on end of deck panel indicates RIGHT/PASSENGER) on top of the
C-channel/ammo can assembly.
• Bolt the deck to the ammo cans; BAG B1 for the tailgate ammo can, BAG CS AMMO CAN for the cabside ammo can.
• Now go back and tighten the loose bolts connecting the ammo cans to the C-channel.
• Grab your buddy to help you lift the assembly into the passenger side of the truck bed.
PASSENGER SIDE DECK HALF
CS AMMO CANS
CAB
➡
B1
CCHANNEL HW
TAILGATE AMMO CAN AXLECABSIDE AMMO CANCCHANNEL ENDPLATE
Page 6 | v.4 | DN4 DECKED. COM | #DECKEDUSA | @DECKEDUSA
INSTALL: PASSENGER’S SIDE DECK HALF
(OK, FINE, PAT YOURSELF ON THE BACK)
• Seat passenger side deck on the upstanding vert bosses.
• Bolt the passenger side deck half to the center vert; BAG B1. Make sure all bolts connecting the deck to the center
vert are snug, but no power tools.
• Insert the J-hook through the tailgate hole on the passenger side tailgate ammo can and loop J-hook through tie
down or mounting bracket in bed. Assemble with black spherical washer, flat washer and nut; BAG J5. Don’t tighten
yet. If you do, you won’t be able to center the system properly in your bed.
• Insert the J-hook through cabside hole on the passenger side cabside ammo can and loop J-hook through tie
down or mounting bracket in bed. Assemble with black spherical washer, flat washer and nut; BAG J5.
Don’t tighten yet. IMPORTANT: Leave all J-hook nuts loose until entire deck is in place.
B1
CABSIDE AMMO
CAN WINDOW
J5 J5
✕
PASSENGER SIDE
TAILGATE AMMO CAN
DECKED. COM | #DECKEDUSA | @DECKEDUSA DN4 | v.4 | Page 7
✕
CAB
➡
✕ ✕
PASSENGER SIDE
CABSIDE AMMO CAN
CAB
➡
INSTALL: DRIVER’S SIDE DECK HALF
• Insert the J-hook through the cabside hole on the driver side cabside ammo can and loop J-hook through tie down
or mounting bracket in bed. Assemble with black spherical washer, flat washer and nut; BAG J5. Don’t tighten yet.
• Insert the J-hook through the tailgate hole on the driver side tailgate ammo can and loop J-hook through tie down
or mounting bracket in bed. Assemble with black spherical washer, flat washer and nut; BAG J5. Don’t tighten yet.
MAKE SURE THE CENTER VERT IS IN THE CENTER OF YOUR BED; the gaps on either sidewall may not be equal
because the world isn’t perfect and neither is your truck bed.
• Alternately and gradually tighten all J-hooks to ensure DECKED is centered and secure. Do not tighten one side of
J-hooks all the way in one step. DO NOT OVERTIGHTEN J-HOOKS!
NOTE: If the DECKED system is noticeably “crowned”, the J-hooks are too tight.
• Install the window covers in the cabside ammo cans (from inside the ammo can).
CABSIDE AMMO
CAN WINDOW
J5 J5
✕
✕
✕
CAB CAB
➡
✕
➡
DRIVER SIDE
CABSIDE AMMO CAN
Page 8 | v.4 | DN4 DECKED. COM | #DECKEDUSA | @DECKEDUSA
DRIVER SIDE
TAILGATE AMMO CAN
DRAWERS: BRACKETS + WHEELS
(SO EASY A CHIMPANZEE CAN DO IT)
• Each drawer has a left and a right bracket. Bolt the brackets into place via bottom two holes in bracket with 3/4"
length bolts. Use the 2" length bolt for the upper cabside wall hole in bracket; BAG DRAWER 1.
• Install a tube brace in each drawer with two 3/4" length bolts; BAG DRAWER 1, BAG DRAWER 3.
• Attach wheels onto the drawer brackets with a 7/32" hex wrench; BAG WHEELS.
TUBE BRACE
GOES HERE
DRAWER 1
2" BOLT
CORNER
BRACKET
➡
CAB
WHEELS
DRAWER 3
DRAWER 1
HELPFUL TIP: If you purchased drain
plugs, install now (instructions are
included with drain plugs).
DECKED. COM | #DECKEDUSA | @DECKEDUSA DN4 | v.4 | Page 9
INSTALL: DRAWER HANDLES
• One drawer handle assembly needs to be installed.
• Save yourself the headache, watch this short installation video: DECKED.com/videohandle.
• From the underside of drawer, place the springs into the cavities on either side of the handle slots,
red spring=right spring; BAG HANDLE. NOTE: Each spring arm should point inward, not outward.
• Install a clevis pin through each outside drawer hole and through spring; BAG HANDLE.
• With DECKED logo facing outward, insert the handle ends behind the spring arms. Rotate the arms of the handle toward
the clevis pins, pulling the spring arm downward. When the handle hole is lined up with the clevis pin, push the pin
through the handle hole and through the inside drawer hole. Repeat on the other side of the handle.
• Install a hair pin through the clevis pin; BAG HANDLE.
HANDLE OVERVIEW
HAIR PIN
WRONG:
SPRING ARM IS HERE
(NOT FULLY HORIZONTAL)
TOP VIEW
CORRECT:
SPRING ARM IS HERE
(FULLY HORIZONTAL)
CLEVIS PIN
WRONG:
SPRING ARM OUT
OF HANDLE NOTCH
Page 10 | v.4 | DN4 DECKED. COM | #DECKEDUSA | @DECKEDUSA
CORRECT:
SPRING ARM FITS
IN HANDLE NOTCH
SPRING ARMS
POINT INWARD
SPRING
NOTCHES
HELPFUL TIP: MAKE SURE SPRINGS HAVE
THE LONG ARM HORIZONTAL AND SHORT LEG
VERTICAL BEFORE INSERTING HANDLE
INSTALL: DRAWERS
(HOPEFULLY YOU’RE STILL WEARING YOURS.)
• Save yourself the headache, watch this short installation video: DECKED.com/videotailgatewheels.
• Install the drawer by sliding wheels into their two channels (C-channel and center vert), and slide drawer all the
way forward until closed.
• Install the remaining tailgate side wheels onto their axles; BAG WHEELS.
NOTE: Placing a spacer under the drawer to raise it into position makes this easier
(ammo can lids work well, or a small piece of 2x2 or 2x4 is even better).

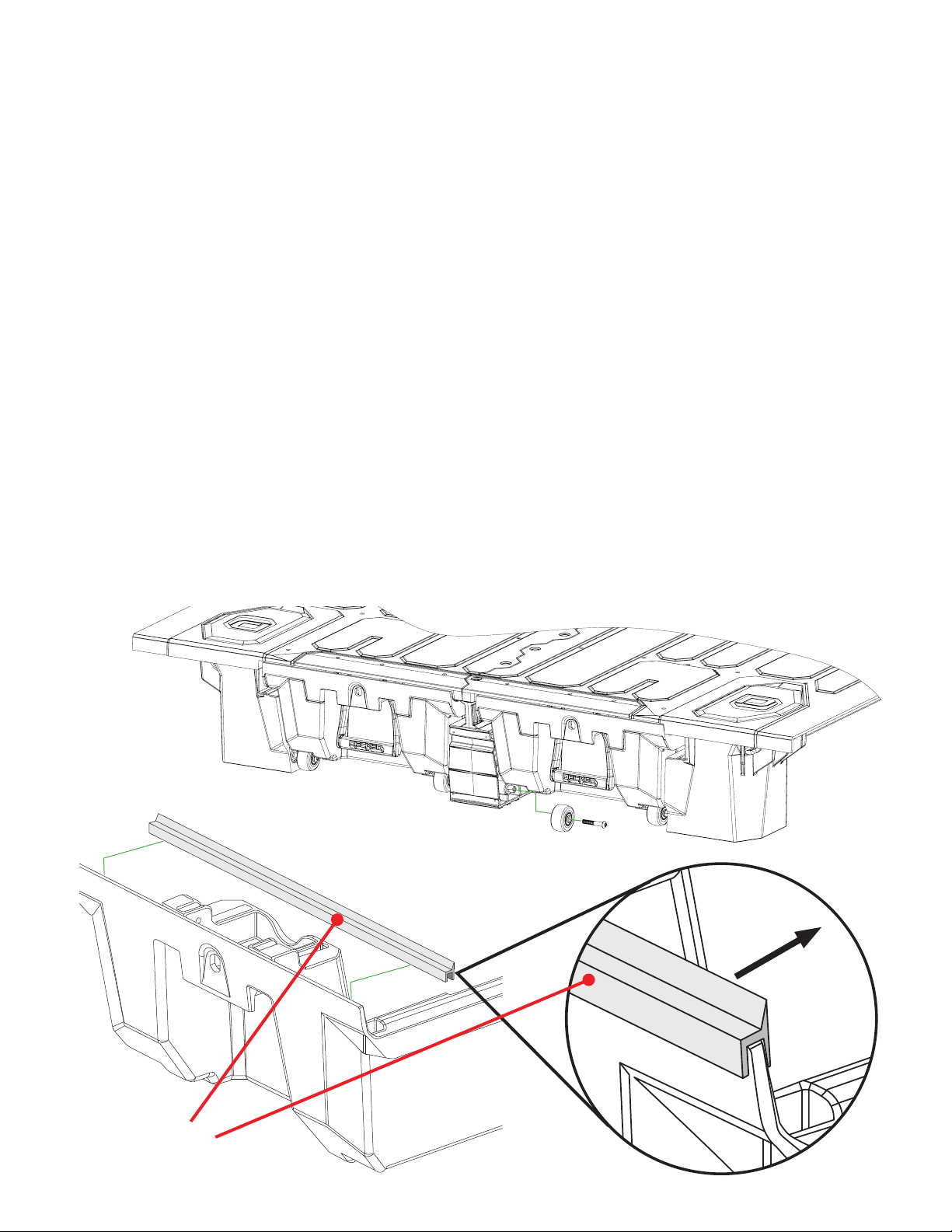

• Install the weather strips on the tailgate side drawer edge: With the weatherstrip wiper facing cabside, line up one
end with the side of the drawer and place on the top drawer edge, firmly pressing down on the weatherstrip as you
move along the drawer edge.
NOTE: Facing the weather stripping the wrong way will funnel water into drawer: BAD!
• When the weatherstrip is fully seated along the top edge, trim off any that extends beyond the drawer edge with
wire cutters. Watch out for the stainless wire coil inside; it’s sharp!
WHEELS
CABSIDE
WEATHER STRIP
DECKED. COM | #DECKEDUSA | @DECKEDUSA DN4 | v.4 | Page 11
INSTALL: THE FUN STUFF
(PARTY TIME!)
CAUTION: These are small gauge screws – light, hand-tightening is all that is required.
• Center and screw on the ruler/edge guard; BAG FINAL FS.
• Screw on the bottle opener; BAG FINAL FS.
• Install lock core plugs; BAG FINAL FS, or install locks if purchased.
IMPORTANT: Grab your favorite beverage, crack ‘er open in the bottle opener and make a toast to your truck.
You did it. Immediately post a photo of your significant other, child or canine (in no order of significance please someone show us your pet alligator) appreciating your accomplishment.
Add hashtag #DECKEDUSA | @DECKEDUSA.
FINAL FS
FINAL FS
FINAL FS
#DECKEDUSA | @DECKEDUSA
Page 12 | v.4 | DN4 DECKED. COM | #DECKEDUSA | @DECKEDUSA
DECKED 3-YEAR LIMITED WARRANTY
(a.k.a. LEGAL MUMBO JUMBO)
LIKE YOUR HIGH SCHOOL GUIDANCE COUNSELOR USED TO SAY, “HELP ME, HELP YOU”. REGISTER YOUR PRODUCT! IT’S QUICK, IT’S
SECURE, AND IT’S THE BEST WAY TO HELP US HELP YOU IN THE RARE EVENT THAT YOUR ACTS OF AWESOMENESS LEAD TO A WARRANTY
ISSUE. PLUS, AS AN ADDED BONUS, YOU WILL BE THE FIRST TO KNOW OF PRODUCT IMPROVEMENTS OR ISSUES SPECIFIC TO YOUR
MODEL. GO TO DECKED.COM/REGISTER
DECKED LLC warrants to the original purchaser of this product that the product will be free from manufacturing defects in
workmanship and materials for a period of three (3) years from the date of the original purchase. If within three (3) years from the
original date of purchase this product fails due to defect in materials or workmanship, DECKED LLC will replace any defective part
at its option.
The original purchaser must contact the DECKED LLC customer service team and provide a description of the defective part,
including digital pictures if requested, with the original purchase documentation as validation of warranty coverage or have
previously activated their warranty online.
This warranty DOES NOT cover or apply to:
• Damage to the product due to misuse, mishandling and abuse.
• Products not used in accordance with the manufacturer’s instructions or recommendations.
• Product not assembled or installed according to manufacturer’s instructions.
• Normal wear and tear.
• Undeclared damage to the system during shipping, acts of God. In addition, consequential damage and incidental
damages (including lost time) such as damage to persons or property are not covered under this warranty.
(This space reserved for crayon drawings, coffee stains or ketchup spills.)
#DECKEDUSA | @DECKEDUSA
DECKED. COM | #DECKEDUSA | @DECKEDUSA DN4 | v.4 | Page 13
Loading...
