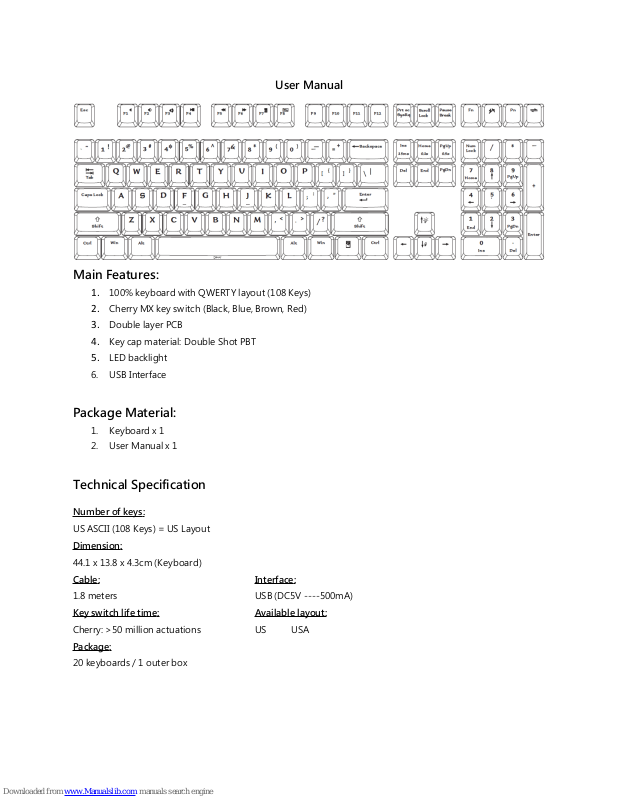

Page 1
Main Features:
1. 100% keyboard with QWERTY layout (108 Keys)
2. Cherry MX key switch (Black, Blue, Brown, Red)
3. Double layer PCB
4. Key cap material: Double Shot PBT
5. LED backlight
6. USB Interface
User Manual
Package Material:
1. Keyboard x 1
2. User Manual x 1
Technical Specification
Number of keys :
US ASCII (108 Keys) = US Layout
Dimension :
44.1 x 13.8 x 4.3cm (Keyboard)
Cable : Interface :
1.8 meters USB (DC5V ----500mA)
Key switch life time : Available layout:
Cherry: >50 million actuations US USA
Package :
20 keyboards / 1 outer box
Page 2
Programming Instruction
1. Press PMode(Fn + Pn) to enter the programming mode (Pn LED flashing)
2. Press the key you want to program (Pn LED on)
3. Key in the programming content and then press Pn (Pn LED flashing again)
4. Repeat step 2 and step 3 to program other keys
5. Press PMode(Fn + Pn) to exit programming mode (Pn LED off)
Note:
• Under SELECT state (step 1), you can press Pn + any key to view its content in a word processing
software (e.g., Notepad)
• Support time delay, press 15ms key(Fn + Ins) each time to delay 15ms, press 0.1s key(Fn + Home)
each time to delay 0.1s, press 0.5s key(Fn + PgUp) each time to delay 0.5s. Consecutive delay will
add up but will only be counted as 1 key stroke
• Every key can program up to 64 key strokes
• Repeat step 2 and step 3 to program other keys
• If there is no key pressed for 15 sec in programming mode, it will exit to normal mode
Programming Usage
Press Pn + Programmed key, OR
Press Toggle (Two arrows key) to light up the Toggle LED first. Then press the programmed key directly. If you
press Pn + Programmed key at this moment, it will output the original key code.
Programming Examples
1. Program A as 123: Fn + Pn, A, 1, 2, 3, Pn
2. Continue to program B as Ctrl + C: B, Ctrl(Not release), C, Release Ctrl and C, Pn
3. Continue to program C to run CMD under WIN7: Win, C, Fn + Home, M, Fn + Home, D, Fn + PgUp,
Enter, Pn
4. Finish programming: Fn + Pn
5. Invoking programmed A: Pn + A => Output 123
6. Invoking programmed C: Pn + C => Running CMD.EXE
7. Switch to Pn layer: Toggle(Two arrows key) => Toggle LED on
(1) Invoking programmed B: B => Output Ctrl + C (Same as copy)
(2) Invoking programmed C: C=> Running CMD.EXE
(3) If you need to get the A back (Now pressing A is 123): Pn + A => A
Page 3
Rollover Mode Switch
Press Nkey (Lightning key), the Nkey LED will be flashing till stop. It means the keyboard is switching the
rollover mode. Nkey LED is on for N-key rollover mode. Nkey LED is off for 6-key rollover mode.
Backlight Mode Switch
Press Fn + Nkey (Lightning key) to circulate different backlight modes: Individual Dimming → Laser Sidetrack →
Ripple Explosion → Breathing → All LED off → All LED on. Under All LED on mode, you can press Fn + ↑ and Fn
+ ↑ to adjust brightness. There are 7 levels of brightness.
Restore to factory default
Press and hold Fn + R, Toggle LED is flashing after 3 sec. Continue to hold Fn + R until the Toggle LED flashes
for 9 times will restore to factory default
Fn +
Fn General keys Remark
F1
F2 Volume Down
F3 Volume Up
F4 Play/Pause
F5 Previous Track
F6 Next Track
F7 Calculator
F8 Lock Win key
Pn Enter/Exit Programming Mode
Rollover Switch Backlight Mode
↑ Increase Brightness
↓ Decrease Britghtness
Ins Delay 15ms
Home Delay 0.1s
PgUp Delay 0.5s
=
Mute
Key code change
Only valid in programming
mode
