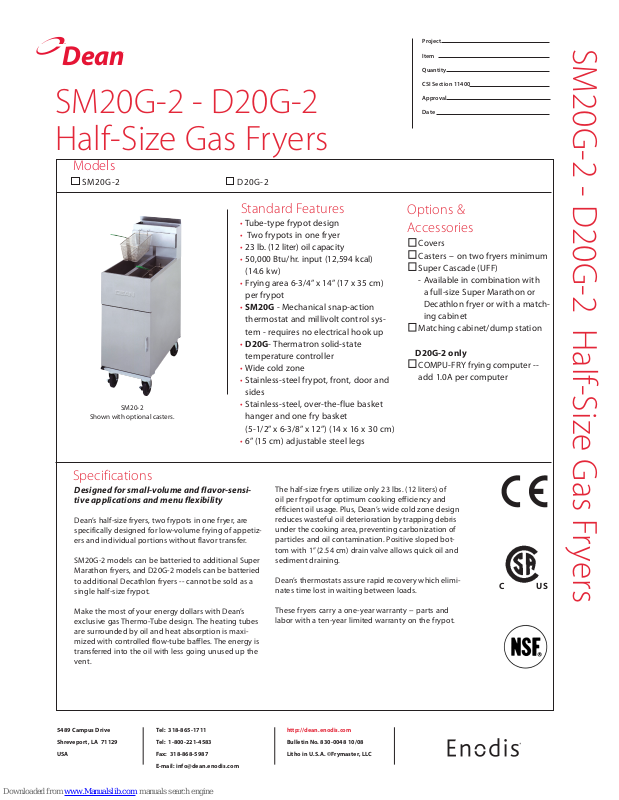

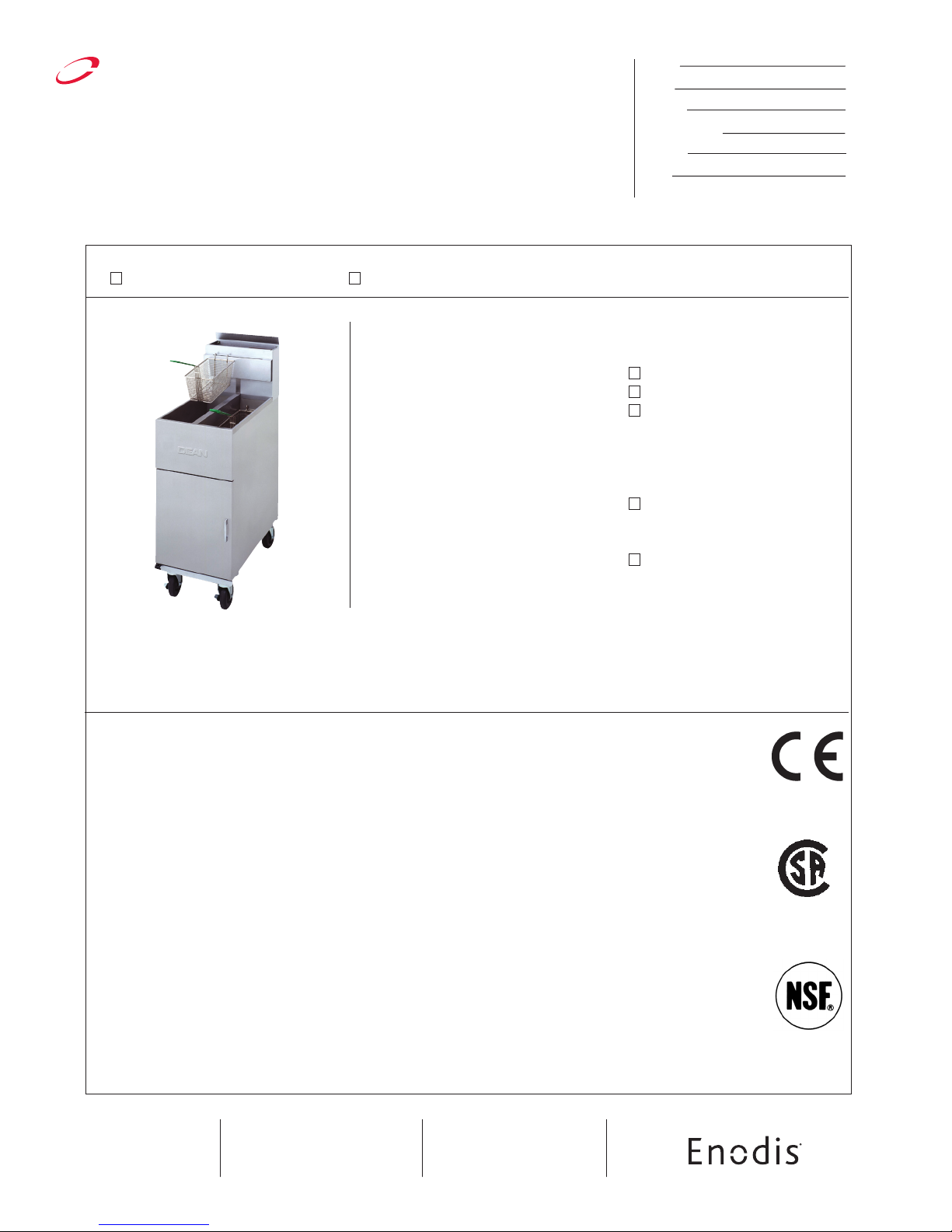

SM20G-2 - D20G-2
Dean
™
®
Half-Size Gas Fryers
Models
S M20G-2 D 20G-2
Project
Item
Quantity
CSI Sec tion 11400
Approval
Date
SM20G-2 - D20G-2 Half-Size Gas Fryers
Standard Features
• Tube-type frypot design
• Two frypots in one fryer
• 23 lb. (12 liter) oil capacity
• 50,000 Btu/hr. input (12,594 kcal)
(14.6 kw)
• Frying area 6-3/4” x 14” (17 x 35 cm)
per frypot
• SM20G - Mechanical snap-action
thermostat and millivolt control system - requires no electrical hook up
• D20G- Thermatron solid-state
temperature controller
• Wide cold zone
• Stainless-steel frypot, front, door and
sides
Shown with optional casters.
SM20-2
• Stainless-steel, over-the-flue basket
hanger and one fry basket
(5-1/2” x 6-3/8” x 12”) (14 x 16 x 30 cm)
• 6” (15 cm) adjustable steel legs
Specifications
Designed for small-volume and flavor-sensitive applications and menu flexibility
Dean’s half-size fryers, two frypots in one fryer, are
specifically designed for low-volume frying of appetizers and individual portions without flavor transfer.
SM20G-2 models can be batteried to additional Super
Marathon fryers, and D20G-2 models can be batteried
to additional Decathlon fryers -- cannot be sold as a
single half-size frypot.
Options &
Accessories
Covers
Casters -- on two fryers minimum
Super Cascade (UFF)
- Available in combination with
a full-size Super Marathon or
Decathlon fryer or with a matching cabinet
Matching cabinet/dump station
D20G-2 only
COMPU-FRY frying computer --
add 1.0A per computer
The half-size fryers utilize only 23 lbs. (12 liters) of
oil per frypot for optimum cooking efficiency and
efficient oil usage. Plus, Dean’s wide cold zone design
reduces wasteful oil deterioration by trapping debris
under the cooking area, preventing carbonization of
particles and oil contamination. Positive sloped bottom with 1” (2.54 cm) drain valve allows quick oil and
sediment draining.
Dean’s thermostats assure rapid recovery which eliminates time lost in waiting between loads.
C US
Make the most of your energy dollars with Dean’s
exclusive gas Thermo-Tube design. The heating tubes
are surrounded by oil and heat absorption is maximized with controlled flow-tube baffles. The energy is
transferred into the oil with less going unused up the
vent.
5489 Campus Drive
Shreveport, LA 71129
USA
Tel: 318-865-17 11
Tel: 1-800-221- 4583
Fax: 318-86 8-5987
E-mail: in [email protected]
These fryers carry a one-year warranty -- parts and
labor with a ten-year limited warranty on the frypot.
http://dean. enodis.com
Bulletin N o. 830-0048 10/08
Litho in U.S.A. ©Frymaster, LLC
Page 2
Dean
™
®
SM20G-2 - D20G-2 Half-Size Gas Fryers

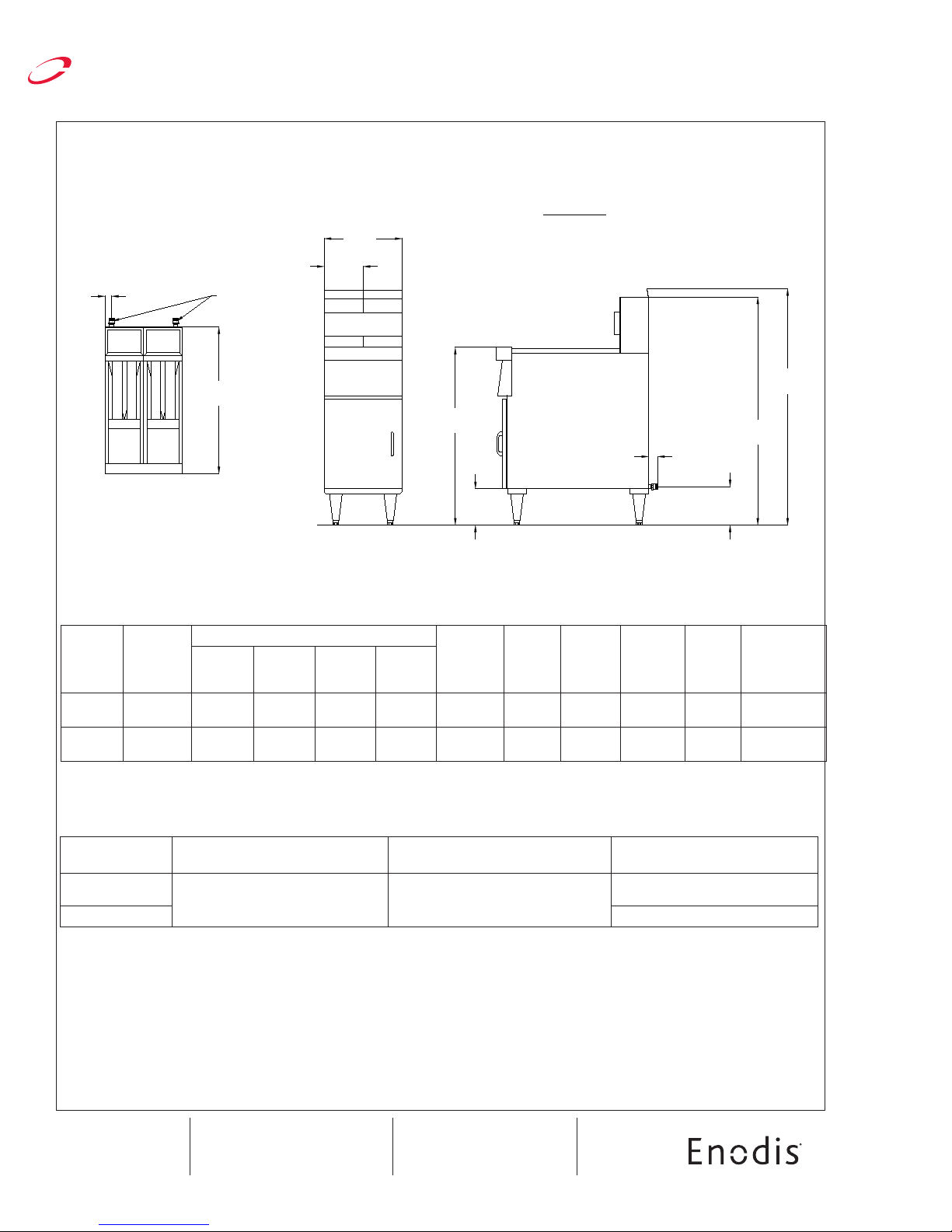

TOP VIEW
FRONT VIEW SIDE VIEW
INCHES
[MM]
29.50
[749]
3/4" NPT GAS
CONNECTION
2.60
[66]
7.20
[183]
35.00
[889]
DIMENSIONS
2.00
[51]
7.62
[194]
47.00
[1194]
7.75
[197]
15.50
[394]
45.00
[1143]
DIMENSIONS
MO DEL MI N./MAX.
OI L
CA PACI TY
SM20G -2
each frypot
D20G- 2
each frypot
20-23 lb.
(10-1 2 li ter)
20-23 lb.
(10-1 2 li ter)
OV ERA LL
HE IGH T
45”
(1143 )
45”
(1143 )
OV ERA LL SIZ E DR AIN
WO RK
HE IGH T
35”
(889)
35”
(889)
*Per half-size fryer.
POWER REQUIREMENTS
MO DEL NAT URA L O R L P G AS
IN PUT RAT ING
SM20G -2
D20G- 2 120V/ 60˜/ 1Ø - 1.0A
SHORT TERM SPECIFICATION
The following description will assist with ordering the features
desired for this equipment:
Shall be DEAN cool zone deep fat Half-Size fryer, Model _____. Only
7-3/4” (19 cm) wide, _____________lb. oil capacity requiring _____
______ power with millivolt mechanical (SM20G-2) or Thermatron
solid-state (D20G-2) controls. Not sold as a single half-size frypot.
5489 Campus Drive
Shreveport, LA 71129
USA
We reserve the right to change specifications appearing in this bulletin without incurring any obligation for equipment previously or subsequently sold.
50,00 0 Bt u/hr.
(12,5 94 k cal/ hr.) (14.6 kW )
Tel: 318-865-17 11
Tel: 1-800-221- 4583
Fax: 318-86 8-5987
E-mail: in [email protected]
WI DTH LE NGT H
7-3/4 ”
(197)
7-3/4 ”
(197)
29-1/ 2”
(749)
29-1/ 2”
(749)
http://dean. enodis.com
Bulletin N o. 830-0048 10/08
Litho in U.S.A. ©Frymaster, LLC
DR AIN
VALV E
mm
1” full port
(25)
1” full port
(25)
CO NNE CTI ON
reg ulat or not re quired*
VALV E
HE IGH T
GA S
3/4” N.P.T.
mm
20”
(508)
20”
(508)
NO.
OF TUBE S
2 6-3/4 ” x 14”
2 6-3/4 ” x 14”
ORDERING DATA
Gas - Please specify:
Natural or LP gas
Altitude -- if above 1,999 ft. (609 m)
DO NOT CURB MOUNT
*Do not exceed 14” W.C. or 1/2 PSI.
FR YIN G
AR EA
mm
(171 x 35 6)
(171 x 35 6)
CL ASS SH IPP ING *
85 115 l bs./ 15
85 115 l bs./ 15
EL ECT RICA L
RE QUI REM ENT
NONE
lbs./ cu.f t.
(kg /m3
(52/0 ,42)
(52/0 ,42)
Mode l #________ _______
CSI Section 11400
