DDM P112MINU Users Manual
User manual

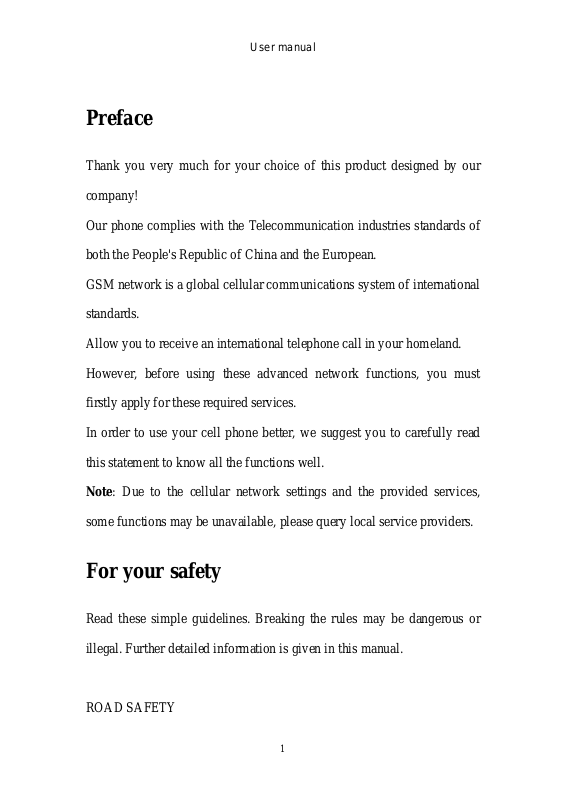

Preface
Thank you very much for your choice of this product designed by our
company!
Our phone complies with the Telecommunication industries standards of
both the People's Republic of China and
GSM network is a global cellular communications system of international
standards.
Allow you to receive an international telephone call in your homeland.
the European.
However, before using these advanced network functions, you must
firstly apply for these required services.
In order to use your cell phone better, we suggest you to carefully read
this statement to know all the functions well.
Note: Due to the cellular network settings and the provided services,
some functions may be unavailable, please query local service providers.
For your safety
Read these simple guidelines. Breaking the rules may be dangerous or
illegal. Further detailed information is given in this manual.
ROAD SAFETY
1
User manual
Always keep your hands free to operate the vehicle while driving. Park
the vehicle before using your phone.
SWITCH OFF IN AIRCRAFT
Using of wireless telephones in aircraft may disrupt the operation of the
aircraft. It is dangerous and illegal. Insure switching off the phone before
going aboard.
SWITCH OFF IN HOSPITALS
Follow any restrictions or rules. Switch off the phone near medical
equipment.
SWITCH OFF WHEN REFUELING
Switch off the phone at a gas station or any fuel or chemicals places.
SWITCH OFF NEAR BLASTING POINT
Don’t use the phone where blasting is in progress. Observe restrictions
and follow any regulations or rules.
INTERFERENCE
All radiotelephones may be susceptible to interference, which could
affect the performance.
2
User manual
USE NORMALLY
Use in the normal position explained in the product documentation. Don't
touch the antenna unnecessarily.
ENHANCEMENTS AND BATTERIES
Use only the approved enhancements and batteries. Do not connect
incompatible products.
EMERGENCY CALLS
Ensure the phone is switched on and in service. Enter the emergency
number, and then press the call key. It will give your location. Do not end
the call until the permission.
3
User manual
1 About your phone
1.1 Appearance
2 Getting started
What is a SIM card
When registering your mobile phone number, you will have a SIM card
(Subscriber Identity Module) provided by the network operator.
The SIM card has information reserved for your use. It includes your
phone number, PIN (Personal Identification Number), PUK (password to
unlock PIN), IMSI (International Mobile Subscriber Identity) number,
4
User manual
network information, phone book data, SMS data and so on. If it is lost,
contact your network operator immediately for help.
PIN code
PIN is the password provided by your network operator. It is usually 4
digits. When you input the PIN code, the screen displays “*” to replace
the number entered.
PIN is used to access the SIM card. If the PIN protection function is
enabled, the screen will display “Enter PIN” each time the phone
switched on. You can deactivate this feature but risk unauthorized use of
the phone. Some network operators do not permit deactivating the
control.
Note: If you enter the PIN incorrectly three times in a row, the SIM card
will be locked. Please contact your network operator immediately for
decoding. Attempting to decode by you may result in the permanent
failure of the SIM card.
PUK code
PUK (Personal Unblocking Key, 8-digit) unlocks a locked PIN. If you
enter the PUK incorrectly ten times in a row, the SIM card will become
invalid. Please contact your network operator for a new SIM card.
Installing the SIM card
5
User manual
1. Press and hold the power/ending key to turn off the phone.
2. Remove the battery cover and then the battery.
3. Insert the SIM card into the card holder. Ensure that the metal contacts
face the phone.
4. Re-install the battery. Place the battery cover onto the back of your
phone and slide it forward until the latch catches the cover.
Note: A SIM card can be easily damaged if its metal contacts become
scratched. Therefore, take special care when holding or inserting it and
keep it away from children.
Charging the battery
The battery is not fully charged when first unpacked. It takes three
charging-discharging cycles for the battery to reach its peak performance.
The battery can be charged and discharged hundreds of times. However,
the capacity of the battery will be reduced each time it is charged/emptied,
and it will eventually wear out. When the talk time and the standby time
are noticeably shorter than normal, replace the battery. Use original
batteries and charging devices only.
Unplug the charger from the outlet and the phone when not in use. Do not
leave a fully-charged battery connected to a charger because overcharging
may shorten the lifetime of the battery. If unused, a fully-charged battery
6
User manual
will lose its charge over time.
If the battery is completely discharged, the charging may not start
immediately when you plug in the connector. Wait 10 to 15 minutes for
the phone to begin charging. Use the battery only for its intended purpose.
Never use any charger or battery that is damaged.
Do not short-circuit the battery. An accidental short circuit may occur
when a metallic object such as a coin, clip or pen causes the direct
connection of the positive (+) and negative (-) terminals of the battery, for
example, when you carry a spare battery in your pocket or purse. Short
circuit may damage the battery and the connecting object.
Storage at too high or low temperatures will result in a gradual capacity
loss. As a result the operating time of your mobile phone may be
considerably reduced, even though the battery is fully charged.
Do not dispose of batteries into fire as they may explode. Batteries may
also explode if damaged. Dispose of unwanted batteries and phones as
permitted in the law in your countries.
Note: The actual operation time of a battery varies based on the operation
mode, network settings and call settings.
7
User manual
Charge a battery according to the following steps:
1. Connect the charger to the connection jack of the phone in proper
direction, and connect the charger to a main socket.
2. The phone displays "Charger Connected!" and starts charging after
properly connected. The battery icon dynamically displays the
charging process. In switch-off state, the phone dynamically displays
the charging process.
3. When the battery is fully charged, the charging process stops
automatically, and the battery icon indicates full grid on the screen.
After the battery is fully charged, remove the charger from the phone
and socket as soon as possible.
Note:
Do not change the parts and accessories of the battery or take off the
battery cover for safety.
Use only original batteries and charging devices. Otherwise you will
risk serious damage to health and property.
Do not charge batteries in too high or too low temperature.
Do not use the phone while charging.
After pulling out the battery system date and time will be reset to
default values (factory settings).
T-Flash card
8
User manual
T-Flash card is a kind of multimedia memory card
Switching the Phone on and off
To switch on and off the phone, please press and hold the power on/off
key on the top of your handset. If you switch the phone on without
inserting the SIM card, then the phone will remind you to Insert SIM
Card.
Even though INSERT SIM CARD comes on screen user can use all other
features except SIM features.
Then the following notices will appear on the screen in sequence after
inserting the SIM card and switching on the phone:
Enter the phone lock password—if you have set phone lock password on.
Enter PIN—if you have set SIM card password on.
Search the network—the phone will automatically search the network
until it connects to the appropriate network
3 Basic Function
3.1 Power on and off
1. Press and hold at top of power key to turn on/off the phone.
2. Please input password and press left soft key, if mobilephone need
9
User manual
input password.
3. Type PIN code and press left soft key to confirm,if mobilephone was
required to input PIN code.(PIN is personal identify code,in order to
avoid using SIM illegally,usually PIN code is the same provided by net
carrier as SIM card
Note:
1． Please contact with factory or agent’s service center, if forget
mobilephone open password
2．Delete character ahead of cursor, if type wrong keystrok when input
password
3. Screen indicates type again, if input PIN code wrong. Screen indicates
input PUK code, if type wrong three times. If PUK code correct, then
back to PIN code input interface, can preset new PIN code (puk CODE as
PIN code unlock code, provided by carrier). Mobilephone will display
SIM card will be not used any more, if type PUK code ten times wrong.
4. Please contact with network carrier or service supplier, if SIM card
inserted corretly, but indicate uninsert SIM card.
5. On standby state, press left soft key and then press the right soft key to
lock screen.
Press “*”key and then press the right soft key to release lock.
3.2 Make a call
Enter the phone number including the area code. Press dial key to make a
10
User manual
call.
3.3 Make an extension call
When making an extension call, press and hold “*” key to get “P” that is
a prefix of extension numbers. It will dial automatically in several
seconds since you dialed the telephone exchange.
viz.: area code—telephone exchange numbers—P—extension numbers,
then press dial key.
3.4 Make an international call
Enter the country code, the area code and the phone number, press dial
key. “+” is needed when input country code, and it can be got by
pressing and holding “*” key. Dial to Hongkong, Macao and Taiwan
phone ibid.
3.5 Make a call from contacts
Enter contacts, select the phone number, and then press dial key to make
a call.
3.6 Redial a call by call logs
In standby mode, press the Dialing key to find the recent call lists, scroll
to the number or name, then press dial key.
3.7 Answer a call
An incoming call window will be displayed as the phone receives a call.
11
User manual
The number will appear on the window if you have opened this function.
If this number is not saved in the phonebook , the call’s district number
will show it on the window。
Press left soft key or dial key
to answer it. Press right soft key can set to
silence。
If an incoming call arrived during your operation in sub window, a new
window will be popped to inform you and your any operation will be
broken. If you missed a call, a missed call log will appear after you return
to the start screen.
3.8 Call options
During a call, press center (ok) key to open or close hand free function.
And the options content is changeable according to your call status. The
functions of Call Waiting, Call Hold need the support of net work.
Here are some parts of the options, like “add new call”, “hold”, “start
recording”, “mute”, “adjust volume”, “phone book”, “call logs” and
“message”. This should be supported by the current network.
4 Call history
It also can keep such records as 20 Dialed calls, 20 Received calls and 20
Missed calls. The first two items can be check in it when mobile phone
work normal and network service supported.
