DDM ANDY5ELTE Users Manual

Please remember to obey relevant rules and regulations
whenever use your phone. This will prevent bad effect from

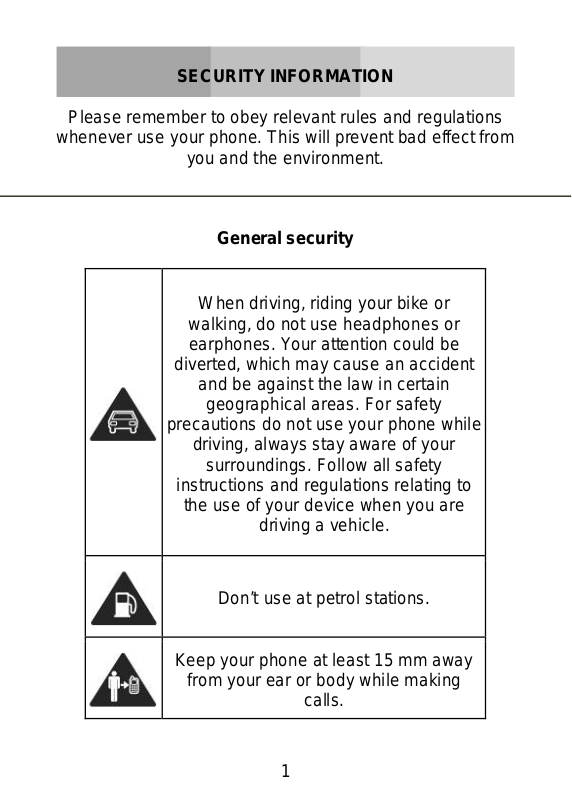

SECURITY INFORMATION
you and the environment.
When driving, riding your bike or walking, do not use headphones or earphones. Your attention could be
diverted, which may cause an accident
and be against the law in certain
precautions do not use your phone
driving, always stay aware of your
instructions and regulations relating to
the use of your device when you are
Keep your phone at least 15 mm away
from your ear or body while making
geographical areas. For safety
surroundings. Follow all safety
driving a vehicle.
Don’t use at petrol stations.
1
while
calls.
Your phone may produce a bright or
Don’t dispose of your phone in fire.
To avoid any hearing damage, do not extended. Excessive sound pressure
from earphones and headphones can
Avoid contact with anything magnetic.
Keep away from pacemakers and other
flashing light.
Small parts may cause a choking.
listen to high volume levels for an
cause hearing loss.
electronic medical devices.
Avoid extreme temperatures.
2
EN
Switch off when asked to in hospitals
and medical facilities.
Avoid contact with liquids. Keep your
Switch off when told to in aircrafts and
Only use approved accessories.
Don’t rely on your phone for emergency
phone dry.
airports.
Don’t take your phone apart.
Switch off when near explosive
materials or liquids.
communications.
3
Warning electrical hazard
To avoid serious injury, do not touch the
Disconnect the charger when you do not
To disconnect a charger or an
accessory, pull the plug, not the power
The power module is the element that
allows you to disconnect the product.
The power plug must stay easily
plug of the charger!
use it.
cable.
accessible.
Look at the adapter regularly, specifically at the
plug and the layer to detect any damages. If the
adapter is damage
Plug in the adapter to a power outlet which is
easily accessible. Always unplug the adapter after
Use only the adapter provided with the device.
d, you can’t use it until it’s fixed.
using it.
4
EN
Do not expose your device to direct sunlight, like
on your car’s dashboard, for example.
In case of overheating do not use the device.
Be careful when using the device while walking.
Do not subject the device to severe impact or drop
it from high position, it could cause damages or
Do not disassemble, modify or fix the device by
To clean the device use a clean and soft rag.
Do not use any chemical product or detergent.
malfunctions.
yourself.
5
INTRODUCING YOUR MOBILE PHONE
Learn about your mobile phone’s layout, keys, display and
Check the product box for the following items:
Mobile phone
Battery
Travel adapter (charger)
USB Cable
Headset
User manual
Quick start guide
The supplied accessories perform best for your phone.
icons.
Unpacking
6
EN
From the front view of your phone you will observe the following elements:
Phone layout
From the back view of your phone you will observe the following elements:
7
Keys
The following table offers you a quick description about the phone’s keys:
Key Function
Power button
Volume
Back
Home
Menu
Allow you to turn on/off the device and
ringing and notifications. Also allows
you to adjust the volume of multimedia
menu
It takes you directly to the home screen,
Allow you to access to the functions
menu of the application or screen you
to lock the screen.
Allow you to adjust the volume of
Allow you to return to the previous
or screen. Also allow you to close
leaving any application open.
content playback.
some applications.
are.
8
EN
Screen
The screen of your mobile phone is designed as follows:
9
Icons
Learn about the icons that are displayed on the top of the screen, indicating the status of the phone:
Signal strength
GPRS connected
4G connected
Bluetooth On
USB connected
Battery meter
Vibration profile
Roaming indicator
Headset connected
Wi-Fi connection
EDGE connected
HSPA connected
New message
New email Alarm active Silent profile
10
EN
When you subscribe to a cellular service, you will receive a Subscriber Identity Module (SIM) card, with subscription details, such as your personal identification number (PIN) and optional services.
To install the SIM card and battery,
1. Remove the battery cover.
PREPARING YOUR MOBILE PHONE
Get started setting up your mobile phone for its first use.
Install the SIM card and battery
11

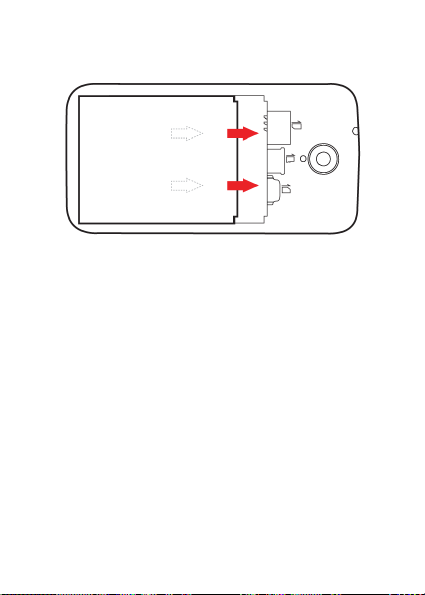

2. Insert the SIM card. Your phone has 2 SIM card slots to allow you use 2 SIM
cards and switch between them.
Place the SIM card in the phone with the gold-colored contacts facing down.
Without inserting a SIM card, you can use your phone’s non-network services and some menus.
12
EN
3. Insert the battery.
4. Replace the battery cover.
To store additional multimedia files, you must insert a memory card.
Formatting the memory card on a PC may cause
Insert a memory card (optional)
incompatibility with your phone. Format the memory card only on the phone.
13

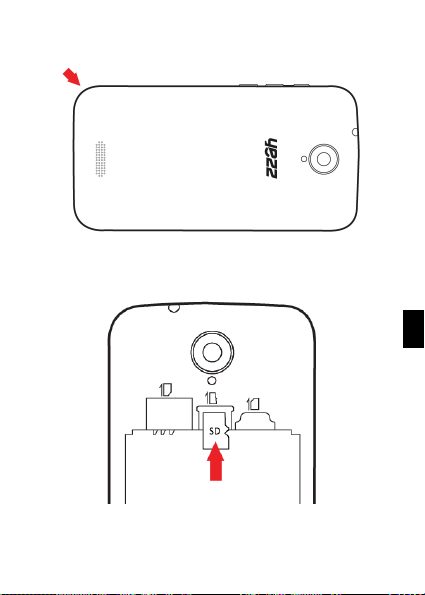

1. Remove the battery cover.
2. Insert a memory holder with the label side facing up.
14
EN
Learn how to perform basic operations of your mobile phone.
To turn your phone on,
1. Long press the power button.
2. Type in your PIN number and press OK (if it is needed).
To shut down your phone, go to step 1 above.
To get access to the Menu and Applications,
1. At the home screen, touch the button on the sc r ee n t o
pop up the list of Installed Applications in your phone.
2. Slide your finger to the right or left to access other pages
of apps.
3. Touch any icon to enter to the application.
4. To exit the application, press Back or Home at t he bottom
of the screen.
USING BASIC FUNCTIONS
Turn your phone on and off
Access menus and applications
15
Learn to make or answer calls in this section.
Make a call:
1. At the home screen or applications m enu, to u ch the Phone
icon .
2. Dial the area code and phone number.
3. Touch to start the call.
4. To end a call, touch .
To answer a call:
1. When you receive a call, slide the phone icon to the right
to answer it or slide it to the left to reject it
2. To end the call, touch .
In this section, learn how to send and receive:
- Text Messages (SMS).
- Multimedia Message (MMS).
Use basic call functions
.
Send and view messages
16
EN
Steps to send Text and Multimedia Messages:
1. Touch Messages at the a ppl ic atio n lis t, the n to uch
on the corner.
2. Type in the phone number or contact name on the field or
touch to access to Contacts.
3. Type in your message.
To send as text message go to step 5. To attach a multimedia object (audio, image, etc.) co ntinue to
step 4.
4. Touch on the top right corner, select the attach type
then choose the item.
5. Touch to send the message.
Learn the basics of using the phonebook feature.
Add a new contact:
1. In t he application list touch Contacts , t hen touc h
on the bottom to add a new contact.
2. Fill the contact information (Name, Last name and pho ne
number). You can add more fields such as, email, address.
Add contacts
17
3. Touch on the top of the screen to save.
Search for a contact
1. In the application list touch Contacts.
2. Slide your finger from bottom to top to scrol l the list or
touch the search button and type in the first letters of the name or last name.
3. To see the contact details t ouch the name or t he picture of
the contact. If you want to call a contact touch the phone number.
Learn how to listen to music via the music player or FM radio.
Listen to the FM radio:
1. Plug in the earphones in your phone.
2. In the application list touch FM Radio.
3. Use the tool bar at the bottom to change of station.
Listen to music files:
First, copy the music files into your phone internal memory or a MicroSD card.
Listen to music
18
EN
1. In the application list, touch Music.
2. Select an order at the top of the screen and touch the song
that you want to listen to.
3. You can Pause, Loop, or change of song using the tool bar
at the bottom.
Learn how to access to your favorites Web Sites.
1. In the application list, touch Browser.
2. Touch the address bar and type in the address of t he web
site you want to go.
Browse the web
19
Learn the basics to capture and view photos.
1. In the applications list, touch Camera.
2. Adjusts the lens at the photo target and make t he desired
adjustments by touching the settings button .
3. Touch the shot button on the screen to capture t he
picture. It will be saved automatically.
In the applications list, touch Gallery and then select the Camera folder to access and visualize all the pictures
captured by your phone.
USING THE CAMERA
See the captured pictures
Capture pictures
20
EN
Learn the basics to configure your phone and connect to
1. In the applications list, touch Settings to access to the
device configuration.
2. Touch the option “More…”, then touch Mobile networks
and touch Access Point Names. Now select the SIM Card that you want to configure.
3. Touch the Menu key and select New APN then, type in the
parameters according with your Carrier. The basic parameters are:
Name
APN
Username
Password
Some carriers use Proxy Servers, refer to your carrier configuration for more information.
4. When you finish typing in the parameters needed, touch
Menu then Save.
CONNECTING TO INTERNET
Add a new connection
Internet.
21
If you have multiples APN Configurations for t he same SIM card, choose which one you want to use touching the radio
button at the right side of the name. To add another connection, repeat from step 3.
If you use multiple SIM cards and want to switch to another one, follow these steps:
1. In the applications list, touch Setti ngs to access to the
device configuration.
2. Touch .
3. Choose the option Data connection and select the SIM
Card that you want to use.
Switch between carriers
(SIM cards)
22
EN
Learn about your phone’s ability to connect to other wireless
Turn on the Bluetooth wireless feature
1. In the applications list, touch Settings to access to the
device configuration.
2. Touch the Bluetooth option .
3. To turn the Bluetooth touching the button on the right
top corner.
Find and pair with other Bluetooth enabled devices
1. When you turn the Bluetooth on, the list will show all the
available devices near you.
2. Touch the device that you want to pair with your phone.
3. Enter a PIN for the Bluetooth wireless feature or the other
device’s Bluetooth PIN, if it has one, and press OK. When the owner of the other device enters the same code or
accepts the connection, the pairing will be complete.
USING THE BLUETOOTH
devices for exchanging data.
23
Send images using the Bluetooth wireless feature
1. Open Gallery .
2. Choose a picture and press Share on the top right
corner of the screen and select Bluetooth .
3. Touch the device that you want to send the picture then
accept the file in the receiver.
Receive images using the Bluetooth wireless feature
1. Turn on the Bluetooth at System Settings.
2. Type in the Bluetooth PIN or accept it (if it is needed).
3. Accept the receiving file if you want to receive data from
the other device. When the transferring is finished you can see the picture
using the Gallery Application .
24
EN
Learn to use the phone's wireless capabilities to connect to
any wireless local area network compatible.
1. In the applications list, touch Settings to access to the
device configuration.
2. Touch the Wi-Fi option .
3. To turn the On the Wi-Fi touching the button on the
right top corner.
4. Choose a wireless network and enter the security
password if it is needed.
1. In the applications list, touch Settings to access to the
device configuration.
2. Touch the Wi-Fi option .
3. To turn the Wi-Fi off touch the button on the right top
corner.
Disconnect from a wireless network
USING THE Wi-Fi
Connect to a wireless network
25
View the technical details of a wireless network
1. In the applications list, touch Settings to access to the
device configuration.
2. Touch the Wi-Fi option .
3. Touch the active wireless network to see details such as
Link Speed, Signal strength and more.
26
EN
Information to consumers in application of EU WEEE.
This product is subject to European Union regulations that promote the re-use and recycling of used electrical and electronic equipment. This product required the extraction and use of natural resources and may contain hazardous substances. The symbol above, on the product or its packaging, indicates that this product must not be di sposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handling it over to a designated coll ection point for the recycling of waste electrical and electronic equipment.
The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it i s recycled in a manner that protects human health and the environment.
For more information about where you can drop of your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the store from which you purchased the product.
EU WEEE
27
Do not disassemble, open or tear up the device or the
batteries.
Do not expose the product or the battery to heat or fire.
Avoid storage the device directly to the sunlight.
Do not short-circuit a battery. Do not stock batteries in a
drawer where it could short-circuit between each other or get in contact by any other metallic objects.
Do not cause mechanical shocks to batteries.
In case of the leak, do not l et the li quid get in contact wi th
your eyes or skin. If that happens wash wi th clear water the affected zone and seek medical advice.
Follow the marks plus (+) and minus (-) on the battery and
the device and ensure that the use is correct.
Do not use any accessories or batteries that are not made
to be used with the device.
Monitor the use of batteries by children.
Consult a doctor immediately in case of i ngestion of an
element or a battery.
Always buy the battery recommended by the manufacturer
of the device.
Always maintain the product and the battery clean and
dry.
Recommendations:
28
EN
Wipe the terminals of the product or the battery, if it
became dirty, with a clean and dry rag.
It is necessary to charge the battery before its use. Always
use the charger and read the manufacturer instructions or the manual of the device for the instructions regarding charging.
Do not leave a battery charged when it’s not going to be
used.
After long periods of storage, it may be necessary to
charge and discharge the battery several ti mes i n order to achieve maximum performance.
Always keep the original documentation of the devi ce, yo u
might need it later for future reference.
If it’s possible, take out the battery of the device when it’s
not used.
Do not store your device in extremely hot or cold places
like inside of a car during the summer. It might damage the device and cause explosion of the battery. It’s recommended to use the device in a range of temperatures between 5°C and 35°C.
29
Please take time to read this important section.
RADIO WAVES
Proof of compliance whit international standards (ICNIRP) or with European Directive 1999/5/EC (R&TTE) is required of all mobile phone models before they can be put on the market. The protection of the health and safety for the user a ny other person is an essential requirement of these sta ndards or this directive.
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES
Your mobile device is a radio transmitter a nd receiver. It is designed not to exceed the limits for exposure to radi o waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is1.6 W/kg.
Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified
SAR
30
EN
power level in all tested frequency bands. Body-worn SAR testing has been carried out at a separatio n
distance of 1.0 cm. to meet RF exposure guidelines during body-worn operation, the device should be positioned at least this distance away from the body. If you are not using an approved accessory ensure that whatever product is used is free of any metal and that it posi ti ons the phone t he i ndicated distance away from the body.
For more information you can go to www.sayyezz.com Additional information about electromagneti c fiel ds and publ ic
health are available on the following site. http://www.who.int/peh-emf.
Your telephone is equipped whit a built-in antenna. For optimal operation, you should avoid touching it or degrading it.
As mobile devices offer a range of functions, they can be used in positions other that against your ear. In such circumstances the device will be compliant whit the guidelines when used with headset or USB data cable. If you are using another accessory ensure that whatever pr oduct is used is free of any metal and that it positions the phone at least 1.0 cm away from the body.
LICENSES
The Bluetooth word mark and logos ar e owned by Bl uetooth SIG, Inc. and any use of such marks by DDMBrands LLC and its affiliates is under license. Other trademarks and trade names are those of their respective owners.
31
CE
Please take time to read this important section.
RADIO WAVES
Proof of compliance whit international standards (ICNIRP) or with European Directive 1999/5/EC (R&TTE) is required of all mobile phone models before they can be put on the market. The protection of the health and safety for the user an y other person is an essential requirement of these sta ndards or this directive.
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES
Your mobile device is a radio transmitter a nd receiver. It is designed not to exceed the limits for exposure to radio wav es (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.
EU Regulatory Conformance
Hereby, this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
32
EN
For the declaration of conformity, visit the Web site www.sayyezz.com/certifications.
Notice: Observe the national local regulations in the locati on where the device is to be used. This devi ce may be rest ri cted for use in some or all member states of the E uropean Union (EU)
Notes:
- Due to the used e nclosure materi al, the mobile phone s hall
only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited.
- The adapter shall be i nstalled near the e quipment a nd shall
be easily accessible.
- Do not use the mobil e phone in the environme nt at too hig h
or too low temperature, never expose the mobile phone under strong sunshine or too wet e nvironment. The suitable temperature for the phone and accessories is -10℃-55℃.
- When charging, please place the phone i n an environment
that has a normal room temperature and good ve ntilation. It is recommended to charge the phone in an environment with a temperature that ranges from 5~25℃. Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the phone and the guarantee article.
- CAUTION: RISK OF EXPLOSION IF BATTERY IS
REPLACED WITH AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
- Excessive sound pressure from earphones and
33
headphones can cause hearing loss.
For more information you can go to www.sayyezz.com Additional information about electromagneti c fiel ds and publ ic
health are available on the following site. http://www.who.int/peh-emf.
Your telephone is equipped whit a built-in antenna. For optimal operation, you should avoid touching it or degrading it.
As mobile devices offer a range of functions, they can be used in positions other that against your ear. In such circumstances the device will be compliant whit the guidelines when used with headset or USB data cabl e. If you are using another accessory ensure that whatever pr oduct is used is free of any metal and that it positions the phone at least 1.5 cm away from the body.
LICENSES
Bluetooth SIG, Inc. owns the Bl uetooth word mark a nd logos and any use of such marks by DDM Brands LLC and its affiliates is under license. Other trademarks and trade names are those of their respective owners.
34
EN
Please take time to read this important section.
FCC Caution
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Before a new model phone is available for sal e to the public, it must be tested and certified to the F CC that it does not exceed the exposure limit established by the FCC, Tests for each phone are performed in positions and locati ons (e.g. at the ear and worn on the body) as required by the FCC.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 1 5 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
FCC
35
with the instructions, may cause harmful interfere nce to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turni ng the equipment off and on, the user is encouraged to try t o correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an o utlet on a circuit different
from that to which the receiver is connected.
- Co nsult the dealer or an experi enced radio/TV technician
for help.
36
EN
Specific Absorption Rate (SAR) information
SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value, in general, the closer you are to a wireless base station antenna, the lower the power output. Before a new model phone is a available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC, Tests for each phone are performed in positions and locations (e.g. at the ear and worn on the body)as required by the FCC. For body worn operation, this model phone has been tested and
guidelines when used with an accessory designated for this product or when used with an accessory that Contains no metal and that positions the handset a minimum of 1.0 cm from the body. Non-compliance with the above restrictions may result in violation of RF exposure guideline s .
meets the FCC RF exposure
Loading...
