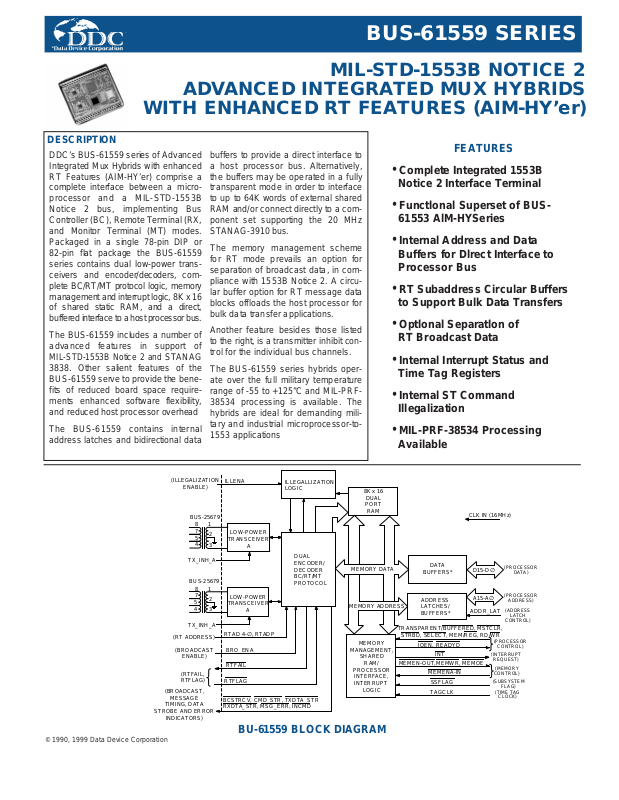

DDC BUS-61559 User Manual

BUS-61559 SERIES

MIL-STD-1553B NOTICE 2

ADVANCED INTEGRATED MUX HYBRIDS

WITH ENHANCED RT FEATURES (AIM-HY’er)

DESCRIPTION

DDC’s BUS-61559 series of Advanced
Integrated Mux Hybrids with enhanced
RT Features (AIM-HY’er) comprise a
complete interface between a micro­processor and a MIL-STD-1553B
Notice 2 bus, implementing Bus
Controller (BC), Remote Terminal (RX,
and Monitor Terminal (MT) modes.
Packaged in a single 78-pin DIP or
82-pin flat package the BUS-61559
series contains dual low-power trans­ceivers and encoder/decoders, com­plete BC/RT/MT protocol logic, memory
management and interrupt logic, 8K x 16
of shared static RAM, and a direct,
buffered interface to a host processor bus.

The BUS-61559 includes a number of
advanced features in support of
MIL-STD-1553B Notice 2 and

3838. Other salient features of the
BUS-61559 serve to provide the bene­fits of reduced board space require­ments enhanced software flexibility,
and reduced host processor overhead

The BUS-61559 contains internal
address latches and bidirectional data

STANAG

buffers to provide a direct interface to
a host processor bus. Alternatively,
the buffers may be operated in a fully
transparent mode in order to interface
to up to 64K words of external shared
RAM and/or connect directly to a com­ponent set supporting the 20 MHz
STANAG-3910 bus.

The memory management scheme
for RT mode prevails an option for
separation of broadcast data, in com­pliance with 1553B Notice 2. A circu­lar buffer option for RT message data
blocks offloads the host processor for
bulk data transfer applications.

Another feature besides those listed
to the right, is a transmitter inhibit con­trol for the individual bus channels.

The BUS-61559 series hybrids oper­ate over the full military temperature
range of -55 to +125”C and MIL-PRF­38534 processing is available. The
hybrids are ideal for demanding mili­tary and industrial microprocessor-to­1553 applications

FEATURES

•Complete Integrated 1553B

Notice 2 Interface Terminal

•Functlonal Superset of BUS-

61553 AlM-HYSeries

•Internal Address and Data

Buffers for Dlrect Interface to
Processor Bus

•RT Subaddress Circular Buffers

to Support Bulk Data Transfers

•Optlonal Separatlon of

RTBroadcast Data

•Internal Interrupt Status and

Time Tag Registers

•Internal ST Command

Illegalization

•MIL-PRF-38534 Processing

Available

STROBE AND ERROR

© 1990, 1999 Data Device Corporation

(ILLEGALIZATION

ENABLE)

BUS-25679

8

7
5
4

TX_INH_A

BUS-25679

8
7
5
4

TX_INH_A

(RT ADDRESS)

(BROADCAST

ENABLE)

(RTFAIL,
RTFLAG)

(BROADCAST,

MESSAGE

TIMING, DATA
INDICATORS)

ILLENA

1

LOW-POWER

2

TRANSCEIVER

3

1
2
3

A

LOW-POWER

TRANSCEIVER

A

RTAD 4-∅, RTADP

BRO_ENA

RTFAIL

RTFLAG

BCSTRCV, CMD_STR, TXDTA_STR
RXDTA_STR, MSG_ERR, INCMD

ILLEGALLIZATION
LOGIC

DUAL
ENCODER/
DECODER
BC/RT/MT
PROTOCOL

BU-61559 BLOCKDIAGRAM

8K x 16

DUAL
PORT

RAM

MEMORY DATA

MEMORY ADDRESS

MEMORY

MANAGEMENT,

SHARED

RAM/

PROCESSOR

INTERFACE,
INTERRUPT

LOGIC

CLK IN (16MHz)

DATA

BUFFERS*

ADDRESS
LATCHES/
BUFFERS*

TRANSPARENT/BUFFERED, MSTCLR,

STRBD, SELECT, MEM/REG, RD/WR

IOEN, READYD

MEMEN-OUT,MEMWR, MEMOE

INT

MEMENA-IN

SSFLAG
TAGCLK

D15-D∅

A15-A∅

ADDR_LAT

(PROCESSOR

(PROCESSOR

ADDRESS)

(ADDRESS

LATCH

CONTROL)

(PROCESSOR

CONTROL)

(INTERRUPT

REQUEST)

(MEMORY

CONTROL)

(SUBSYSTEM

FLAG)

(TIME TAG

CLOCK)

DATA)

2

ORDERING INFORMATION

BUS-615XX- XX0X*

Supplemental Process Requirements:

S = Pre-Cap Source Inspection
L = Pull Test
Q = Pull Test and Pre-Cap Inspection
K = One Lot Date Code
W = One Lot Date Code and PreCap Source
Y = One Lot Date Code and 100% Pull Test
Z = One Lot Date Code, PreCap Source and 100% Pull Test
Blank = None of the Above

Process Requirements:

0 = Standard DDC Processing, no Burn-In (See page xiii.)
1 = MIL-PRF-38534 Compliant
2 = B**
3 = MIL-PRF-38534 Compliant with PIND Testing
4 = MIL-PRF-38534 Compliant with Solder Dip
5 = MIL-PRF-38534 Compliant with PIND Testing and Solder Dip
6 = B** with PIND Testing
7 = B** with Solder Dip
8 = B** with PIND Testing and Solder Dip
9 = Standard DDC Processing with Solder Dip, no Burn-In (See page xiii.)

Temperature Grade/Data Requirements:

1 = -55°C to +125°C
2 = -40°C to +85°C
3 = 0°C to +70°C
4 = -55°C to +125°C with Variables Test Data
5 = -40°C to +85°C with Variables Test Data
8 = 0°C to +70°C with Variables Test Data

Power Supply and Packaging

59 = +5 V/-15 V DDIP
60 = +5 V/-12 V DIP
69 = +5 V/-15 V Flat Pack
70 = +5 V/-12 V Flat Pack
71 = +5 V Flat Pack

*-601 version also available = MIL-STD-1760 compatible with fully compliant

MIL-PRF-38534 Processing Available

3

NOTES

4

The information in this data sheet is believed to be accurate; however, no responsibility is

assumed by Data Device Corporation for its use, and no license or rights are

granted by implication or otherwise in connection therewith.

Specifications are subject to change without notice.
