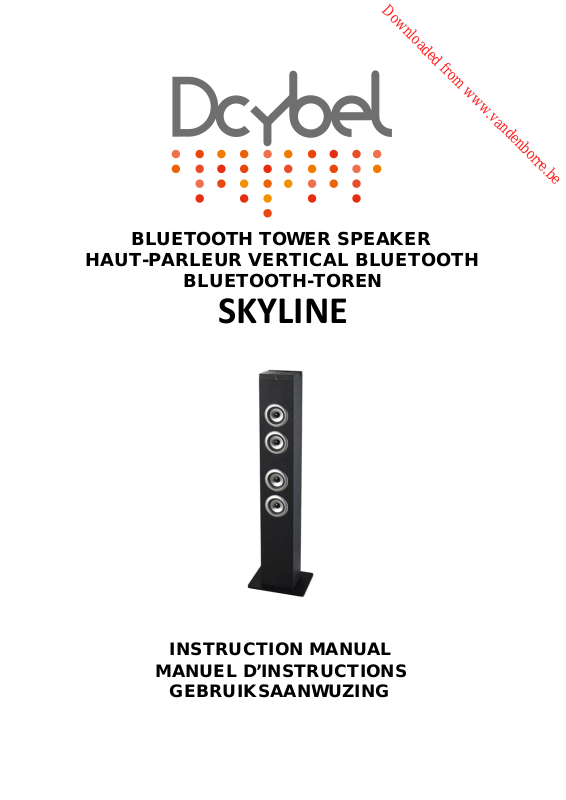

DCYBEL SKYLINE User Manual [nl]
BLUETOOTH TOWER SPEAKER
HAUT-PARLEUR VERTICAL BLUETOOTH
BLUETOOTH-TOREN
SKYLINE
INSTRUCTION MANUAL
MANUEL D’INSTRUCTIONS
GEBRUIKSAANWUZING
WARNINGS
This appliance is intended for domestic household use only and should not be used
for any other purpose or in any other application, such as for non domestic use or in a
commercial environment.
Ventilation
Allow at least a 10 cm gap all around the product.
The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, table‐cloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
This apparatus is not suitable for use in a tropical climate.
The a pparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
Where the MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
Attention should be drawn to the environmental aspects of battery disposal.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, fire or the like.
To protect the environment, use local recycling facilities for battery disposal.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER‐SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.
EN-1
Dangerous voltage constituting a risk of electric shock is
present inside this equipment.
There are important operating and maintenance instructions in
the literature accompanying this equipment.
This mark is applied to show the equipment conforms to
European safety and electromagnetic compatibility standards.
WARNING: To prevent the risk of fire or electric shock, do not expose this
apparatus to rain or moisture.
• Examine the product thoroughly: if it is damaged in any way notify the retail store
where you purchased it.
•
DO NOT install near any heat sources such as open flames, radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
•
PROTECT the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• ONLY USE attachments/accessories specified by the manufacturer.
•
UNPLUG this apparatus during lightning storms or when not in use for long periods
of time.
•
f anything goes wrong, don’t try and fix it yourself, get a qualified service agent to
I
carry out any repairs or maintenance.
• Use this apparatus only for its intended purpose as described in the manual.
Remote control battery
The battery should only be replaced by adults. Do not allow children to use the
remote control unless the battery holder is attached.
The battery (1 x CR2025 lithium battery) for the remote control is included and it is
accessible and can be replaced.
To replace the battery, remove the battery holder located on the bottom of the
remote control to remove the battery.
This battery must be disposed of at your local recycling point.
First time use
Remove and discard the insulation film.
1. Push and slide out the battery holder.
2. Replace the battery with a new CR2025 one in the battery
holder wi th the print face up.
3. Reattach the battery holder to the remote control.
EN-2
Note: If the remote control is not used for a long period of time, remove the battery to
prevent damage or injury from possible battery leakage.
CONTROLS
Top
1. AUX jack
2. USB CHARGE port (used to charge mobile
devices)
3. Indicator lights for Bluetooth, FM radio and
AUX sources
4.
5. button: increase volume
6. button: decrease volume
7. SOURCE button
8.
9. button
10. button
•
button: play/pause/scan FM stations
button
Press this button to switch the apparatus
from on to standby state or vice versa.
EN-3
Front Side Rear
11. Remote sensor
12. Full‐range speakers
13. Tweeters
Remote control buttons
14. Woofer
15. Ventilation hole
16. DC IN jack
17. Antenna
1. STANDBY/
2.
3. SOURCE
4. PAIR
5. Equalizer mode: JAZZ/CLASSIC/POP
6.
7.
8. : mute
9.
10.
•The remote control works within a distance of about 5 metres from the sensor and
within an angle of about 30 degrees from the left and right sides.
•To avoid interference, do not put any objects in front of remote sensor.
EN-4
d
INSTALLATION
Attach the base to the main
body using the supplied screws
and washers.
PAIRING SPEAKER WITH A BLUETOOTH DEVICE
1. Connect the supplied power adapter to the DC IN jack of the speaker and then plug
the power adapter into the mains socket.
2. Press
3. Repeatedly press SOURCE on the speaker or on the remote control until the
Bluetooth indicator light flashes GREEN.
4. Turn on the Bluetooth function o
5. Set your Bluetooth enabled device to search the speaker and select “SKYLINE” from
the list of found devices.
•
6. Once pairing is successful, the Bluetooth indicator light will become solid GREEN.
7. Start play on the Bluetooth device.
on the speaker or on the remote control to turn on the unit.
f the device and place the device near this unit.
Note: If you are require
to enter a PIN code, enter 0000.
•
The effective operation range between the unit and the paired Bluetooth device is
approximately 10 metres in the open area.
•
This unit can only be connected to one device at a time.
•
When you select the Bluetooth source, this unit will automatically connect to the last
connected Bluetooth device. The Bluetooth device will be disconnected if a different
audio source (e.g. AUX) is selected.
Disconnecting a Bluetooth device
While a Bluetooth device is connected, press and hold
seconds or press PAIR on the remote control to disconnect current pairing.
The Bluetooth indicator light will flash GREEN.
on the speaker for about 2
EN-5
Basic play
l
Play
Pause
Skip
Volume
adjustment
Equalizer
setting
Press on the speaker or press on the remote control.
Press on the speaker or the remote control to skip forward
to the next track and press to skip backward to the
previous track.
Repeatedly press
To turn the sound off, press on the remote control. Press it
again to turn the sound back on.
Note: You may also adjust the volume from your Bluetooth
device’s volume control.
Press JAZZ, CLASSIC or POP on the remote control to select the
desired equalizer mode.
/ to set a desired listening level.
LISTENING TO FM RADIO
1. Repeatedly press SOURCE on the speaker or the remote control until the FM
indicator light turns GREEN.
2. Repeatedly press / to tune up/down through the radio stations.
•
To start automatic tuning, press and hold
light flashes GREEN. Release the button and the frequency will start scrolling.
Tuning will stop when a station is found.
3. To search all available stations, press and hold on the speaker until the FM
indicator light flashes GREEN and then release the button. 20 stations will be saved
as presets.
•
Repeatedly press
4. To switch between stereo and mono reception, repeatedly press on the
remote control.
•
The radio wil
available).
Alternatively, you can manually set the radio to receive only in mono.
This may be preferred if the signal strength is low, and the background noise level
is high.
automatically receive FM radio broadcasts in stereo (when
to listen to preset stations.
/ until the FM indicator
EN-6
USB CHARGING
d
On the top of the speaker there is a USB
CHARGING port. You can connect any USB
charging cable (not supplied) to it and use the
speaker as an external battery pack for charging.
Note: Make sure the speaker is powered on to
charge devices (charge at 5V, 2.1A).
LISTENING TO AUXILIARY SOURCE
1. Plug one end of the supplied audio cable into the headphone
jack on your device.
2. Plug the other end o
of the speaker.
f theaudiocableintotheAUXjack on top
3. Press
4. Repeatedly press SOURCE until the AUX indicator light
illuminates GREEN.
5. Use your device’s audio controls for music playback.
•
6. To stop playback, disconnect your device from the AUX jack.
to turn ON the speaker.
Note: only the volume buttons an
speaker or the r emote control are operational when a
device is plugged into the AUX j ack.
on the
CLEANING AND MAINTENANCE
Switch off and disconnect the unit from the mains socket before cleaning and
maintenance.
Clean the unit with a soft, slightly damp cloth and wipe it with a dry cloth.
Never immerse it in water.
Do not use abrasive or chemical cleaning agents.
SPECIFICATIONS
Frequency range: FM: 87.5 MHz–108 MHz
Power supply:
Power consumption: 60W
DC
18V, 3.2A
EN-7
DISPOSAL
As a responsible retailer we care about the environment.
As such we urge you to follow the correct disposal procedure for the product,
packaging materials and if applicable, accessories and batteries. This will help
conserve natural resources and ensure that the materials are recycled in a manner
that protects health and the environment.
You must follow laws and regulations about disposal. Waste electrical products and
batteries must be disposed of separately from household waste when the product
reaches the end of its life.
Contact the store where you bought the product and your local authority to learn
about disposal and recycling.
The batteries must be disposed of at your local recycling point.
Use only power supplies listed in the user instructions.
Specified Adapter
Manufaturer:Shenzhen Shi Guangkaiyuan Technology;Ltd
Model:GKYPA0320180UL
Input:100-240~,50/60Hz,1.5A Max
Output:18Vdc, 3.2A
We apologise for any inconvenience caused by minor inconsistencies in these
instructions, which may occur as a result of product improvement and development.
Darty Holdings SNC © 14 route d’Aulnay 93140 Bondy, France 27 / 07 / 2015
EN-8
