Dcs Outdoor BH130RN Quick reference guide

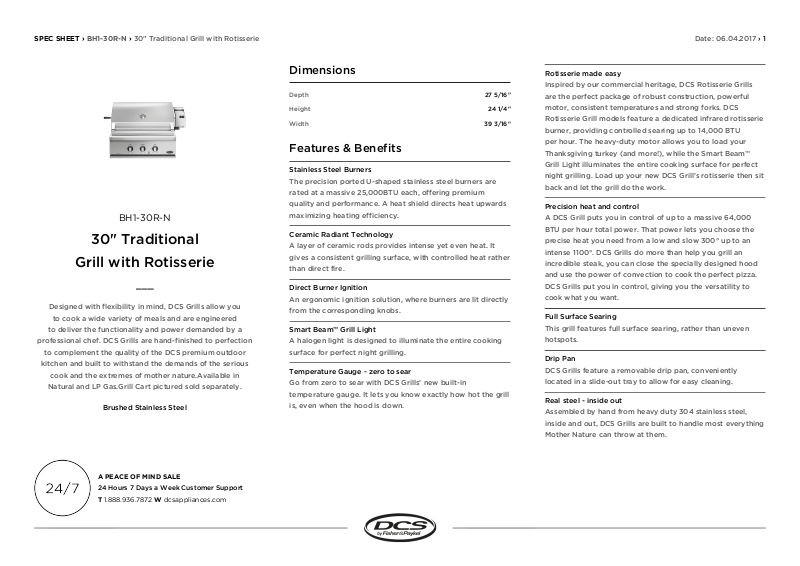

SPEC SHEET › BH1-30R-N › 30" Traditional Grill with Rotisserie Date: 06.04.2017 › 1
BH1-30R-N
30" Traditional
Grill with Rotisserie
___
Designed with flexibility in mind, DCS Grills allow you
to cook a wide variety of meals and are engineered
to deliver the functionality and power demanded by a
professional chef. DCS Grills are hand-finished to perfection
to complement the quality of the DCS premium outdoor
kitchen and built to withstand the demands of the serious
cook and the extremes of mother nature.Available in
Natural and LP Gas.Grill Cart pictured sold separately.
Brushed Stainless Steel
Dimensions
Depth 27 5/16"
Height 24 1/4"
Width 39 3/16"
Features & Benefits
Stainless Steel Burners
The precision ported U-shaped stainless steel burners are
rated at a massive 25,000BTU each, offering premium
quality and performance. A heat shield directs heat upwards
maximizing heating efficiency.
Ceramic Radiant Technology
A layer of ceramic rods provides intense yet even heat. It
gives a consistent grilling surface, with controlled heat rather
than direct fire.
Direct Burner Ignition
An ergonomic ignition solution, where burners are lit directly
from the corresponding knobs.
Smart Beam™ Grill Light
A halogen light is designed to illuminate the entire cooking
surface for perfect night grilling.
Temperature Gauge - zero to sear
Go from zero to sear with DCS Grills’ new built-in
temperature gauge. It lets you know exactly how hot the grill
is, even when the hood is down.
Rotisserie made easy
Inspired by our commercial heritage, DCS Rotisserie Grills
are the perfect package of robust construction, powerful
motor, consistent temperatures and strong forks. DCS
Rotisserie Grill models feature a dedicated infrared rotisserie
burner, providing controlled searing up to 14,000 BTU
per hour. The heavy-duty motor allows you to load your
Thanksgiving turkey (and more!), while the Smart Beam™
Grill Light illuminates the entire cooking surface for perfect
night grilling. Load up your new DCS Grill’s rotisserie then sit
back and let the grill do the work.
Precision heat and control
A DCS Grill puts you in control of up to a massive 64,000
BTU per hour total power. That power lets you choose the
precise heat you need from a low and slow 300° up to an
intense 1100°. DCS Grills do more than help you grill an
incredible steak, you can close the specially designed hood
and use the power of convection to cook the perfect pizza.
DCS Grills put you in control, giving you the versatility to
cook what you want.
Full Surface Searing
This grill features full surface searing, rather than uneven
hotspots.
Drip Pan
DCS Grills feature a removable drip pan, conveniently
located in a slide-out tray to allow for easy cleaning.
Real steel - inside out
Assembled by hand from heavy duty 304 stainless steel,
inside and out, DCS Grills are built to handle most everything
Mother Nature can throw at them.
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W dcsappliances.com
SPEC SHEET › BH1-30R-N › 30" Traditional Grill with Rotisserie Date: 06.04.2017 › 2
Lifetime warranty
Built to last a lifetime, DCS grills are robust and durable.
They come with a lifetime warranty on their stainless steel
grill burners and hood, burner box, cooking grates and
grill racks*. Choose DCS, the grill you can trust. * Lifetime
warranty excludes discoloration or surface corrosion. For
complete DCS Grill Warranty refer to Use & Care Guide.
Specifications
Accessories sold separately
Optional cart-mount CAD1-30/BGB30-CSS
Controls
Metal dials
Cooking surface area
Cooking surface area 748sq. in.
Primary cooking area (grill) 553sq. in.
Warming rack area 195sq. in.
Cut
Cutout depth 22 3/4 "
Cutout height 10 1/8 "
Cutout width 28 1/2 "
Insulated jacket (different cut-outs
needed-check manual)
Finish
Built in
Finish 304 grade stainless steel
Optional cart-mount CAD1-30 / BGB30-CSS
Weather resistant
BGB30-IJS (optional)
Gas Requirements
1/2" in NPT male with 3/8" in flare adapter
Gas requirements NG
Operational Pressure 4" W.C.
Supply Pressure 6" to 9" W.C.
•
Grill Features
Full surface searing
Hood temperature gauge
Metal dials
One-step direct burner ignition
Rotisserie
•
Warming rack
•
•
•
•
•
•
Warranty
Warranty Limited 2 years part & labor
SKU 71303
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © 2017 DCS by Fisher & Paykel Appliances Limited
Other product downloads available at dcsappliances.com
Measurements
Overall Depth 27 5/16 "
Overall Height 24 1/4 "
Overall Width 39 3/16 "
Shipping weight 203 LBS
Width excluding rotisserie 30 "
Performance
Max weight rotisserie 50 LBS
Number of U-burners 3
Rotisserie burner power in BTU 14,000
Total power in BTU 64,000
U-burner power in BTU 25,000
•
Power Requirements
Power Requirements 9V battery for ignition
Rotisserie power supply 120V 60Hz
•
