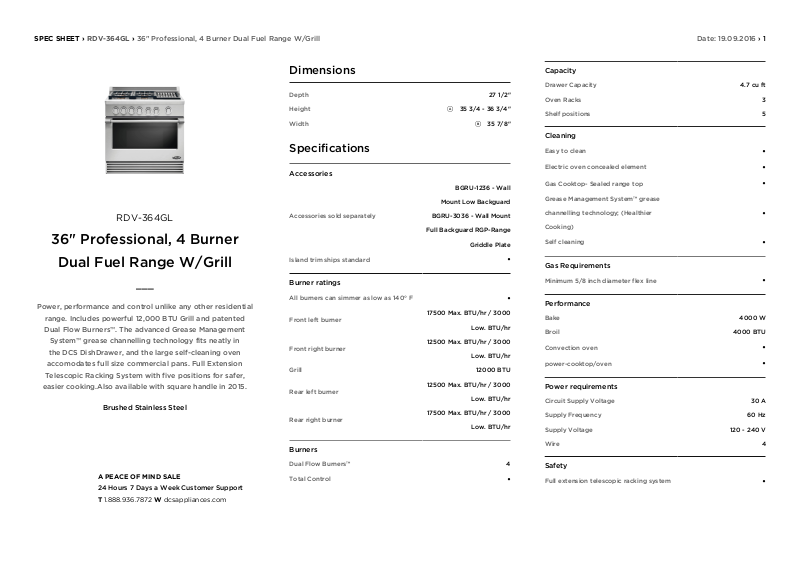

Page 1
SPEC SHEET › RDV-364GL › 36" Professional, 4 Burner Dual Fuel Range W/Grill Date: 19.09.2016 › 1
RDV-364GL
36" Professional, 4 Burner
Dual Fuel Range W/Grill
___
Power, performance and control unlike any other residential
range. Includes powerful 12,000 BTU Grill and patented
Dual Flow Burners™. The advanced Grease Management
System™ grease channelling technology fits neatly in
the DCS DishDrawer, and the large self-cleaning oven
accomodates full size commercial pans. Full Extension
Telescopic Racking System with five positions for safer,
easier cooking.Also available with square handle in 2015.
Brushed Stainless Steel
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W dcsappliances.com
Dimensions
Depth 27 1/2"
Height
Width
A35 3/4 - 36 3/4"
B35 7/8"
Specifications
Accessories
BGRU-1236 - Wall
Mount Low Backguard
Accessories sold separately
Island trim ships standard
Burner ratings
All burners can simmer as low as 140° F
Front left burner
Front right burner
Grill 12000 BTU
Rear left burner
Rear right burner
Burners
Dual Flow Burners™ 4
Total Control
BGRU-3036 - Wall Mount
Full Backguard RGP-Range
Griddle Plate
17500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
17500 Max. BTU/hr / 3000
Low. BTU/hr
Capacity
Drawer Capacity 4.7 cu ft
Oven Racks 3
Shelf positions 5
Cleaning
Easy to clean
Electric oven concealed element
Gas Cooktop- Sealed range top
Grease Management System™ grease
channelling technology; (Healthier
Cooking)
Self cleaning
•
•
Gas Requirements
Minimum 5/8 inch diameter flex line
Performance
Bake 4000 W
Broil 4000 BTU
Convection oven
power-cooktop/oven
•
•
•
•
•
•
•
•
Power requirements
Circuit Supply Voltage 30 A
Supply Frequency 60 Hz
Supply Voltage 120 - 240 V
Wire 4
Safety
•
Full extension telescopic racking system
•
Page 2
SPEC SHEET › RDV-364GL › 36" Professional, 4 Burner Dual Fuel Range W/Grill Date: 19.09.2016 › 2
Ventilation
Minimum 1200 CFM VS1236
Recommended
SKU 71072
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © 2016 DCS by Fisher & Paykel Appliances Limited
Other product downloads available at dcsappliances.com
- 36 inch Pro Wall Mount
Vent Hood VS40 - 40 inch
Pro Island Vent Hood
