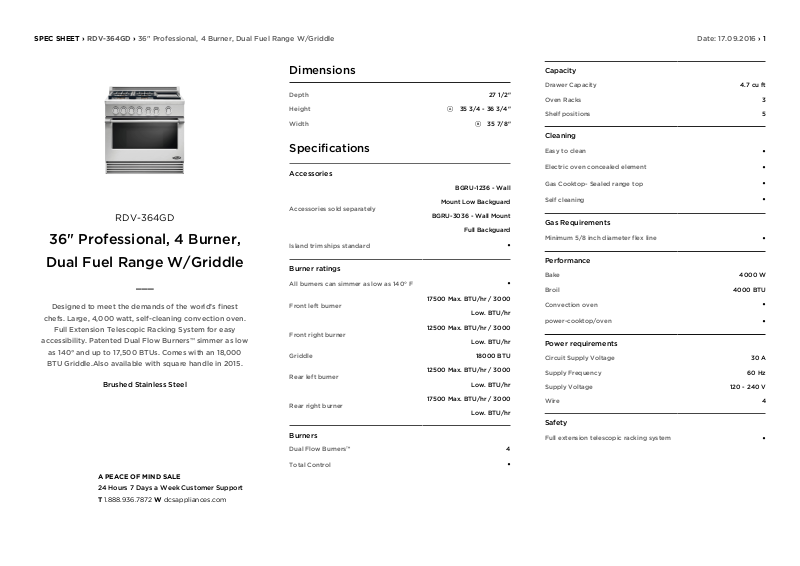

SPEC SHEET › RDV-364GD › 36" Professional, 4 Burner, Dual Fuel Range W/Griddle Date: 17.09.2016 › 1
RDV-364GD
36" Professional, 4 Burner,
Dual Fuel Range W/Griddle
___
Designed to meet the demands of the world’s finest
chefs. Large, 4,000 watt, self-cleaning convection oven.
Full Extension Telescopic Racking System for easy
accessibility. Patented Dual Flow Burners™ simmer as low
as 140° and up to 17,500 BTUs. Comes with an 18,000
BTU Griddle.Also available with square handle in 2015.
Brushed Stainless Steel
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W dcsappliances.com
Dimensions
Depth 27 1/2"
Height
Width
A35 3/4 - 36 3/4"
B35 7/8"
Specifications
Accessories
BGRU-1236 - Wall
Accessories sold separately
Island trim ships standard
Burner ratings
All burners can simmer as low as 140° F
Front left burner
Front right burner
Griddle 18000 BTU
Rear left burner
Rear right burner
Burners
Dual Flow Burners™ 4
Total Control
Mount Low Backguard
BGRU-3036 - Wall Mount
Full Backguard
17500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
12500 Max. BTU/hr / 3000
Low. BTU/hr
17500 Max. BTU/hr / 3000
Low. BTU/hr
Capacity
Drawer Capacity 4.7 cu ft
Oven Racks 3
Shelf positions 5
Cleaning
Easy to clean
Electric oven concealed element
Gas Cooktop- Sealed range top
Self cleaning
•
•
•
•
Gas Requirements
•
Minimum 5/8 inch diameter flex line
•
Performance
•
Bake 4000 W
Broil 4000 BTU
Convection oven
power-cooktop/oven
•
•
Power requirements
Circuit Supply Voltage 30 A
Supply Frequency 60 Hz
Supply Voltage 120 - 240 V
Wire 4
Safety
Full extension telescopic racking system
•
•
Page 2
SPEC SHEET › RDV-364GD › 36" Professional, 4 Burner, Dual Fuel Range W/Griddle Date: 17.09.2016 › 2
Ventilation
Minimum 600 - 1200 CFM
VS36 - 36 inch Pro Wall
Recommended
SKU 71070
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © 2016 DCS by Fisher & Paykel Appliances Limited
Other product downloads available at dcsappliances.com
Mount Vent Hood IVS40
- 40 inch Pro Island Vent
Hood ES36 -36 inch E Pro
Vent Hood
