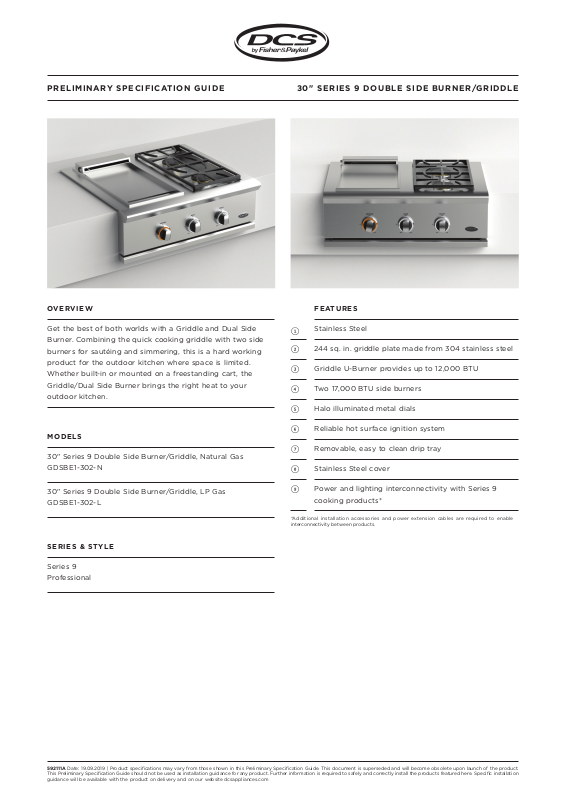

DCS GDSBE1302L, GDSBE1302N PRODUCT SPECIFICATIONS
PRELIMINARY SPECIFICATION GUIDE |
|
30" SERIES 9 DOUBLE SIDE BURNER/GRIDDLE |
|
|
|
|
|
|
|
|
|
OVERVIEW
Get the best of both worlds with a Griddle and Dual Side Burner. Combining the quick cooking griddle with two side burners for sautéing and simmering, this is a hard working product for the outdoor kitchen where space is limited. Whether built-in or mounted on a freestanding cart, the Griddle/Dual Side Burner brings the right heat to your outdoor kitchen.
MODELS
FEATURES
1Stainless Steel
2244 sq. in. griddle plate made from 304 stainless steel
3Griddle U-Burner provides up to 12,000 BTU
4Two 17,000 BTU side burners
5Halo illuminated metal dials
6Reliable hot surface ignition system
30" Series 9 Double Side Burner/Griddle, Natural Gas
GDSBE1-302-N
30" Series 9 Double Side Burner/Griddle, LP Gas
GDSBE1-302-L
7Removable, easy to clean drip tray
8Stainless Steel cover
9Power and lighting interconnectivity with Series 9 cooking products*
*Additional installation accessories and power extension cables are required to enable interconnectivity between products.
SERIES & STYLE
Series 9
Professional
592111A Date: 19.09.2019 | Product specifications may vary from those shown in this Preliminary Specification Guide. This document is superseded and will become obsolete upon launch of the product. This Preliminary Specification Guide should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website dcsappliances.com
PRELIMINARY SPECIFICATION GUIDE |
30" SERIES 9 DOUBLE SIDE BURNER/GRIDDLE |
|||||
|
SPECIFICATIONS |
|
|
GAS AND ELECTRICAL |
|
|
Model No. |
GDSBE1-302-N, GDSBE1-302-L |
|
|
|
|
|
Dimensions |
H 10 1/2" (266mm) x W 30" (762mm) x |
|
|
|
|
|
|
D 26 7/8" (683mm) |
|
|
|
|
|
Electrical |
|
|
|
|
|
|
Supply |
120V, 60Hz |
|
|
|
|
|
Gas – Natural |
|
|
|
A |
|
|
Supply |
6" to 9" W.C. |
|
|
B |
|
|
|
|
|
|
|
||
Inlet |
1/2" NPT male with 3/8" flare adapter |
|
|
|
|
|
Gas – LPG |
|
|
|
|
|
|
Supply |
12" to 14" W.C. |
|
|
|
|
|
Inlet |
1/2" NPT male with 3/8" flare adapter |
|
|
|
|
|
|
|
|
|
ISO VIEW |
|
|
|
|
|
|
|
in |
mm |
|
|
|
A |
Width of connection cutout |
4 |
102 |
|
|
|
B |
Depth of connection cutout |
4 |
102 |
|
PRODUCT DIMENSIONS |
|
CAVITY DIMENSIONS: STANDARD INSTALLATION |
|
||
|
C |
B |
|
C |
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
|
|
A |
|
|
|
B |
|
|
|
|
|
|
|
|
|
ISO VIEW ISO VIEW
|
|
|
|
in |
mm |
|
|
|
|
in |
mm |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
Overall height |
10 1/2 |
266 |
A |
Overall height of cavity |
10 1/8 |
|
257 |
||||||
|
|
(excl. burners and |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
B |
Overall width of cavity |
28 1/2 |
|
724 |
|||
|
|
pan supports) |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Overall depth of cavity |
22 3/4 |
|
578 |
||
B |
Overall width |
30 |
762 |
C |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C |
Overall depth (excl. dials) |
26 7/8 |
683 |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
