DCS ES30, ES36, VS1236, VS30, VS36 Installation Guide

...
Page 1
THE PROFESSIONAL AND EURO VENT HOOD
Installation Guide
MODELS:
VS30 VS1236 VS36 ES30 VS48 ES36
0®®
Page 2

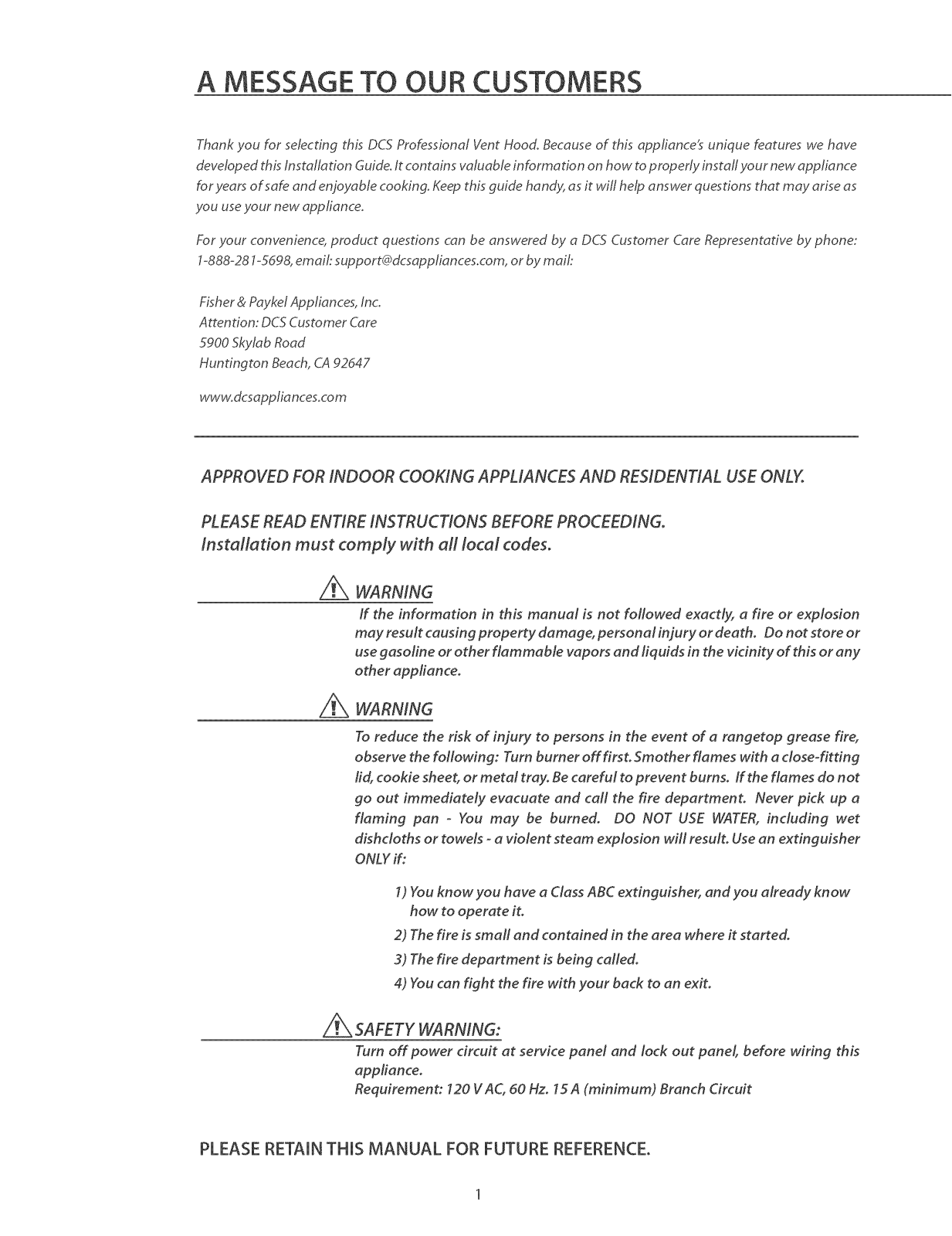

Thank you for selecting this DCB Professional Vent Hood. Because of this appliance's unique features we have developed this lnstalfation Guide. It contains valuable information on how to properly install your new appliance for years of safe and enjoyable cooking. Keep this guide handy, as it wift help answer questions that may arise as
you use your new appliance.
For your convenience, product questions can be answered by a DCB Customer Care Representative by phone:
1-888-281-5698, emaih support(_dcsappliances.com, or by mail:
Fisher &Paykel Appliances, Inc. Attention: DCSCustomer Care
5900 Sky,JabRoad Huntington Beach, CA92647
www.dcsappliances.com
APPROVED FOR INDOOR COOKING APPLIANCES AND RESIDENTIAL USE ONLY.
PLEASE READ ENTIRE iNSTRUCTIONS BEFORE PROCEEDING. Installation must comply with ali IocM codes.
WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WARNING
To reduce the risk of injury to persons in the event of a rangetop grease fire, observe the following: Turn burner off first. Smother flames with a close-fitting lid, cookie sheet, or metal tray. Be careful to prevent burns. If the flames do not
go out immediately evacuate and carl the fire department. Never pick up a flaming pan - You may be burned. DO NOT USE WATER, including wet
dishcloths or towels - a violent steam explosion will result. Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you akeady know
how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
Z_ SAFETY WARNING:
Turn off power circuit at service panel and lock out panel, before wiring this appliance. Requirement: 120 V AC,60 Hz. 15A (minimum) Branch Circuit
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Page 3

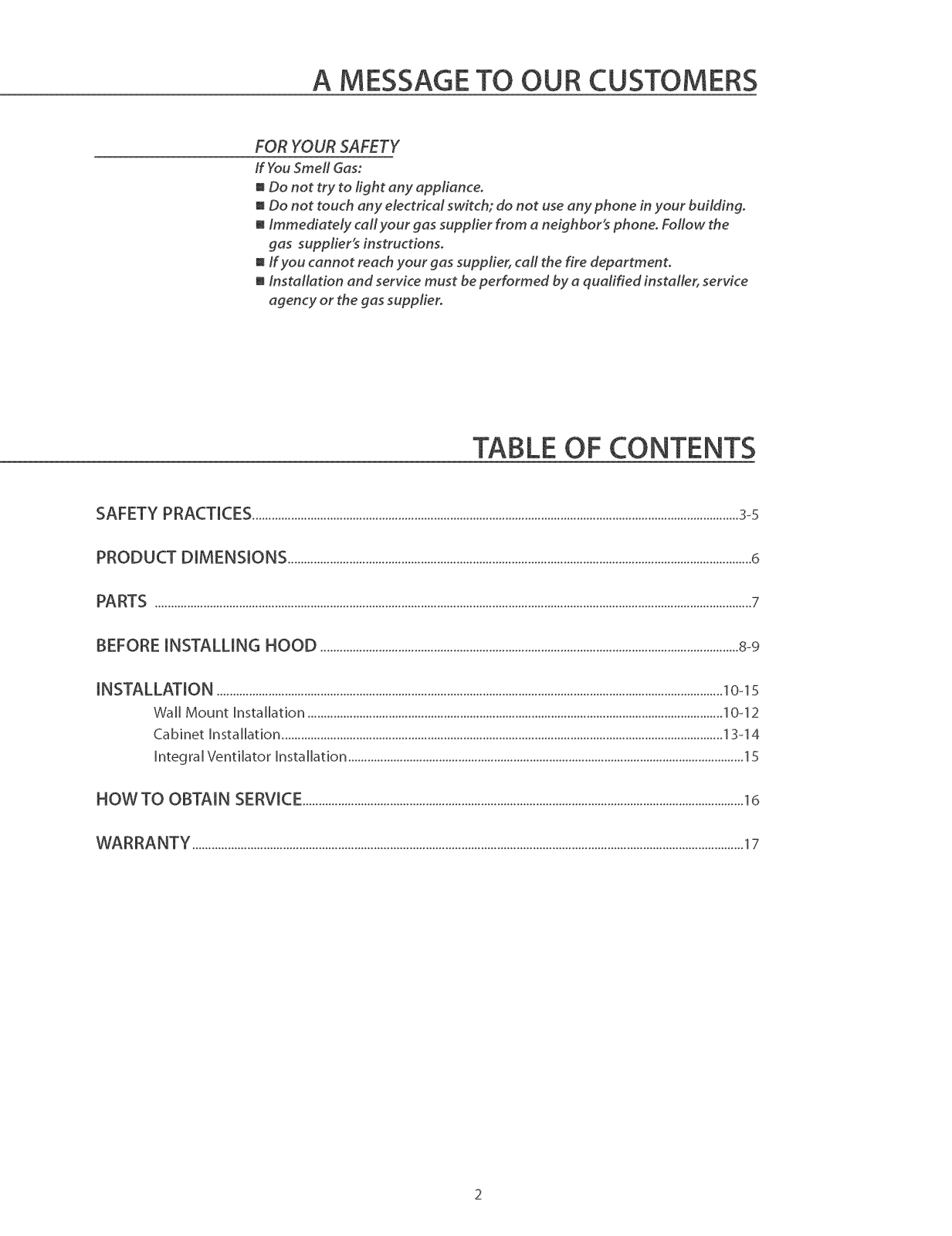

FOR YOUR SAFETY
If You Smell Gas:
t Do not try to light any appliance. t Do not touch any electrical switch; do not use any phone in your building. l Immediately callyour gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
I If you cannot reach your gas supplie_ call the fire department. [] Installation and service must be performed by a qualified installer, service
agency or the gas supplier
TABLE OF CONTENTS
SAFETY PRACTICES......................................................................................................................................................3-5
PRODUCT DIMENSIONS ...............................................................................................................................................d
PARTS ........................................................................................................................................................................................7
BEFORE INSTALLING HOOD .................................................................................................................................8-9
INSTALLATION ............................................................................................................................................................10q5
Wall[ Mount HnstaHHation................................................................................................................................10q2
Cabinet hsta[[ation ........................................................................................................................................] 3q 4
Integral Ventilator Installation ..........................................................................................................................15

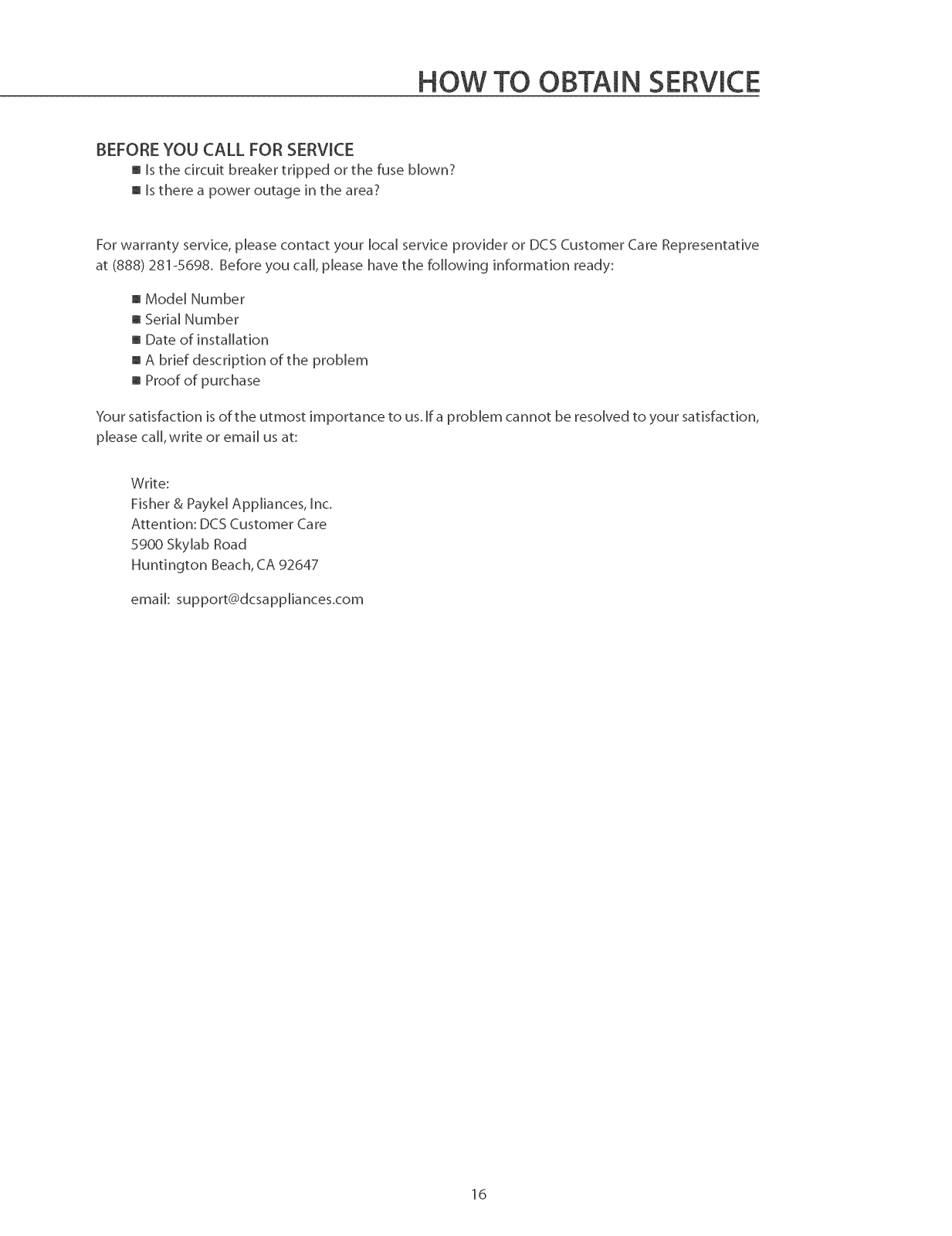

HOW TO OBTAIN SERVICE ........................................................................................................................................1d

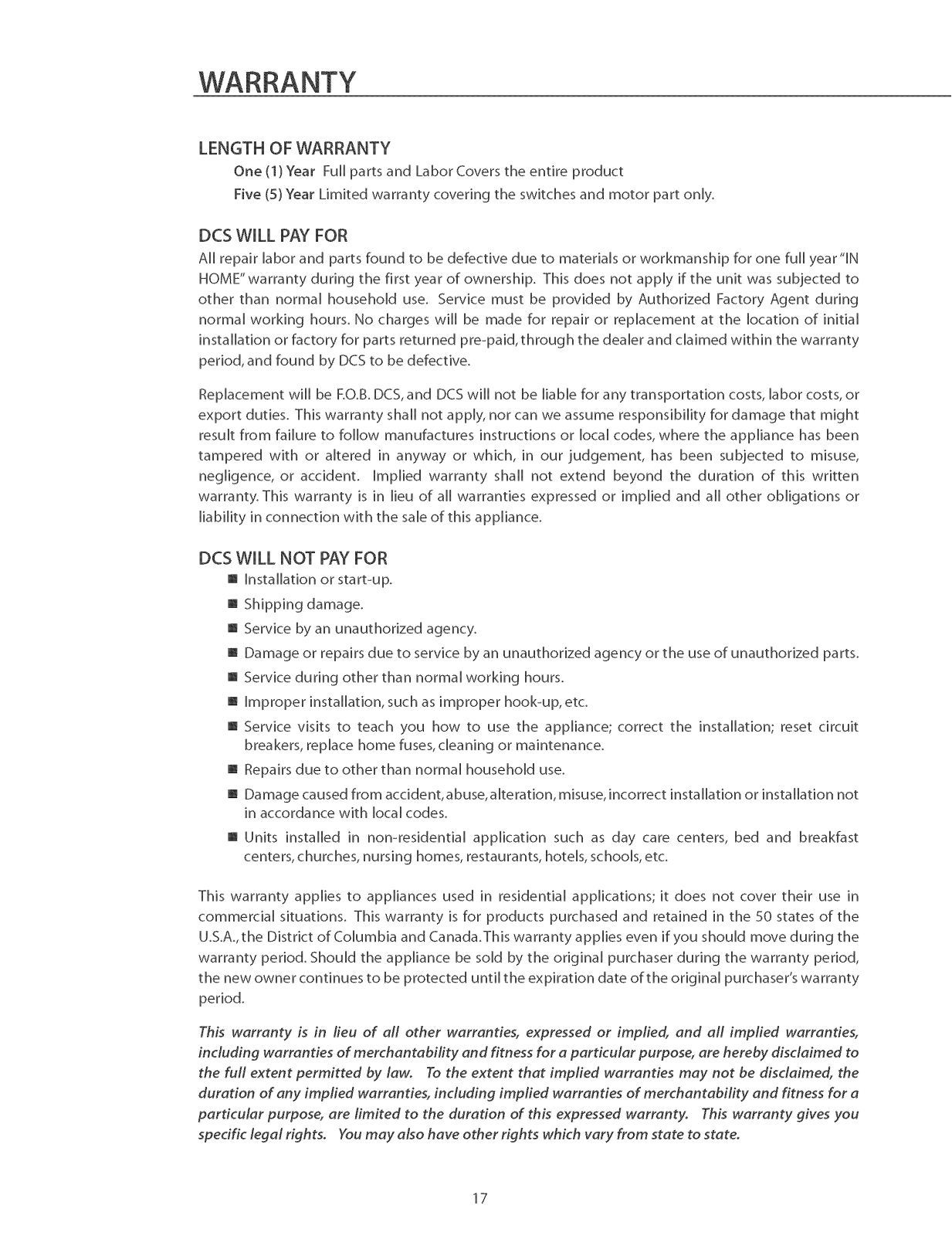

WARRANTY ..........................................................................................................................................................................17
Page 4

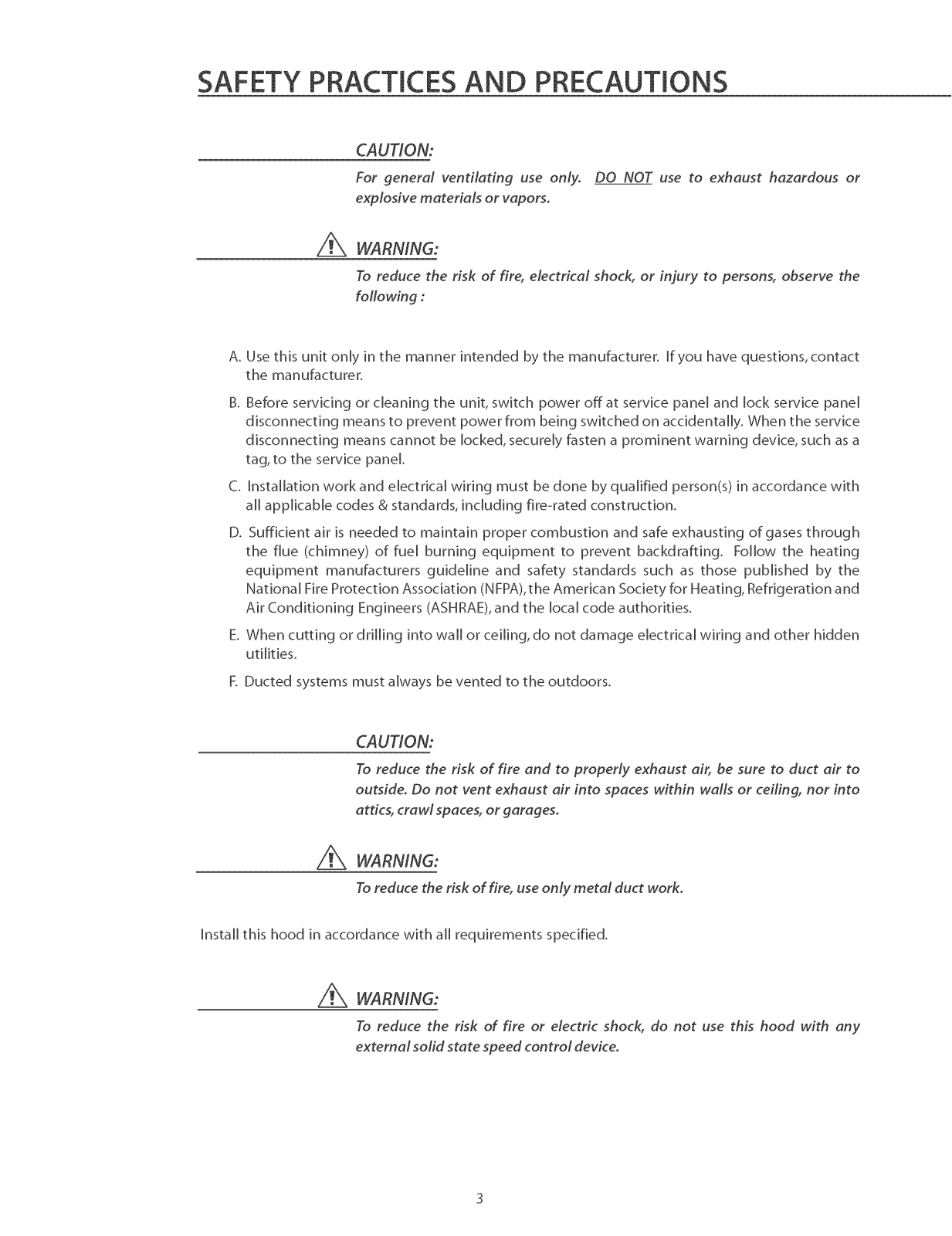

SAFETY PRACTICES AND PRECAUTIONS
CAUTION:
For general ventilating use only. DO NOT use to exhaust hazardous or
explosive materials or vapors.
Z_ WARNING:
To reduce the risk of fire, electrical shock, or injury to persons, observe the
following :
A. Use this unit only in the manner intended by the manufacturer, if you have questions, contact
the manufacturer.
B. Before servicing or cHeaning the unit, switch power offat service paneH and Hockservice paneH
disconnecting means to prevent power from being switched on acddentaHy. When the service disconnecting means cannot be Hocked,secureHy fasten a prominent warning device, such as a tag, to the service panel
C. hstaHation work and eHectricaHwiring must be done by quaHified person(s) in accordance with
all applicable codes & standards, including fire-rated construction.
D. Sufficient air is needed to maintain proper combustion and safe exhausting of gases through
the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturers guideline and safety standards such as those published by the
National Fire Protection Association (NFPA),the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
E. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden
utilities.
F. Ducted systems must always be vented to the outdoors.
CAUTION:
To reduce the risk of fire and to properly exhaust ai# be sure to duct air to outside. Do not vent exhaust air into spaces within walls or ceiling, nor into attics, crawl spaces, or garages.
/_ WARNING:
Toreduce the risk of fire, use only metal duct work.
Install this hood in accordance with a[[ requirements specified.
Z_ WARNING:
To reduce the risk of fire or electric shock, do not use this hood with any external solid state speed control device.
Page 5

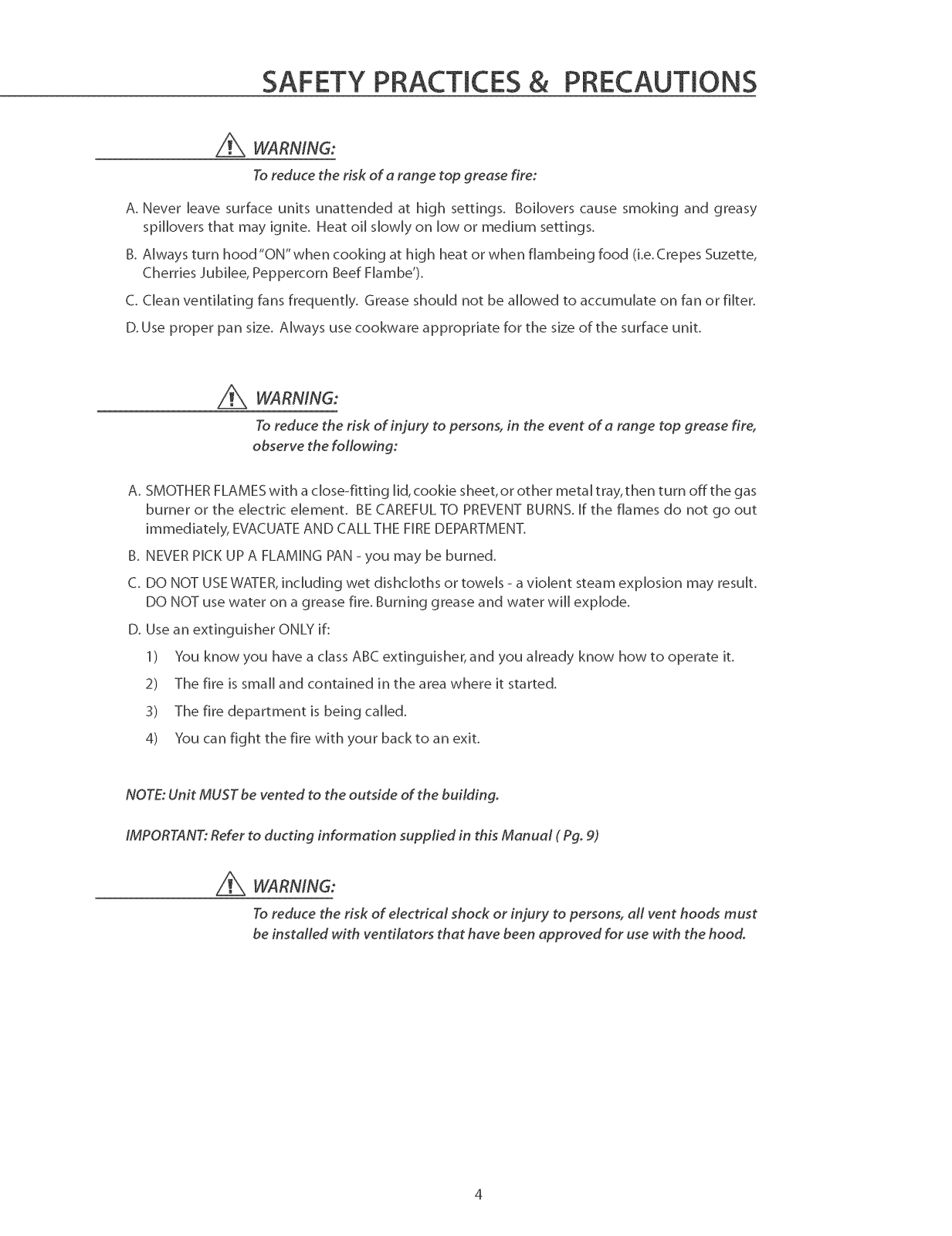

SAFETY PRACTICES&
Z_ WARNING:
To reduce the risk of a range top grease fire:
A. Never Heave surface units unattended at high settings. BoHovers cause smoking and greasy
spHHoversthat may ignite. Heat oiHshowily on Howor medium settings.
B. AHways turn hood"ON'when cooking at high heat or when flambeing food (i.e.Crepes Suzette,
Cherries JubiHee, Peppercorn Beef FHambe'). C. CHeanventilating fans frequently. Grease shouHd not be aHHowedto accumuHate on fan or fiHter. D. Use proper pan size. AHways use cookware appropriate for the size of the surface unit.
Z_ WARNING:
To reduce the risk of injury to persons, in the event of a range top grease fire,
observe the following:
A. SMOTHER FLAMES with acHose-fitting Hid,cookie sheet, or other metal tray, then turn offthe gas
burner or the electric element. BECAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALLTHE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN - you may be burned.
C. DO NOT USE WATER,including wet dishcloths or towels - aviolent steam explosion may result.
DO NOT use water on a grease fire. Burning grease and water will explode.
D. Use an extinguisher ONLY if:
1) You know you have a class ABC extinguisher, and you already know how to operate it.
2) The fire is small and contained in the area where it started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit.
NOTE: Unit MUST be vented to the outside of the building.
IMPORTANT: Refer to ducting information suppfied in this Manual ( Pg. 9)
z_ WARNING:
To reduce the risk of electrical shock or injury to persons, all vent hoods must be installed with ventilators that have been approved for use with the hood.
Page 6

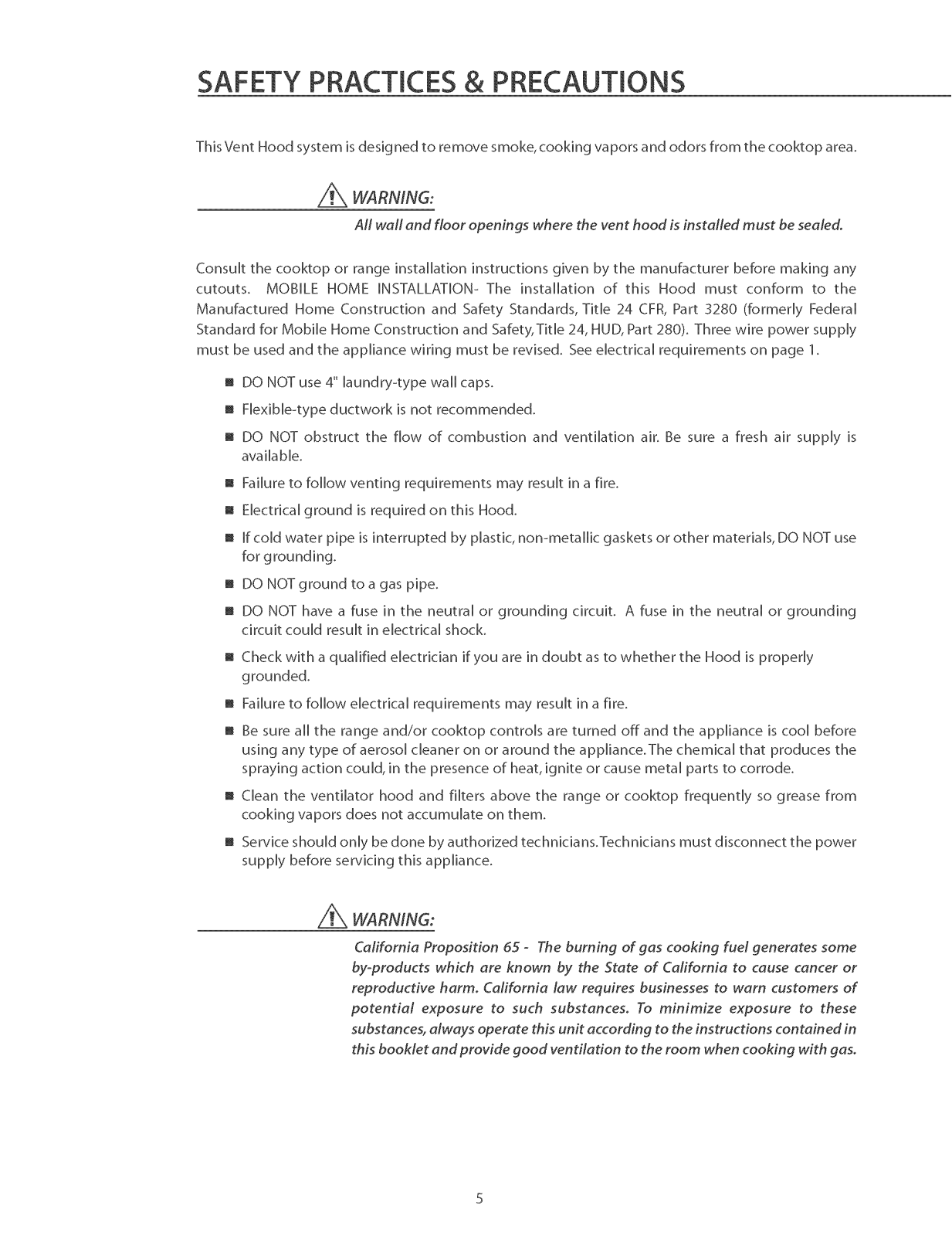

SAFETY PRACTICES& PRECAUTIONS
This Vent Hood system is designed to remove smoke, cooking vapors and odors from the cooktop area.
Z_ WARNING:
All wall and floor openings where the vent hood is installed must be sealed.
Consuff the cooktop or range installation instructions given by the manufacturer before making any cutouts. MOBHLE HOME INSTALLATION- The installation of this Hood must conform to the
Manufactured Home Construction and Safety Standards, TitHe 24 CFR, Part 3280 (formerly Federal Standard for Mobile Home Construction and Safety, TitHe 24, HUD, Part 280). Three wire power supply must be used and the app[hnce wiring must be revised. See electrical requirements on page 1.
[] DO NOT use 4" hundry-type wall caps. [] F[exiMe-type ductwork is not recommended.
[] DO NOT obstruct the flow of combustion and ventilation air. Be sure a fresh air supply is
available.
[] Failure to follow venting requirements may result in a fire. [] Electrical ground is required on this Hood. [] ffco[d water pipe is interrupted by plastic, non-metallic gaskets or other materials, DO NOT use
for grounding.
[] DO NOTground toa gas pipe. [] DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding
circuit could result in electrical shock.
[] Check with a qualified electrician if you are in doubt as to whether the Hood is properly
grounded. [] Failure to follow electrical requirements may result in a fire. [] Be sure a[[ the range and/or cooktop controls are turned off and the appliance is coo[ before
using any type of aerosol cleaner on or around the appliance.The chemical that produces the
spraying action could, in the presence of heat, ignite or cause metal parts to corrode. [] Clean the ventilator hood and filters above the range or cooktop frequently so grease from
cooking vapors does not accumulate on them. [] Service should only be done by authorized technicians.Technicians must disconnect the power
supply before servicing this appliance.
,/_ WARNING:
California Proposition 65 - The burning of gas cooking fuel generates some
by-products which are known by the State of California to cause cancer or reproductive harm. California law requires businesses to warn customers of
potential exposure to such substances. To minimize exposure to these substances, always operate this unit according to the instructions contained in
this booklet and provide good ventilation to the room when cooking with gas.
Page 7
EUROVENTHOOD
/
8"or 12" _"
{Duc:t Cover
A(c:essory Height)
<.

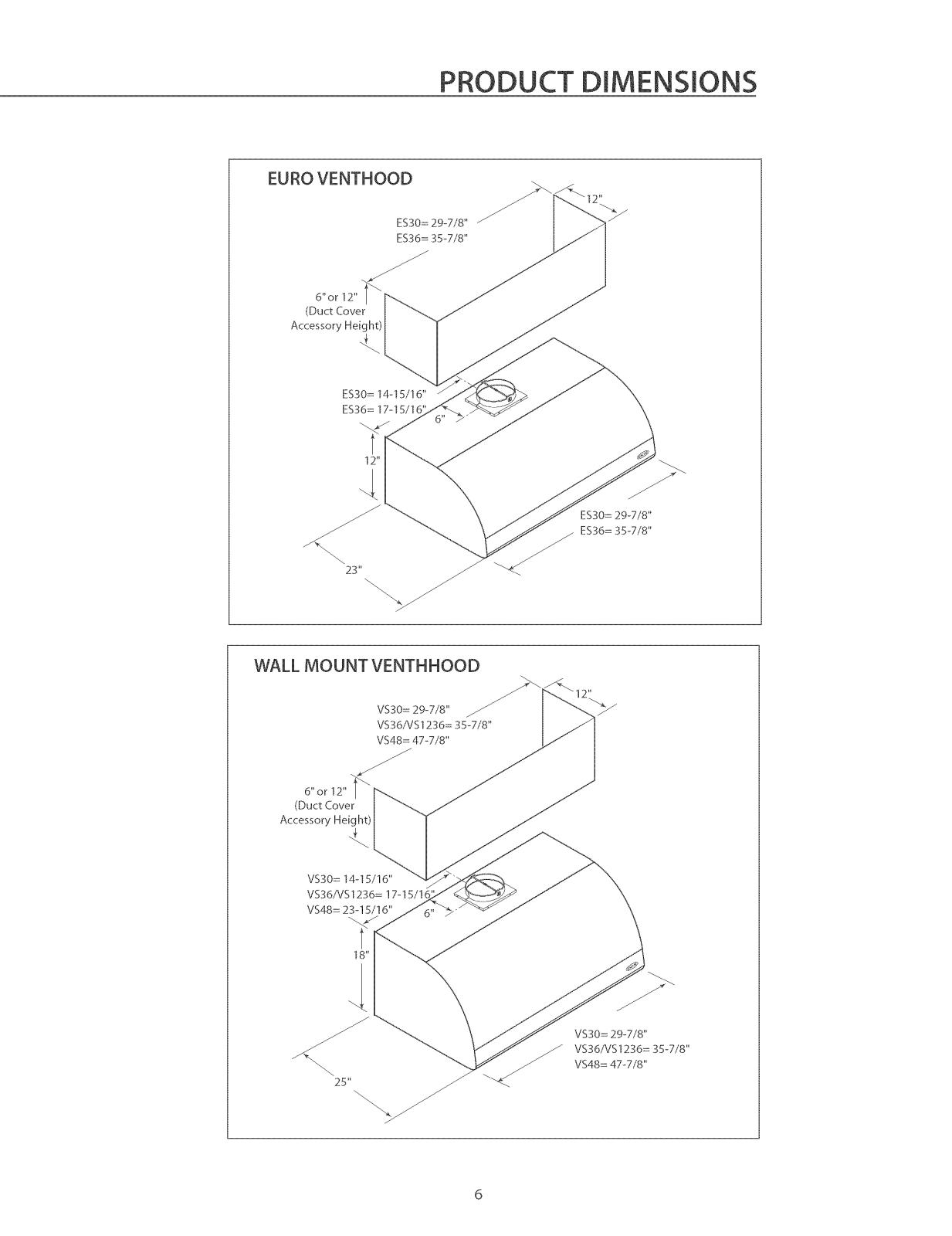

PRODUCT DIMENSIONS
ES3O= 29-718" / ES36= 35-718"
ES30= 29-7/8" ES38= 35-7/8"
WALL MOUNT VENTHHOOD
VS30= 29-718" VS38/VS'_236= 35-7/8" V548= 47-7/8"
J
6,,or12,,_ _"
{Duct Cover
Accessory Height)
VS30= _4-_5116" VS361VS_238= 17-15111 VS48= 23-15118"
j_
VS3O= 29-7/8" VS36/VS_238= 35-7/8"
/ VS48= 47-7/8"
Page 8

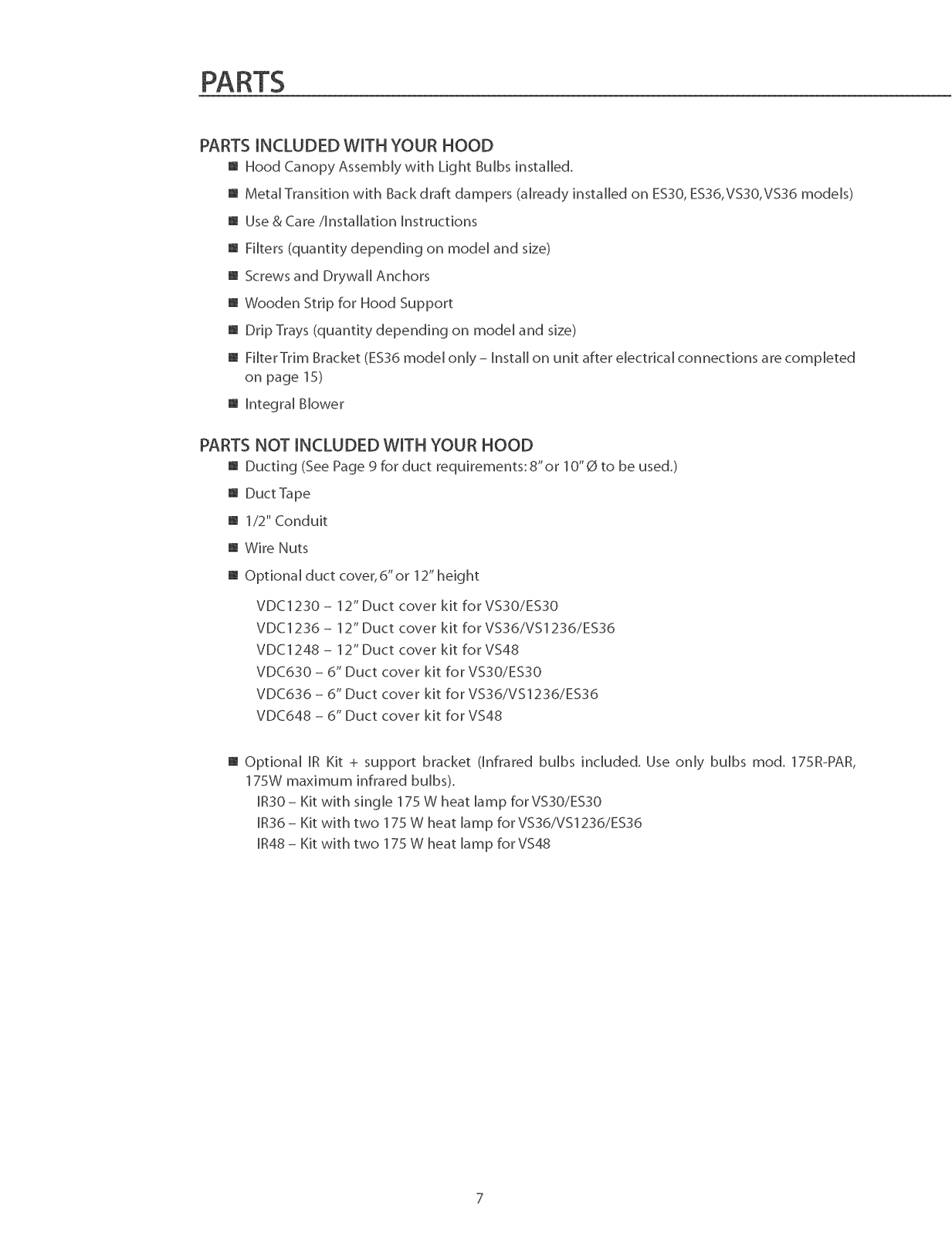

PARTS mNCLUDEDWmTHYOUR HOOD
n Hood Canopy Assembly with Light Bulbs installed. m MetaH Transition with Back draft dampers (aHready instaHHedon ES30, ES36,VS30,VS36 modeHs) m Use & Care/HnstaHHation Hnstructions
m FHters (quantity depending on modeH and size) n Screws and DrywaHHAnchors
n Wooden Strip for Hood Support m Drip Trays (quantity depending on modeH and size)
m FHterTdm Bracket (ES36 modeH onHy - HnstaHHon unit after eHectricaHconnections are compHeted
on page 15)
m HntegraHBHower
PARTS NOT INCLUDED WITH YOUR HOOD
m Ducting (See Page 9 for duct requirements:8"or 10"0 to be used.) m Duct Tape m 1/2" Conduit m Wire Nuts
m Optiona[ duct cover,6"or 12" height
VDC1230 - 12" Duct cover kit for VS30/ES30 VDC1236 - 12" Duct cover kit for VS36/VS1236/ES36
VDC1248 - 12" Duct cover kit for VS48 VDC630 - 6" Duct cover kit for VS30/ES30
VDC636 - 6" Duct cover kit for VS36/VS1236/ES36 VDC648 - 6" Duct cover kit for VS48
Optional HRKit + support bracket (Hnfrared bulbs included. Use only bulbs rood. 175R-PAR,
175W maximum infrared buHbs).
HB30- Kit with singHe 175 W heat [amp for VS30/ES30 HR36- Kit with two 175 W heat [amp for VS36/VS1236/ES3d HR48- Kit with two 175 W heat [amp for VS48
Page 9

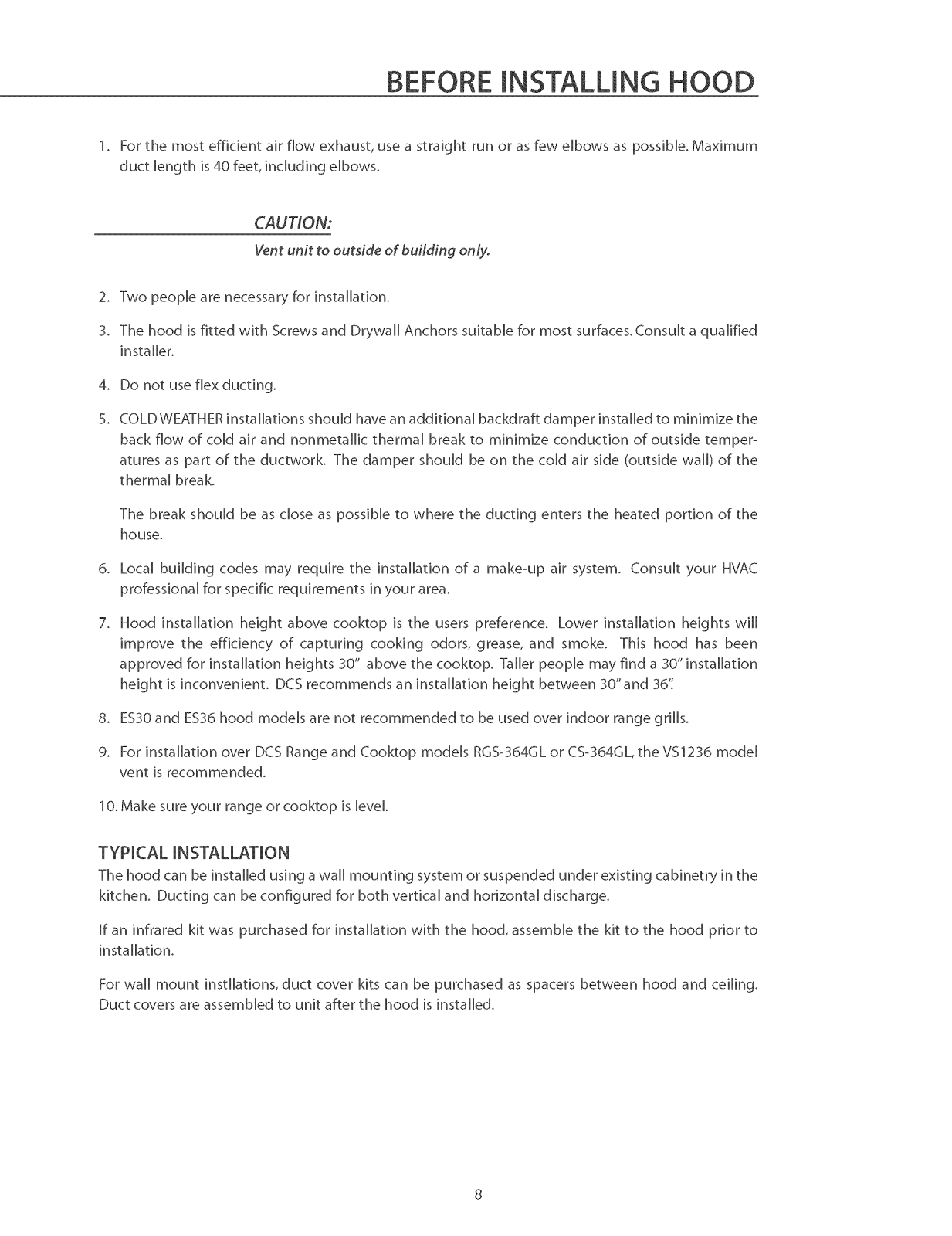

BEFORE INSTALLING HOOD
1. For the most efficient air flow exhaust, use a straight run or as few elbows as possible. Maximum duct [ength is 40 feet, incHuding eHbows.
CAUTION:
Vent unit to outside of building on!yo
2. Two peopHe are necessary for instaHHafion.
3. The hood is fitted with Screws and Drywall Anchors suitable for most surfaces.Consult a qualified installer.
4. Do not use flex ducfing.
5. COLDWEATHER installations should have an additional backdraff damper installed to minimize the
back flow of coHd air and nonmetaHHk therma[ break to minimize conduction of outside temper-
atures as part of the ductwork. The damper should be on the coHd air side (outside wahl) of the thermal break.
The break should be as choseas possible to where the ducting enters the heated portion of the
house,
6. Local building codes may require the installation of a make-up air system. Consult your HVAC
professional for specific requirements in your area.
7. Hood installation height above cooktop is the users preference. Lower installation heights wi[[ improve the efficiency of capturing cooking odors, grease, and smoke. This hood has been approved for installation heights 30" above the cooktop. Taller people may find a 30" installation
height is inconvenient. DCS recommends an installation height between 30"and 36'.'
8. ES30 and ES36 hood models are not recommended to be used over indoor range grills.
9. For installation over DCS Range and Cooktop models RGS-364GL or CS-364GL, the VS1236 mode[ vent is recommended.
10. Make sure your range or cooktop is [eveN.
TYPICAL INSTALLATION
The hood can be installed using a wall mounting system or suspended under existing cabinetry in the
kitchen. Ducting can be configured for both vertical and horizontal discharge.
If an infrared kit was purchased for installation with the hood, assemble the kit to the hood prior to installation.
For waN[ mount inst[[ations, duct cover kits can be purchased as spacers between hood and ceiling. Duct covers are assembled to unit after the hood is installed.
Page 10

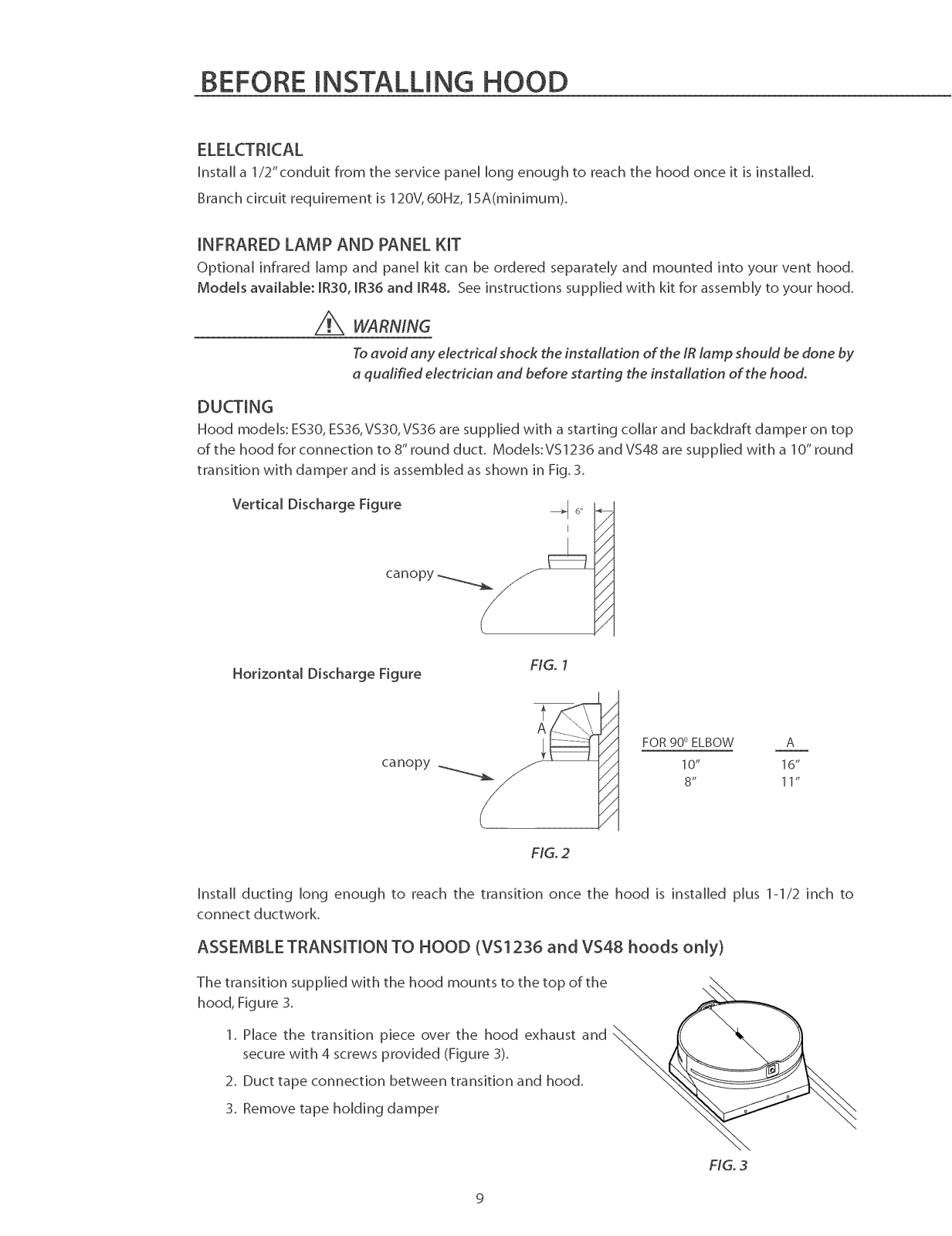

BEFOREINSTALLING HOOD
ELELCTRICAL
Hnsta[[a 1/2"conduit from the service pane[ long enough to reach the hood once it is installed. Branch circuit requirement is 120V, 60Hz, 15A(minimum).
INFRARED LAMP AND PANEL KiT
Optiona[ infrared [amp and pane[ kit can be ordered separateHy and mounted into your vent hood.
Models available: [R30, 1R36 and 1R48. See instructions supplied with kit for assembly to your hood.
//_ WARNING
Toavoid any electrical shock the installation of the IR lamp should be done by
a qualified electrician and before starting the instafladon of the hood.
DUCTING
Hood models: ES30, ES36,VS30,VS36 are supplied with a starting collar and backdraft damper on top of the hood for connection to 8" round duct. Models:VS1236 and VS48 are supplied with a 10" round transition with damper and is assembled as shown in Fig. 3.
Horizontal Discharge Figure
canopy ..__..-_
install ducting long enough to reach the transition once the hood is installed plus 1-1/2 inch to connect ductwork.
F/G. 1
FOR 900 ELBOW A
10" 16"
8" 11"
FIG, 2
ASSEMBLE TRANSITION TO HOOD (VS1236 and VS48 hoods only)
The transition supplied with the hood mounts to the top of the
hood, Figure 3.
1. Place the transition piece over the hood exhaust and secure with 4 screws provided (Figure 3).
2. Duct tape connection between transition and hood.
3. Remove tape holding damper
FIG. 3
Page 11
INSTALLATION

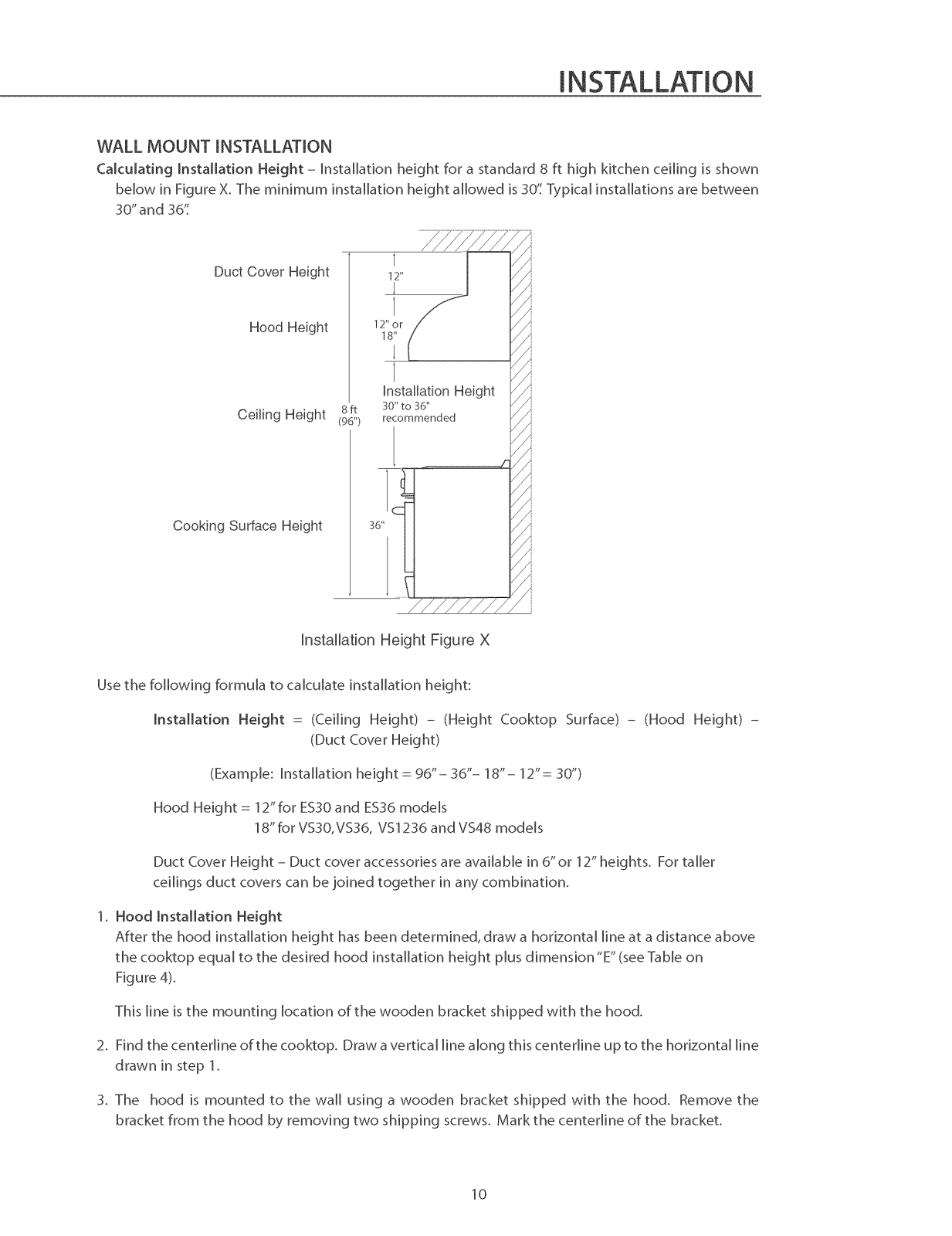

WALL MOUNT INSTALLATION
Calculating Installation Height - hsta[[ation height for a standard 8 ft high kitchen ceiling is shown
bellow in Figure X. The minimum instaHHation height aHHowedis 30'.' Typica[ instaHHations are between 30"and 36'.'
Duct Cover Height
Hood Height
Ceiling Height 8ft
Cooking Surface Height 36"
12" or
Installation Height
30" to 36"
recommended
(96")
installation Height Figure X
Use the following formula to calculate installation height:
Installation Height = (Ceiling Height) - (Height Cooktop Surface) - (Hood Height) -
(Duct Cover Height)
(Example: installation height = 9d"- 36"- 18"- 12"= 30")
Hood Height = 12"for ES30 and ES36 models
18" for VS30,VS36, VS1236 and VS48 models
Duct Cover Height - Duct cover accessories are available in d" or 12" heights. For taller
ceilings duct covers can be joined together in any combination.
1. Hood Installation Height After the hood installation height has been determined, draw a horizontal line at a distance above
the cooktop equal to the desired hood installation height plus dimension "E" (see Table on
Figure 4).
This line is the mounting location of the wooden bracket shipped with the hood.
2. Find the centerline of the cooktop. Draw a vertical line along this centerline up to the horizontal line drawn in step 1.
3. The hood is mounted to the wail using a wooden bracket shipped with the hood. Remove the
bracket from the hood by removing two shipping screws. Mark the centeriine of the bracket.
10
Page 12

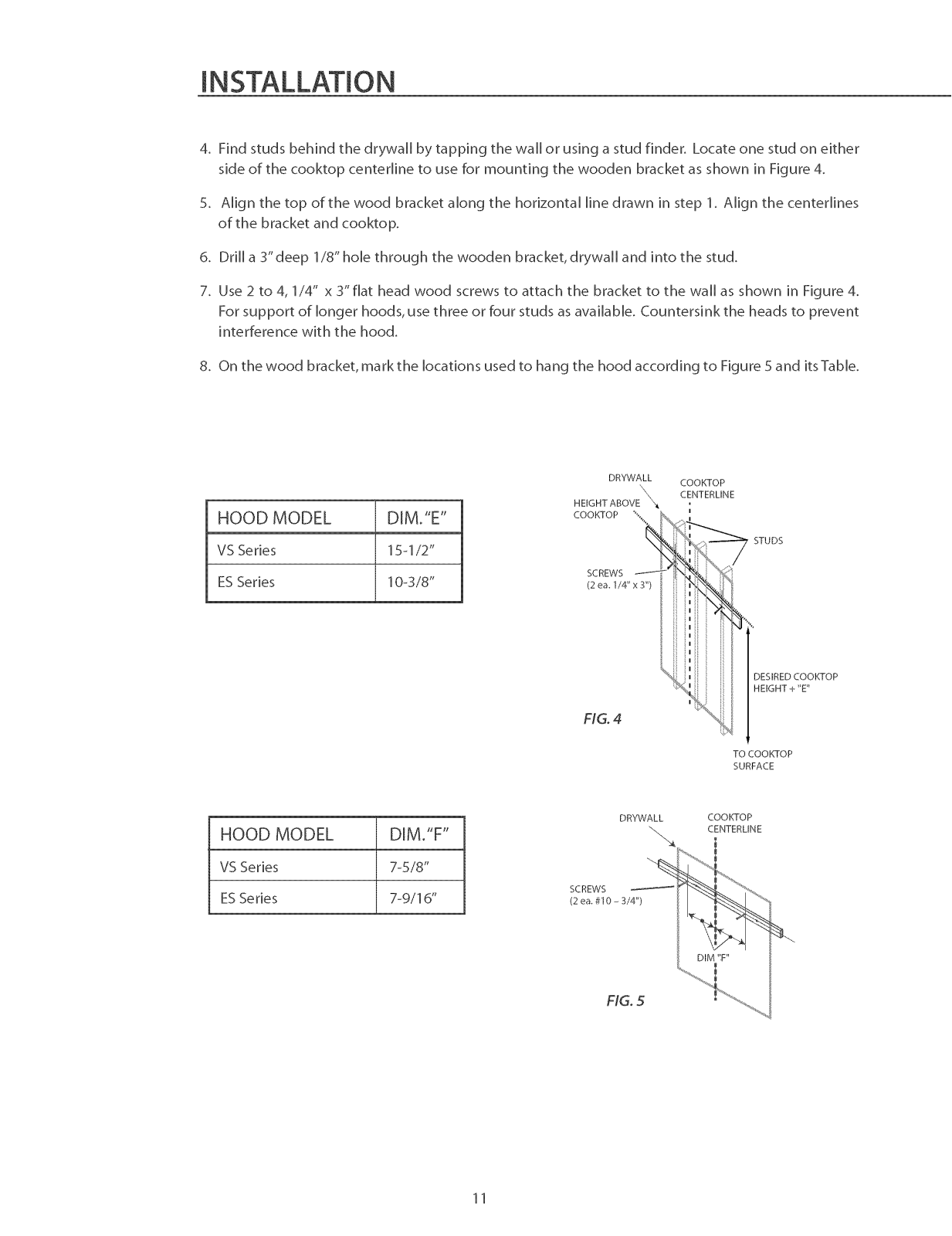

4.Findstudsbehindthedrywallbytappingthewallorusingastudfinder.Locateonestudoneither sideofthecooktopcentedinetouseformountingthewoodenbracketasshowninFigure4.
5. Alignthetopofthewoodbracketalongthehorizontallinedrawninstep1.Alignthecenteriines ofthebracketandcooktop.
6. DrH[a3"deep1/8"hoHethroughthewoodenbracket,drywallandintothestud.
7.Use2to4,1/4"x3"flatheadwoodscrewstoattachthebrackettothewallasshowninFigure4. Forsupportof[ongerhoods,usethreeorfourstudsasavaHaMe.Countersinktheheadsto prevent
interferencewiththehood.
8.Onthewoodbracket,markthelocationsusedtohangthehoodaccordingtoFigure5anditsTable.
DRYWALL COOKTOP
\\\ CENTERLINE
STUDS
HOOD MODEL DIM."E"
VS Series 15-1/2"
ESSeries 10-3/8"
HEIGHT ABOVE X_
COOKTOP
SCREWS
(2 ea. 1/4" x 3")
HOOD MODEL
VS Series
ESSeries
DIM."F"
7-5/8"
7-9/16"
FIG_4
DRYWALL
SCREWS (2 ea. #10 - 3/4")
FIG. 5
TO COOKTOP SURFACE
COOt<TOP CENTERLINE
)ESIRED COOKTOP
HEIGHT + "E"
11
Page 13
INSTALLATION

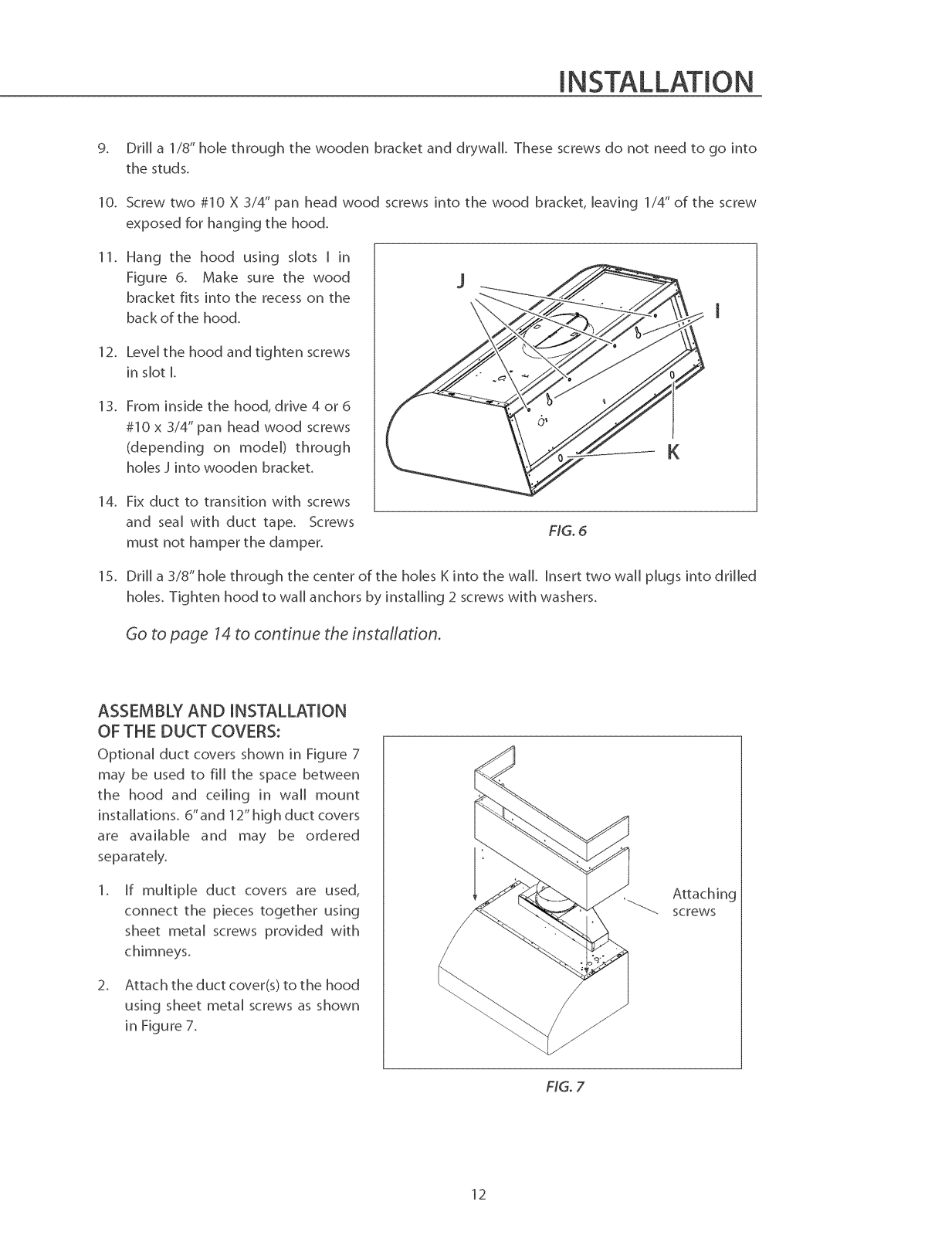

9. DrHNa 1/8" hone through the wooden bracket and drywaiL These screws do not need to go into the studs.
10. Screw two #10 X 3/4" pan head wood screws into the wood bracket, leaving 1/4" of the screw exposed for hanging the hood.
11. Hang the hood using slots I in
Figure 6. Make sure the wood bracket fits into the recess on the
back of the hood.
12. Level the hood and tighten screws in slot I.
13. From inside the hood, drive 4 or 6 #10 x 3/4" pan head wood screws
(depending on model) through holes J into wooden bracket.
14. Fix duct to transition with screws and seal with duct tape. Screws
must not hamper the damper.
FIG. 6
K
15. Dnil a 3/8" hole through the center of the holes K into the wail. insert two wail plugs into dniied
holes. Tighten hood to wall anchors by installing 2 screws with washers.
Go to page 14 to continue the instal/ation.
ASSEMBLY AND INSTALLATION OFTHE DUCT COVERS:
Opfionai duct covers shown in Figure 7
may be used to fiNNthe space between the hood and ceiiing in wall mount installations. 6"and 12"high duct covers are available and may be ordered separately.
if multiple duct covers are used,
connect the pieces together using
sheet metal screws provided with
chimneys.
2. Attach the duct cover(s) to the hood
using sheet metal screws as shown in Figure 7.
_ screws
Attaching
12
FiG. 7
Page 14
CABINET INSTALLATION
Cabinet Preparation
Z_ WARNING:
The cabinet must be structurMlyjoined to the wall studs to support the weight
of this hood.
Bottomof Cabinetor
Soffit '_
ES30/ES36 SERIES HOOD
VS30/VS36 SERIES HOOD
Cabinet
O ©
1 I/2" Dia,Holes Verticalconduit
option
/
©
A
I
C/L
2"Dia.Holes _ C) 10"
zontalconduit D) 6-3/4" vertical Discharge
option E) I-7/8"
CutoutWidth F) 5-3/4"
E530=30" G) 5-718" ES36=36" I) S-l/8"
VS1236/VS48 SERIES HOOD
Bottomof Cahinetor Soffit \
©
Vertical _ option Discharge/_ CutoutWidth
Cabinet
O ©
A
/_11-1/2" Dia.Holes
J Horizontalconduit
V530=30"
%36=36" V548=48"
%!236=36"
A) Min.12"
B) 6"
H) 1-7/8"
1 1/2" Dia,Holes Verticalconduit
option
I
/L
/
©
13
Page 15
INSTALLATION
CABINET INSTALLATION
1. Find the centeriine of the cabinet bottom, Draw a line along this centeriine from rear to front of the cabinet,
Refer to the top of the hood and Fig.8. Draw two lines, one at distance 'K'from the wail, the other one at distance 'Z'from the previous line. NOTE:These Hinesmust be perpendicular to the cabinet centeriine. Mark 4 points, two along each line at a distance of half W from the center line, to
determine the screw locations.
3. Fit four #10 pan head wood screws on cabinet bottom. Do not tighten completely but leave a space of about 1/2"from cabinet bottom surface and screw heads.
4. Hang the hood on screws through side slots provided on hood top.Tighten the four screws.
Dnll a 3/8" hole through the center of the holes K into the wall. Insert two wall plugs into dnlled holes. Tighten hood to wall anchors by installing 2 screws with washers,
5. Attach duct to transition with screws and sea[ with duct tape. Screws must not hamper the damper.
ESSERIES
ES30 2-11/16" 29-1/16" ES36 2-11/16" 6-7/8 35-1/16"
VS SERIES
VS30 2-5/8" 7-1/16" 29-1/16" VS36/VS1236 2-5/8" 7-1/16" 35-1/16"
VS48 2-5/8" 7-1/16" 47-1/16"
K 6-Z8''7/ W
K Z W
Side slot for cabinet bottom mounting
Z
W K
Knockouts (}unction box)
14
Transition with
gackdraft (Top outlet)
/
Screw for cabinet bottom installation
FIG. 8
/
iZ
Page 16
iNSTALLATiON
INTEGRAL VENTILATOR INSTALLATION
The Nntegra[ ventilator can be mounted to discharge air as shown in Figure 9. From the inside of the
hood, ship motor into the bracket on the Heft.Rotate motor upwards unti[ it snaps into the spring chip
on the right.
IMPORTANT: Secure the motor to the hood with the machine screw and [ock washer.
WIRING THE HOOD:
Z_ WARNING:
Turn off electricity et the service panel before wiring the unit.
Branch circuit requirement is 120V, 60Hz, 15A (minimum).
Connect the NntegraN Ventilator moNex pNug connector to the connector present inside the hood as shown in Figure 9 or Figure 10.
2.
Remove the j-box cover as shown in Figure 11.
3.
Remove 1 of 2 knockouts and install 1/2"conduit connector in j-box.
Run Mack, white, and green wires (#18 AWG) in 1/2" conduit from power suppNyto j-box.
Connect the bNack to bNack (hot Nine)wire, white to white (common Nine) wire and green/yeNNow wire to ground in j-box cover.
6.
CNose j- box cover.
7.
For ES36 onNy: mount the rifler trim bracket supplied on the right side of the hood.Check that all engage points perfectly match, then fix with 3 screws as shown in figure 12.
Final installation steps
\/
Bracket /
Motor
connector
/
//
/
Motor /
support Spring clip
FIG. 9
From Control Pane_
Integral ventilator
fixing point
Replace filters and grease trays as described in the Use & Care manual.Turn power on at service panel.
Check operation of the hood.
LOCATIONS
_ tSCREW
FIG, 12
15
Motor connector
FIG. 10
Power supply
conduit
From h
control pane[ /
FIG. 11
Page 17
HOW TO OBTAIN SERVICE
BEFORE YOU CALL FOR SERVICE
I Is the circuit breaker tripped or the fuse blown? I Is there a power outage in the area?
For warranty service, please contact your local service provider or DCS Customer Care Representative at (888) 281-5698. Before you ca[[, please have the following information ready:
[] Mode[ Number [] Serial Number [] Date of installation
[] A brief description of the probHem [] Proof of purchase
Your satisfaction is of the utmost importance to us, ffa problem cannot be resolved to your satisfaction, please ca[[,write or emaH us at:
Write:
Fisher & Payke[ Appliances, [nc, Attention: DCS Customer Care
5900 Sky[ab Road
Huntington Beach, CA 92647
emaH: support@dcsa pp[ia nces,com
16
Page 18
LENGTH OF WARRANTY
One (1) Year Fuji parts and Labor Covers the entire product Five (5) Year Limited warranty covering the switches and motor part only.
DCS WILL PAY FOR
AHHrepair Haborand parts found to be defective due to materhHs or workmanship for one fuHHyear'HN HOME" warranty during the first year of ownership. This does not appHy if the unit was subjected to
other than normaH househoHd use. Service must be provided by Authorized Factory Agent during
normaH working hours. No charges wHHbe made for repair or repHacement at the Hocation of initiaH instaHHation or factory for parts returned pre-paid, through the deaHer and chimed within the warranty
period, and found by DCS to be defective.
Replacement wH[ be EO.ELDCS, and DCS wH[ not be liable for any transportation costs, labor costs, or
export duties. This warranty shah not apply, nor can we assume responsibility for damage that might
result from failure to follow manufactures instructions or local codes, where the appliance has been
tampered with or altered in anyway or which, in our judgement, has been subjected to misuse,
negligence, or accident. Hmp[ied warranty shah not extend beyond the duration of this written
warranty. This warranty is in lieu of a[[ warranties expressed or implied and a[[ other obligations or
liability in connection with the sale of this appliance.
DCS WILL NOT PAY FOR
m Hnsta[[ation or start-up. m Shipping damage.
m Service by an unauthorized agency. m Damage or repairs due to service by an unauthorized agency or the use of unauthorized parts.
m Service during other than norma[ working hours. m Hmproper instaHHation, such as improper hook-up, etc. m Service visits to teach you how to use the appHiance; correct the instaHHation; reset circuit
breakers, repHace home fuses, cHeaning or maintenance.
m Repairs due to other than norma[ househoHd use. m Damage caused from accident, abuse, aHteration, misuse, incorrect instaHHationor instaHHation not
in accordance with [oca[ codes.
m Units instaHHed in non-residentia[ appHication such as day care centers, bed and breakfast
centers, churches, nursing homes, restaurants, hoteHs,schooHs, etc.
This warranty applies to appliances used in residential applications; it does not cover their use in commercial situations. This warranty is for products purchased and retained in the 50 states of the
U.S.A.,the District of Columbia and Canada.This warranty applies even if ),,ou should move during the warranty period. Should the appliance be sold b),,the original purchaser during the warranty period, the new owner continues to be protected until the expiration date of the original purchaser's warrant),,
period.
This warranty is in fieu of aft other warranties, expressed or implied, and all implied warranties, including warranties of merchantabifity and fitness for a particular purpose, are hereby disclaimed to
the full extent permitted by law. To the extent that implied warranties may not be disclaimed, the duration of any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited to the duration of this expressed warranty. This warranty gives you
spedfic legal rights. You may also have other rights which vary from state to state.
17
Page 19
18
Page 20
19
Page 21
20
Page 22
21
Page 23
5900 Skylab Road, Huntington Beach, CA 92647
Tel: 714,372,7000 , Fax:714.372.7001
Customer Care: 888,281.5698 www,dcsappliances.com
As product improvement is an ongoing process at DCS, we reserve the right to change specifications or design without
notice.
DCS am#liore constamment ses produits et se r#serve le droit de modifier les sp#cifications ou la conception de ses produJts sans aUQUn preavis.
P/N 17797 Rev. B Litho in USA 11/2004
Loading...
