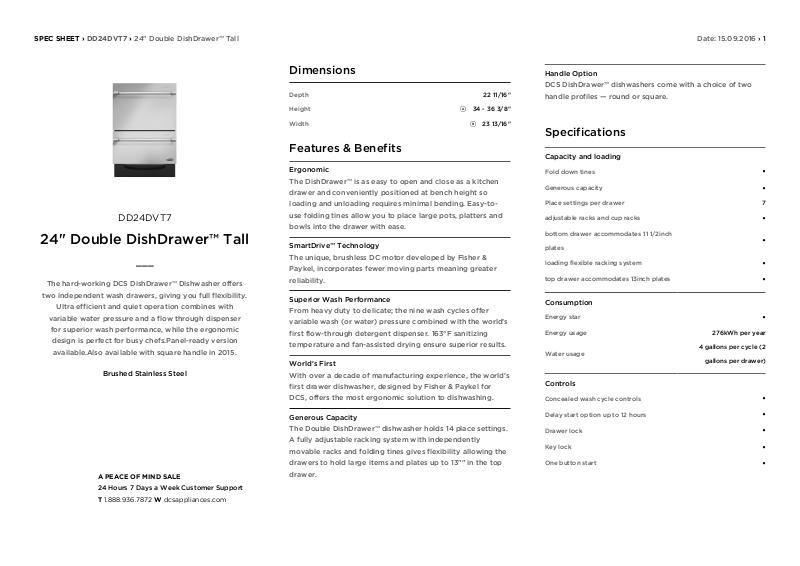

SPEC SHEET › DD24DVT7 › 24" Double DishDrawer™ Tall Date: 15.09.2016 › 1
DD24DVT7
24" Double DishDrawer™ Tall
___
The hard-working DCS DishDrawer™ Dishwasher offers
two independent wash drawers, giving you full flexibility.
Ultra efficient and quiet operation combines with
variable water pressure and a flow through dispenser
for superior wash performance, while the ergonomic
design is perfect for busy chefs.Panel-ready version
available.Also available with square handle in 2015.
Brushed Stainless Steel
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W dcsappliances.com
Dimensions
Depth 22 11/16"
Height
Width
A34 - 36 3/8"
B23 13/16"
Features & Benefits
Ergonomic
The DishDrawer™ is as easy to open and close as a kitchen
drawer and conveniently positioned at bench height so
loading and unloading requires minimal bending. Easy-to-
use folding tines allow you to place large pots, platters and
bowls into thedrawer with ease.
SmartDrive™ Technology
The unique, brushless DC motor developed by Fisher &
Paykel, incorporates fewer moving parts meaning greater
reliability.
Superior Wash Performance
From heavy duty to delicate; the nine wash cycles offer
variable wash (or water) pressure combined with the world’s
first flow-through detergent dispenser. 163°F sanitizing
temperature and fan-assisted drying ensure superior results.
World's First
With over a decade of manufacturing experience, the world’s
first drawer dishwasher, designed by Fisher & Paykel for
DCS, offers the most ergonomic solution to dishwashing.
Generous Capacity
The Double DishDrawer™ dishwasher holds 14 place settings.
A fully adjustable racking system with independently
movable racks and folding tines gives flexibility allowing the
drawers to hold large items and plates up to 13"" in the top
drawer.
Handle Option
DCS DishDrawer™ dishwashers come with a choice of two
handle profiles — round or square.
Specifications
Capacity and loading
Fold down tines
Generous capacity
Place settings per drawer 7
adjustable racks and cup racks
bottom drawer accommodates 11 1/2inch
plates
loading flexible racking system
top drawer accommodates 13inch plates
Consumption
Energy star
Energy usage 276kWh per year
Water usage
Controls
Concealed wash cycle controls
Delay start option up to 12 hours
Drawer lock
Key lock
One button start
4 gallons per cycle (2
gallons per drawer)
•
•
•
•
•
•
•
•
•
•
•
•
Page 2
SPEC SHEET › DD24DVT7 › 24" Double DishDrawer™ Tall Date: 15.09.2016 › 2
Performance
ADA Compliant
Flow through detergent dispenser
Smart Drive™ technology
Two dishwashers in one
•
•
•
•
Power requirements
Circuit Supply Voltage 15 A
Supply Frequency 60 Hz
Supply Voltage 120 V
Wire 3
Wash programmes
Nine wash cycles (including eco options)
Wash Cycles
9 Eco Option on all except
Rinse Cycle Rinse only
•
option
SKU 85282
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © 2016 DCS by Fisher & Paykel Appliances Limited
